Power Amplifiers

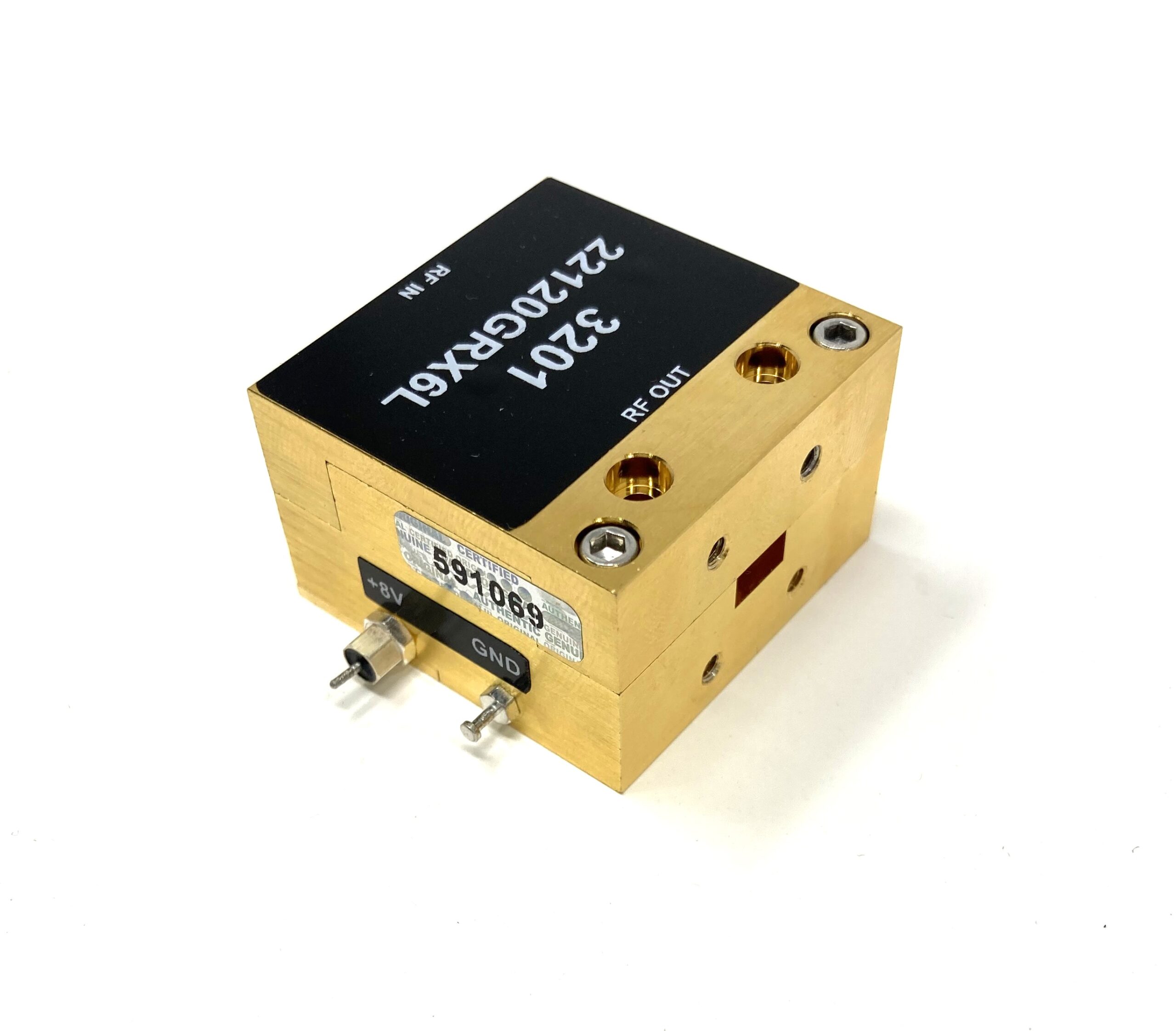

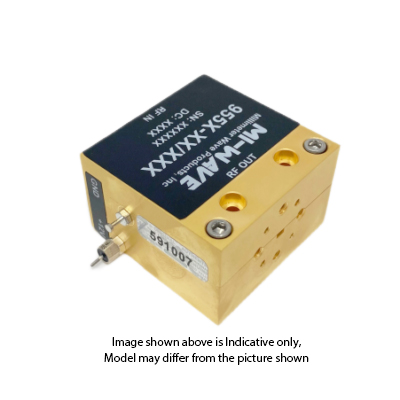

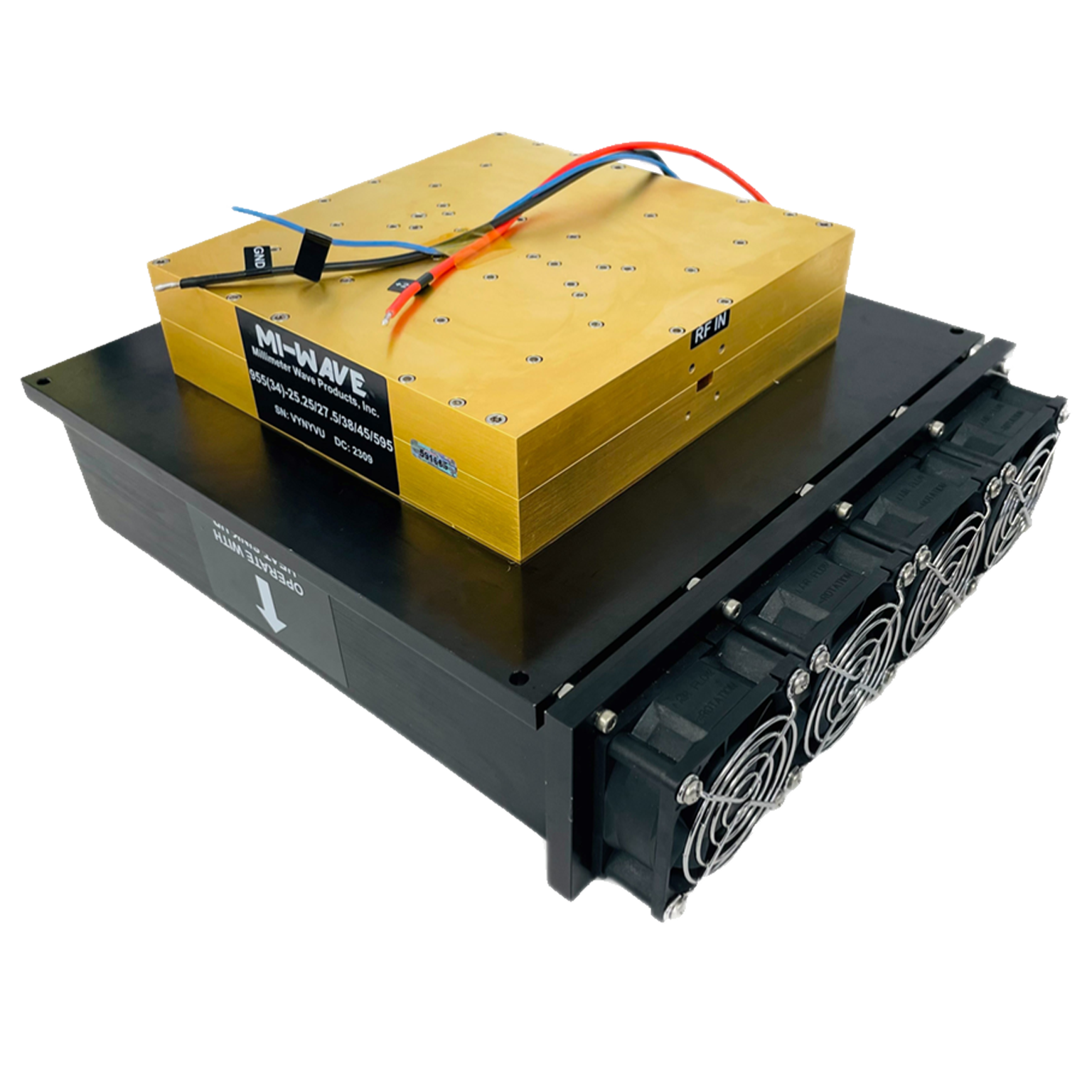

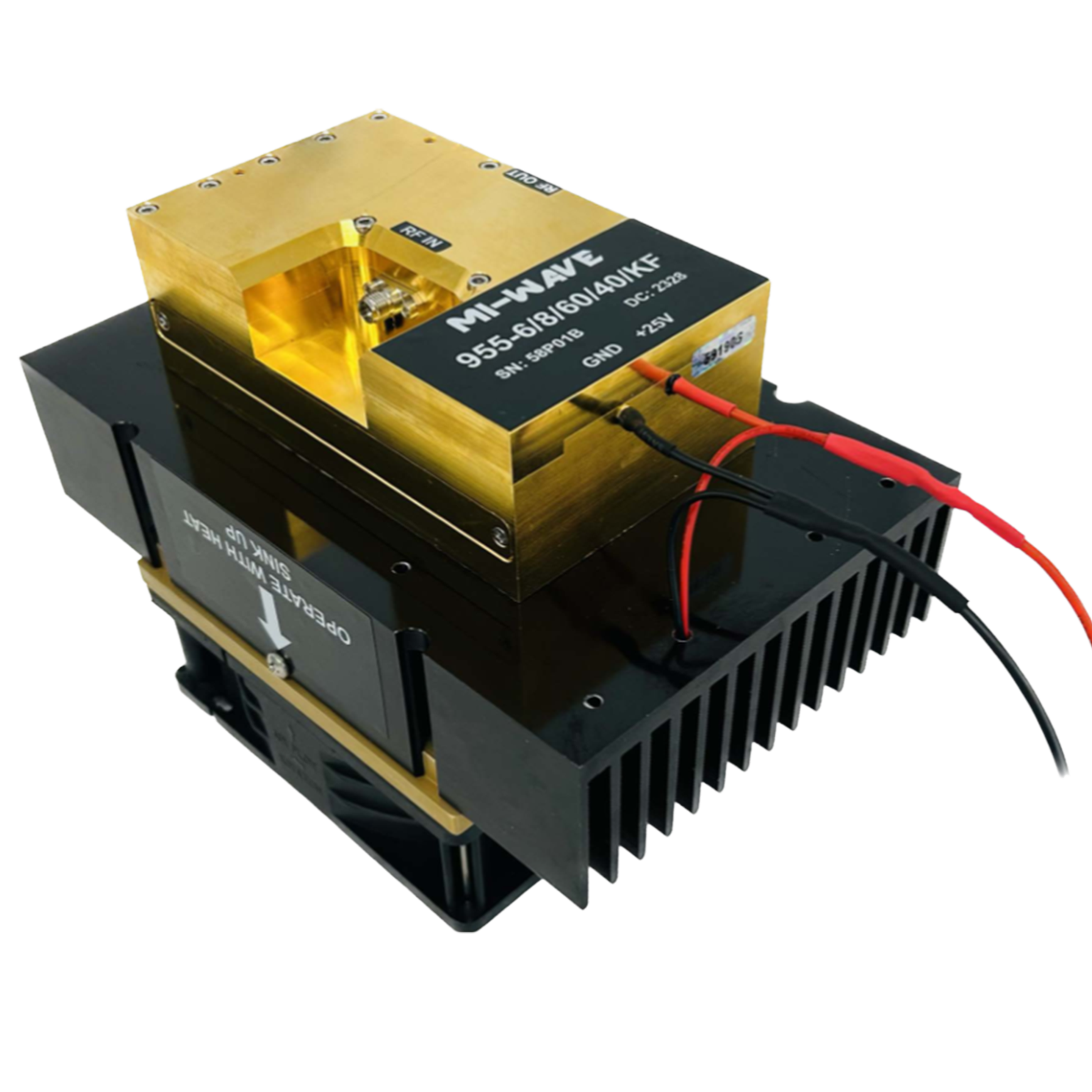

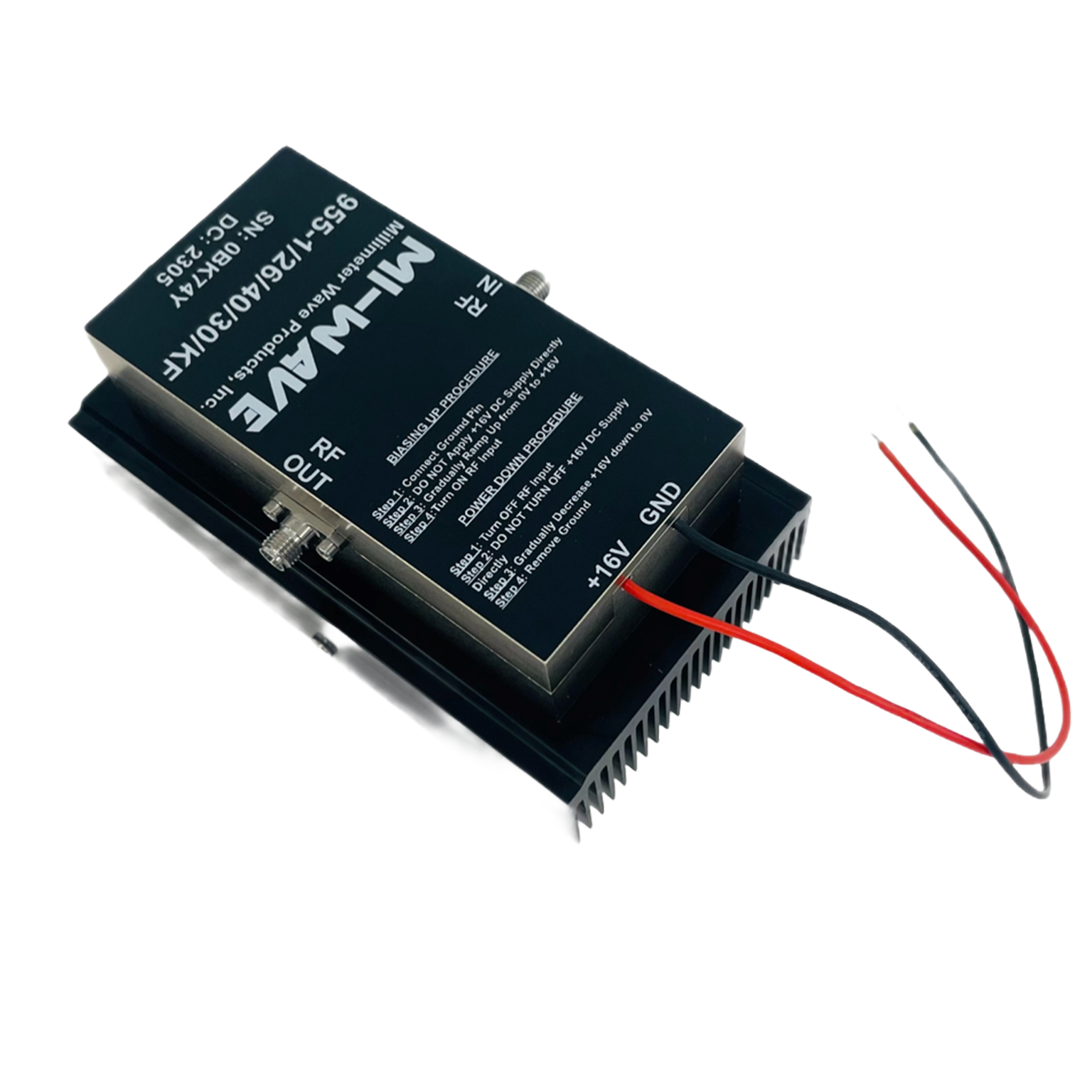

Mi-Wave’s 955 series microwave and millimeter wave power amplifiers offer a wide variety of frequency ranges, bandwidths, gain and power outputs. Please consult Mi-Wave for technical specifications and outline drawings.

Note: Our website contains just a few types of RF power amplifiers we build. Consult with us for your specific needs.

MIWV P/N DescriptionLow Frequency (GHz)High Frequency (GHz)Gain (dB)Output Power P1dB (dBm)Output Power Psat (dBm)Input/Output PortDC BiasLINK
955-18/40/25/24/KFCrossband Power Amplifier18402520242.92mm Female (K)+12V
View

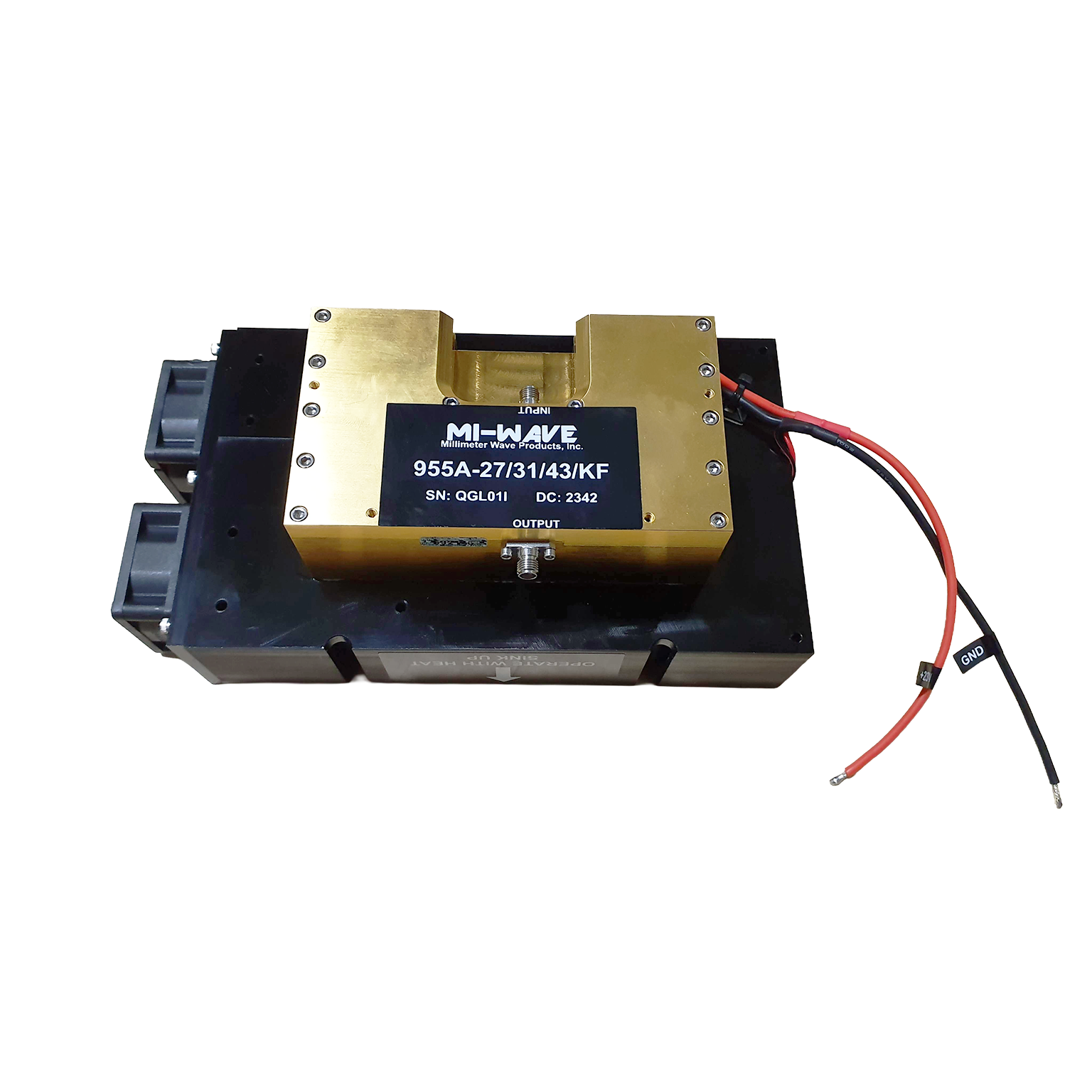

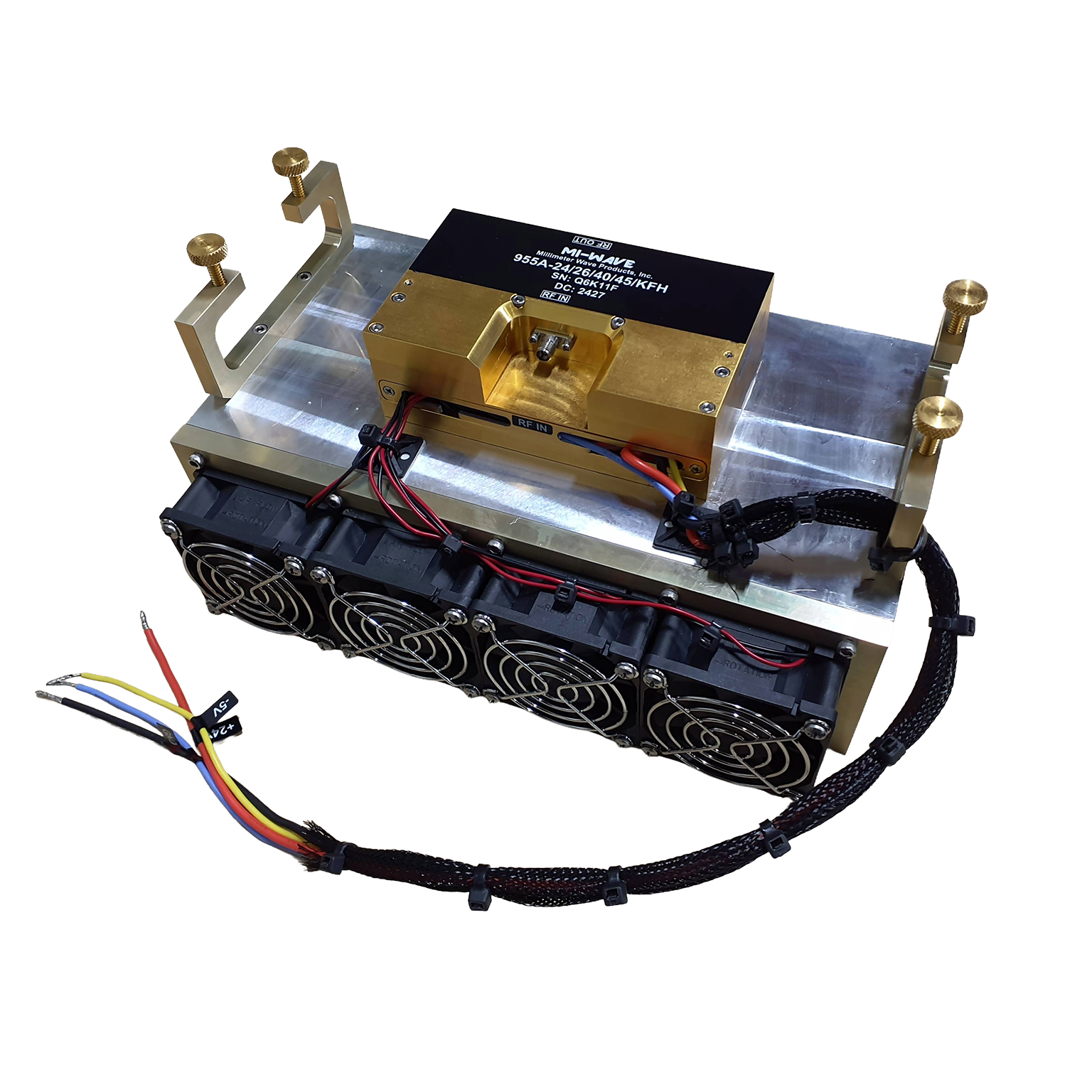

955A-24/30/40/45/KFHKa-band Power Amplifier243040452.92mm K Female Coaxial Connector+28V
955A-27/35/43/599Ka-band Power Amplifier26283543WR-28 Waveguide, UG-599/ K Female+20-25V
955A-28/29/30/36/KFHKa-band Power Amplifier2829403236WR-28 Waveguide, UG-599/U Flange+21-24V
View
955A-29.3/40/41.5/KF/599HACKa-band Power Amplifier29.34041.5WR-28,UG-599/K Female100 ~ 120V
View
955A-32/38/38/42.5/599Ka-band Power Amplifier32383842.5WR-28 waveguide, UG-599/U Flange+30V
955A-33/36.5/38/42.5/599Ka-band Power Amplifier32364542.5WR-28 waveguide, UG-599/U Flange+30V
View
955A-33/37/38/40/KFHKa-band Power Amplifier333738402.92mm K Female Coaxial Connector+30V
955A-37/44/40/43/KFHKa-band Power Amplifier374440432.92mm K Female Coaxial Connector+28V
955A-37/44/40/45/KFHKa-band Power Amplifier374440452.92mm K Female Coaxial Connector+28V
955AF-22/27/KFHKa-band Power Amplifier26.5402227282.92mm K Female Coaxial Connector+12-15V
955AF-30/18/599HKa-band Power Amplifier26.5403018WR-28 waveguide, UG-599/U Flange+8V
955AF-30/31/599HKa-band Power Amplifier26.5403031WR-28 waveguide, UG-599/U Flange+12-+15V
View
955AF-40/36/599HKa-band Power Amplifier26.5404036WR-28 waveguide, UG-599/U Flange+6V

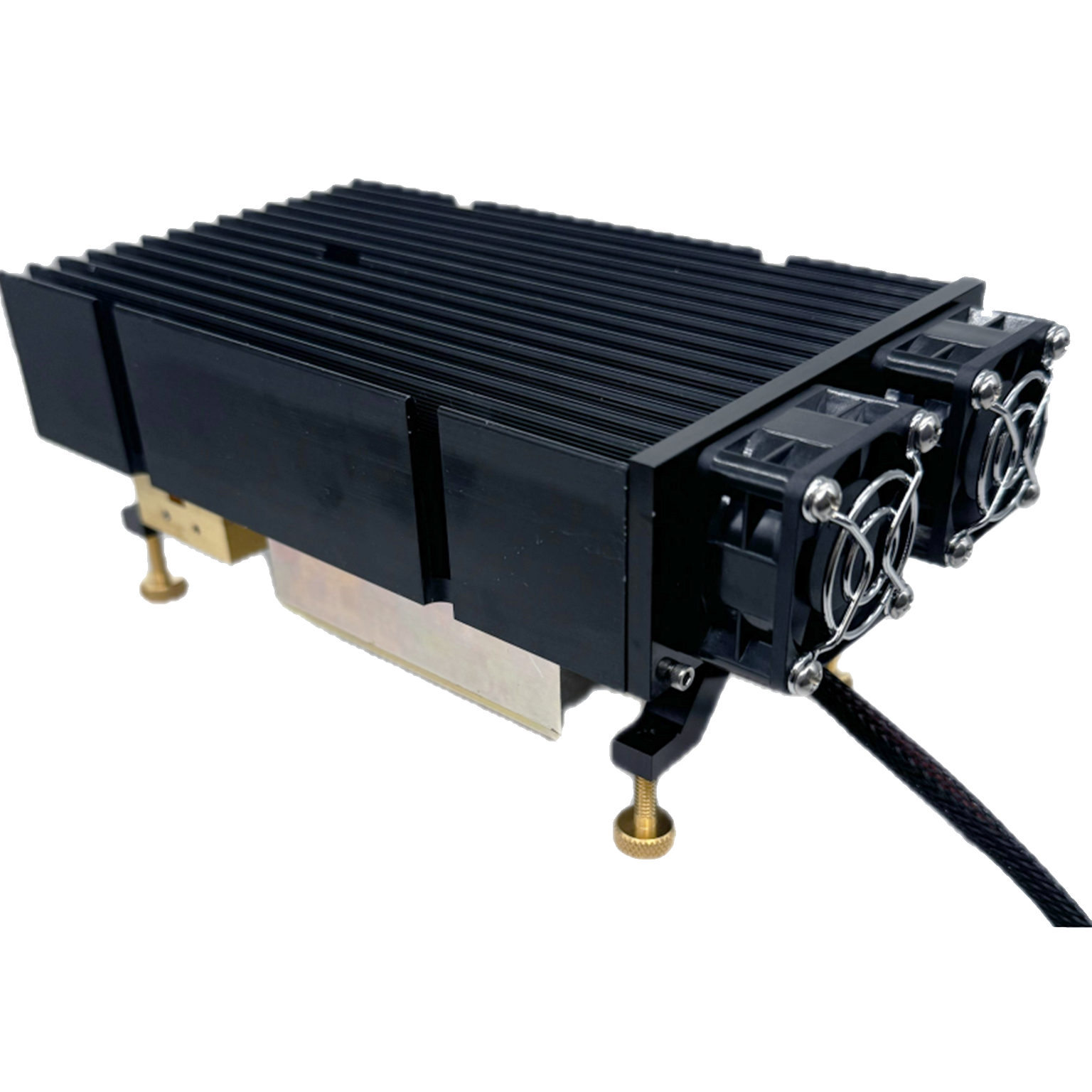

955B-35/48/30/27/383HB-band Power Amplifier3548302527WR-22 waveguide, UG-383/U Flange+8V
955B-35/48/30/27/383HB-band Power Amplifier3548302527WR-22 Waveguide wiith UG-383/U Flange+8V
View
955B-37/48.2/30/27/1.85mmFHB-band Power Amplifier3748.230271.85mm Female Coaxial Connector+6V
955B-43/46/30/33/2.4mmFHB-band Power Amplifier434630332.4mm Female Coaxial Connector+8V
View
955B-50/25/27/2.4mmFHB-band Power Amplifier49.550.52527302.4mm Female Coaxial Connector+6V
955B-50/40/44/383HB-band Power Amplifier49.550.5404447WR-22 Waveguide with UG-383/U Flanges+28V
955BF-30/20/383HB-band Power Amplifier33503020WR-22 waveguide, UG-383/U Flange+8V
955EF-25/15/387E-band Power Amplifier60902515WR-12 waveguide, UG-387/U Flange+8V
955U-44.1/35/33/383U-band Power Amplifier4048.2353033WR-19 Waveguide, UG-383/U-M Flange+6V
955U-47.2/48.2/35/39/383U-band Power Amplifier47.248.2353739WR-19 Waveguide, UG-383/U-M Flange+28V
955U-47/52.4/40/37/383U-band Power Amplifier4752.44037WR-19 Waveguide, UG-383/U-M Flange+28V
955U-47/52.4/40/40/383U-band Power Amplifier4752.44040WR-19 Waveguide, UG-383/U-M Flange+28V
955U-49/51/40/45/383HU-band Power Amplifier4951404145WR-19 Waveguide, UG-383/U-M Flange+28V
955U-49/51/40/45/383HU-band Power Amplifier4951404145WR-19 Waveguide, UG-383/U-M Flange+28V
955U-49/51/45/47/383HU-band Power Amplifier4951454347WR-19 Waveguide, UG-383/U-M Flange+28V
955U-49/51/45/47/383HU-band Power Amplifier4951454347WR-19 Waveguide, UG-383/U-M Flange+28V
955U-50/66/22/15/383U-band Power Amplifier50662215WR-19 Waveguide, UG-383/U-M Flange+8V
955U-50/67/20/20/1.85mmFU-band Power Amplifier506720201.85mm Female Coaxial Connector+6V
955UF-25/29/1.85mmFU-band Power Amplifier406025291.85mm Female Coaxial Connector+8-+12V
955UF-35/22/383U-band Power Amplifier40603522WR-19 Waveguide, UG-383/U-M Flange+8V
955V-50/25/20/2.4mmFV-band Power Amplifier49.550.52520232.4mm Female Coaxial Connector+6V
955V-50/68/35/18/385V-band Power Amplifier50683518WR-15 waveguide, UG-385/U Flange+6V
View
955V-50/70/28/15/385V-band Power Amplifier50702815WR-15 waveguide, UG-385/U Flange+6V
955V-55/65/30/24/385V-band Power Amplifier5565302224WR-15 waveguide, UG-385/U Flange+6V
955V-57/68/25/26/385V-band Power Amplifier57682526WR-15 waveguide, UG-385/U Flange+6V
955V-57/70/25/30/385HV-band Power Amplifier577025 30WR-15 waveguide, UG-385/U Flange+8V
955V-60/25/31.5/385HV-band Power Amplifier59612531.5WR-15 waveguide, UG-385/U Flange+6V
View
955VF-25/25/385HV-band Power Amplifier50752525WR-15 waveguide, UG-385/U Flange+6V
View
955VF-35/15/385V-band Power Amplifier50753515WR-15 waveguide, UG-385/U Flange+6V
955E-81/86/25/30/387E-band Power Amplifier81862530WR-12 waveguide, UG-387/U Flange+6V
955E-81/86/30/32.5/387E-band Power Amplifier81863030.532.5WR-12 waveguide, UG-387/U Flange+5V
955E-81/86/35/30/387E-band Power Amplifier81863530WR-12 waveguide, UG-387/U Flange+13 - +14V
955E-76/81/30/29/387E-band Power Amplifier7681302629WR-12 waveguide, UG-387/U Flange+12V
View
955E-71/76/25/30/387E-band Power Amplifier71762530WR-12 waveguide, UG-387/U Flange+6V
955E-71/76/30/32.5/387E-band Power Amplifier71763030.532.5WR-12 waveguide, UG-387/U Flange+5V
955E-70/95/20/16/387E-band Power Amplifier7095201516WR-12 waveguide, UG-387/U Flange+6V
955E-67.5/35/30/387HE-band Power Amplifier6570352730WR-12 waveguide, UG-387/U Flange+6V
View
955E-67.5/35/30/387HE-band Power Amplifier6471352730WR-12 waveguide, UG-387/U Flange+6V
955EF-25-15-387E-band Power Amplifier60903015WR-12 waveguide, UG-387/U Flange+6V -12V MAX
View
955EF-30/15/387E-band Power Amplifier60903015WR-12 waveguide, UG-387/U Flange+8V -12V MAX
View
955W-89/97/25/24/387HW-band Power Amplifier8997252427WR-10 Waveguide, UG-387/U-M Flange+12-+15V
955W-92/96/20/28/387W-band Power Amplifier92962028WR-10 Waveguide, UG-387/U-M Flange+6V
955W-92/96/25/30/387W-band Power Amplifier92962527.530WR-10 Waveguide, UG-387/U-M Flange+6V
View
955W-93/95/20/30/387W-band Power Amplifier93952030WR-10 Waveguide, UG-387/U-M Flange+6-+12V
955W-94/15/387W-band Power Amplifier92961232.5WR-10 Waveguide, UG-387/U-M Flange+6V
View
955W-94/20/32.5/387W-band Power Amplifier92962032.5WR-10 Waveguide, UG-387/U-M Flange+6V
955W-94/25/27/387W-band Power Amplifier92962527WR-10 Waveguide, UG-387/U-M Flange+6V
955W-94/30/26/387W-band Power Amplifier9296302628WR-10 Waveguide, UG-387/U-M Flange+6V
View
955W-94/30/30/387HW-band Power Amplifier92963030WR-10 Waveguide, UG-387/U-M Flange+6V
955W-94/30/37/387W-band Power Amplifier92963037WR-10 Waveguide, UG-387/U-M Flange+6V
955W-94/35/33/387W-band Power Amplifier92963533WR-10 Waveguide, UG-387/U-M Flange+6 - +7 V
955W-94/35/35/387W-band Power Amplifier92963535WR-10 Waveguide, UG-387/U-M Flange+13 - +14V
955WF-35/15/387HW-band Power Amplifier75110351015WR-10 Waveguide, UG-387/U-M Flange+6V
View
955VF-40/385V-Band Power Amplifier507540912WR-15 waveguide, UG-385/U Flange+6V
View

Note: Our website contains just a few types of RF power amplifiers we build. Consult with us for your specific needs.

955A-26/28/35/43/KF

26 GHz to 28 GHz, Small Signal Gain 42 dB, Output Power Psat +43 dBm

955A‐28/29/30/36/KFH

28GHz ‐ 29GHz, Small Signal Gain 40dB, P1dB 32dBm, Psat 36dBm

955A-29.3/40/41.5/KF/599HAC

29.3 GHz ± 0.3 GHz, Small Signal Gain 40 dB, Psat +41.5 dBm

955A-32/36.5/38/42.5/599

32GHz – 36 GHz, Small Signal Gain 45 dB, Output Power (Psat) +42.5 dBm

955AF-30/31/KFH

26GHz – 40GHz, Small Signal Gain 30dB, Output P1dB +31dBm

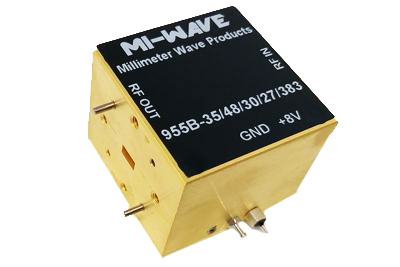

955B-35/48/30/27/383

35 GHz – 48 GHz, Small Signal Gain 30 dB, Output P1dB 25 dBm

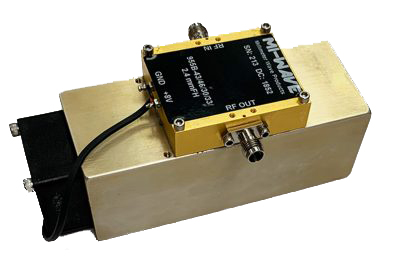

955B-43/46/30/33/2.4mmFH

43GHz – 46GHz, Small Signal Gain 30dB, Output P1dB +30dBm

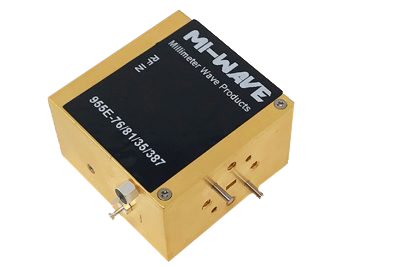

955E-76/81/35/387

76 GHz – 81 GHz, Small Signal Gain 30 dB, P1dB +26 dBm

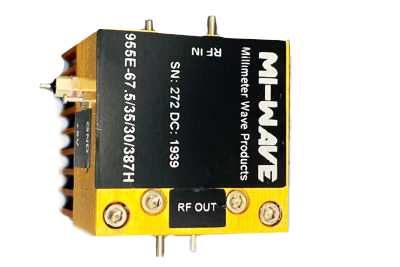

955E-67.5/35/30/387H

65 GHz – 70 GHz, Small Signal Gain 35 dB, Output Power (Psat) +30 dBm

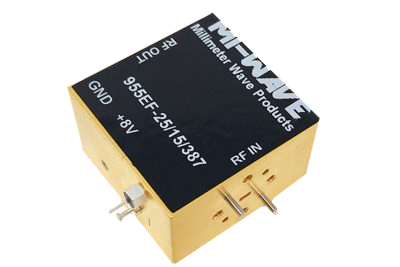

955EF-25-15-387

60GHz – 90GHz, Small Signal Gain 30 dB, Noise Figure 5 dB

955EF-30/15/387

60GHz – 90GHz, Small Signal Gain (dB) 30 dB

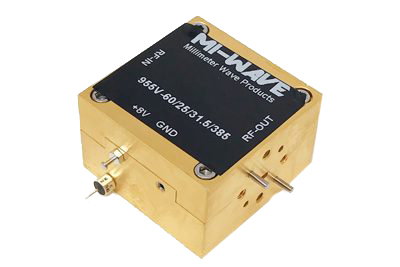

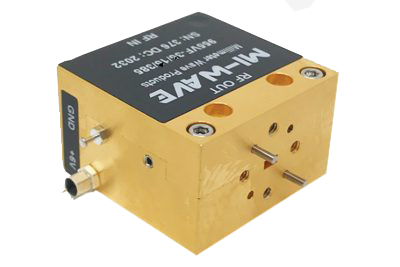

955VF-25/25/385H

50 GHz – 68 GHz, Small Signal Gain 25 dB, WR-15

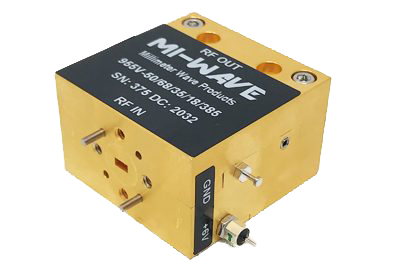

955V-50/68/35/18/385

50 GHz – 68 GHz, Small Signal Gain 35 dB, WR-15

955V-60/25/31.5/385

59-61 GHz V band, Small Signal Gain (dB) 25 dB

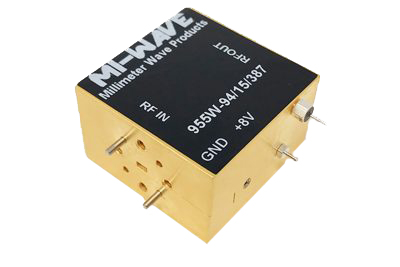

955W-94/15/387

92 GHz – 96 GHz, Small Signal Gain (dB) 12 dB, Noise Figure 4 dB

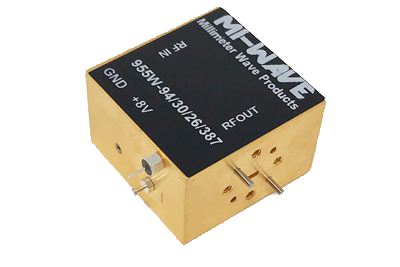

955W-94/30/26/387

92 GHz – 96 GHz, Small Signal Gain (dB) 20 dB, Output Power(Psat) (dBm) +28 dBm

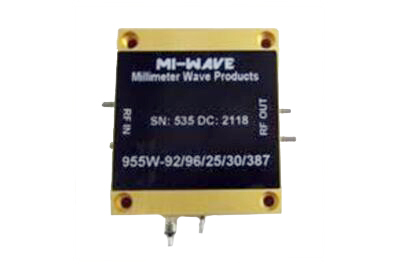

955W-92/96/25/30/387

92 GHz – 96 GHz, Small Signal Gain (dB) 25 dB, Output Power(Psat) (dBm) +30 dBm

955BF-30/20/383H-P

33GHz – 50GHz, Small Signal Gain (dB) 30 dB, Output Power(Psat) (dBm) +20 dBm

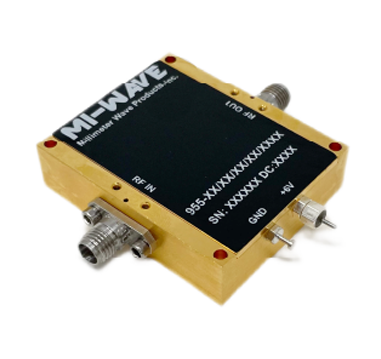

955-18/40/25/24/KF

18 – 40GHz, Small Signal Gain (dB) 25 dB, Output Power(Psat) (dBm) +24 dBm

955W-94/30/599

26.5 GHz – 40 GHz, Small Signal Gain (dB) 30 dB, Output Power(Psat) (dBm) +18 dBm

955-24/50/45/32/2.4mmF

24 – 50GHz, Small Signal Gain (dB) 40 to 45 dB, Output Power(Psat) (dBm) +31 dBm

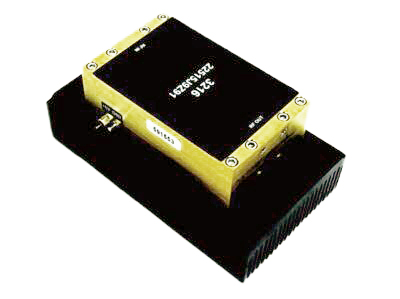

955AF-30/31/599H-P

26.5GHz – 40GHz, Small Signal Gain (dB)30 dB, Output Power(Psat) (dBm) +31 dBm

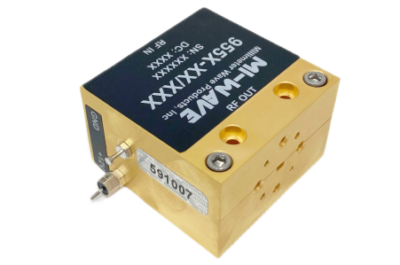

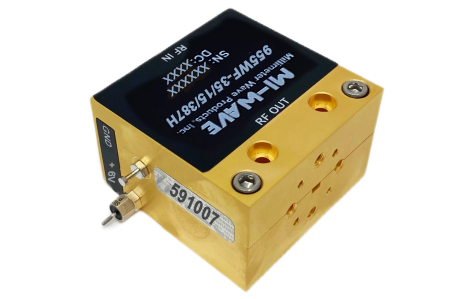

955WF-35/15/387H

75GHz – 110GHz, Small Signal Gain (dB)35 dB, Output Power(Psat) (dBm) +15 dBm

955VF-40/385

50 GHz – 75 GHz , Small Signal Gain (dB) 40 dB, Output Power(Psat) (dBm) +12 dBm

955Ka-32/36.5/38/381

Ka Band Power Amplifier 32 GHz – 36.5 GHz, 38 dB Gain

955Ka-32/36.5/38/40/381

Ka Band Power Amplifier 32 GHz – 36.5 GHz, 38 dB Gain, Output Power Psat +40 dBm
955Ka-32/36.5/38/42.5/381
Ka Band Power Amplifier 32 GHz – 36.5 GHz, 38 dB Gain, Output Power Psat +42.5 dBm
955-30/45/40/37/383
CrossBand Power Amplifier 30 GHz – 45 GHz, 40 dB Gain, Output Power Psat +37 dBm
955-30/45/40/46/383
CrossBand Power Amplifier 30 GHz – 45 GHz, 40 dB Gain, Output Power Psat +46 dBm
955B-33/47/30/30/383
Q Band Power Amplifier 33 GHz – 47 GHz, 30 dB Gain, Output Power Psat +30 dBm
955BF-30/20/383
Q Band Power Amplifier 33 GHz – 50 GHz, 30 dB Gain, Output Power Psat +20 dBm
955BF-30/20/383H
Q Band Power Amplifier 33 GHz – 50 GHz, 30 dB Gain, Output Power Psat +20 dBm
955B-35/48/30/27/383
Q Band Power Amplifier 35 GHz – 48 GHz, 30 dB Gain, Output Power Psat +27 dBm
955B-35/48/30/27/383
Q Band Power Amplifier 35 GHz – 48 GHz, 30 dB Gain, Output Power Psat +27 dBm
955B-35/48/30/27/383H
Q Band Power Amplifier 35 GHz – 48 GHz, 30 dB Gain, Output Power Psat +27 dBm
955B-36/50/30/30/383
Q Band Power Amplifier 36 GHz – 50 GHz, 30 dB Gain, Output Power Psat +30 dBm
955B-40/48/35/30/383
Q Band Power Amplifier 40 GHz – 48 GHz, 35 dB Gain, Output Power Psat +30 dBm
955B-40/48/35/30/383
Q Band Power Amplifier 40 GHz – 48 GHz, 35 dB Gain, Output Power Psat +32 dBm
955B-40/50/25/383
Q Band Power Amplifier 40 GHz – 50 GHz, 25 dB Gain
955B-43/46/30/33/383H
Q Band Power Amplifier 43 GHz – 46 GHz, 30 dB Gain, Output Power Psat +33 dBm
955B-44/30/20/2.4mmF/383H
Q Band Power Amplifier 44 GHz, 30 dB Gain, Output Power Psat +20 dBm
955B-45/50/15/35/383
Q Band Power Amplifier 45 GHz – 50 GHz, 15 dB Gain, Output Power Psat +35 dBm
955B-47.2/48.2/30/30/383
Q Band Power Amplifier 47.2 GHz – 48.2 GHz, 30 dB Gain, Output Power Psat +30 dBm
955B-50/35/40/383
Q Band Power Amplifier 50 GHz, 35 dB Gain, Output Power Psat +40 dBm
955B-50/40/44/383
Q Band Power Amplifier 50 GHz, 40 dB Gain, Output Power Psat +44 dBm
955B-50/40/44/383H
Q Band Power Amplifier 50 GHz, 40 dB Gain, Output Power Psat +44 dBm
955UF-25/30/383
U Band Power Amplifier 40 GHz – 60 GHz, 25 dB Gain, Output Power Psat +30 dBm
955UF-25/30/383H
U Band Power Amplifier 40 GHz – 60 GHz, 25 dB Gain, Output Power Psat +30 dBm
955UF-30/28/383
U Band Power Amplifier 40 GHz – 60 GHz, 30 dB Gain, Output Power Psat +28 dBm
955UF-35/22/383
U Band Power Amplifier 40 GHz – 60 GHz, 35 dB Gain, Output Power Psat +22 dBm
955UF-35/30/383H
U Band Power Amplifier 40 GHz – 60 GHz, 35 dB Gain, Output Power Psat +30 dBm
