Rectangular Waveguide – to – Rectangular Waveguide Adapters

Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss. These adapters are available in many waveguide size combinations from 8.4 to 320 GHz. In addition to the standard configurations listed in this section, many special transitions will be developed upon request

Choose your frequency below:

Note: Consult with factory for specific band frequency

Note: Our website contains just a few types of  Waveguide Adapters we build. Consult with us for your specific needs.

ModelBandFrequency (GHz)RF PortVSWRLINK
692X-B/39/383X-Band
Q-Band
8.2-12.4
33-50
WR-90 Waveguide with UG-39/U Flange
WR-22 Waveguide, UG-383/U Flange
1.10:1
View
692X-Ku/39/419X-Band
Ku-Band
8.2-12.4
12.4-18
WR-90 Waveguide with UG-39/U Flange
WR-62 Waveguide, UG-419/U Flange
1.10:1
View
692Ku-K/419/595Ku-Band
K-Band
12.4-118
18-26.5
WR-62 Waveguide, UG-419/U Flange
WR-42 Waveguide, UG-595/U Flange
1.10:1
View
692K-B/595/383K-Band
Q-Band
18-26.5
33-50
WR-42 Waveguide, UG-595/U Flange
WR-22 Waveguide, UG-383/U Flange
1.10:1
View
692K-A/595/599K-Band
Ka-Band
18-26.5
26.5-40
WR-42 Waveguide, UG-595/U Flange
WR-28 Waveguide, UG-599/U Flange
1.10:1
View
692A-H/599/387Ka-Band
H-Band
26.5-40
170-260
WR-28 Waveguide, UG-599/U Flange
WR-04 Waveguide, UG-387/U-M Flange
1.15:1
View

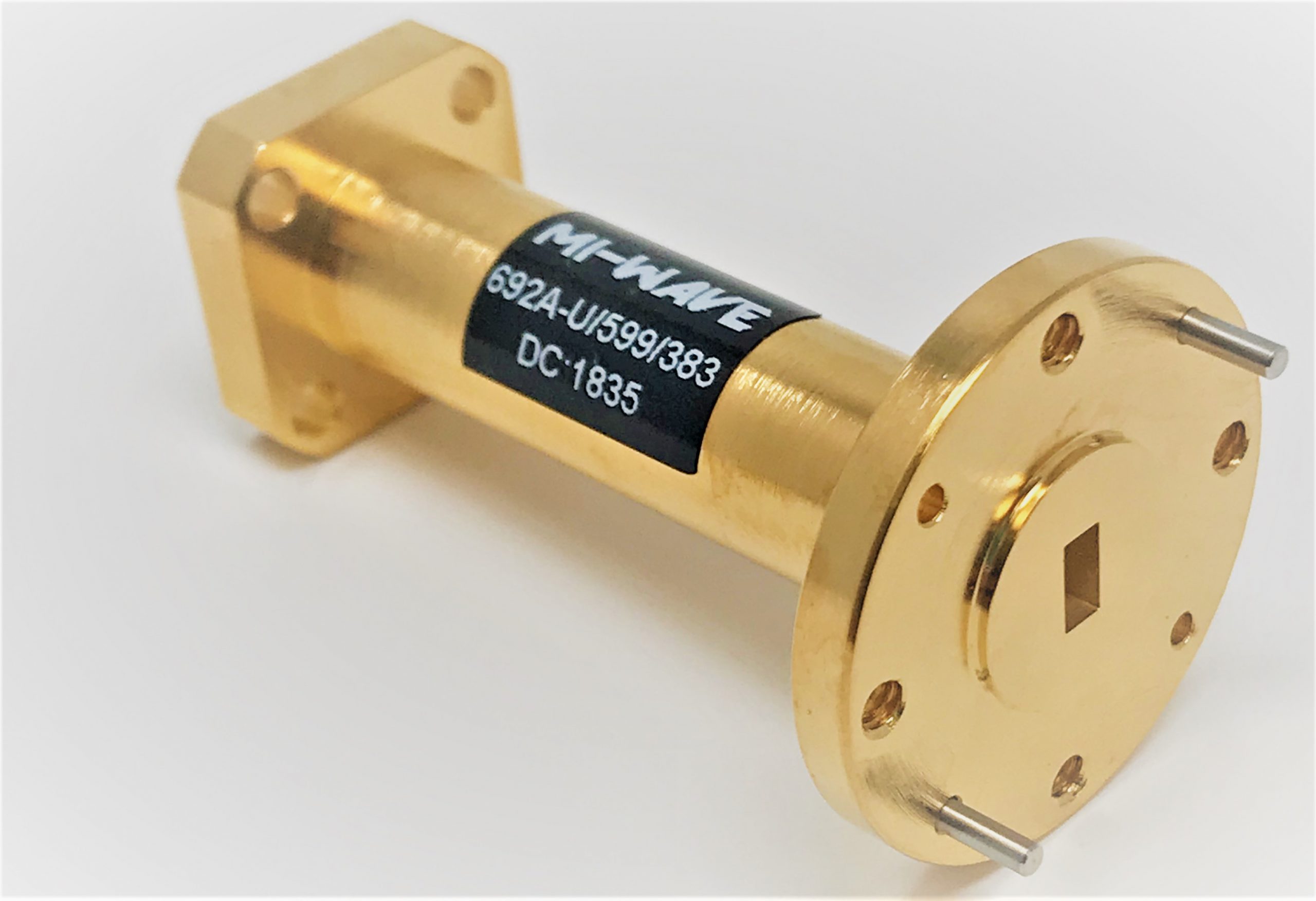

692A-U/599/383Ka-Band
U-Band
26.5-40
40-60
WR-28 Waveguide, UG-599/U Flange
WR-19 Waveguide, UG-383/U-M Flange
1.10:1
View
692A-V/599/385Ka-Band
V-Band
26.5-40
50-75
WR-28 Waveguide, UG-599/U Flange
WR-15 Waveguide, UG-385/U Flange
1.10:1
View
692B-U/383Q-Band
U-Band
33-50
40-60
WR-22 Waveguide, UG-383/U Flange
WR-19 Waveguide, UG-383/U-M Flange
1.10:1
View
692B-V/383/385Q-Band
V-Band
33-50
50-75
WR-22 Waveguide, UG-383/U Flange
WR-15 Waveguide, UG-385/U Flange
1.10:1
View
692U-V/383/385U-Band
V-Band
40-60
50-75
WR-19 Waveguide, UG-383/U-M Flange
WR-15 Waveguide, UG-385/U Flange
1.10:1
View
692V-E/385/387V-Band
E-Band
50-75
60-90
WR-15 Waveguide, UG-385/U Flange
WR-12 Waveguide, UG-387/U Flange
1.10:1
View
692E-W/387E-Band
W-Band
60-90
75-110
WR-12 Waveguide, UG-387/U Flange
WR-10 Waveguide, UG-387/U-M Flange
1.10:1
View
692W-D/387W-Band
D-Band
75-110
110-170
WR-10 Waveguide, UG-387/U-M Flange
WR-06 Waveguide, UG-387/U-M Flange
1.15:1
View
692W-F/387W-Band
F-Band
75-110
90-140
WR-10 Waveguide, UG-387/U-M Flange
WR-8 Waveguide, UG-387/U-M Flange
1.12:1
View
692W-J/387W-Band
J-Band
75-110
220-325
WR-10 Waveguide, UG-387/U-M Flange
WR-03 Waveguide, UG-387/U-M Flange
1.15:1
View
692F-D/387F-Band
D-Band
90-140
110-170
WR-08 Waveguide, UG-387/U Flange
WR-06 Waveguide, UG-387/U-M Flange
1.15:1
View

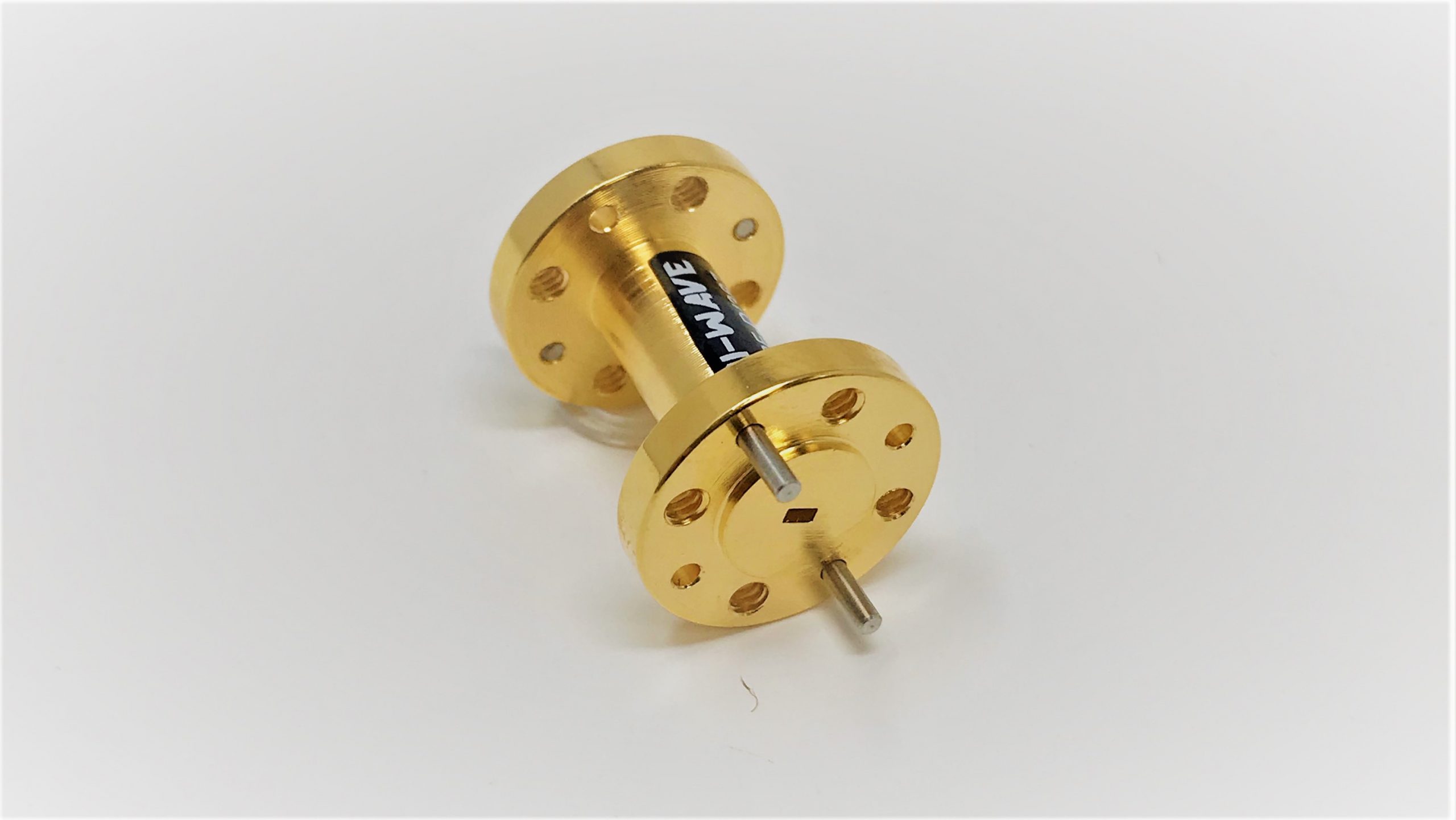

692D-G/387D-Band
G-Band
110-170
140-220
WR-06 Waveguide, UG-387/U-M Flange
WR-05 Waveguide, UG-387/U-M Flange
1.15:1
View
692G-H/387G-Band
H-Band
140-220
170-260
WR-05 Waveguide, UG-387/U Flange
WR-04 Waveguide, UG-387/U-M Flange
1.25:1
View
692H-J/387H-Band
J-Band
170-260
220-325
WR-04 Waveguide, UG-387/U Flange
WR-03 Waveguide, UG-387/U-M Flange
1.25:1
View
692J-(2.2)/387J-Band
WR-2.2
220-325
330-500
WR-03 Waveguide, UG-387/U Flange
WR-2.2 Waveguide, UG-387/U-M Flange
1.25:1
View

Note: Our website contains just a few types of  Waveguide Adapters we build. Consult with us for your specific needs.
