Waveguide Calibration Kits | 18 GHz – 325 GHz

Mi-Wave’s 780 Series Waveguide Calibration Kits are made to precisely calibrate Vector Network Analyzers (VNA) utilizing millimeter waveguide test heads or modules from 18 to 325 GHz. These kits provide the Short-Short-Load-Thru (SSLT) calibration method utilizing offset shorts and fixed precision termination.

The precision fixed shorts have been selected to provide a high level of return loss >40 dB and fixed short circuits are optimized to 1/8, 1/4, and 3/8 wavelengths with tight tolerances. These kits are provided with two rugged straight waveguides, 1/8. 1/4, 3/8, and reference short circuits precision fixed to load in a foam-lined wooden case.

Operational Video

K-Band, 18GHz – 26.5 GHz, Waveguide Calibration Kits

780K/595/, VSWR 1.06:1

View Product

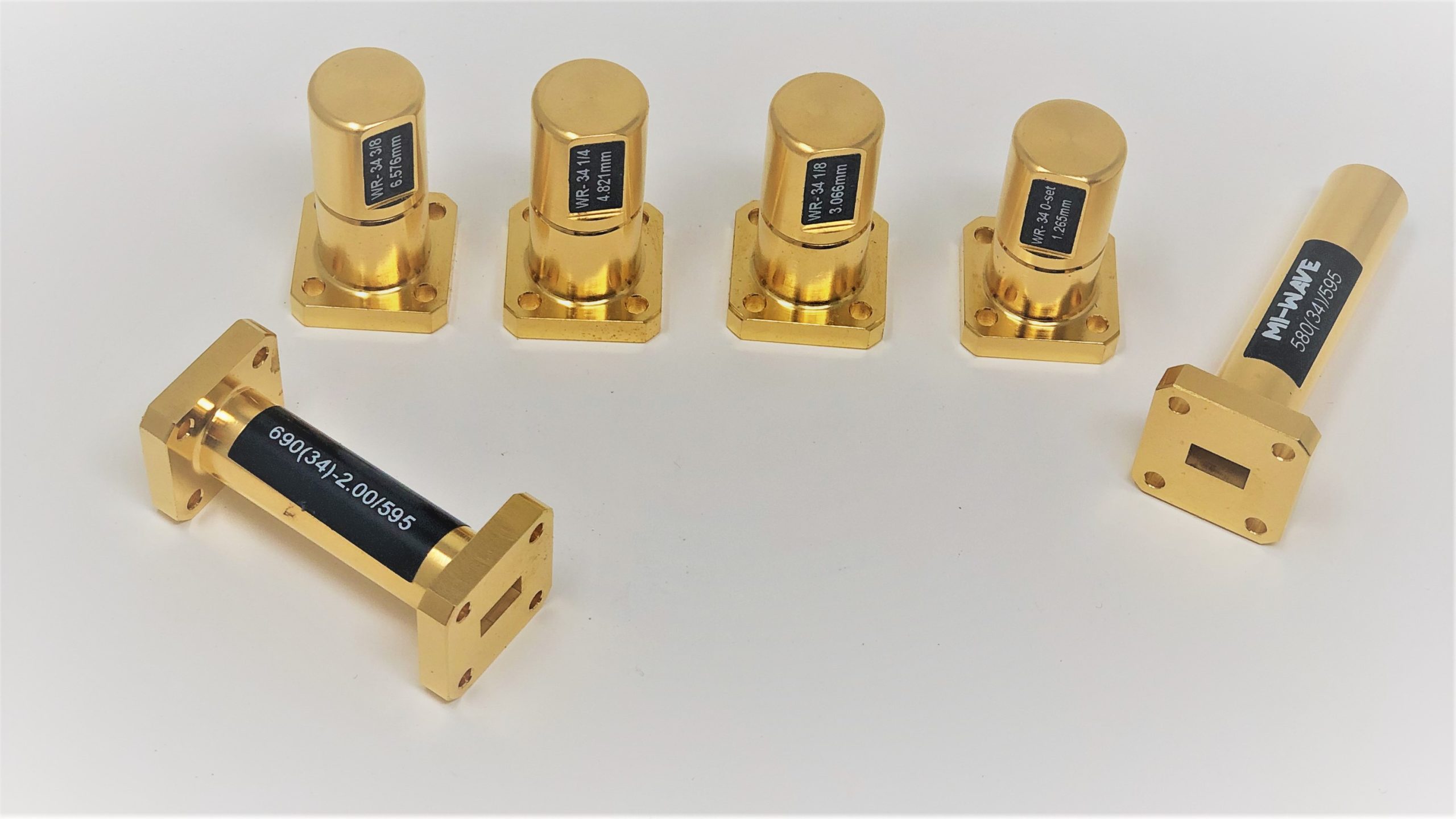

WR-34, 22GHz – 33 GHz, Waveguide Calibration Kits

780(34)/595/, VSWR 1.06:1

View Product

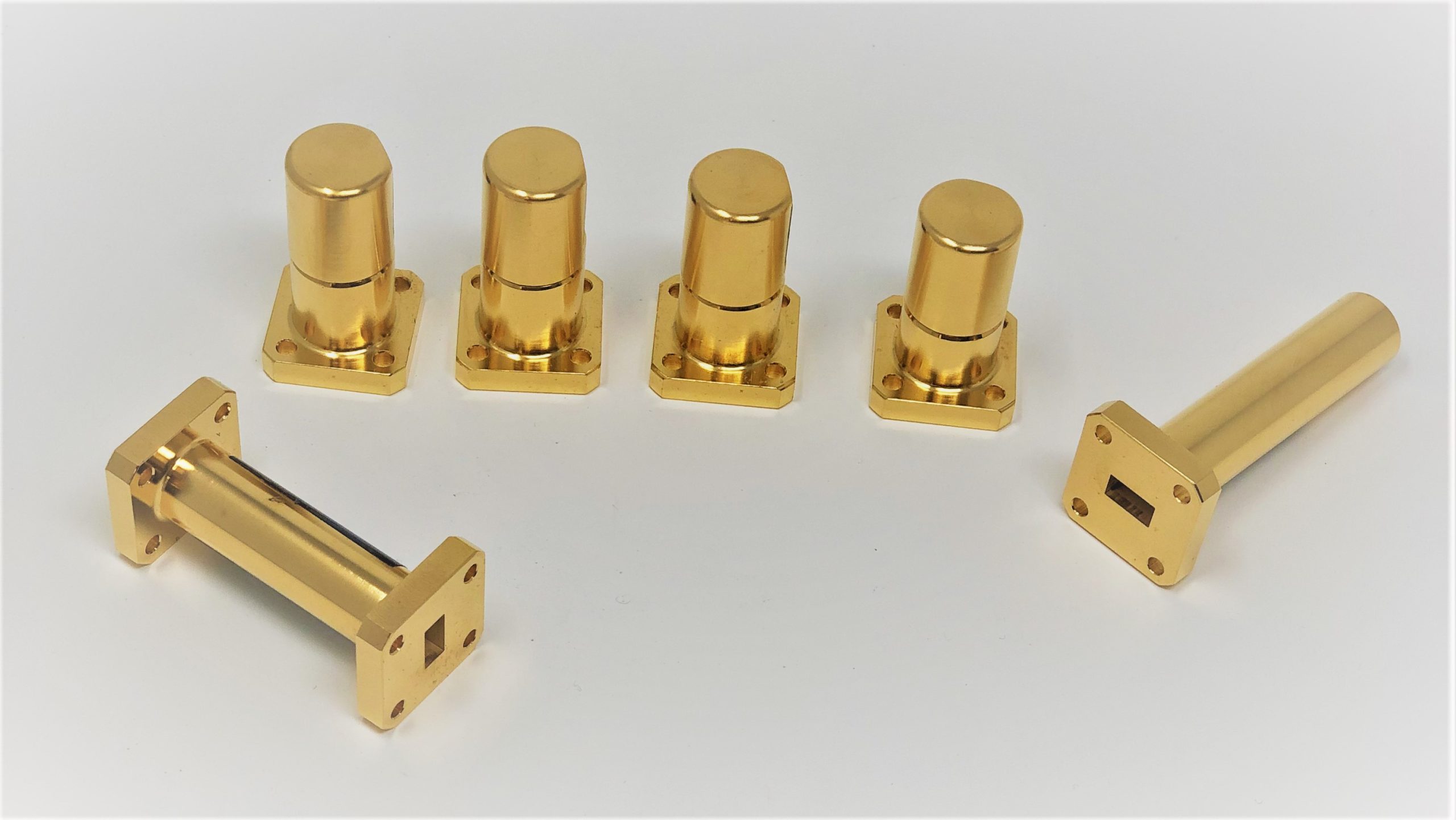

Ka-Band, 26.5GHz – 40GHz, Waveguide Calibration Kits

780A/599/, VSWR 1.06:1

View Product

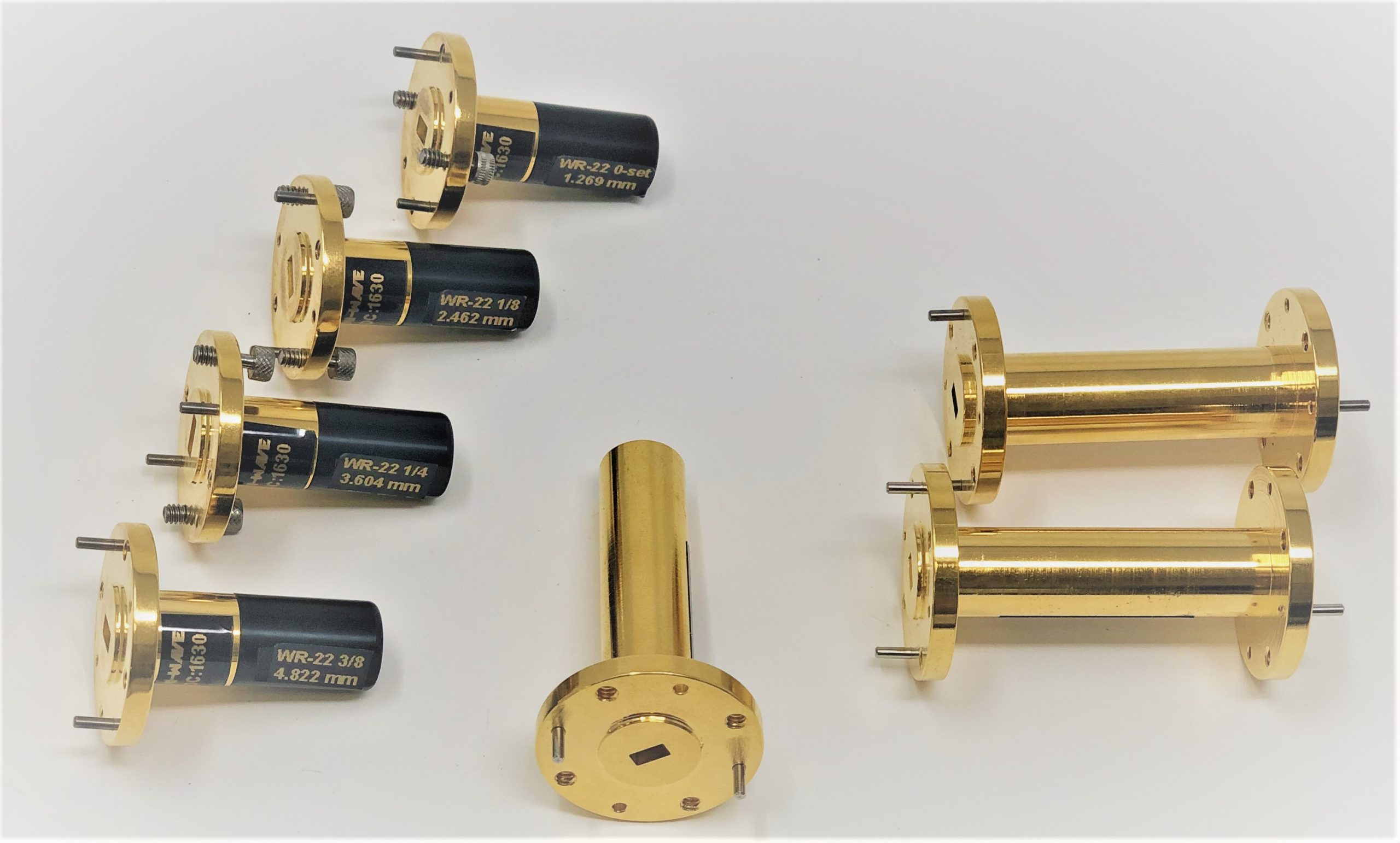

Q-Band, 33GHz – 50GHz, Waveguide Calibration Kits

780B/383/, VSWR 1.06:1

View Product

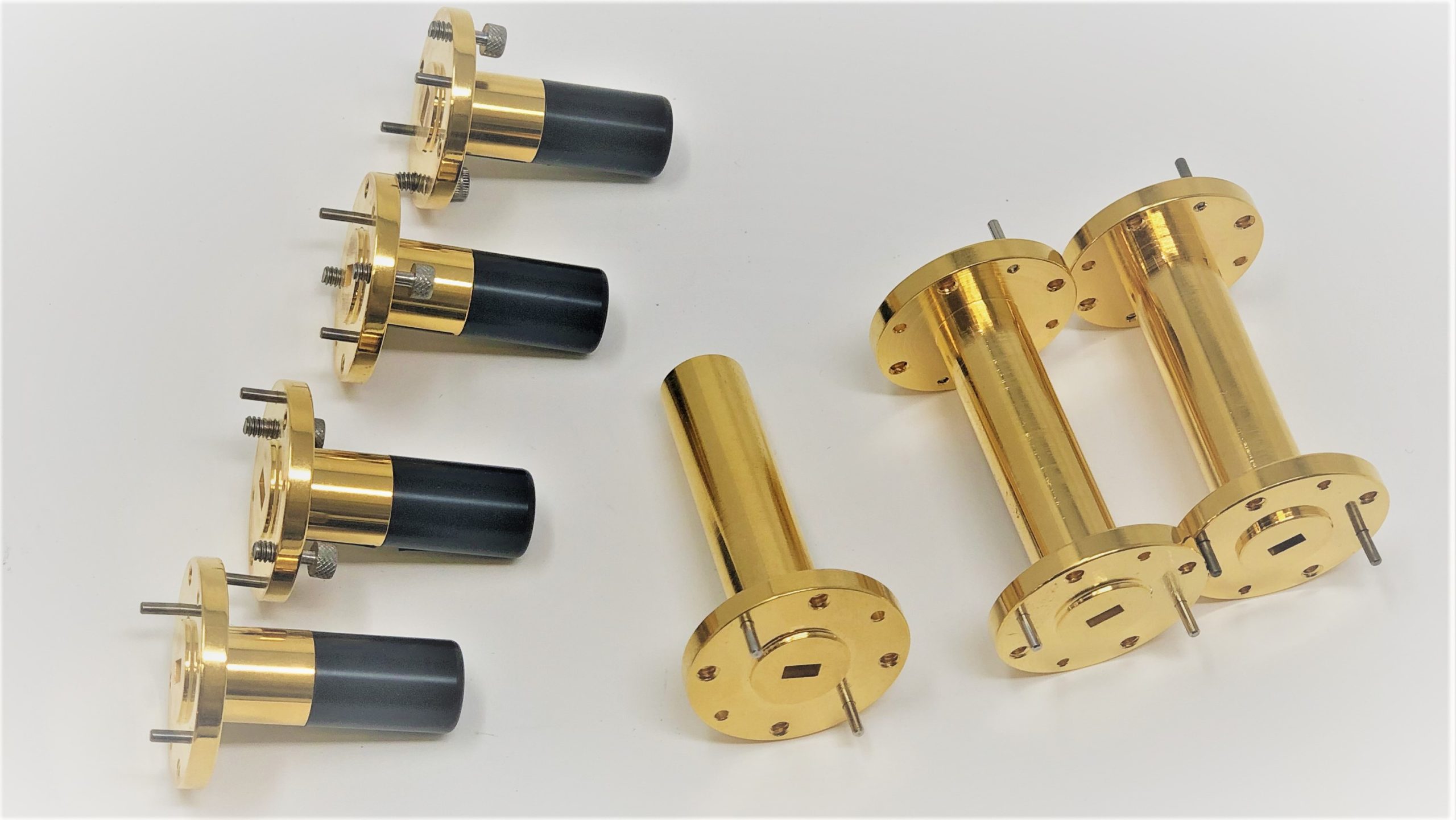

U-Band, 40GHz – 60GHz, Waveguide Calibration Kits

780U/599/, VSWR 1.06:1

View Product

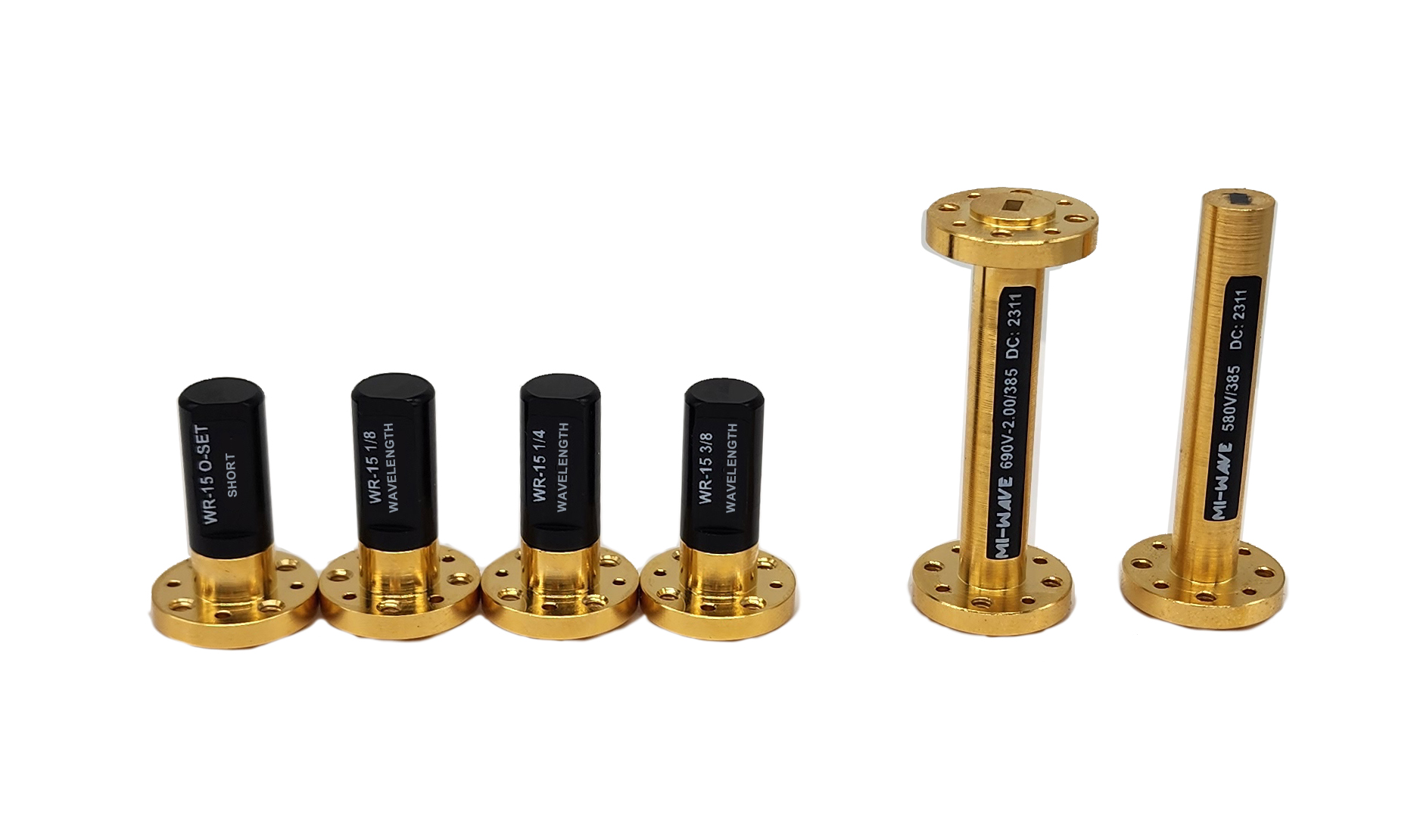

V-Band, 50GHz – 75GHz, Waveguide Calibration Kits

780V/385/, VSWR 1.06:1

View Product

E-Band, 60GHz – 90GHz, Waveguide Calibration Kits

780E/387/, VSWR 1.06:1

View Product

W-Band, 75GHz – 110GHz, Waveguide Calibration Kits

780W/387/, VSWR 1.06:1

View Product

F-Band, 90GHz – 140GHz, Waveguide Calibration Kits

780E/383/, VSWR 1.06:1

View Product

D-Band, 110GHz – 170GHz, Waveguide Calibration Kits

780D/387/, VSWR 1.06:1

View Product

G-Band, 140GHz – 220GHz, Waveguide Calibration Kits

780G/387/, VSWR 1.06:1

View Product

H-Band, 170GHz – 260GHz, Waveguide Calibration Kits

780H/387/, VSWR 1.06:1

View Product
standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
