E-Plane | Waveguide Straights & Sections | 12.4 GHz – 500 GHz

Mi-Wave’s 690 Series flanged waveguide sections are available in standard waveguide sizes from 8 to 500 GHz. Each section is precisely fabricated using MIL-SPEC waveguide and flanges. Precise control of the fabrication processes eliminates waveguide discontinuities and distortion.  The 690 Series waveguide is available in a wide variety of materials. Available lengths are limited by raw waveguide which varies in length with each waveguide size. Check with Mi-Wave’s sales engineer for available lengths. Longer sections different wave-guide materials, and special flanges are all available upon request.

Ku-Band, 12.4GHz – 18 GHz, E-plane 90-degree high precision waveguide straights.

690Ku-1/419, VSWR 1.2:1

View Product

K-Band, 18GHz – 26.5 GHz, E-plane 90-degree high precision waveguide straights.

690K-1/595, VSWR 1.2:1

View Product

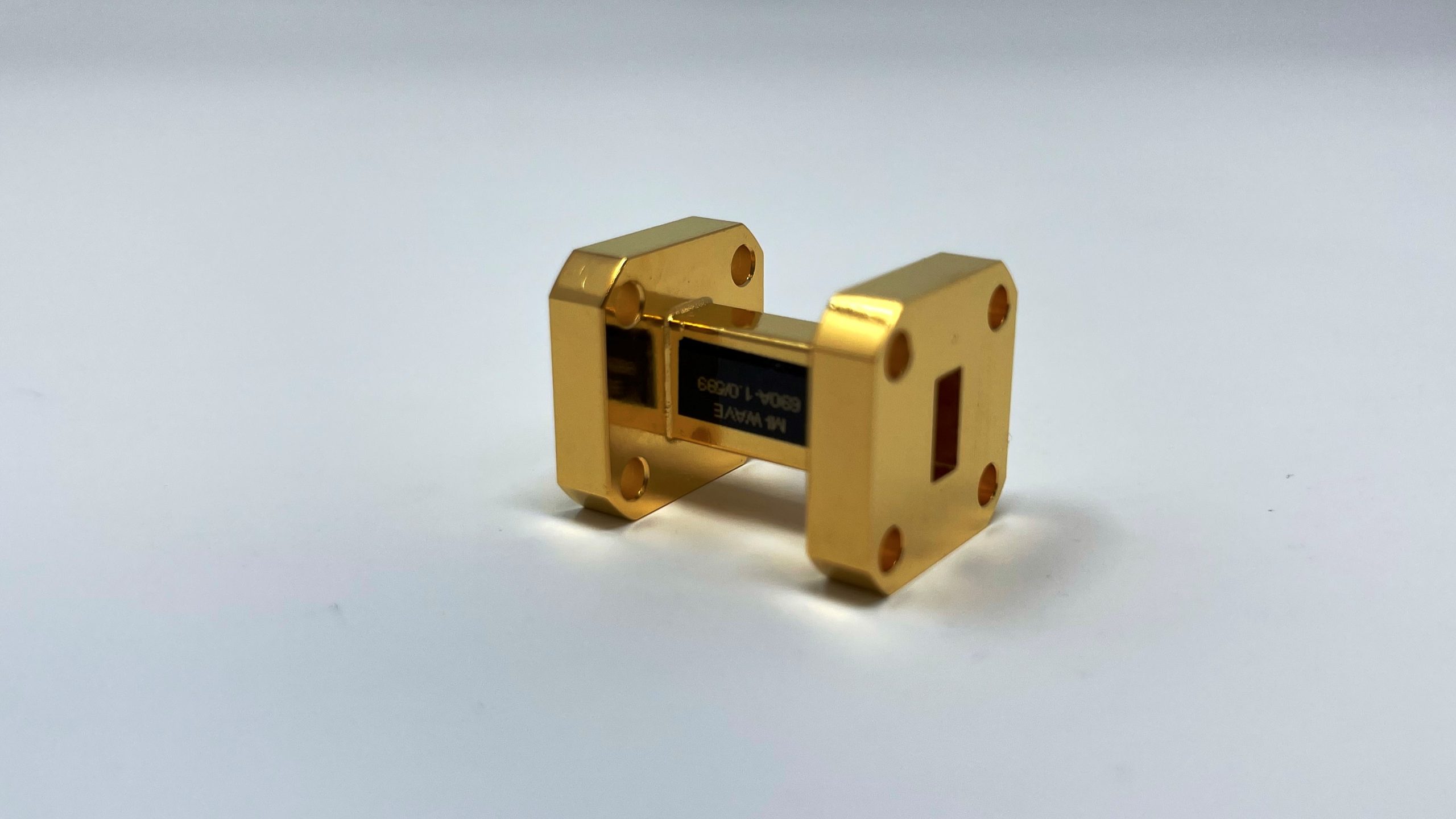

Ka-Band, 26.5GHz – 40 GHz, E-plane 90-degree high precision waveguide straights.

690A-1/599, VSWR 1.06:1

View Product

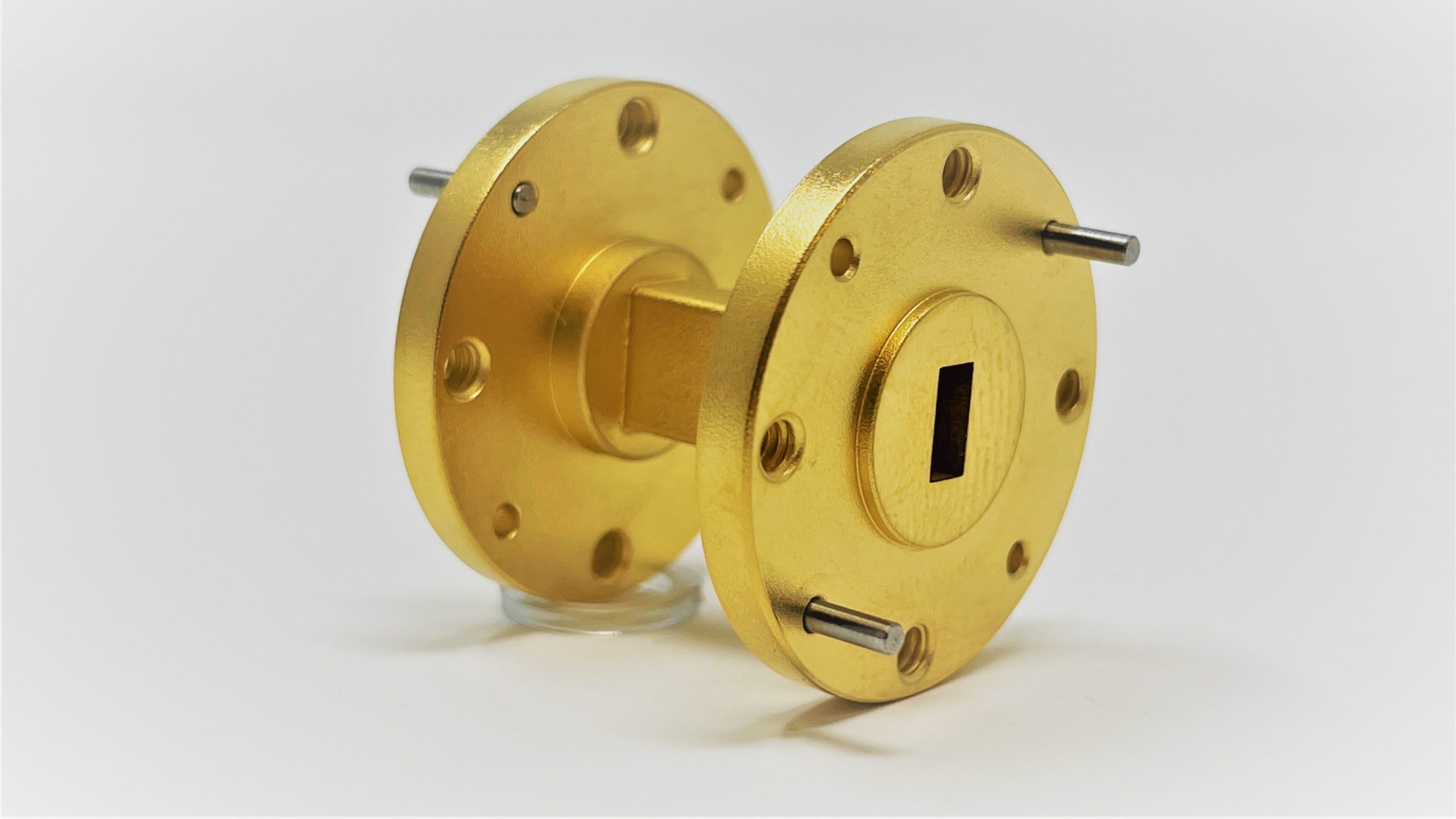

Q-Band, 33GHz – 50 GHz, E-plane 90-degree high precision waveguide straights.

690B-1/383, VSWR 1.06:1

View Product

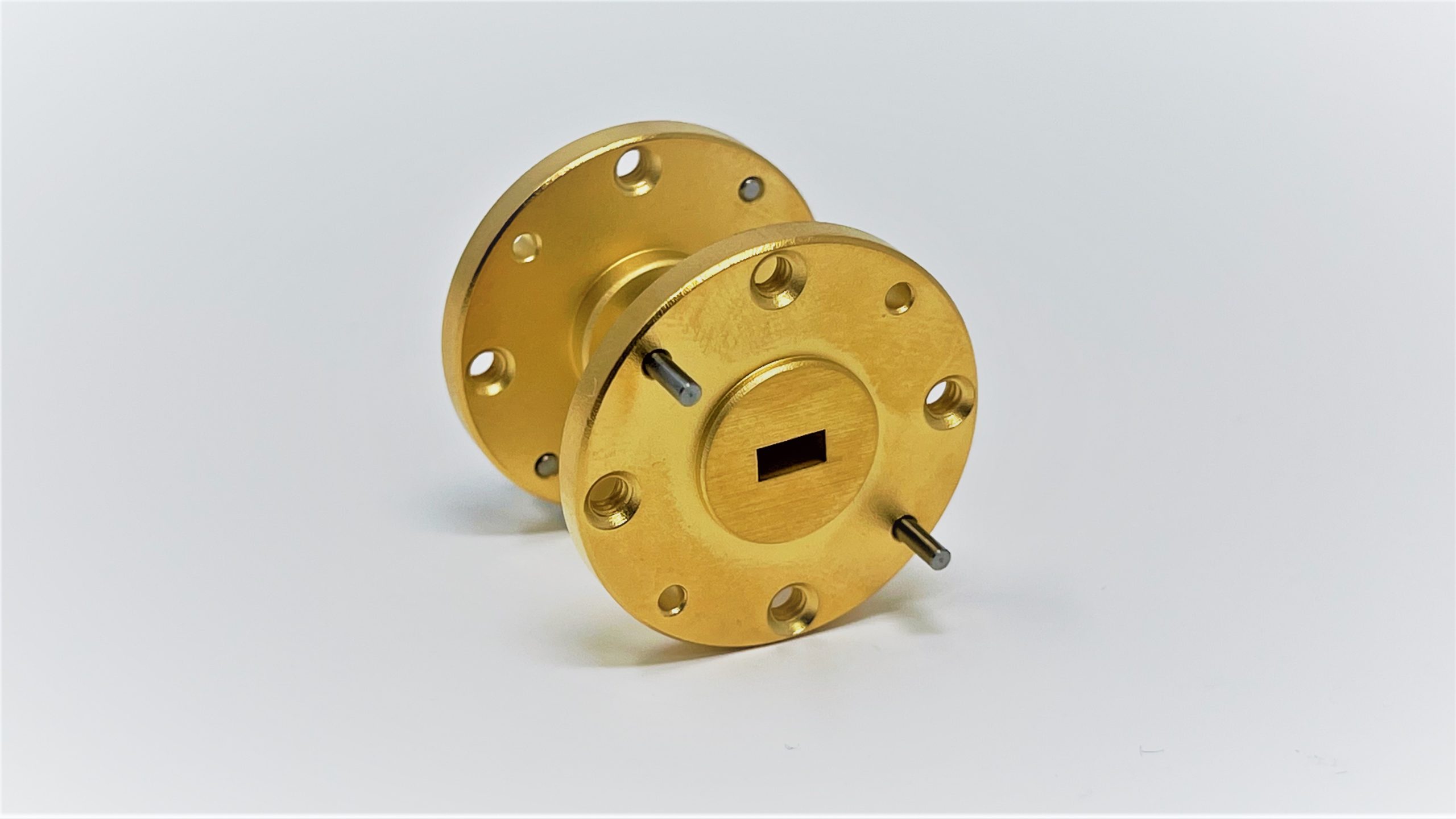

U-Band, 40GHz – 60 GHz, E-plane 90-degree high precision waveguide straights.

690U-1/383, VSWR 1.2:1

View Product

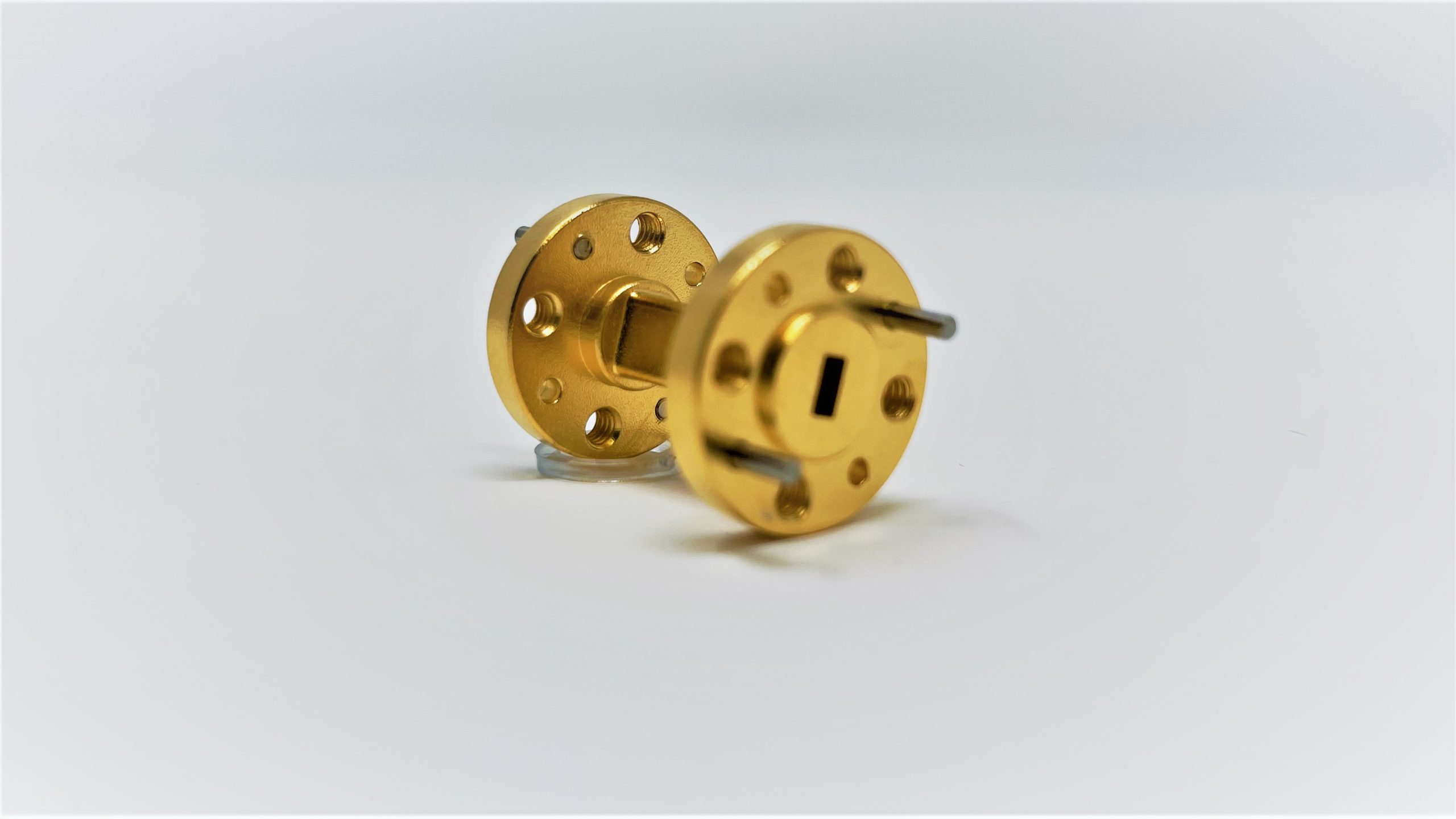

V-Band, 50GHz – 75 GHz, E-plane 90-degree high precision waveguide straights.

690V-1/385, VSWR 1.06:1

View Product

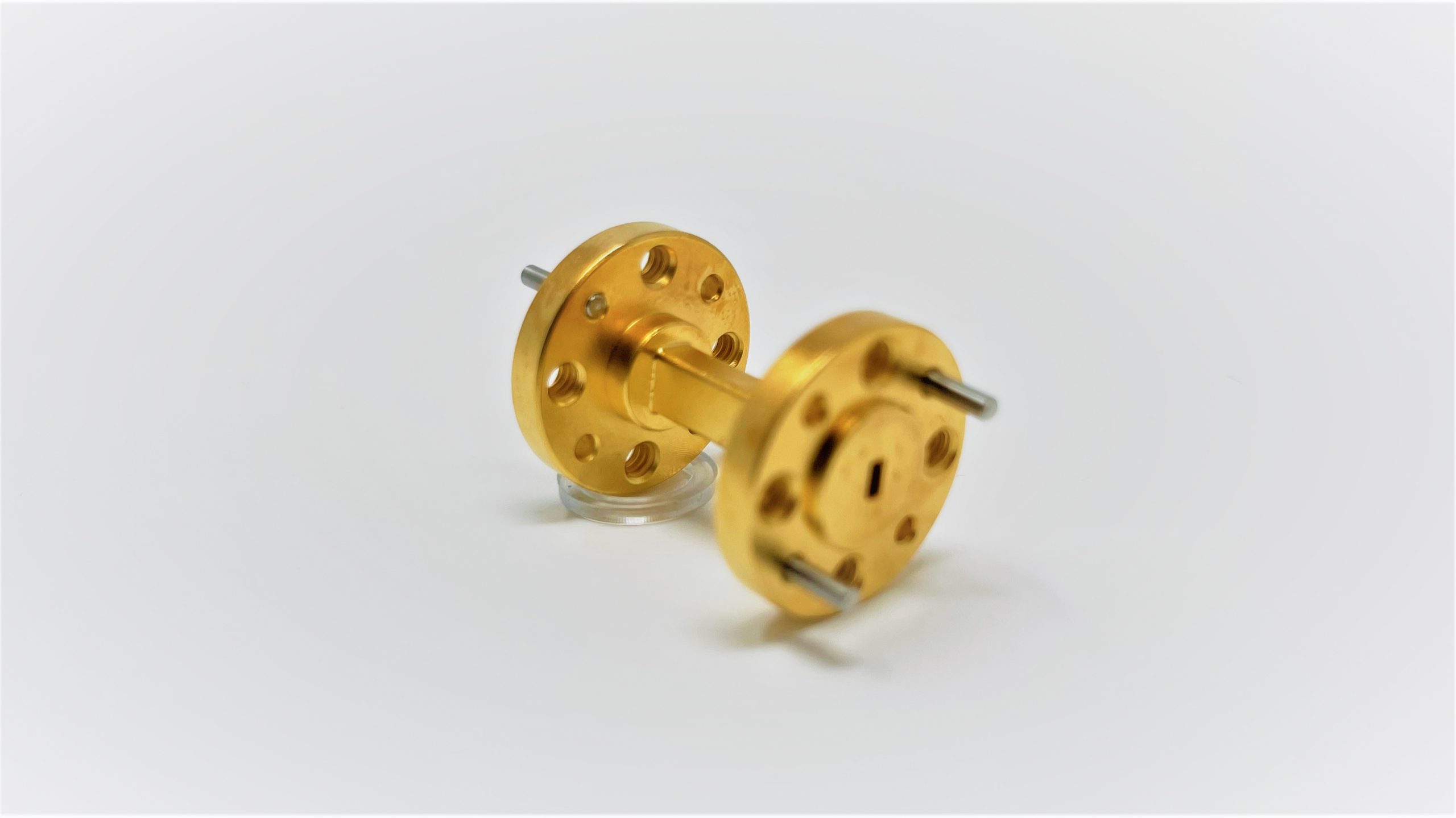

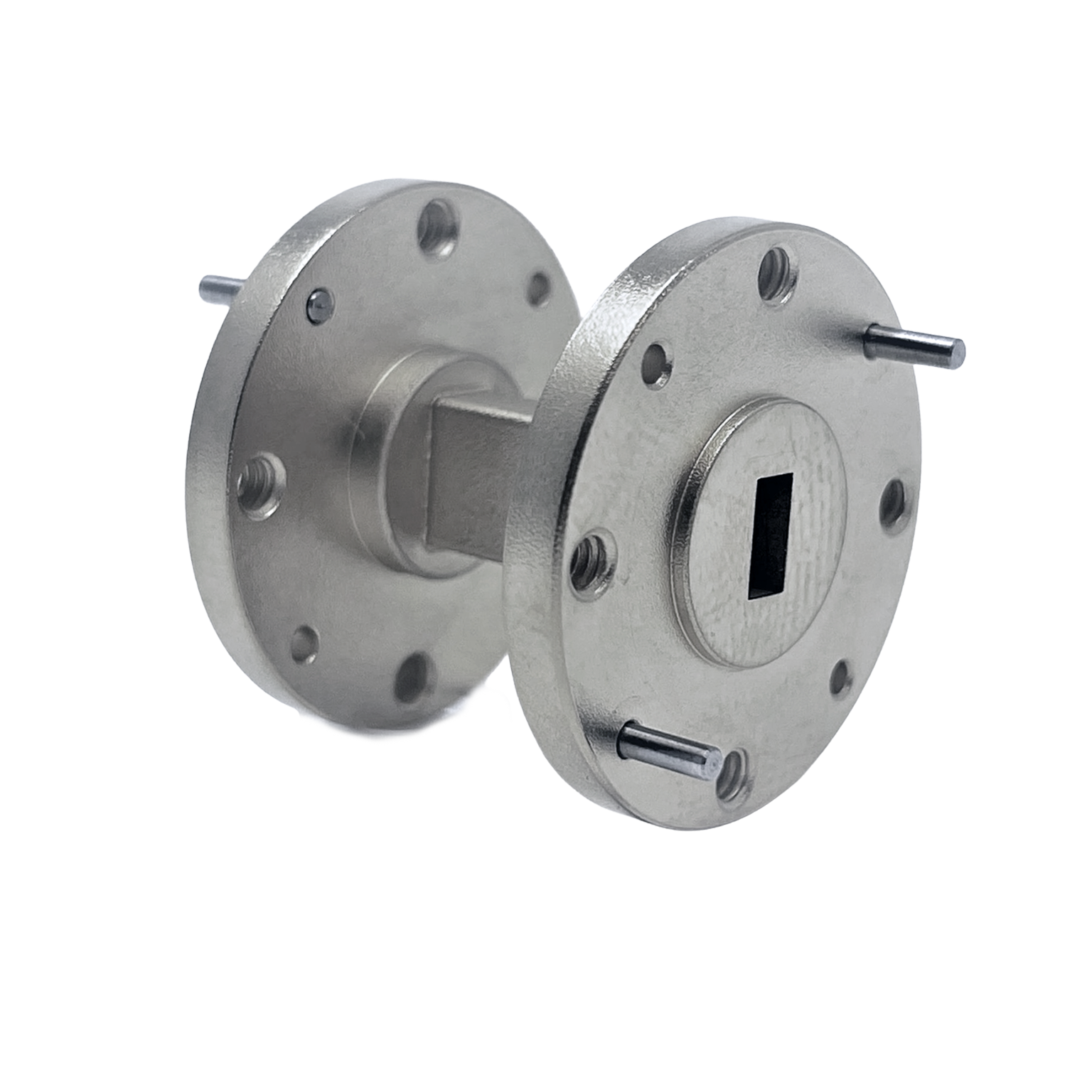

E-Band, 60GHz – 90 GHz, E-plane 90-degree high precision waveguide straights.

690E-1/387, VSWR 1.06:1

View Product

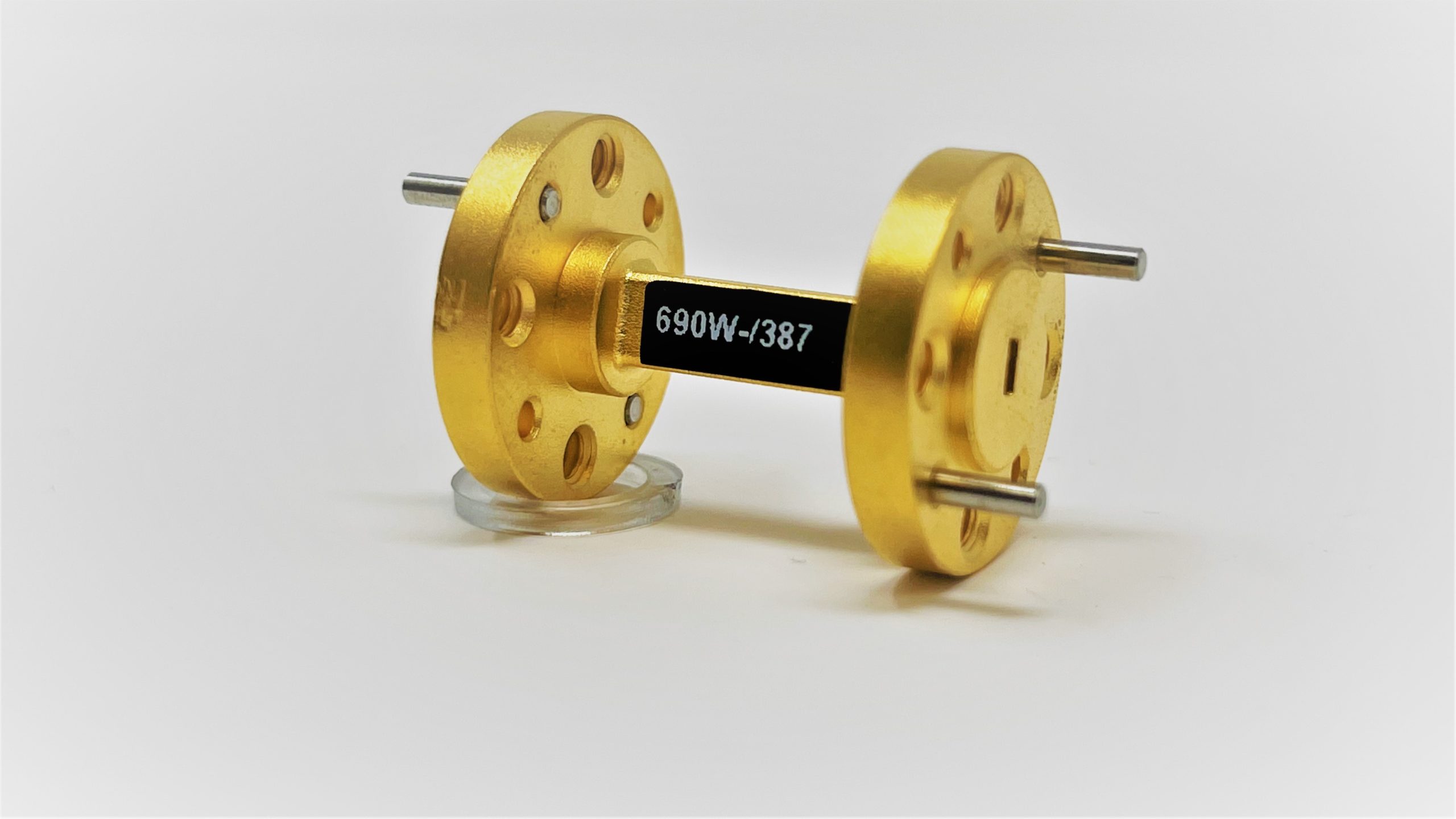

W-Band, 75GHz – 110 GHz, E-plane 90-degree high precision waveguide straights.

690W-1/387, VSWR 1.15:1

View Product

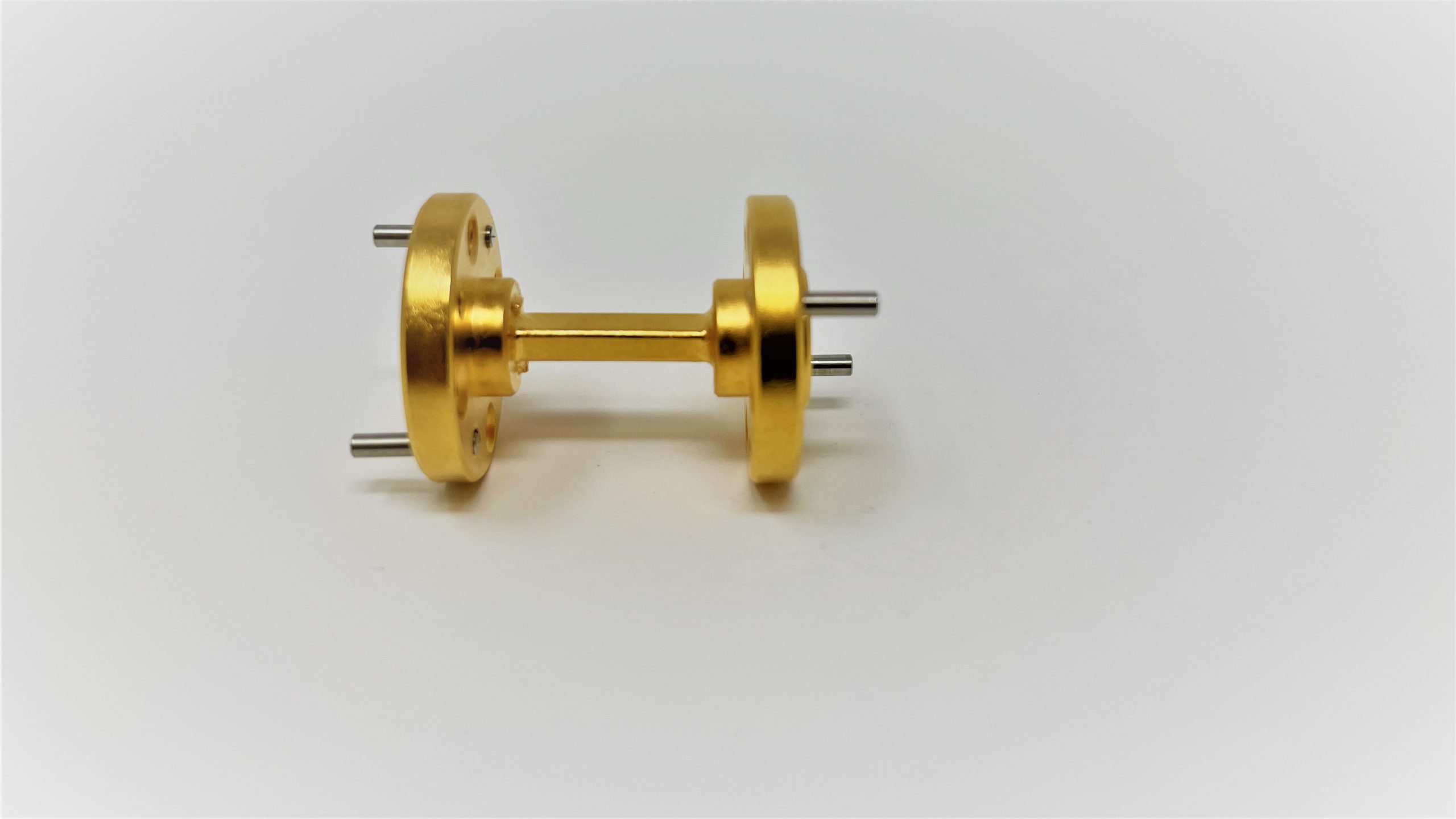

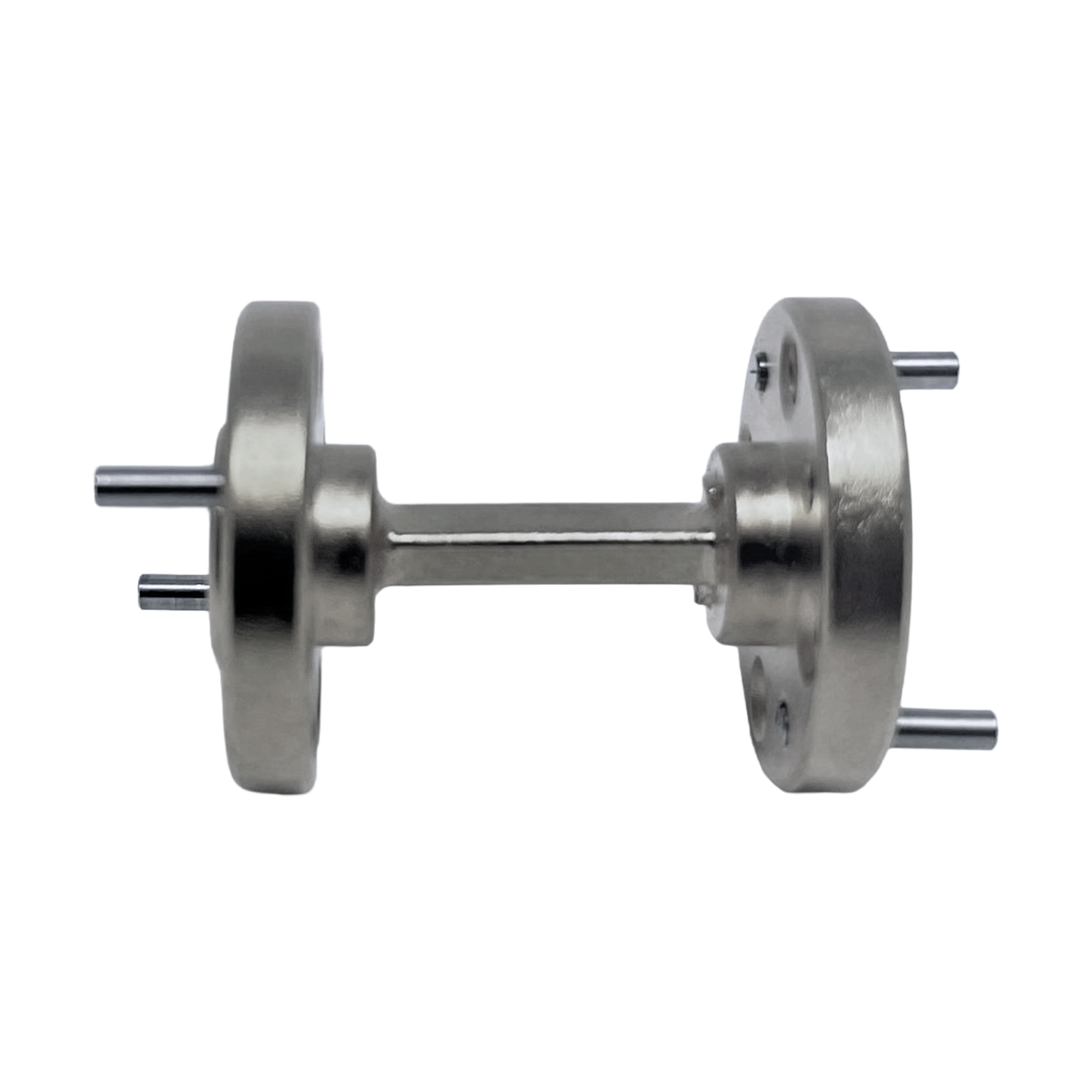

F-Band, 90GHz – 140 GHz, E-plane 90-degree high precision waveguide straights.

690F-1/387, VSWR 1.15:1

View Product

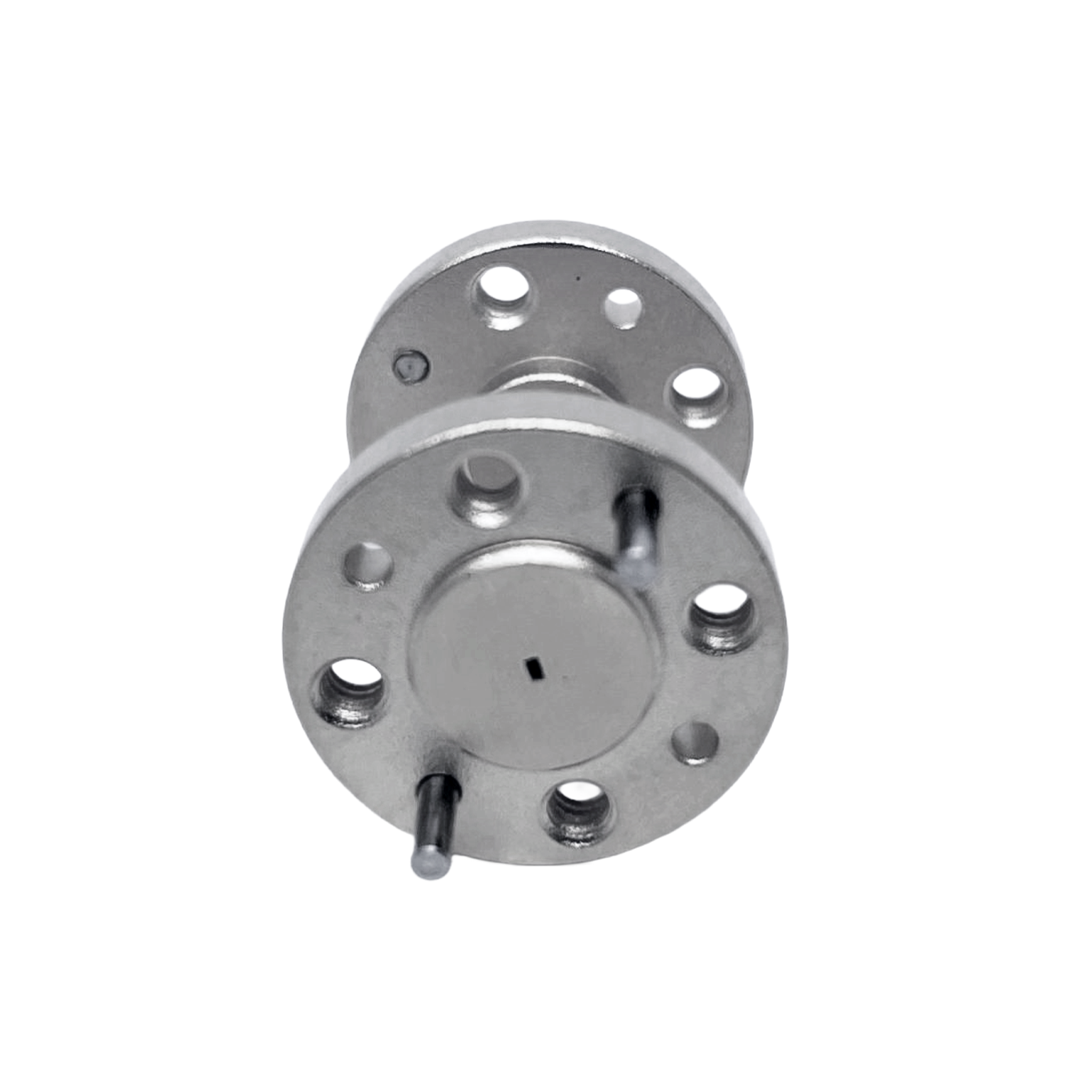

G-Band, 140GHz – 220 GHz, E-plane 90-degree high precision waveguide straights.

690G-1/387, VSWR 1.15:1

View Product

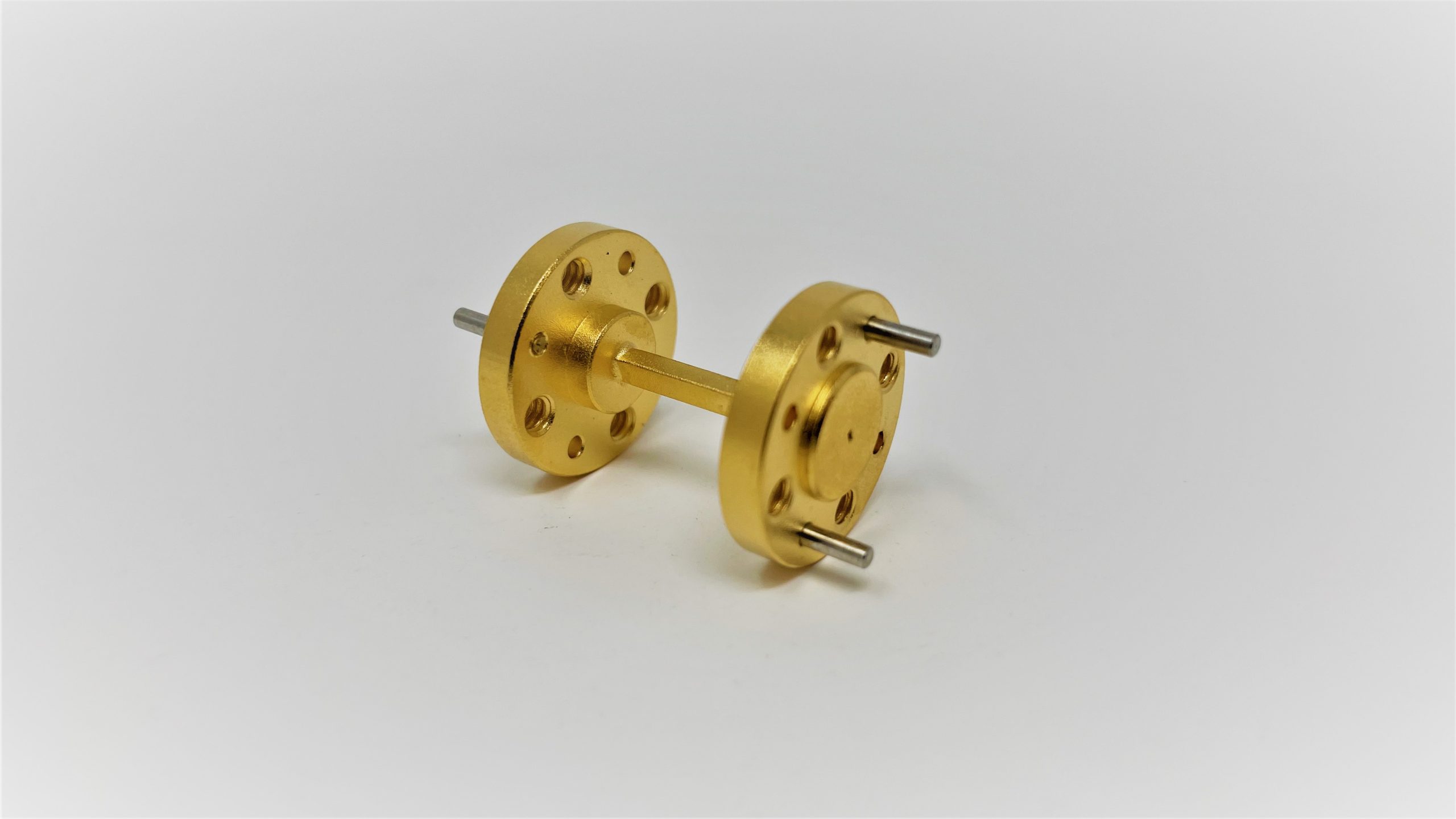

H-Band, 170GHz – 260 GHz, E-plane 90-degree high precision waveguide straights.

690H-1/387, VSWR 1.15:1

View Product

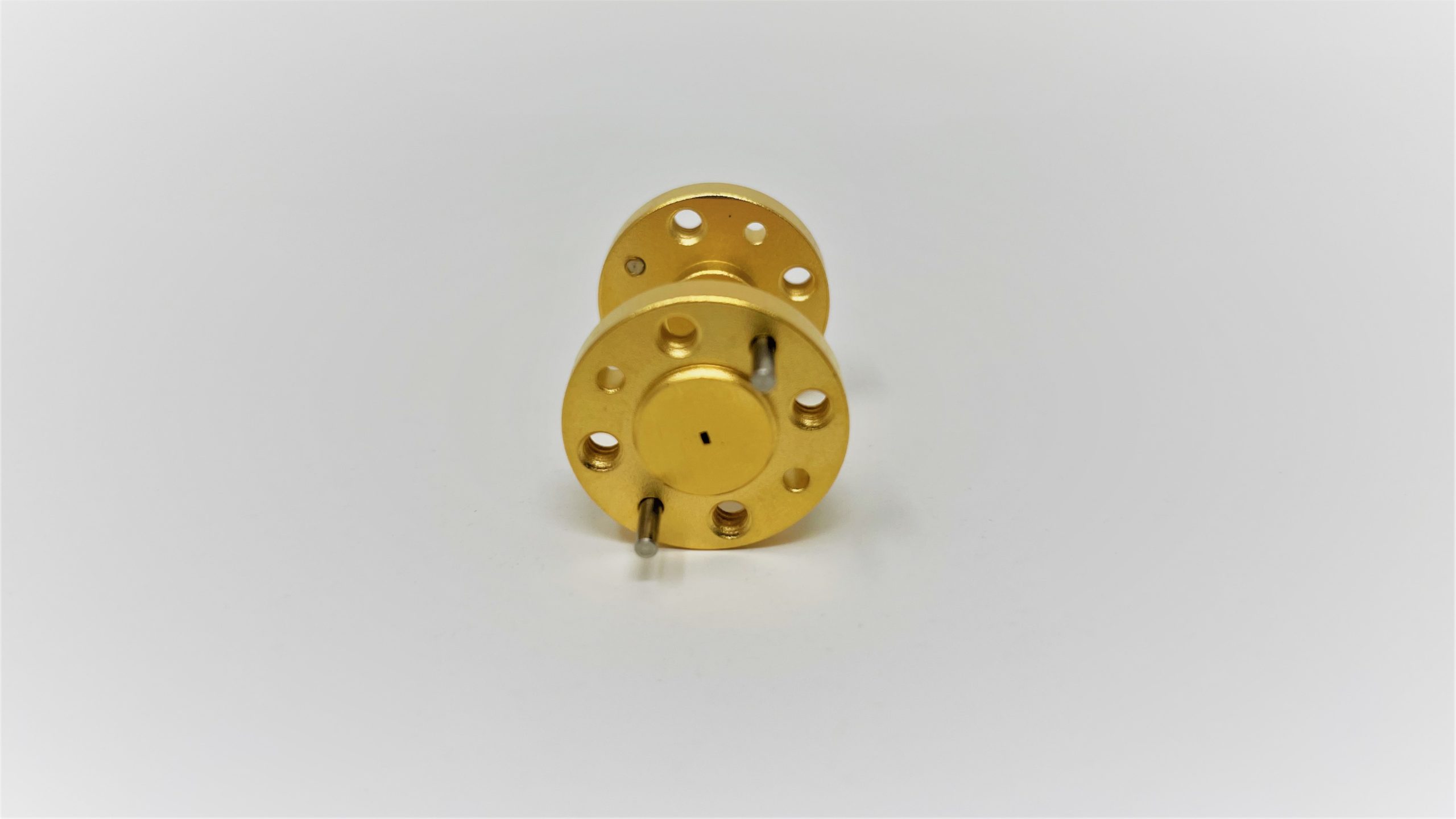

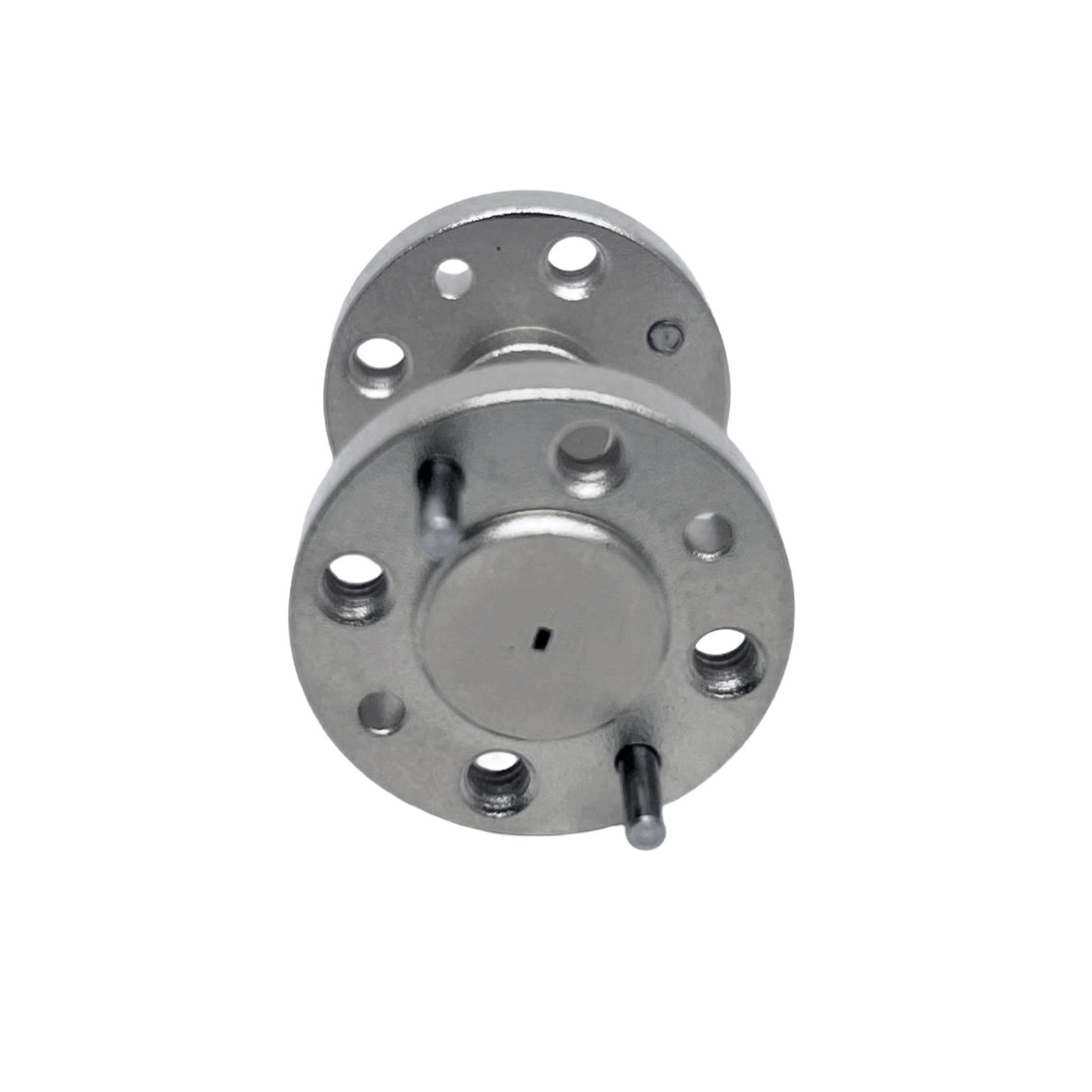

J-Band, 220GHz – 325 GHz, E-plane 90-degree high precision waveguide straights.

690J-1/387, VSWR 1.2:1

View Product

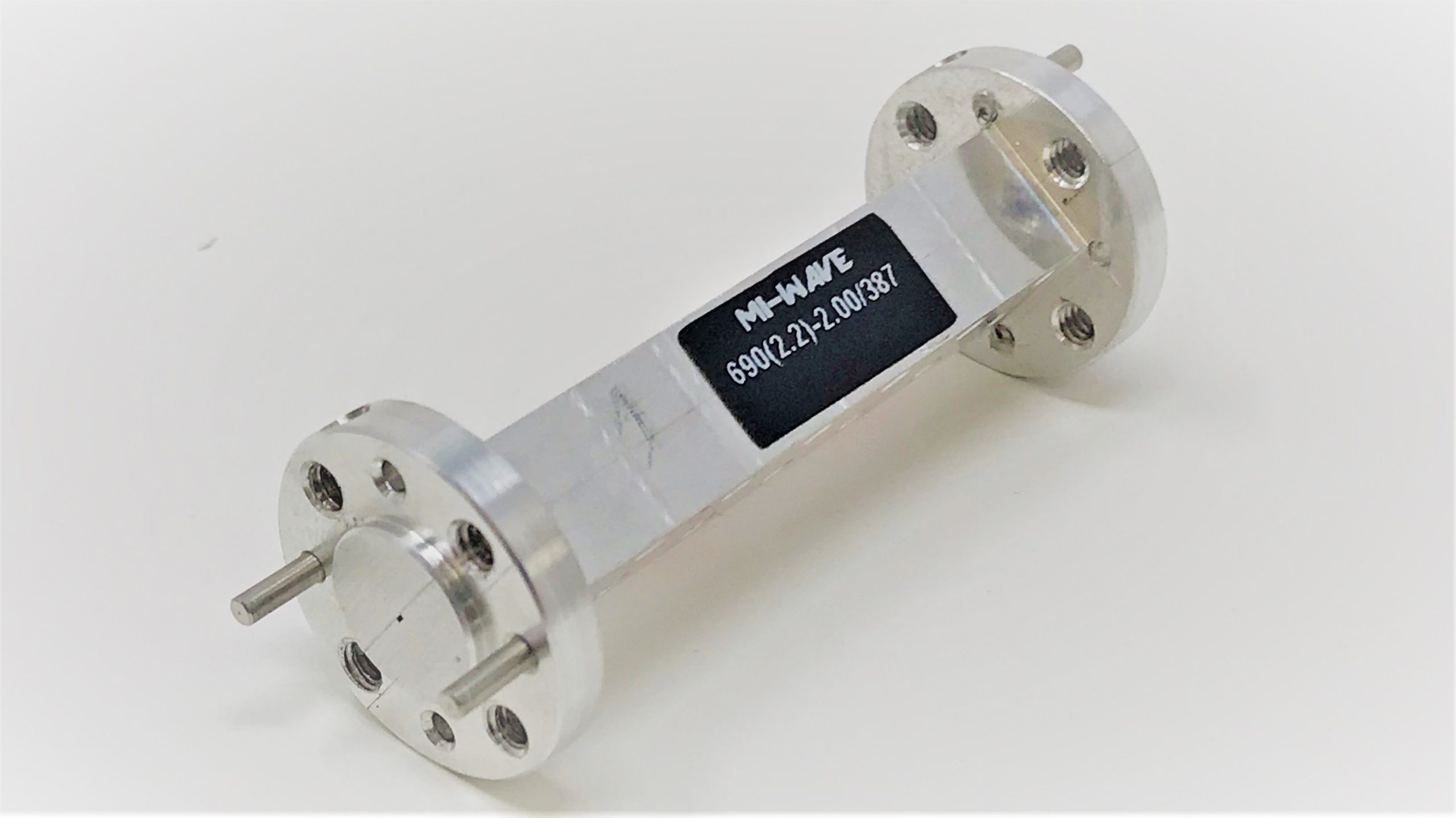

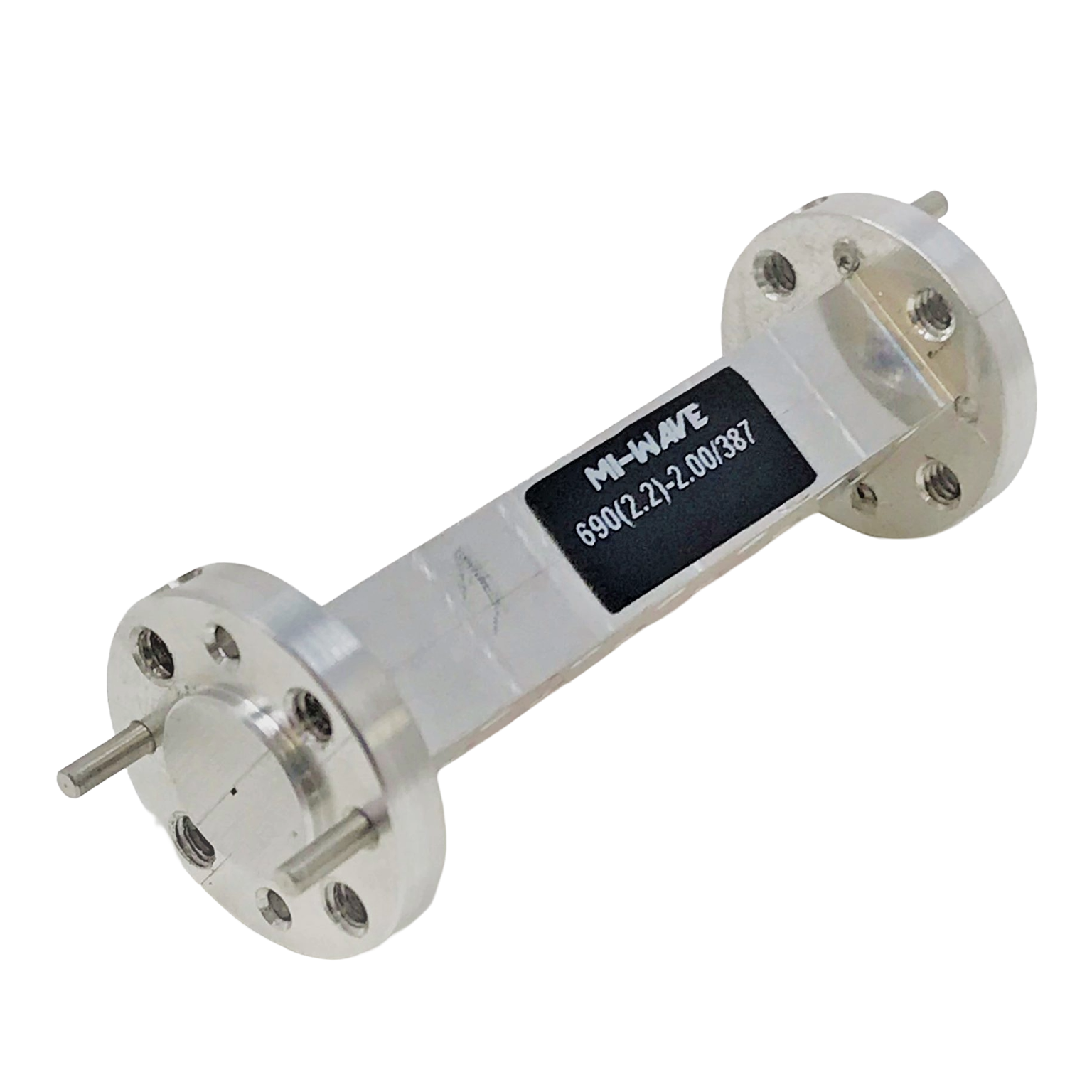

WR-2.2, 325GHz – 500 GHz, E-plane 90-degree high precision waveguide straights.

690(2.2)-1/387, VSWR 1.04:1

View Product
standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
