Waveguide to Coax Adapter | Right Angle Adapters & Transitions

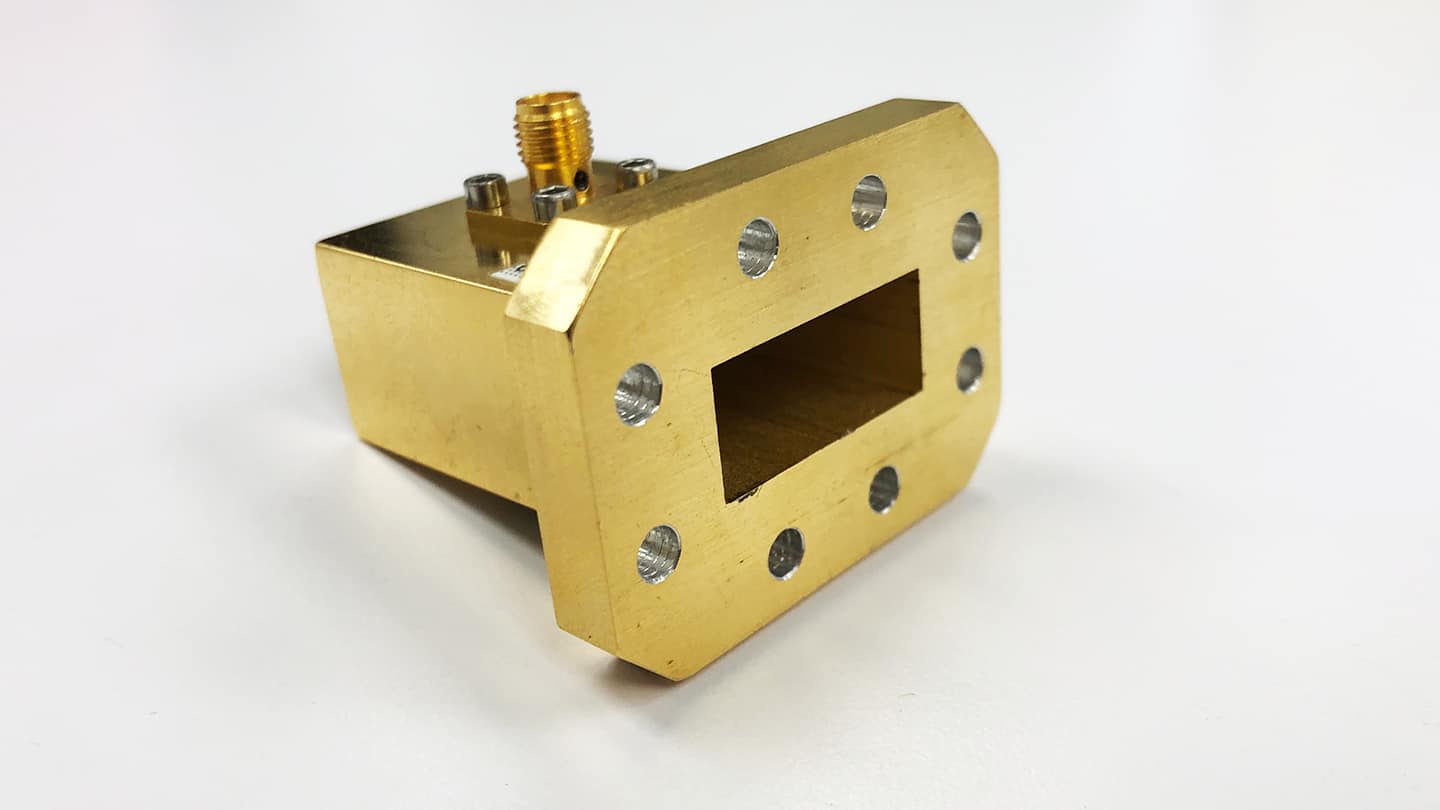

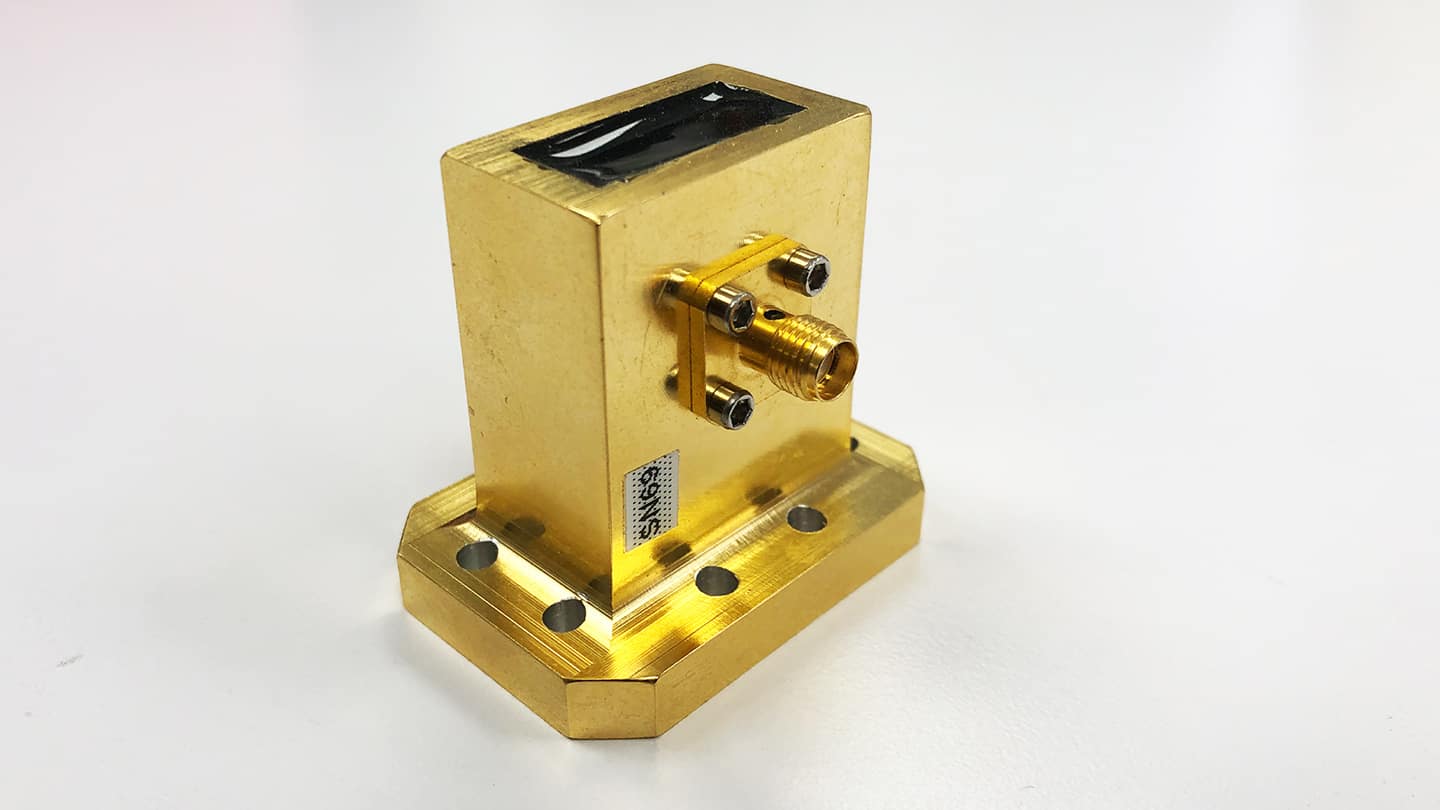

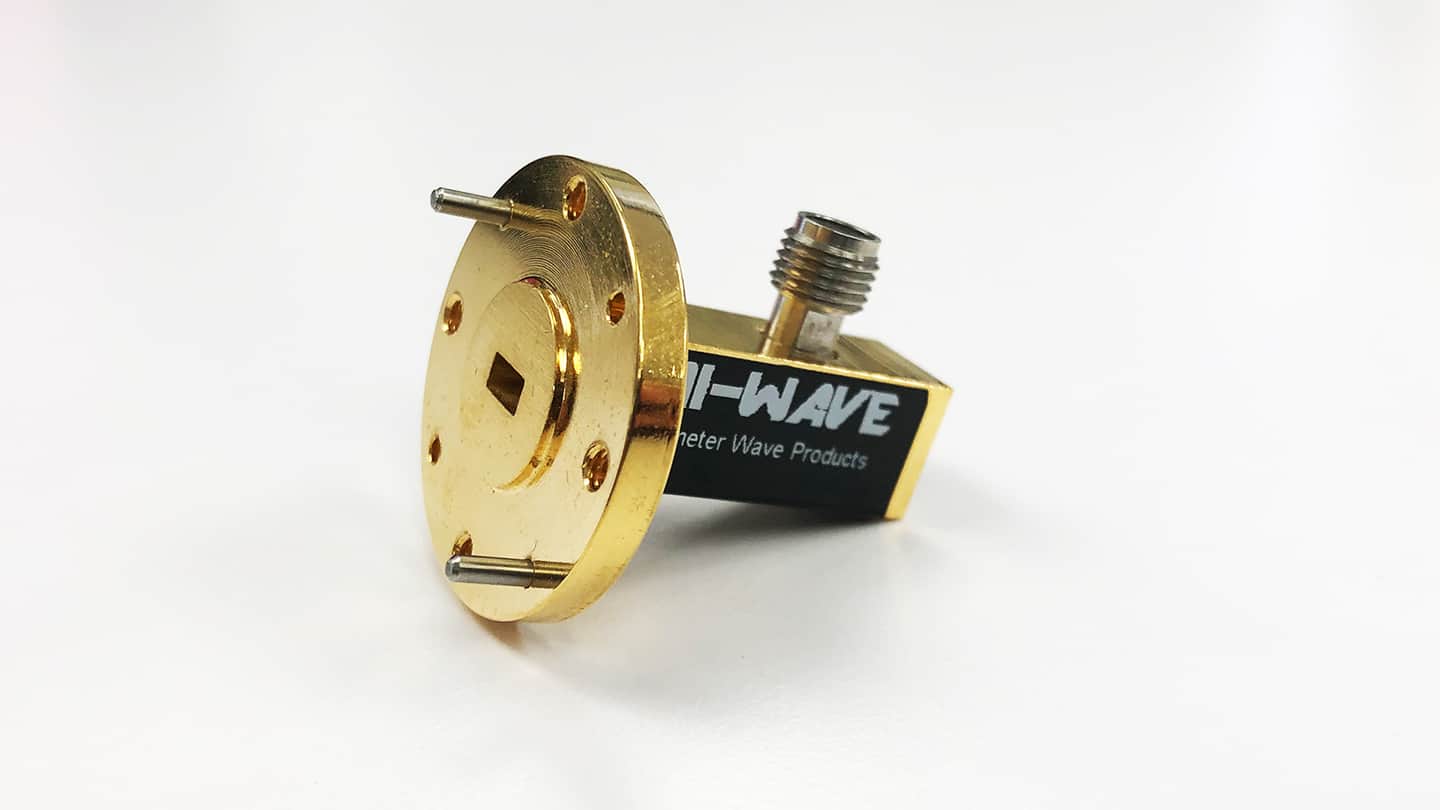

Mi-Wave’s 410 Series Waveguide to Coax Adapter allows an efficient method of adapting from a rectangular waveguide to a coaxial connector. Full waveguide bands are available from 8.2 to 110 GHz. Low insertion losses and VSWR’s are typical for this waveguide to coax adapters. Our coax to waveguide adapters meet the needs of communications equipment and are some of the best waveguide transition adapters in the market today.
- Frequency Ranges 8.2 to 110 GHz
- Wide Variety of Coax Connectors Available
- High-Performance Versions for Laboratory Use.
Choose your frequency below:
Note: Consult with factory for specific band frequency
Note: Our website contains just a few types of Adapters we build. Consult with us for your specific needs.
| Model | Band | Frequency (GHz) | Insertion Loss (dB) | Return Loss (dB) | Power Handling (W) | Waveguide Port | Coaxial Port | LINK |
|---|---|---|---|---|---|---|---|---|
| 410X/39/NF | X-Band | 8.2-12.4 | 0.4 | 16 | 400 | WR-90 Waveguide, UG-39/U Flange | NF- Female connector | |
| 410X/39/SMAF | X-Band | 8.2-12.4 | 0.4 | 17 | 150 | WR-90 Waveguide, UG-39/U Flange | SMA- Female connector | |
| 410X/39/SMAM | X-Band | 8.2-12.4 | 0.4 | 16 | 150 | WR-90 Waveguide, UG-39/U Flange | SMA-Male connector | |
| 410(51)/UBR180/CKF | WR-51 | 15-12 | 0.3 | 20 | 10 | WR-51 Waveguide, UBR180 Flange w "O" Ring | CK-Female connector | |
| 410(34)/596/KF | WR-34 | 22-33 | 0.4 | 20 | 10 | WR-34 Waveguide, UG-596 Flange w "O" Ring | K-Female connector | |
| 410(34)/595/KF | WR-34 | 22-33 | 0.4 | 17 | 10 | WR-34 Waveguide, UG-596 Flange w "O" Ring | K-Female connector | |
| 410(34)/595/3.5mmF | WR-35 | 22-33 | 0.4 | 20 | 10 | WR-34 Waveguide, UG-596 Flange w "O" Ring | 3.5 mm Female Connector | |
| 410(75)/SMAF | WR-75 | 10-15 | 0.3 | 20 | 150 | WR-75 Waveguide | SMA Female | |
| 410Ku/419/SMAF | Ku-Band | 12.4-18 | 0.3 | 20 | 150 | WR-62 Waveguide, UG-419 Flange | SMA Female | |

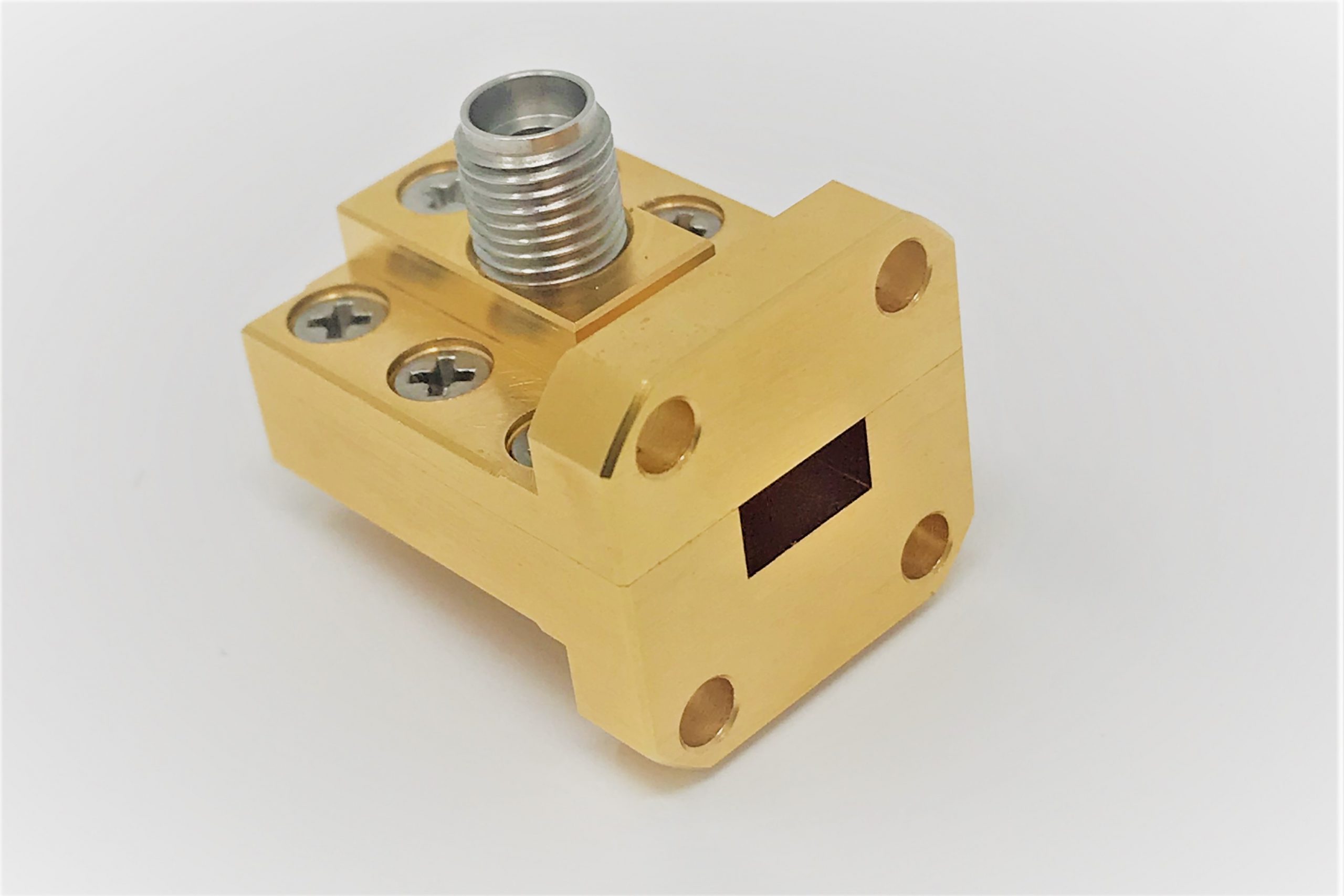

| 410K/595/SMAF | K-Band | 18-26.5 | 0.4 | 20 | 150 | WR-42 Waveguide with UG-595/U Flange | SMA-Female | |
| 410K/595/KF | K-Band | 18-26.5 | 0.4 | 20 | 10 | WR-42 Waveguide, UG-595/U Flange | K-Female connector | |
| 410A/599/KF | Ka-Band | 26.5-40 | 0.4 | 20 | 10 | WR-28 Waveguide, UG-599/U Flange | K-Female connector | |
| 410A/599/KM | Ka-Band | 26.5-40 | 0.4 | 20 | 10 | WR-28 Waveguide, UG-599/U Flange | K-Male connector | |
| 410B/383/KF | Q-Band | 33-40 | 0.5 | 20 | 10 | WR-22 Waveguide with UG-383/U Flange | K-Female connector | |
| 410B/383/KM | Q-Band | 33-40 | 0.4 | 20 | 10 | WR-22 Waveguide with UG-383/U Flange | 2.92mm (K) Male connector | |
| 410B/383/2.4mmF | Q-Band | 33-50 | 0.4 | 20 | 10 | WR-22 Waveguide, UG-383/U Flange | 2.4 mm Female Connector | |
| 410B/383/2.4mmM | Q-Band | 33-50 | 0.4 | 20 | 10 | WR-22 Waveguide, UG-383/U Flange | 2.4 mm Male Connector | |
| 410U/383/1.85mmF | U-Band | 40-60 | 0.5 | 17 | 10 | WR-19 Waveguide with UG-383/U-M Flange | 1.85 mm Female connector | |
| 410U/383/1.85mmM | U-Band | 40-60 | 0.5 | 17 | 10 | WR-19 Waveguide with UG-383/U-M Flange | 1.85 mm Male Connector | |
| 410V/385/1.85mmF | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide With UG-385/U Flange | 1.85 mm Female connector | |
| 410V/385/1.85mmM | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.85 mm Male connector | |
| 410V/385/1.85mmF | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.85 mm Female connector | |
| 410V/385/1.00mmF | V-Band | 50-67 | 0.5 | 15 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.00 mm Female connector | |
| 410E/387/1.00mmM | E-Band | 60-90 | 1 | 15 | 10 | WR-12 Waveguide, UG-387/U Flange | 1.85 mm Male connector | |

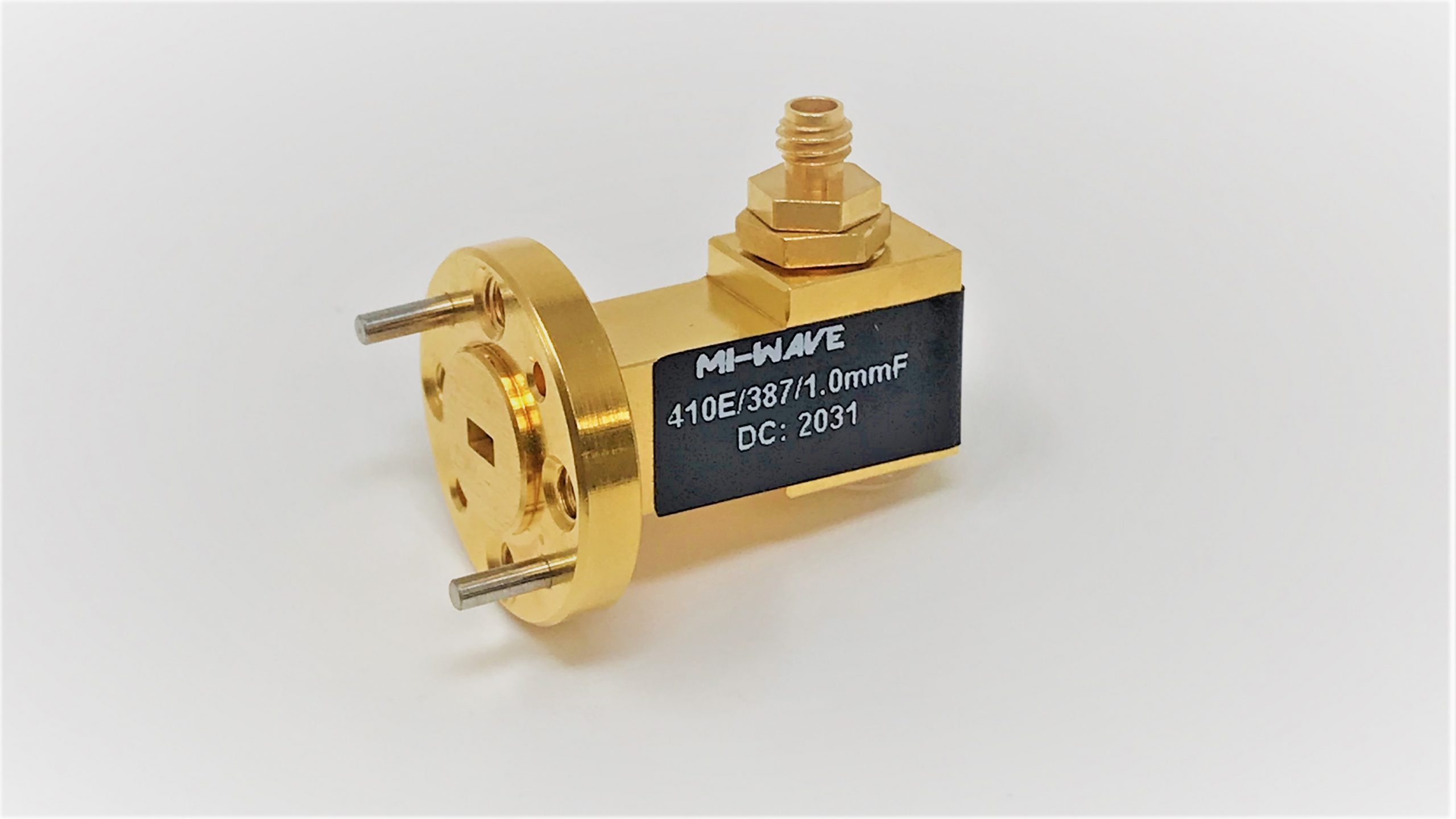

| 410E/387/1.00mmF | E-Band | 60-90 | 1 | 15 | 10 | WR-12 Waveguide, UG-387/U Flange | 1.00 mm Female connector | |
| 410W/387/1.00mmM | W-Band | 75-110 | 1.2 | 15 | 10 | WR-10 Waveguide, UG-387/U-M Flange | 1.00 mm Male connector | |
| 410W/387/1.00mmF | W-Band | 75-110 | 1.2 | 15 | 10 | WR-10 Waveguide, UG-387/U-M Flange | 1.00 mm Female connector |
Note: Our website contains just a few types of Adapters we build. Consult with us for your specific needs.
Waveguide to Coax Adapter
If you are looking for a quality-built Waveguide to Coax Adapter, then use Millimeter-wave products Inc. We specialize in manufacturing the highest quality standard Waveguide to Coax Adapter for many needs.
The 410 Series Waveguide to Coax Adapter is available from 8.2 to 110 GHz in a wide variety of connectors. We can manufacture to any custom size or specification, please consult Mi-Wave for further information.
NOTE: We carry and make many types of adapters
-End Launch to Coaxial Adapters
-Flange Adapters
-Bulkhead Adapters
consult with our team to help you out!
