RF Orthomode Transducers OMT

Orthomode Transducers separate a signal applied to the circular waveguide input port into its two linear orthogonal components at the rectangular waveguide output ports with greater than 30 dB isolation between the polarizations. In reverse, two orthogonal linearly polarized signals combine, producing an output in the circular waveguide port. The resulting polarization may be linear, circular, or elliptical depending on the relative phase and amplitude of the two orthogonal input signals.

Note: Our website contains just a few types of  Orthomode Transducers we build. Consult with us for your specific needs.

Model/FlangeLINKBandCircular Antenna Port Internal Diameter (inches)(.XXX in Model No.)Frequency (GHz)FlangeBandwidth (GHz)Isolation (H to V)(dB)Cross Polarization (Port)
281X-XX/.XXX
View
X-BandOption 1 1.094" ID Circular Waveguide
Option 2 .938" ID Circular Waveguide
Option 3 .797" ID Circular Waveguide
8-9.97
8.5-11.6
9.7-12.4
UG-90/U1.535(H to A): 30
(V to A): 30
281Ku-XX/.XXX/419
View
Ku-BandOption 1 .660" ID Circular Waveguide
Option 2 .550" ID Circular Waveguide
12.4-14.6
14.6-17.5
UG-419/U235(H to A): 30
(V to A): 30
281K-XX/.XXX/595
View
K-BandOption 1 .470" ID Circular Waveguide
Option 2 .396" ID Circular Waveguide
Option 3 .328" ID Circular Waveguide
17.5- 20.5
20.5-24.5
24.5-26.5
UG-595/U335(H to A): 30
(V to A): 30
281A-XX/.XXX/599
View
Ka-BandOption 1 .328" ID Circular Waveguide
Option 2 .281" ID Circular Waveguide
Option 3 .250" ID Circular Waveguide
Option 4 .219" ID Circular Waveguide
26.5-28.5
28.5-33
33-38.5
38.5-40
UG-599/U5.535(H to A): 30
(V to A): 30
281B-XX/.XXX/383
View
Q-BandOption 1 .328" ID Circular Waveguide
Option 2 .281" ID Circular Waveguide
Option 3 .250" ID Circular Waveguide
Option 4 .219" ID Circular Waveguide
26.5-28.5
28.5-33
33-38.5
38.5-40
UG-383/U430(H to A): 30
(V to A): 30
281U-XX/.XXX/383
View
U-BandOption 1 .219" ID Circular Waveguide
Option 2 .188" ID Circular Waveguide
Option 3 .165" ID Circular Waveguide (50-58 GHz)
Option 4 .141" ID Circular Waveguide (58-60 GHz)
40-43
43-50
50-58
58-60
UG-383/U-M530(H to A): 30
(V to A): 30
281V-XX/.XXX/385
View
V-BandOption 1 .165" ID Circular Waveguide
Option 2 .141" ID Circular Waveguide
Option 3 .125" ID Circular Waveguide
50-58
58-68
68-75
UG-385/U530(H to A): 30
(V to A): 30
281E-XX/.XXX/387
View
E-BandOption 1 .141" ID Circular Waveguide
Option 2 .125" ID Circular Waveguide
Option 3 .110" ID Circular Waveguide (77-87 GHz)
Option 4 .094" ID Circular Waveguide (87-90 GHz)
60-68
68-77
77-87
87-90
UG-387/U630(H to A): 30
(V to A): 30
281W-XX/.XXX/387
View
W-BandOption 1 .125" ID Circular Waveguide
Option 2 .110" ID Circular Waveguide
Option 3 .094" ID Circular Waveguide (87-100 GHz)
Option 4 .082" ID Circular Waveguide (100-110 GHz)
75-77
77-87
87-100
100-110
UG-387/U-M630(H to A): 30
(V to A): 30
281F-XX/.XXX/387
View
F-BandOption 1 .094" ID Circular Waveguide
Option 2 .082" ID Circular Waveguide
Option 3 .075" ID Circular Waveguide
Option 4 .067" ID Circular Waveguide
90-100
100-112
112-125
125-140
UG-387/U-M625(H to A): 25
(V to A): 25
281D-XX/.XXX/387
View
D-BandOption 1 .082" ID Circular Waveguide
Option 2 .075" ID Circular Waveguide
Option 3 .067" ID Circular Waveguide
Option 4 .059" ID Circular Waveguide
110-112
112-125
125-160
160-170
UG-387/U-M725(H to A): 25
(V to A): 25
281G-XX/.XXX/387
View
G-BandOption 1 .067" ID Circular Waveguide
Option 2 .059" ID Circular Waveguide
125-140
140-220
UG-387/U-M20(H to A): 20
(V to A): 20

Note: Our website contains just a few types of  Orthomode Transducers we build. Consult with us for your specific needs.

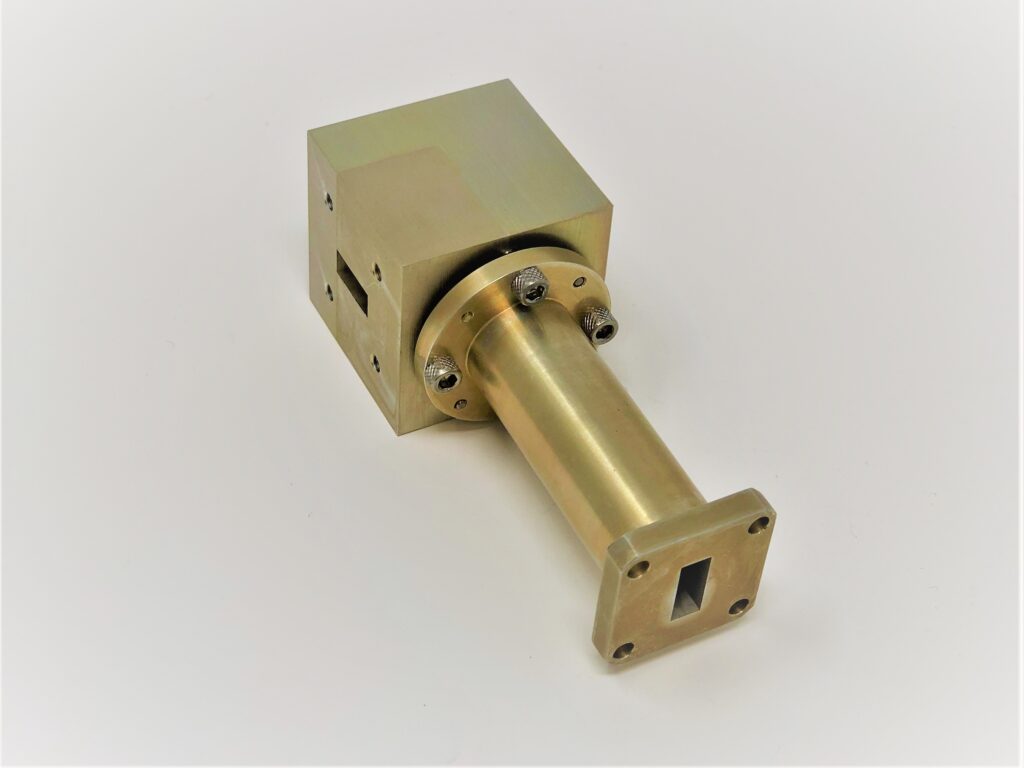

281X-XX/.XXX/UG39

8.2 GHz to 12.4 GHz, 35 dB Isolation, 30 dB Cross Polarization, X-band Orthomode Transducer

View Product

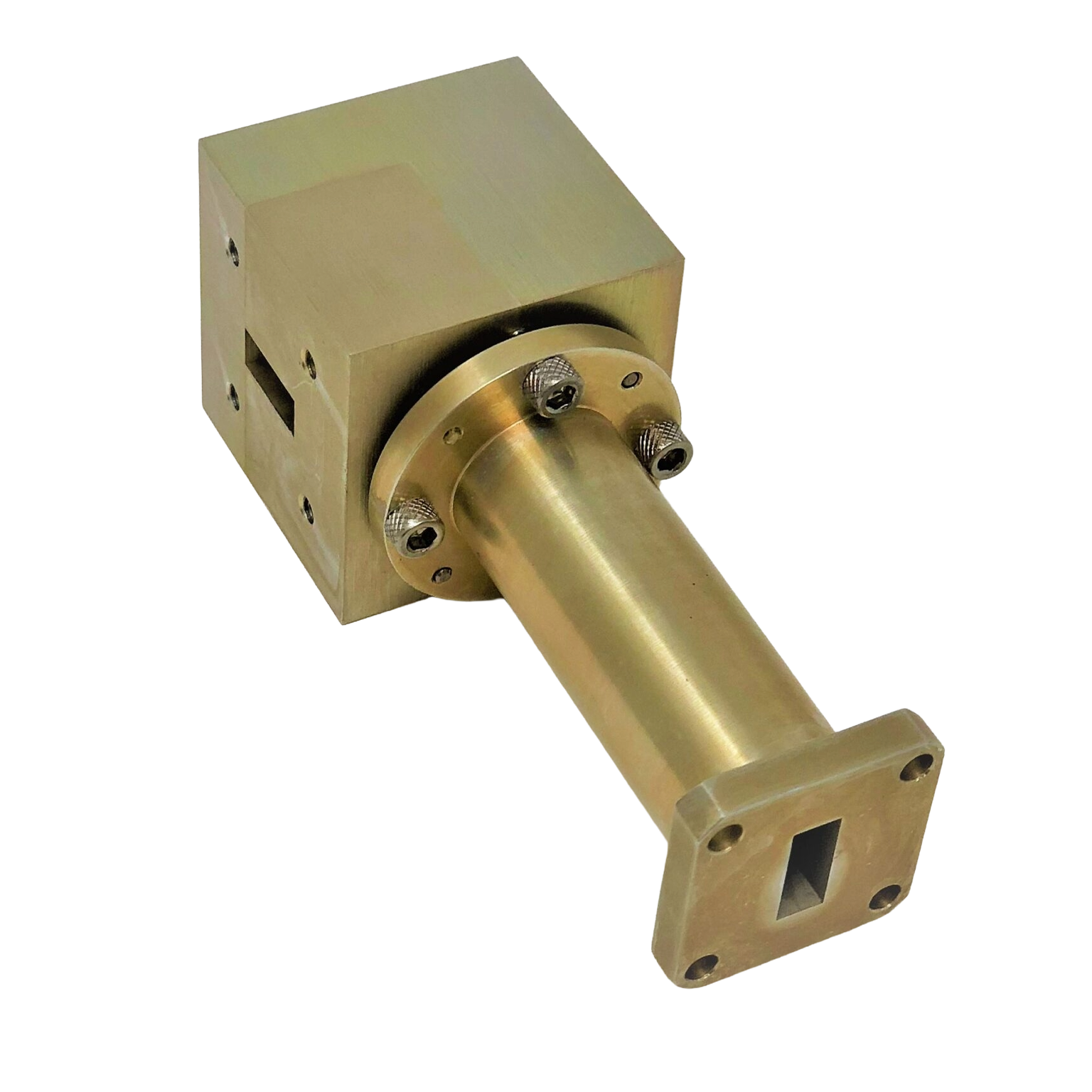

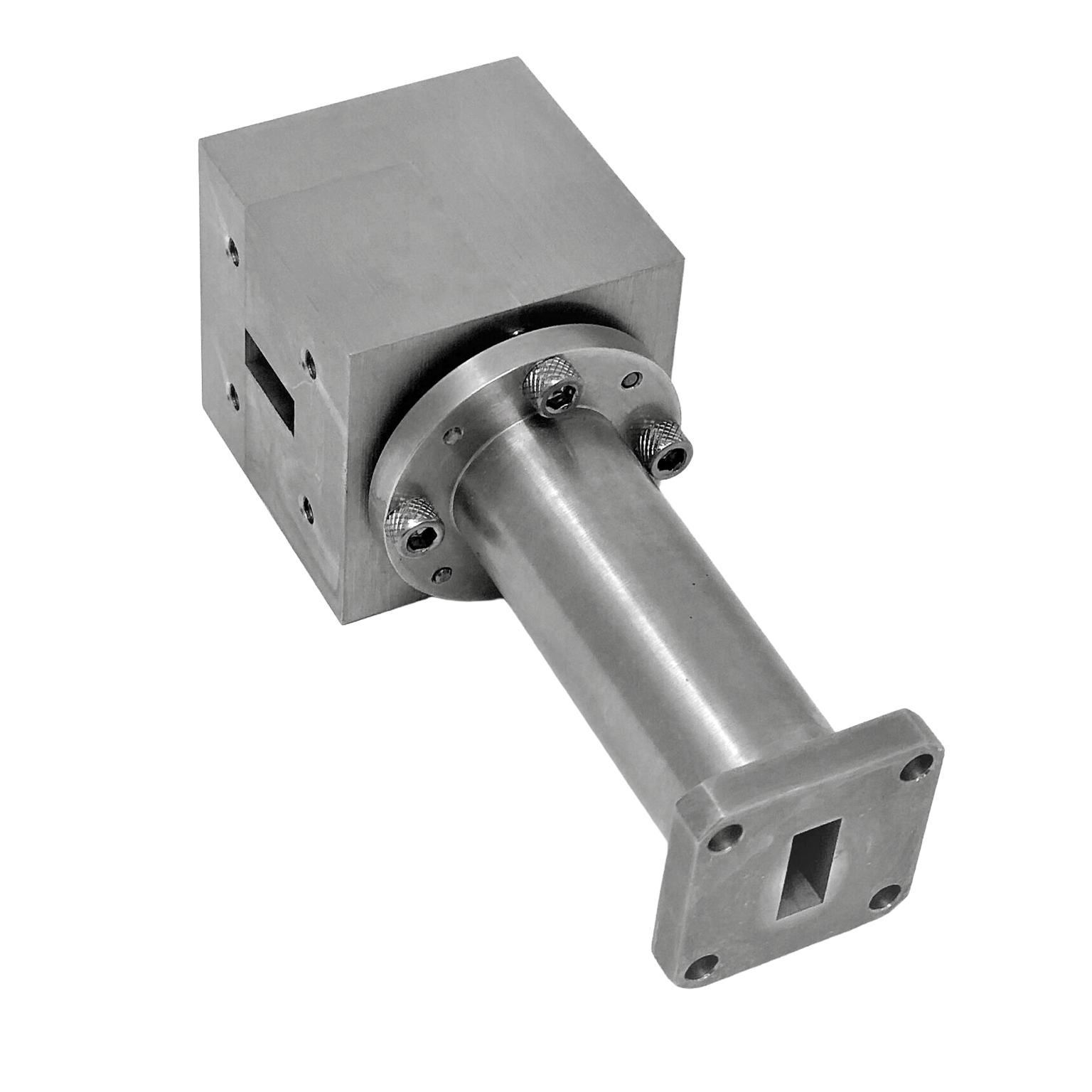

281Ku-XX/.XXX/419

12.4 GHz to 18 GHz, 35 dB Isolation, 30 dB Cross Polarization, Ku-band Orthomode Transducer

View Product

281K-XX/.XXX/595

18 GHz to 26.5 GHz, 35 dB Isolation, 30 dB Cross Polarization, K-band Orthomode Transducer

View Product

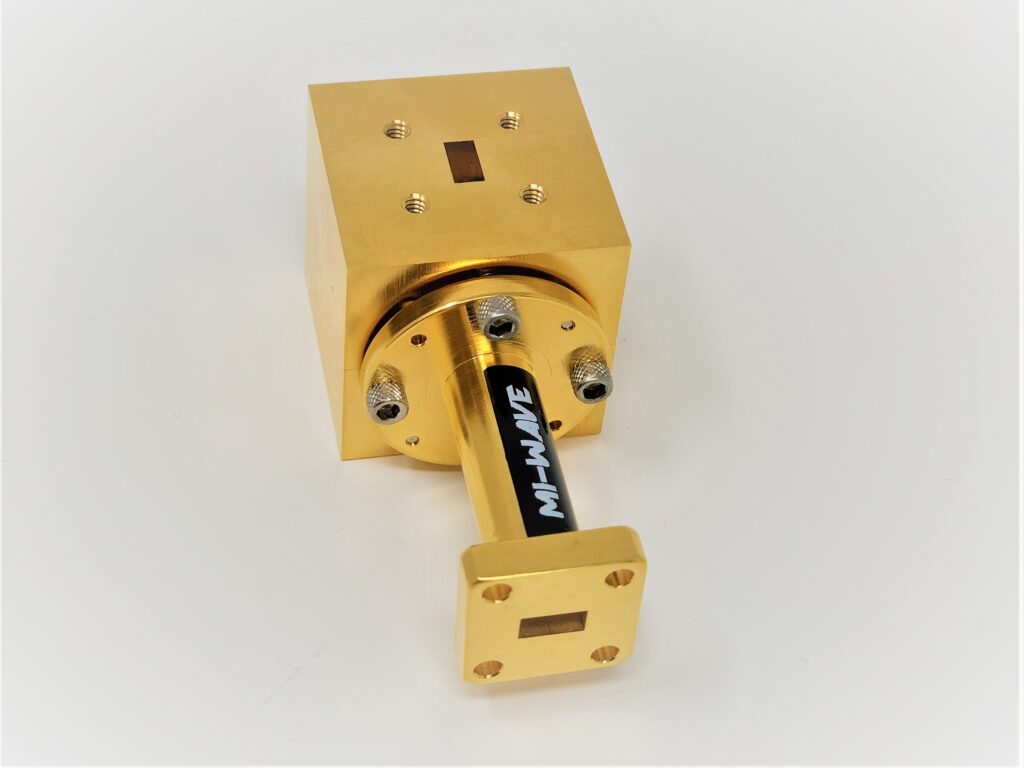

281A-XX/.XXX/599

33 GHz to 38.5 GHz, 42 dB Isolation, 30 dB Cross Polarization, Ka-band Orthomode Transducer

View Product

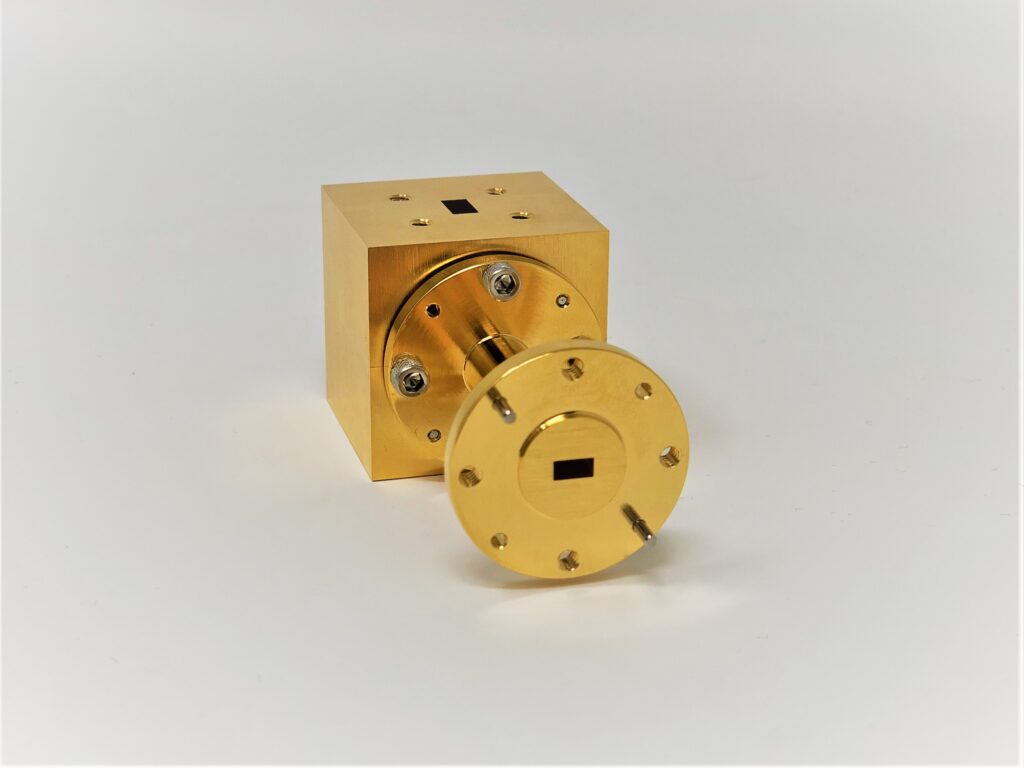

281B-XX/.XXX/383

33 GHz to 50 GHz, 30 dB Isolation, 30 dB Cross Polarization, Q-band Orthomode Transducer

View Product

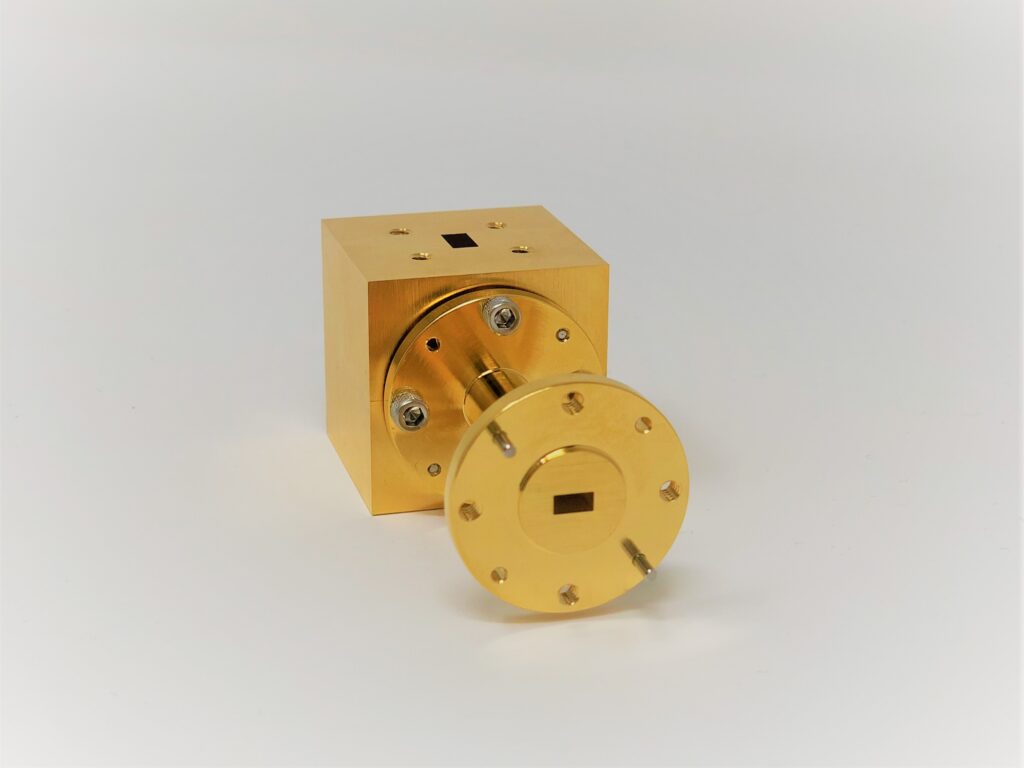

281U-XX/.XXX/383

40 GHz to 60 GHz, 30 dB Isolation, 30 dB Cross Polarization, U-band Orthomode Transducer

View Product

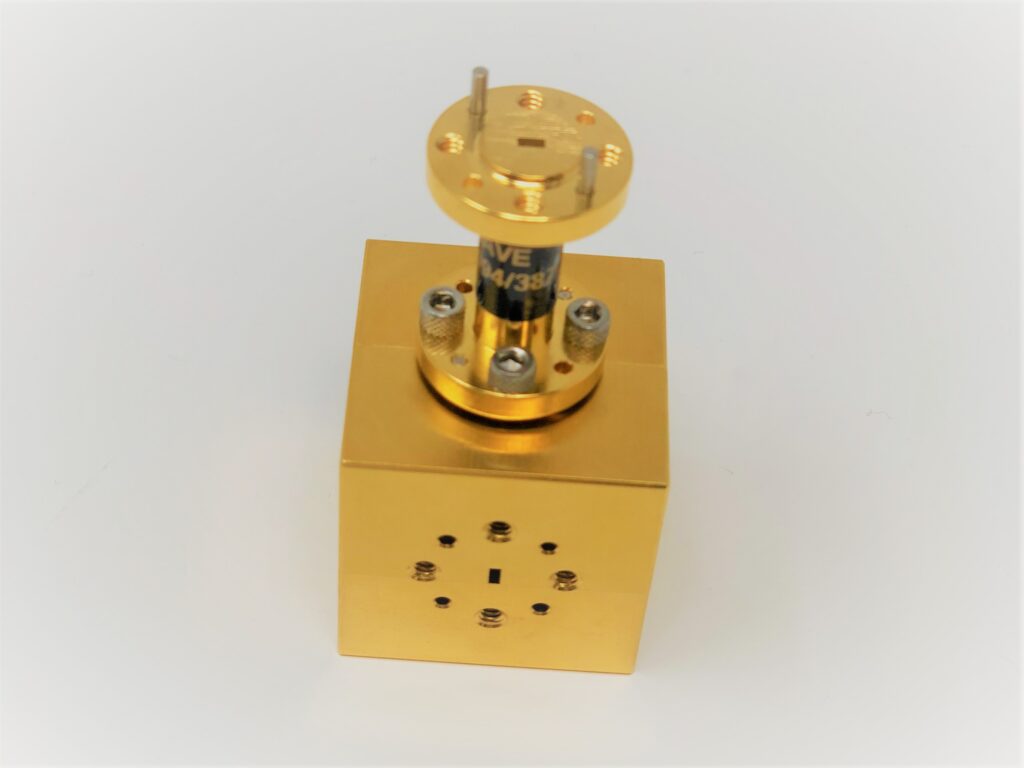

281V-XX/.XXX/385

50 GHz to 75 GHz, 30 dB Isolation, 30 dB Cross Polarization, V-band Orthomode Transducer

View Product

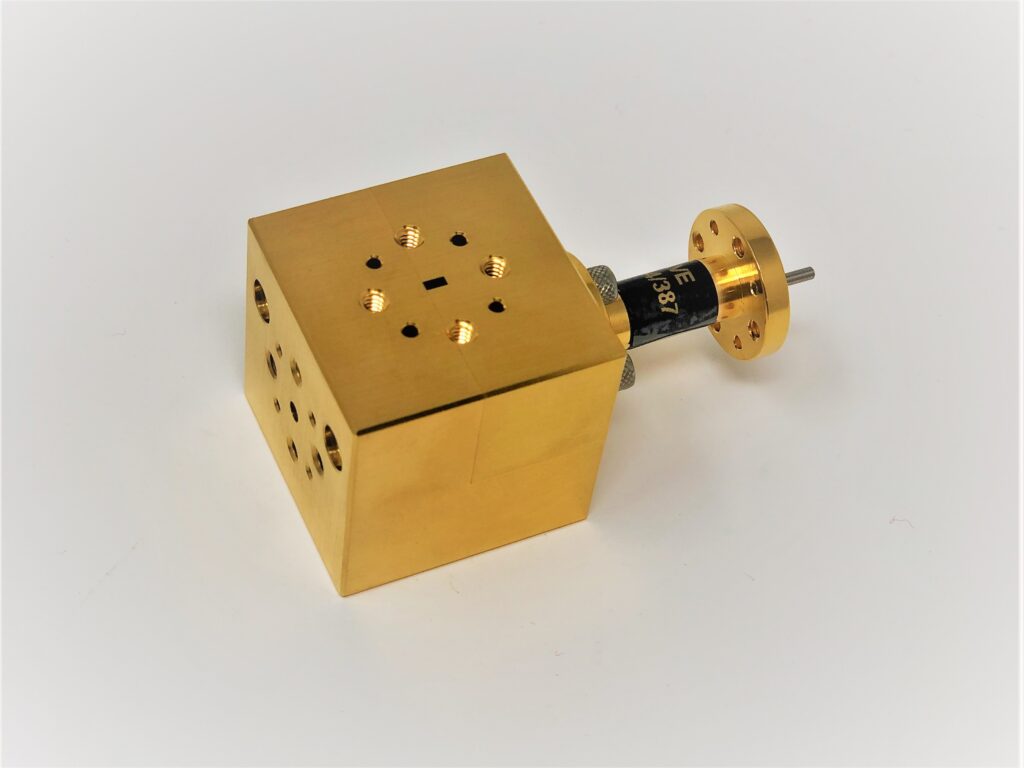

281E-XX/.XXX/387

60 GHz to 90 GHz, 30 dB Isolation, 30 dB Cross Polarization, E-band Orthomode Transducer

View Product

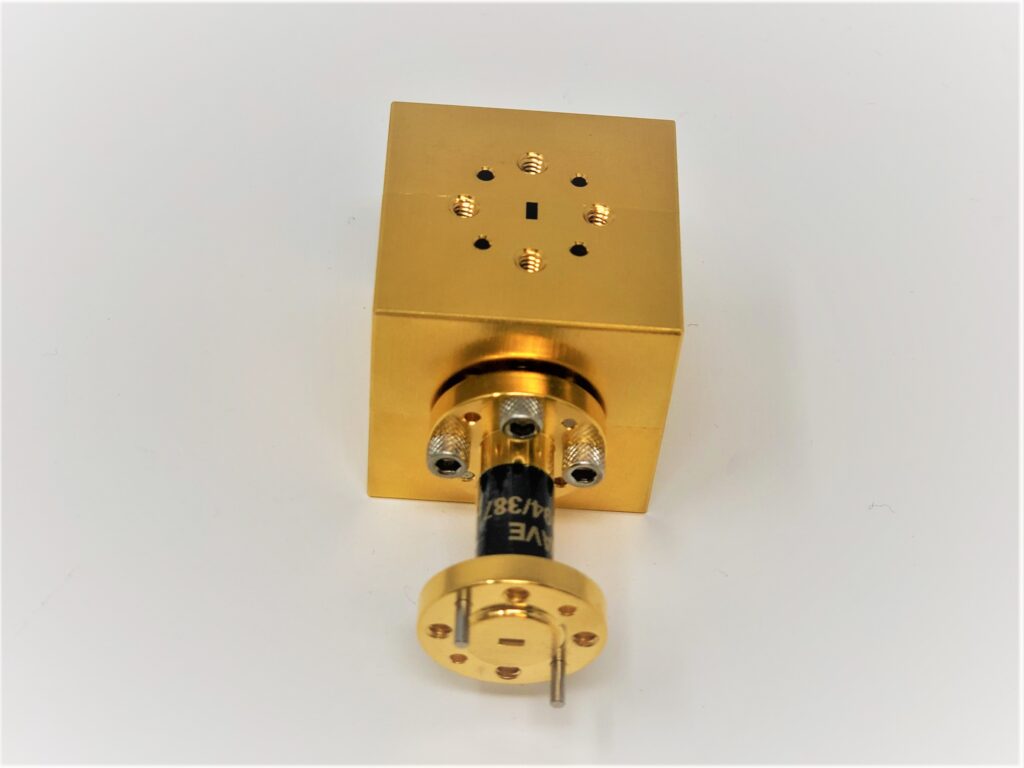

281W-XX/.XXX/387

75 GHz to 110 GHz, 30 dB Isolation, 30 dB Cross Polarization, W-band Orthomode Transducer

View Product

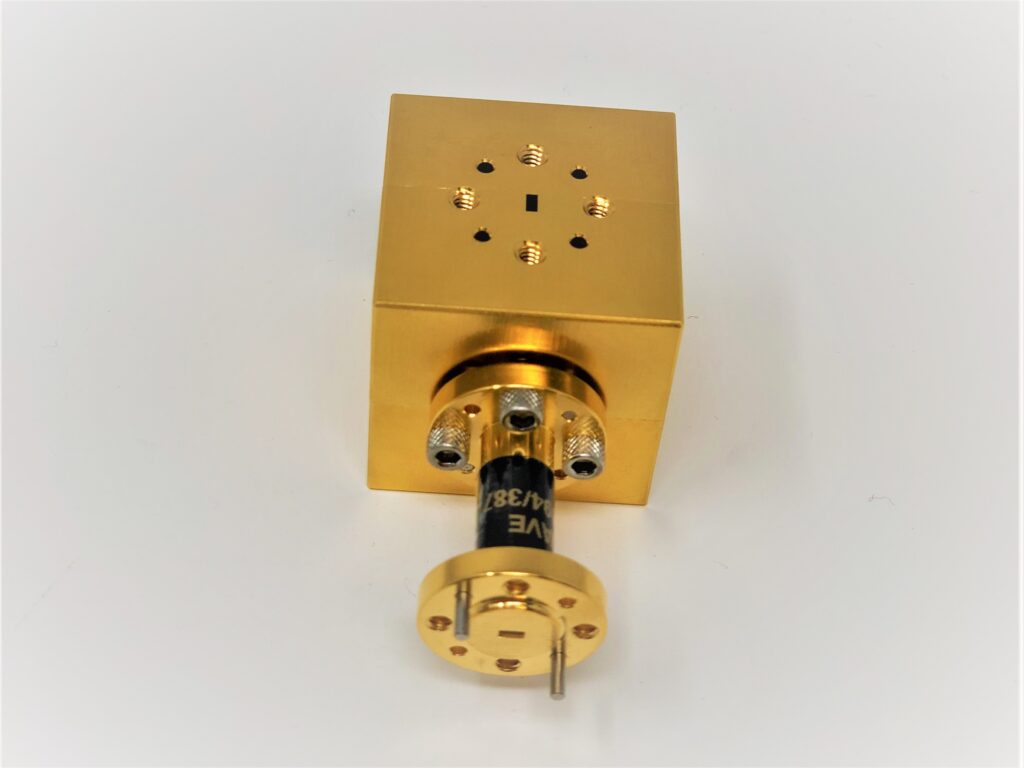

281F-XX/.XXX/387

90 GHz to 140 GHz, 25 dB Isolation, 25 dB Cross Polarization, F-band Orthomode Transducer

View Product

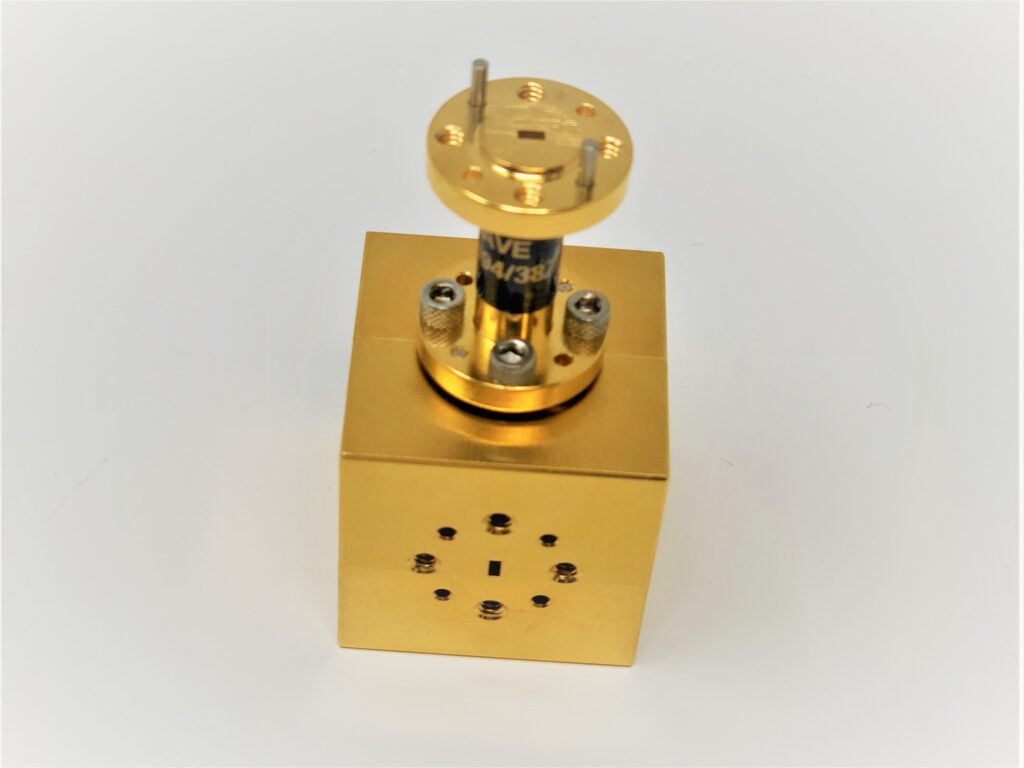

281D-XX/.XXX/387

110 GHz to 170 GHz, 25 dB Isolation, 25 dB Cross Polarization, D-band Orthomode Transducer

View Product

281G-XX/.XXX/387

140 GHz to 220 GHz, 20 dB Isolation, 20 dB Cross Polarization, G-band Orthomode Transducer

View Product
