Harmonic Mixers

Mi-Wave’s 920 Series Harmonic Mixers are used to downconvert millimeter wave signals using a Schottky barrier mixer diode. Measurements can be made by mixing the harmonic of the LO with the desired RF signal and observing the resulting IF.

Note: Our website contains just a few types of  Mixers we build. Consult with us for your specific needs.

Recommended for use with a harmonic number less than 14

ModelBandRF Frequency (GHz)LO Frequency (GHz)IF Frequency (GHz)LO Power (dBm)LO Plus RF PowerRF PortLO/IF PortLINK
920A/599Ka-Band26.5 - 40Up to 20 GHzDependent on Diplexer Configuration13+13+WR-28 Waveguide, UG-599/U FlangeSMA (F)
View
920B-383Q-Band33 - 50Up to 20 GHzDependent on Diplexer Configuration13+13+WR-22 Waveguide, UG-383/U FlangeSMA (F)
View
920U-383U-Band40 - 60Up to 20 GHzDependent on Diplexer Configuration13+13+WR-19 Waveguide, UG-383/U-M FlangeSMA (F)
View
920E-387E-Band60 - 90Up to 20 GHzDependent on Diplexer Configuration13+13+WR-12 Waveguide, UG-387/U-M FlangeSMA (F)
View
920V-385V-Band50 - 75Up to 20 GHzDependent on Diplexer Configuration13+13+WR-15 Waveguide, UG-385/U FlangeSMA (F)
View
920W-387W-Band75 - 110Up to 20 GHzDependent on Diplexer Configuration13+13+WR-10 Waveguide, UG-387/U-M FlangeSMA (F)
View
920F-387F-Band90 - 140Up to 20 GHzDependent on Diplexer Configuration13+13+WR-08 Waveguide, UG-387/U-M FlangeSMA (F)
View
920D-387D-Band110 - 170Up to 20 GHzDependent on Diplexer Configuration13+13+WR-06 Waveguide, UG-387/U-M FlangeSMA (F)
View
920G-387G-Band140 - 220Up to 20 GHzDependent on Diplexer Configuration13+13+WR-05 Waveguide, UG-387/U-M FlangeSMA (F)
View

Note: Our website contains just a few types of  Mixers we build. Consult with us for your specific needs.

Recommended for use with a harmonic number less than 14

Harmonic Mixer, 26.5 GHz to 40 GHz, LO frequency range 2GHz 20 GHz, LO Power +10 dBm

920A/599

26.5 – 40 GHz, LO frequency 2GHz-20 GHz

View Product

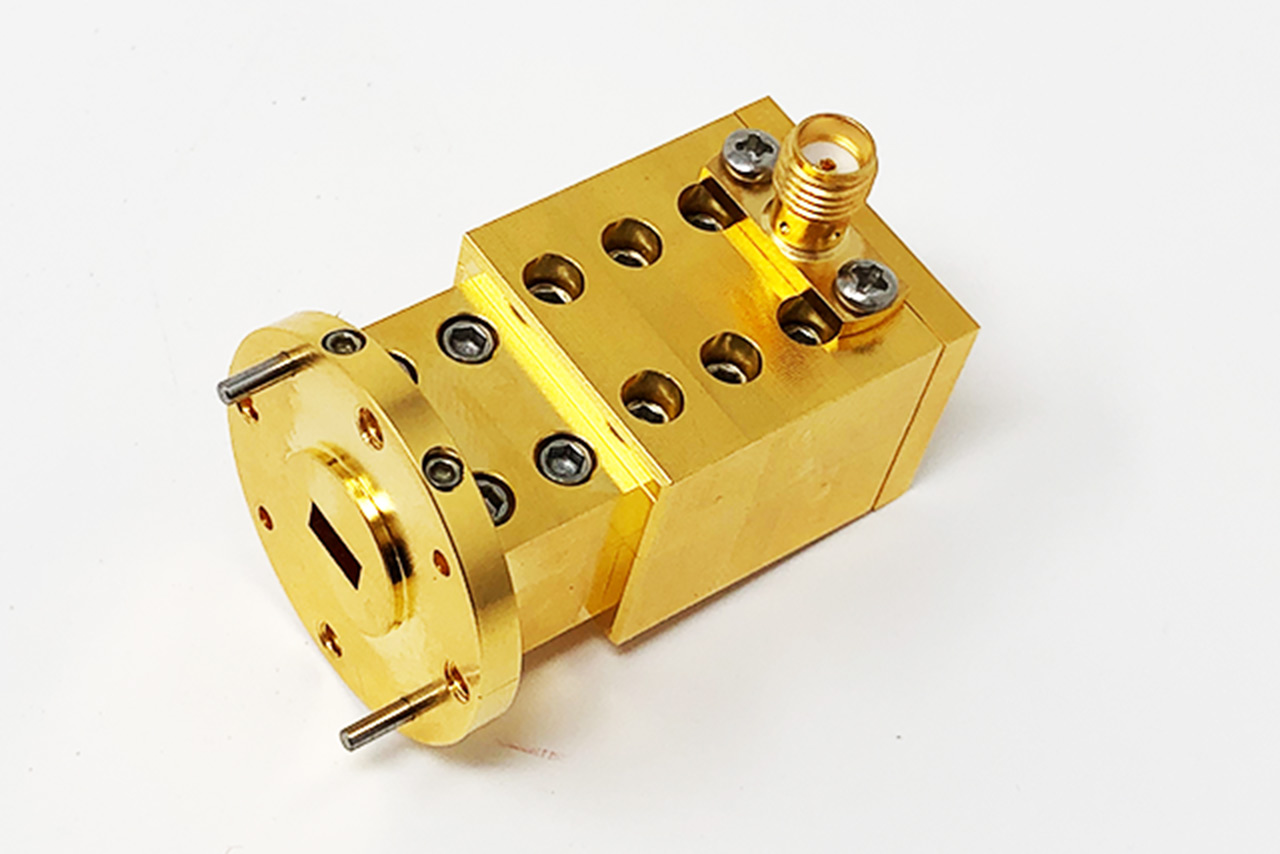

Q-Band Harmonic Mixer

920B-383

33 – 50 GHz with LO frequency range 2 GHz 20 GHz

View Product

920U-383

40 – 60 GHz, LO frequency range 2 GHz to 20 GHz

View Product

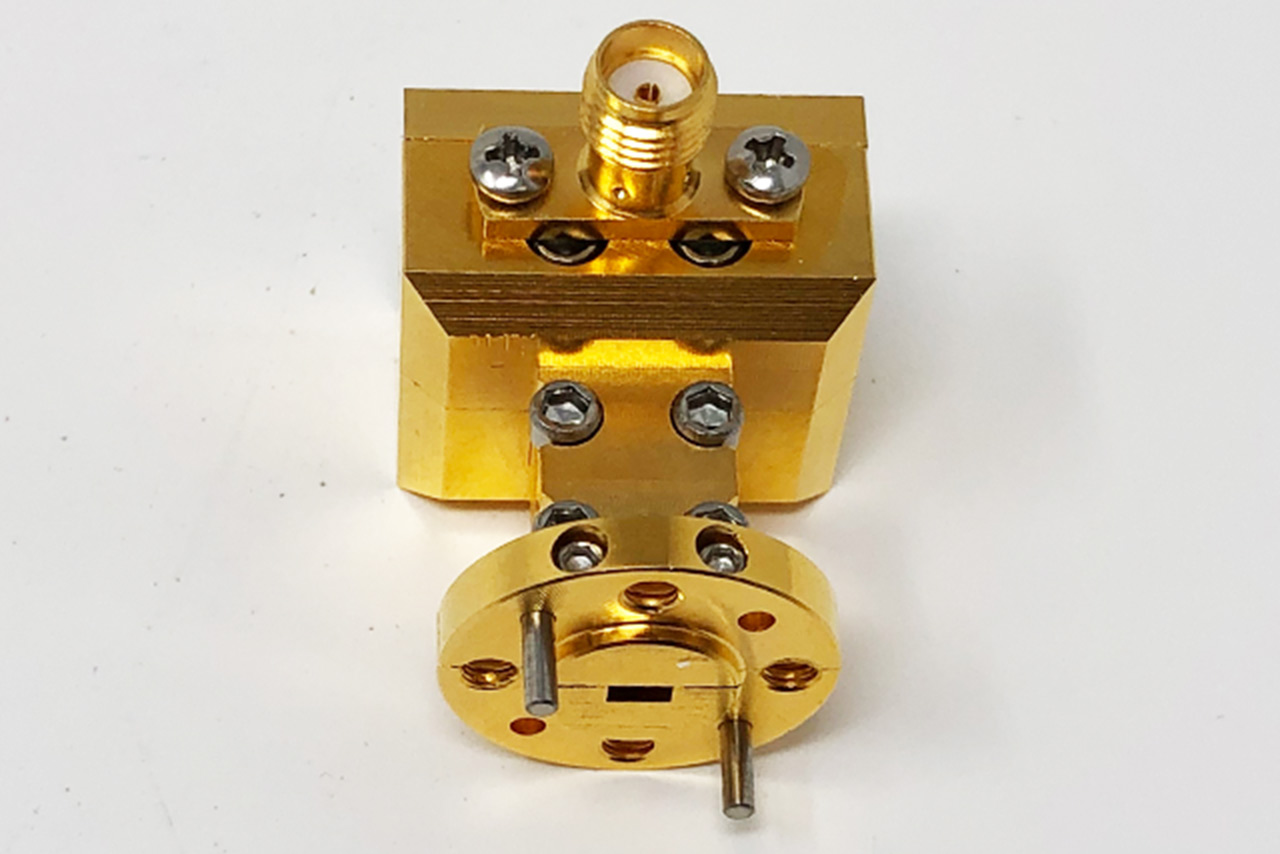

920E-387

60 – 90 GHz with LO frequency range 2 GHz 20 GHz

View Product

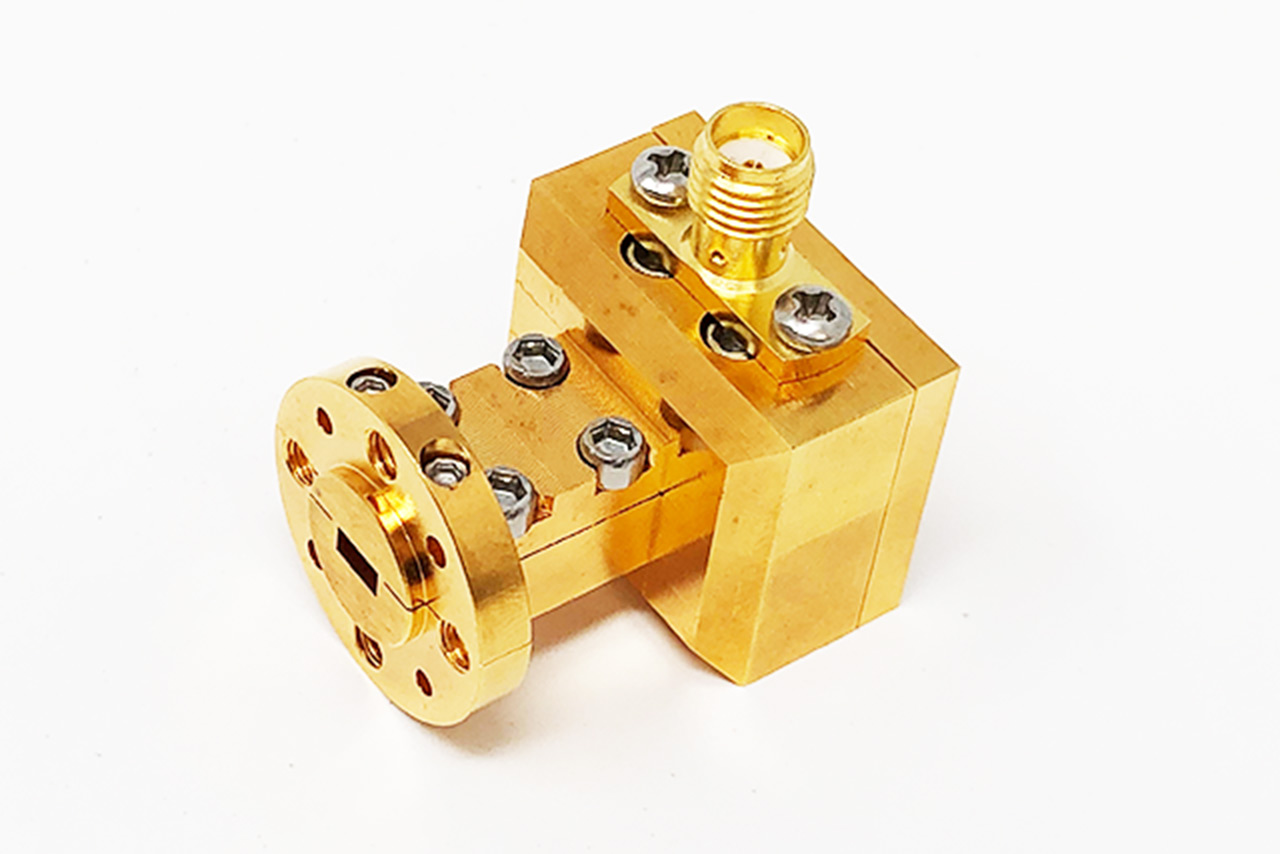

920V-385

50 – 75 GHz, LO frequency range 2 GHz to 20 GHz

View Product

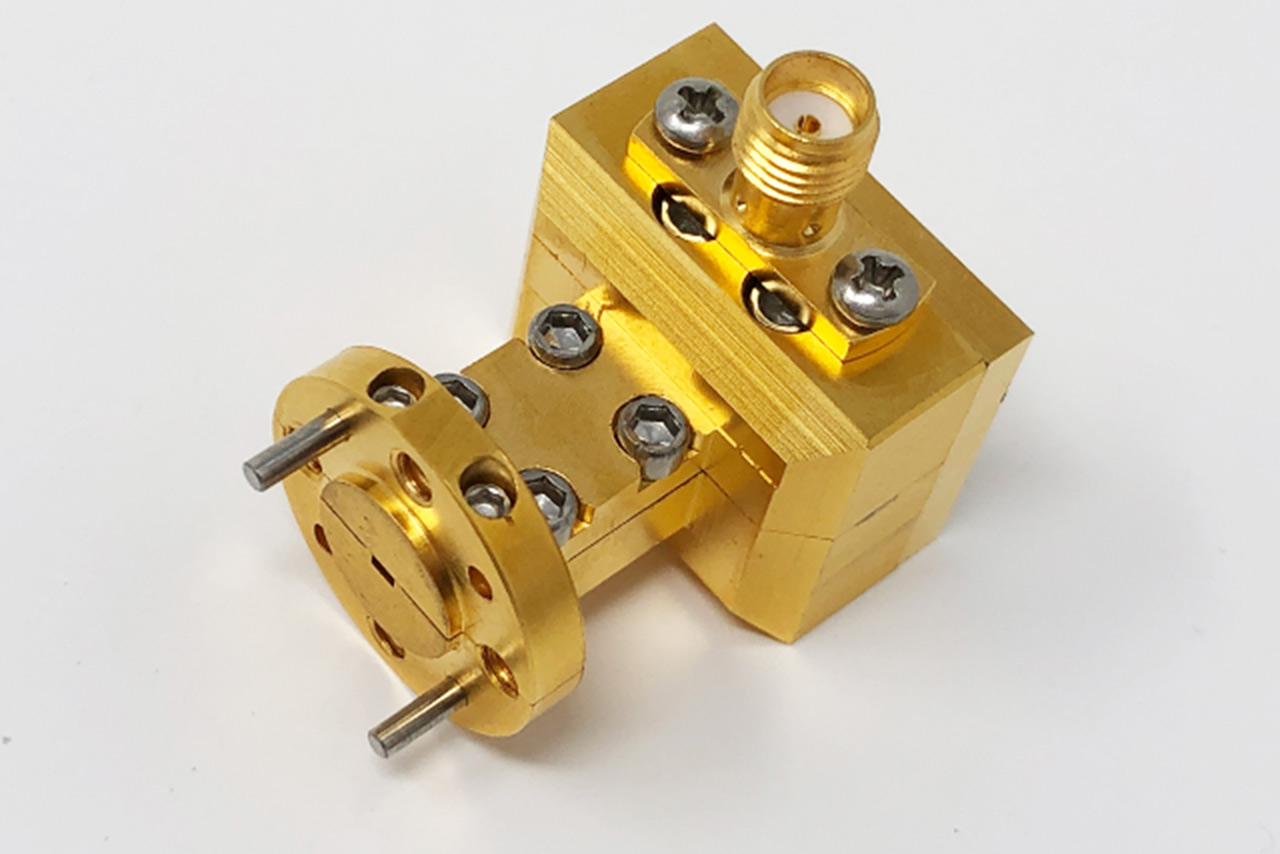

920W-387

75 – 110 GHz, LO frequency range 2 GHz to 20 GHz

View Product

920F-387

90 – 140 GHz, LO frequency range 2 GHz to 20 GHz

View Product

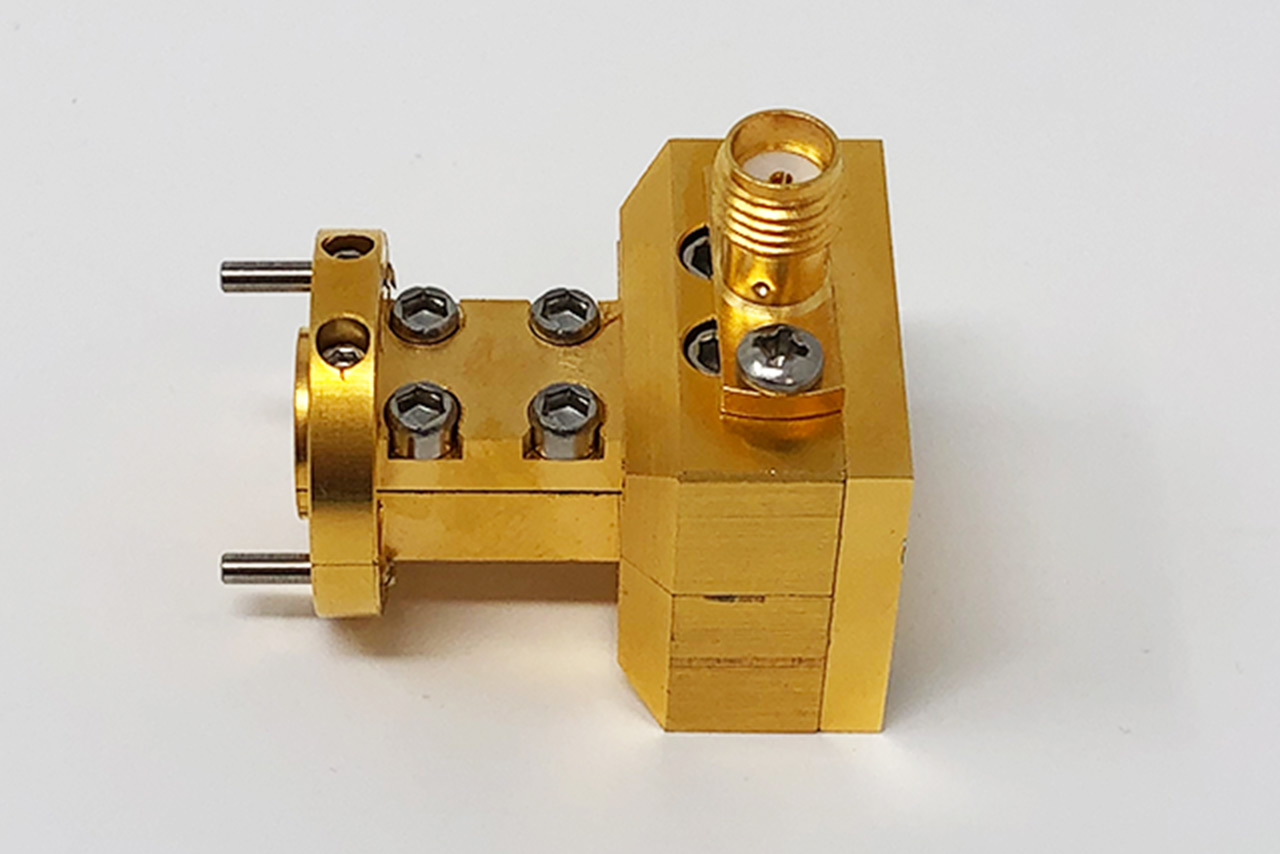

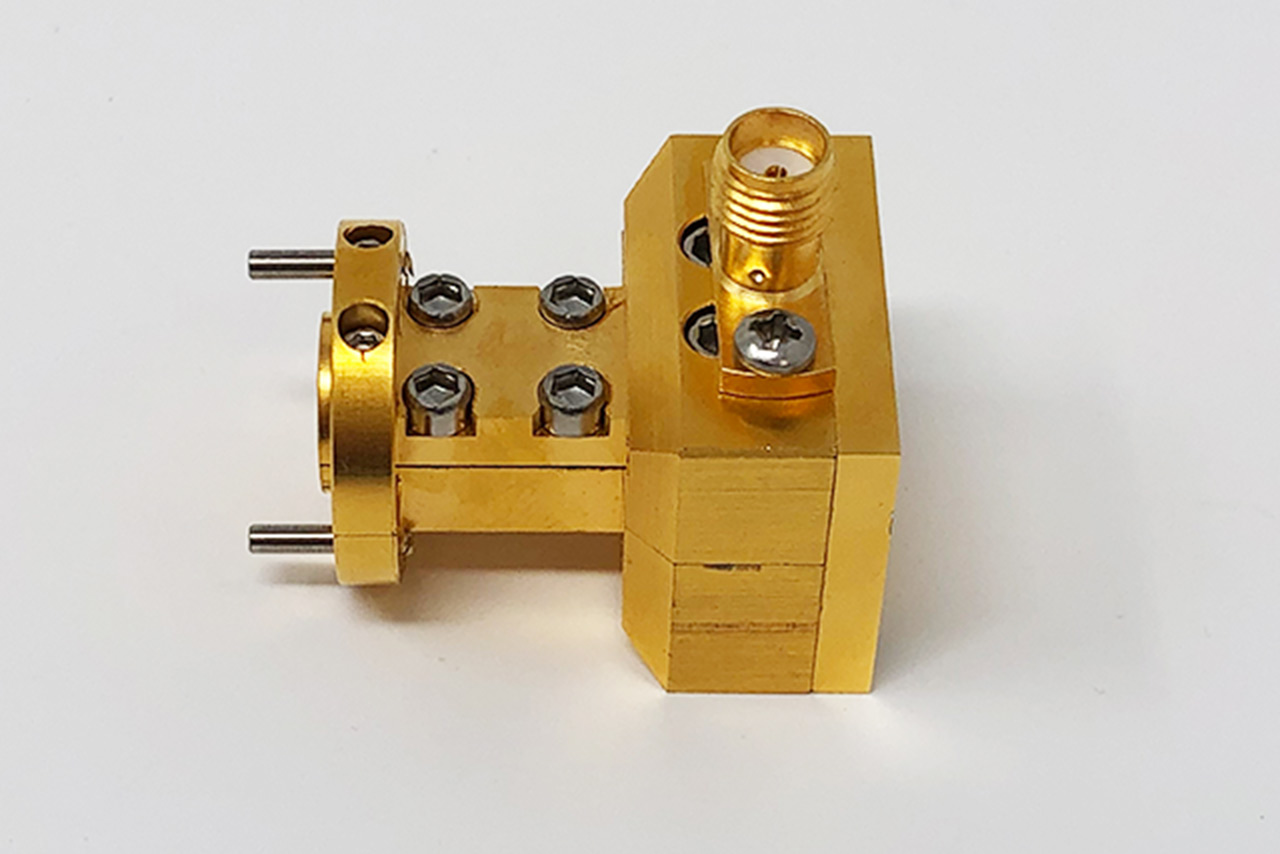

920D-387

110 – 170 GHz, LO frequency range 2 GHz 20 GHz

View Product

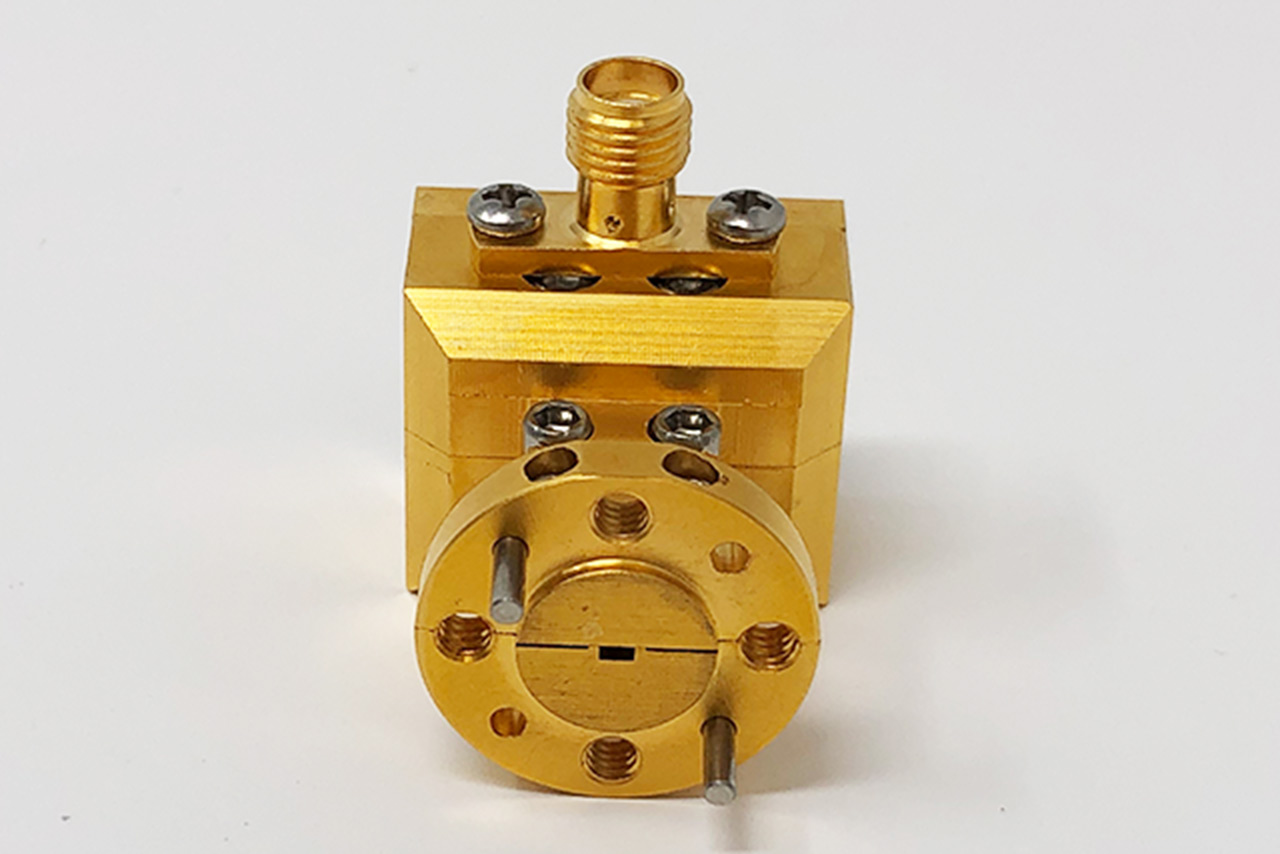

920G-387

140 – 220 GHz, LO frequency range 2 GHz to 20 GHz

View Product
