Multi-Junction Waveguide Circulators

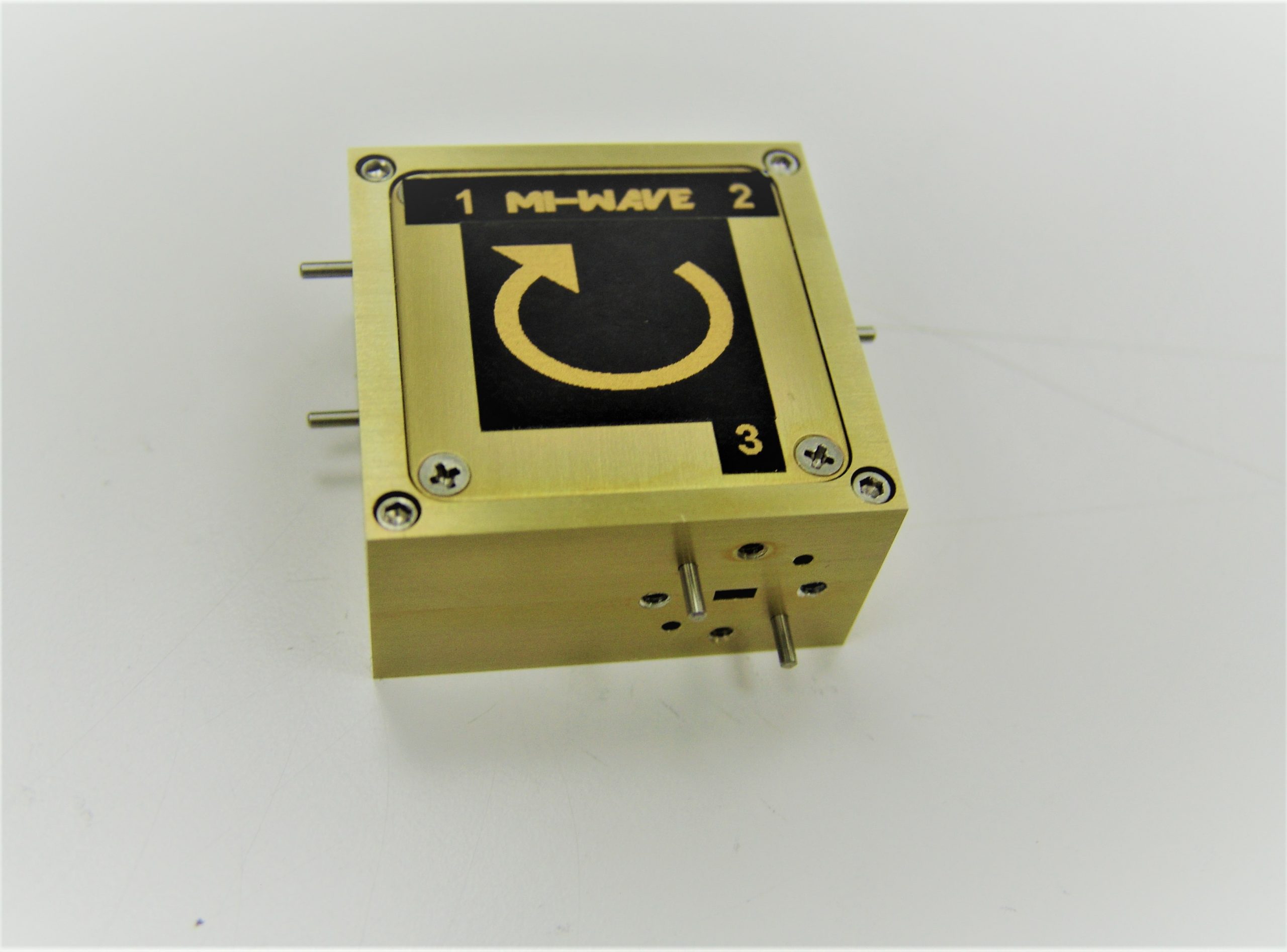

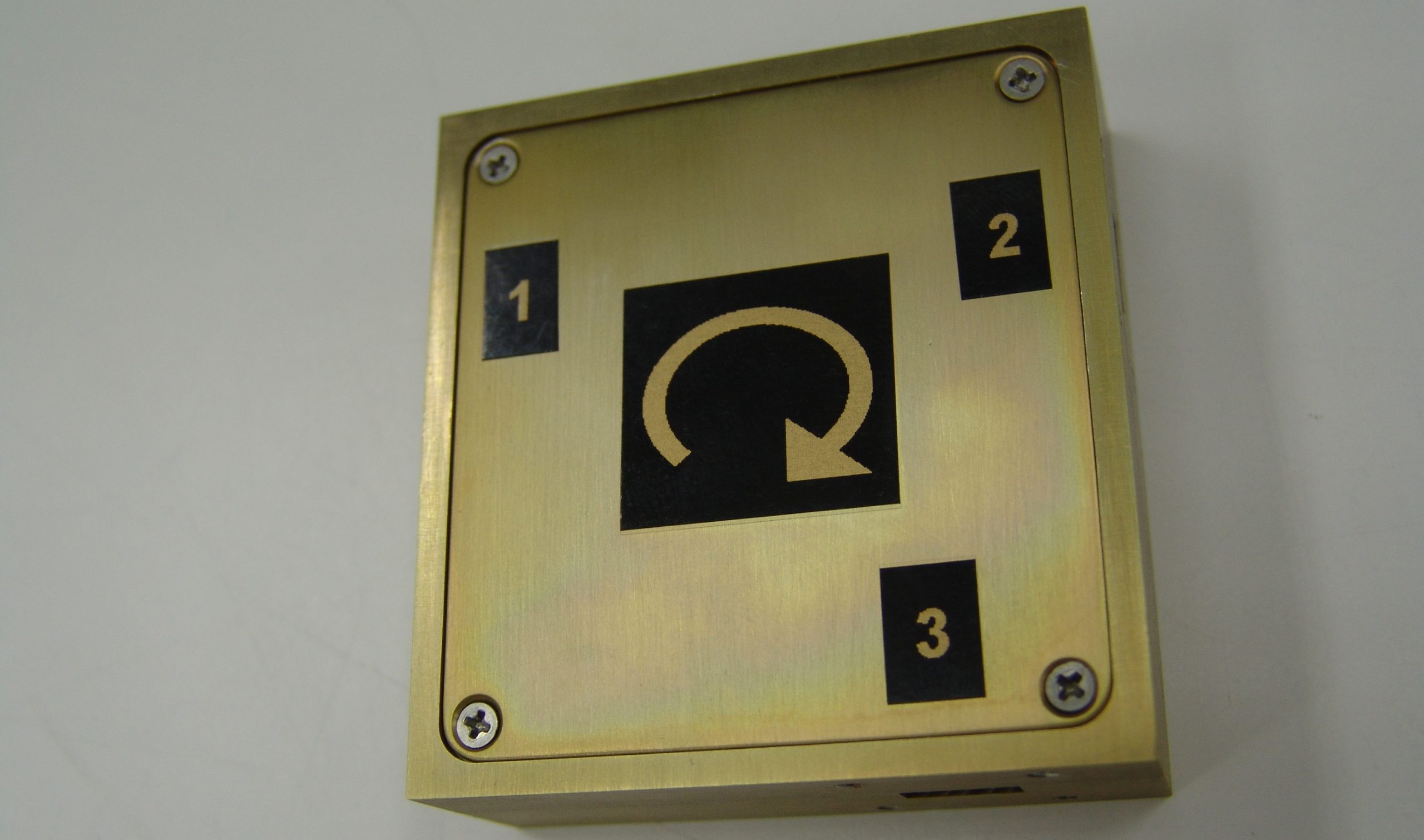

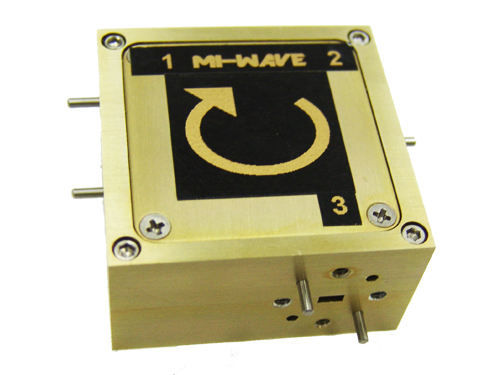

Mi-Wave’s 180 series is an H-plane, three-junction, three-port, Y-junction ferrite device. All external mating surfaces are machined to extreme flatness to provide connection to standard waveguide flanges for minimum discontinuity. The 180 Series circulators are available in standard wave-guide sizes from 18.00 to 110 GHz.
Note: MIWV no longer offers Series 180 Circulator
Features
- Low Loss
- Low VSWR
- High Isolation (30dB typ.)
- Adjustable
OUTLINES:
Note: Our website contains just a few types of Circulators we build. Consult with us for your specific needs.
| Model | Band Type | Frequency Band (GHz) | Bandwidth (GHz) | Isolation (dB) | Insertion Loss (dB) | VSWR | Temperature Range | Peak Power (kW) | Average Power (Watts) | Flange |
|---|---|---|---|---|---|---|---|---|---|---|
| 180K-30/595 | K-Band | 18–26.5 | 1 | >30 | 0.7 | 1.3 | 0 to +40 c | 1 | 30 | UG-595/U |
| 180A-30/599 | Ka-Band | 26.5–40 | 1 | >30 | 0.8 | 1.3 | 0 to +40 c | 1 | 30 | UG-599/U |
| 180B-25/383 | Q-Band | 33–50 | 1 | >30 | 0.9 | 1.3 | 0 to +40 c | 1 | 25 | UG-383/U |
| 180U-15/383 | U-Band | 40–60 | 1 | >30 | 1 | 1.35 | 0 to +40 c | 1 | 15 | UG-383/U |
| 180V-10/385 | V-Band | 50–75 | 1 | >30 | 1.2 | 1.4 | 0 to +40 c | 1 | 10 | UG-385/U |
| 180E-5/387 | E-Band | 60–90 | 1 | >30 | 1.4 | 1.4 | 0 to +40 c | 1 | 5 | UG-387/U |
| 180W-5/387 | W-Band | 75–110 | 1 | >30 | 1.4 | 1.4 | 0 to +40 c | 1 | 5 | UG-387/U |
Note: Our website contains just a few types of Circulators we build. Consult with us for your specific needs.
