Direct Reading Precision Attenuators (Series 510)

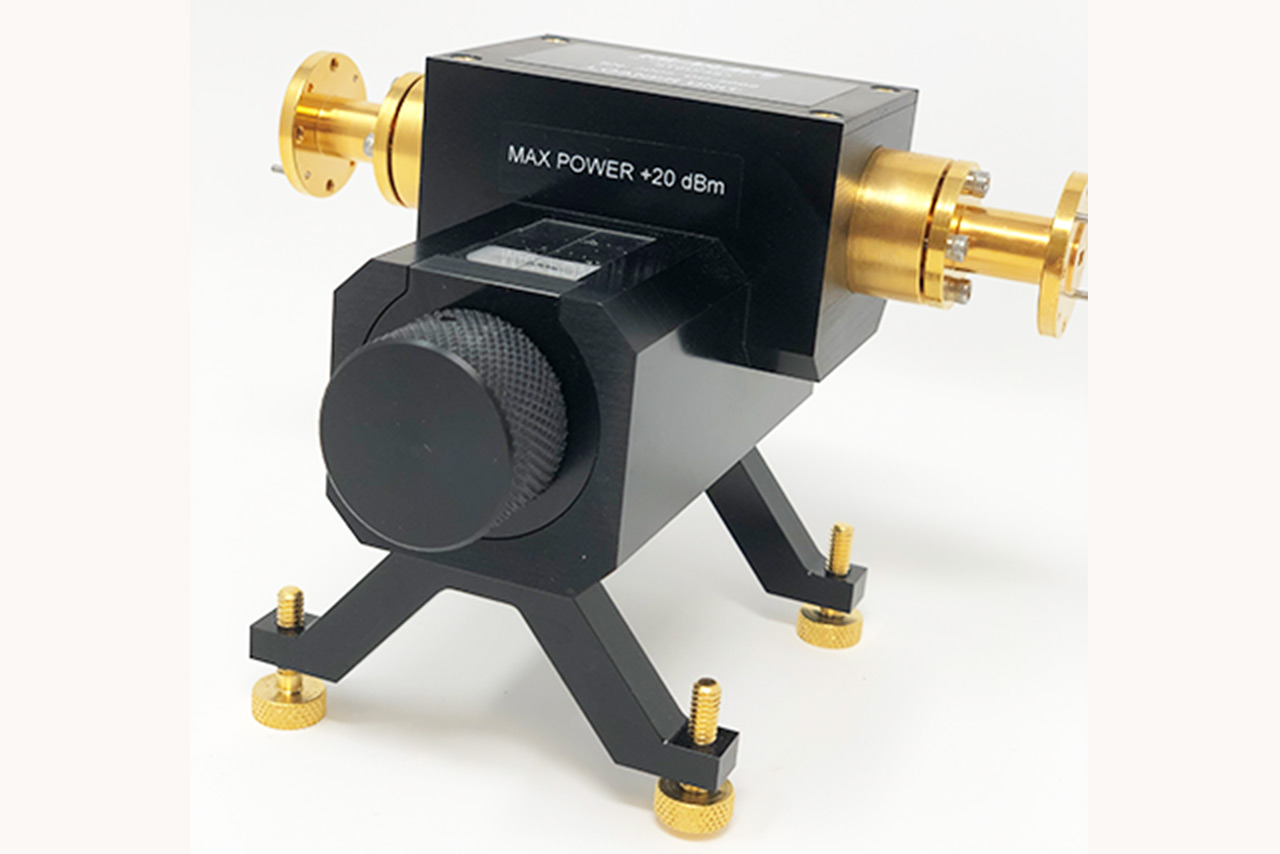

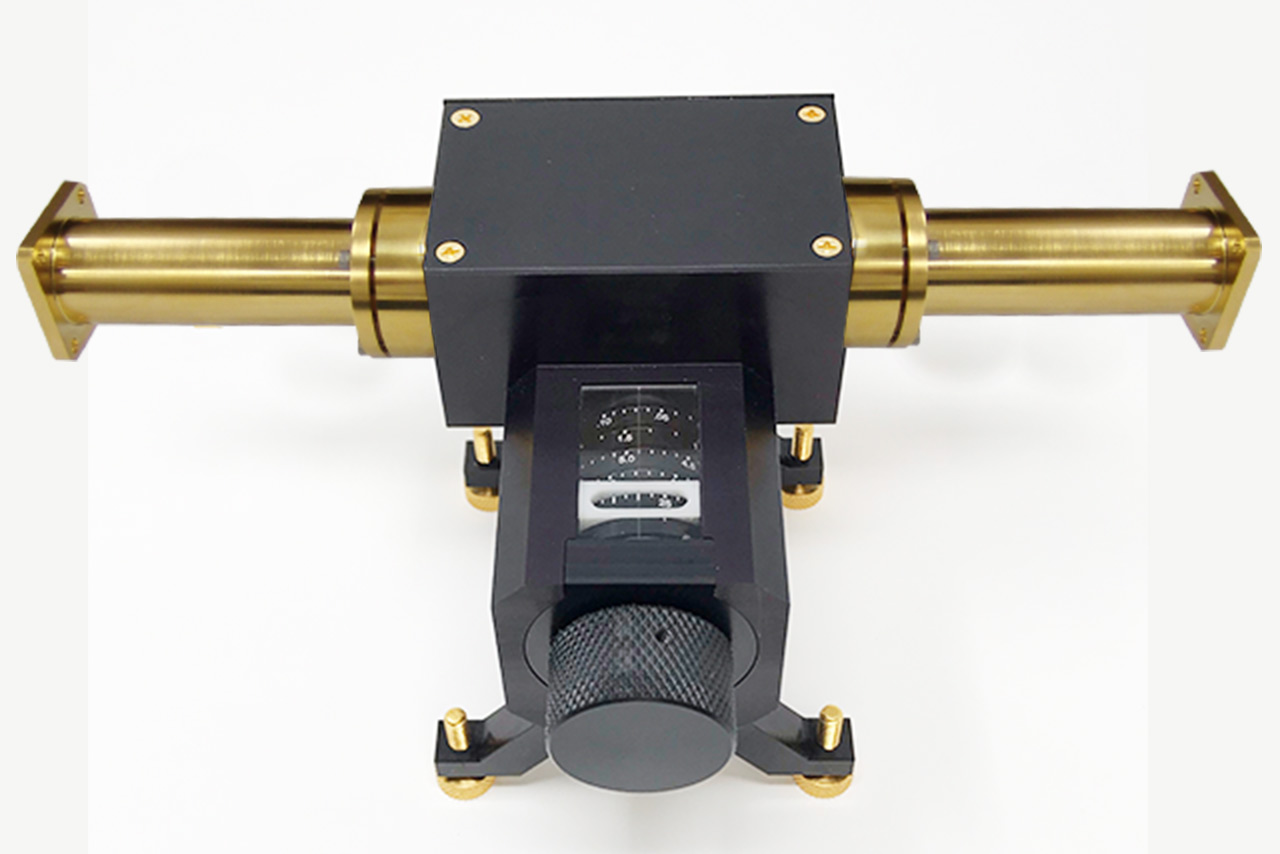

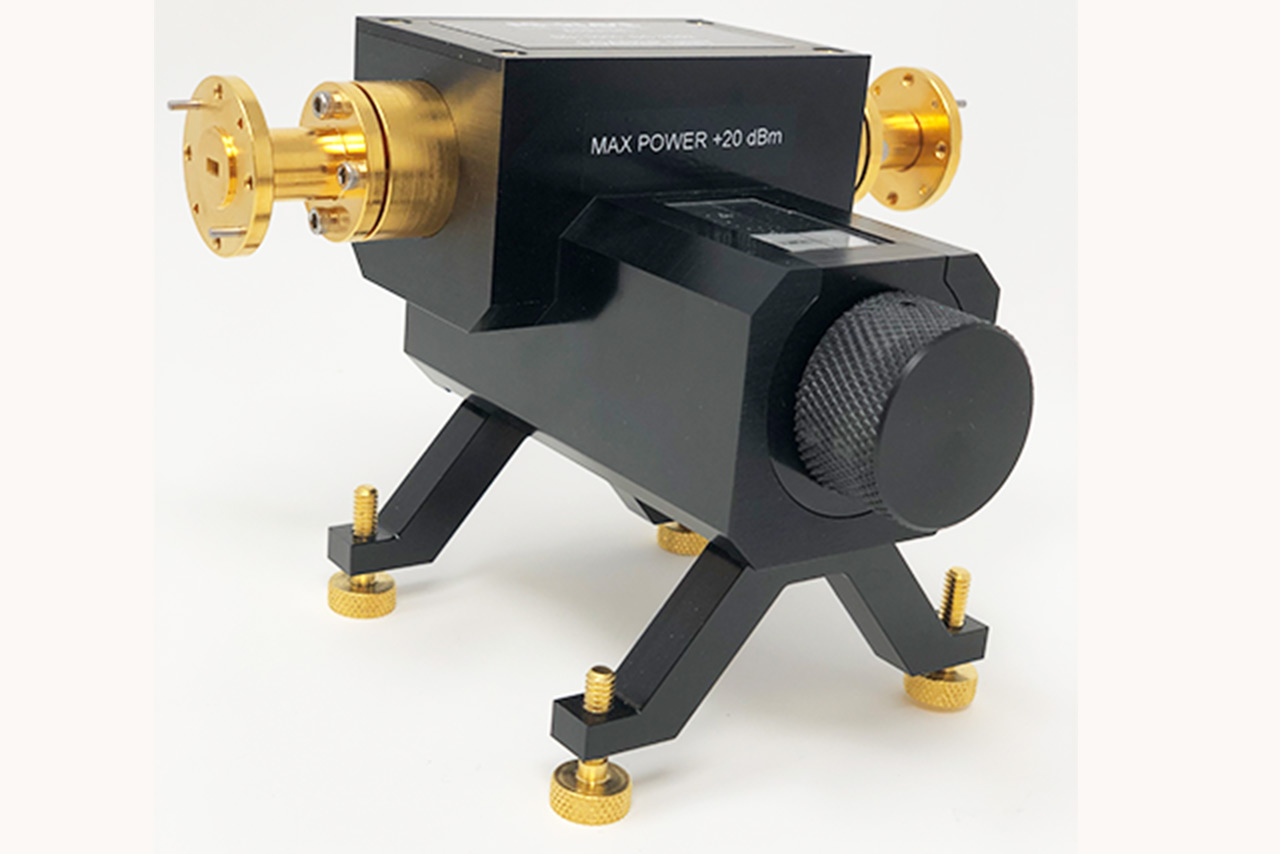

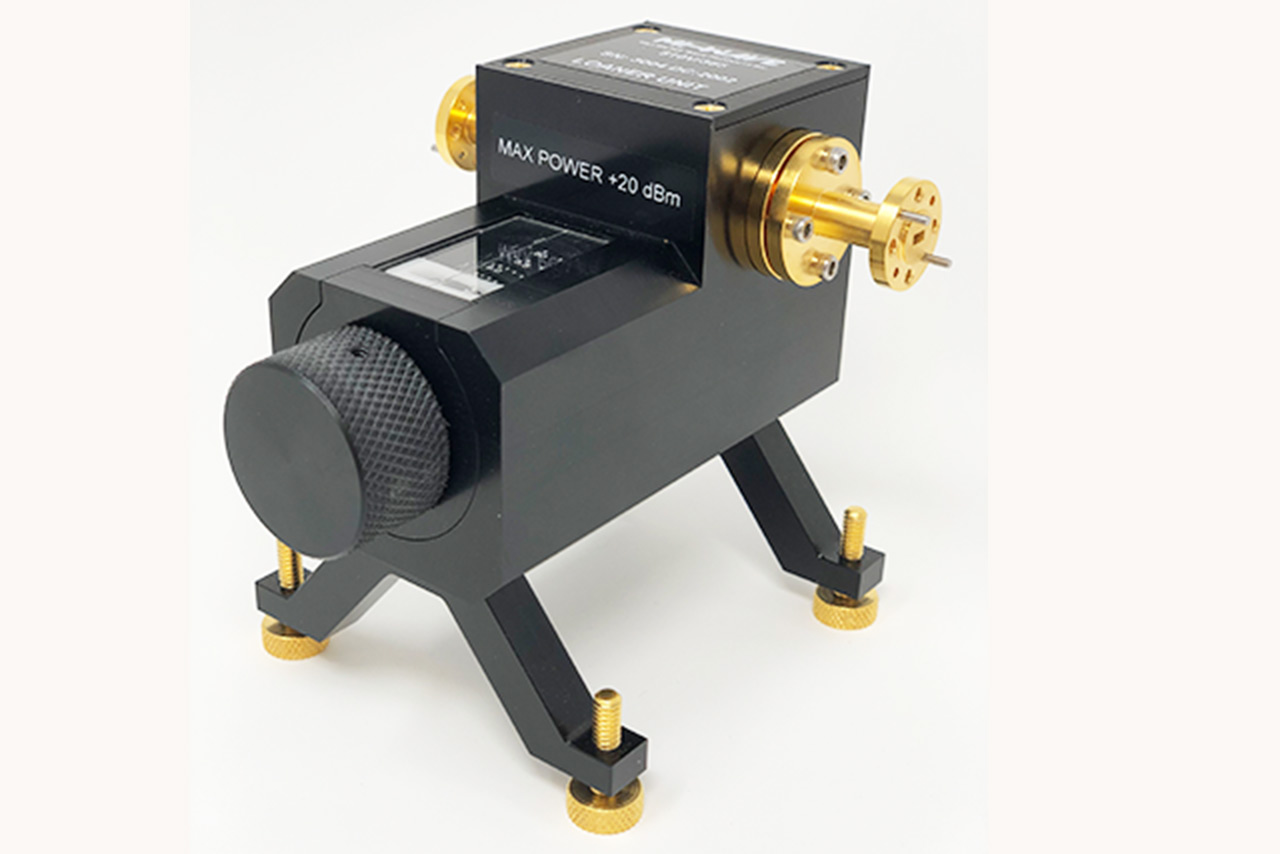

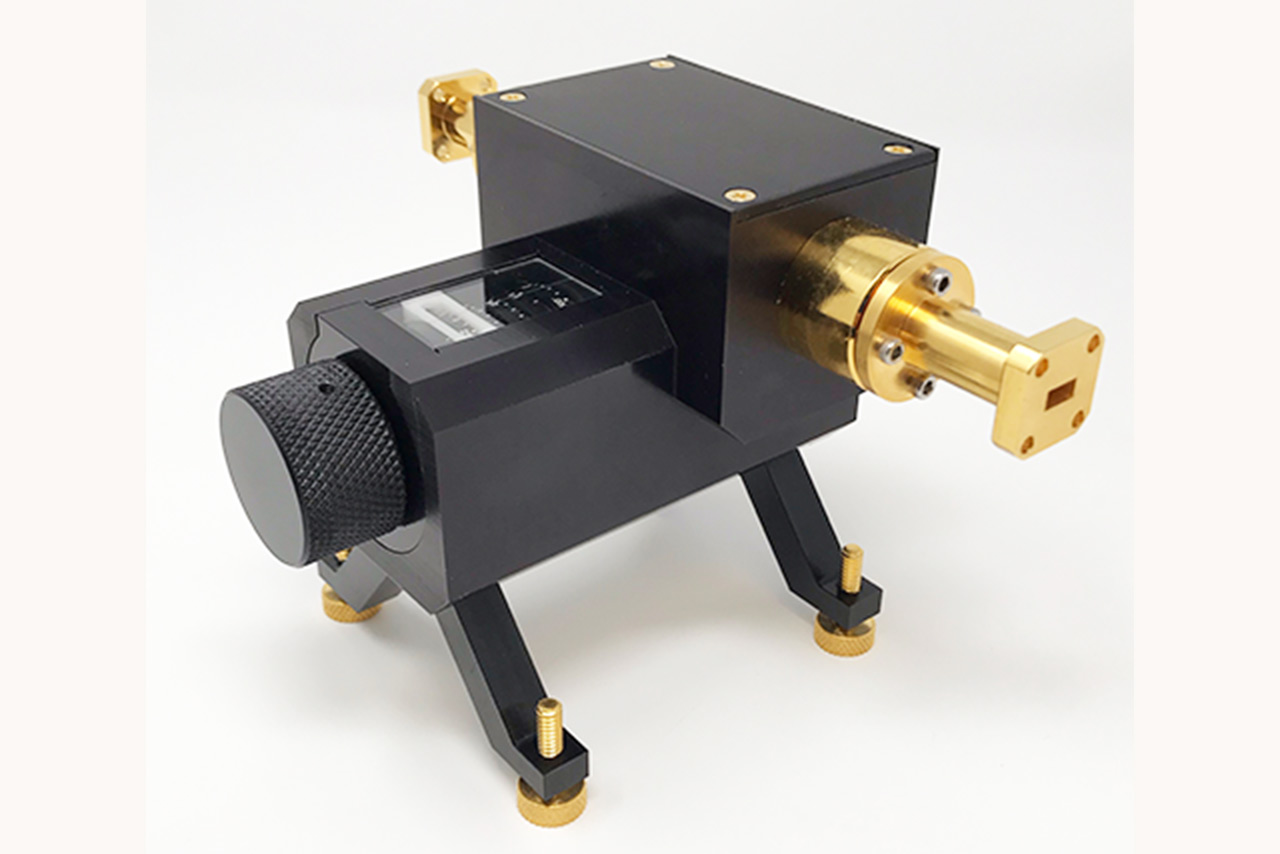

Mi-Wave’s 510 Series Direct-reading Precision Attenuators provide 0 to 60 dB of calibrated attenuation by rotation of a resistive vane mounted in a circular waveguide section. These units are often referred to as precision rotary vane attenuators.

Note: Our website contains just a few types of  Attenuators we build. Consult with us for your specific needs.

ModelLINKBand TypeMinimum Frequency (GHz)Maximum Frequency (GHz)Insertion Loss (dB) typicalAttenuation Range (dB)Power Handling (CW)RF PortsAccuracy (dB)
510(75)(X)/UBR120
View
X-Band10150.50-500.3WR-90 Waveguide, UG-39/U Flange0.1
510Ku/419
View
Ku-Band12.4180.50-600.3WR-62 Waveguide, UG-419 Flange0.1
510K/595
View
K-Band1826.50.50-600.3WR-42 Waveguide, UG-595/U Flange0.1
510(34)/1530
View
22330.50-600.3WR-34 Waveguide, UG-595 Flange0.1
510A/599
View
Ka-Band26.5400.50-600.3WR-28 Waveguide, UG-599/U Flange0.1
510B/383
View
Q-Band33500.60-600.3WR-22 Waveguide, UG-383/U Flange0.1
510U/383
View
U-Band40600.70-600.2WR-19 Waveguide, UG-383/U-M Flange0.1
510V/385
View
V-Band507510-600.2WR-15 Waveguide, UG-385/U Flange0.1
510E/387
View
E-Band609010-600.1WR-12 Waveguide, UG-387/U-M Flange0.1
510W/387
View
W-Band7511010-600.1WR-10 Waveguide, UG-387/U-M Flange0.1
510F/387
View
F-Band901401.50-500.1WR-8 Waveguide, UG-387/U-M Flange0.1
510D/387
View
D-Band1101702.20-600.1WR-6 Waveguide, UG-387/U-M Flange0.1
510G/387
View
G-Band14022040-600.1WR-5 Waveguide, UG-387/U-M Flange0.1
510H-387
View
H-Band1702605.50-400.1WR-4 Waveguide, UG-387/U-M Flange0.1
510J/387
View
J-Band2203254.50-400.1WR-03 Waveguide, UG-387/U-M Flange0.1

Note: Our website contains just a few types of  Attenuators we build. Consult with us for your specific needs.

510(75)/UBR120

10 – 15 GHz, WR-75, Attenuation Range to 50 dB

View Product

510Ku/419

12.4 – 18 GHz, WR-62, Attenuation Range to 60 dB

View Product

510K/595

18 – 26.5 GHz, WR-42, Attenuation Range to 60 dB

View Product

510(34)/1530

22 – 33 GHz, WR-34, Attenuation Range to 60 dB

View Product

510A/599

26.5 – 40 GHz, WR-28, Attenuation Range to 60 dB

View Product

510B/383

33 – 50 GHz, WR-22, Attenuation Range to 60 dB

View Product

510U/383

40 – 60 GHz, WR-19, Attenuation Range to 60 dB

View Product

510V/385

50 – 75 GHz, WR-15, Attenuation Range to 60 dB

View Product

510E/387

60 – 90 GHz, WR-12, Attenuation Range to 60 dB

View Product

510W/387

75 – 110 GHz, WR-10, Attenuation Range to 60 dB

View Product

510F/387

90 – 140 GHz, WR-8, Attenuation Range to 60 dB

View Product

510D/387

110 – 170 GHz, WR-6, Attenuation Range to 60 dB

View Product

510G/387

140 – 220 GHz, WR-5, Attenuation Range to 60 dB

View Product

510H-387

170 – 260 GHz, WR-4, Attenuation Range to 40 dB

View Product

510J/387

220 – 325 GHz, WR-3, Attenuation Range to 40 dB

View Product
standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
