Waveguide to Coax Adapter | Inline Adapters & Transitions | 8.2GHz – 110GHz
Mi-Wave’s 411 Inline Waveguide to Coaxial Adapter allows an efficient method of adapting from a rectangular waveguide to an in-line coaxial connector. Full waveguide bands are available from 8.2 to 110 GHz. Our new design and manufacturing process allows for Low insertion losses and VSWR’s for these adapters.
- Frequency Ranges 8.2 to 110 GHz
- Wide Variety of Coax Connectors Available
- High-Performance Versions for Laboratory Use.
Choose your frequency below:
Note: Consult with factory for specific band frequency
Note: Our website contains just a few types of Adapters we build. Consult with us for your specific needs.
| Model | Band | Frequency (GHz) | Insertion Loss (dB) | Return Loss (dB) | Power Handling (W) | Waveguide Port | Coaxial Port | LINK |
|---|---|---|---|---|---|---|---|---|

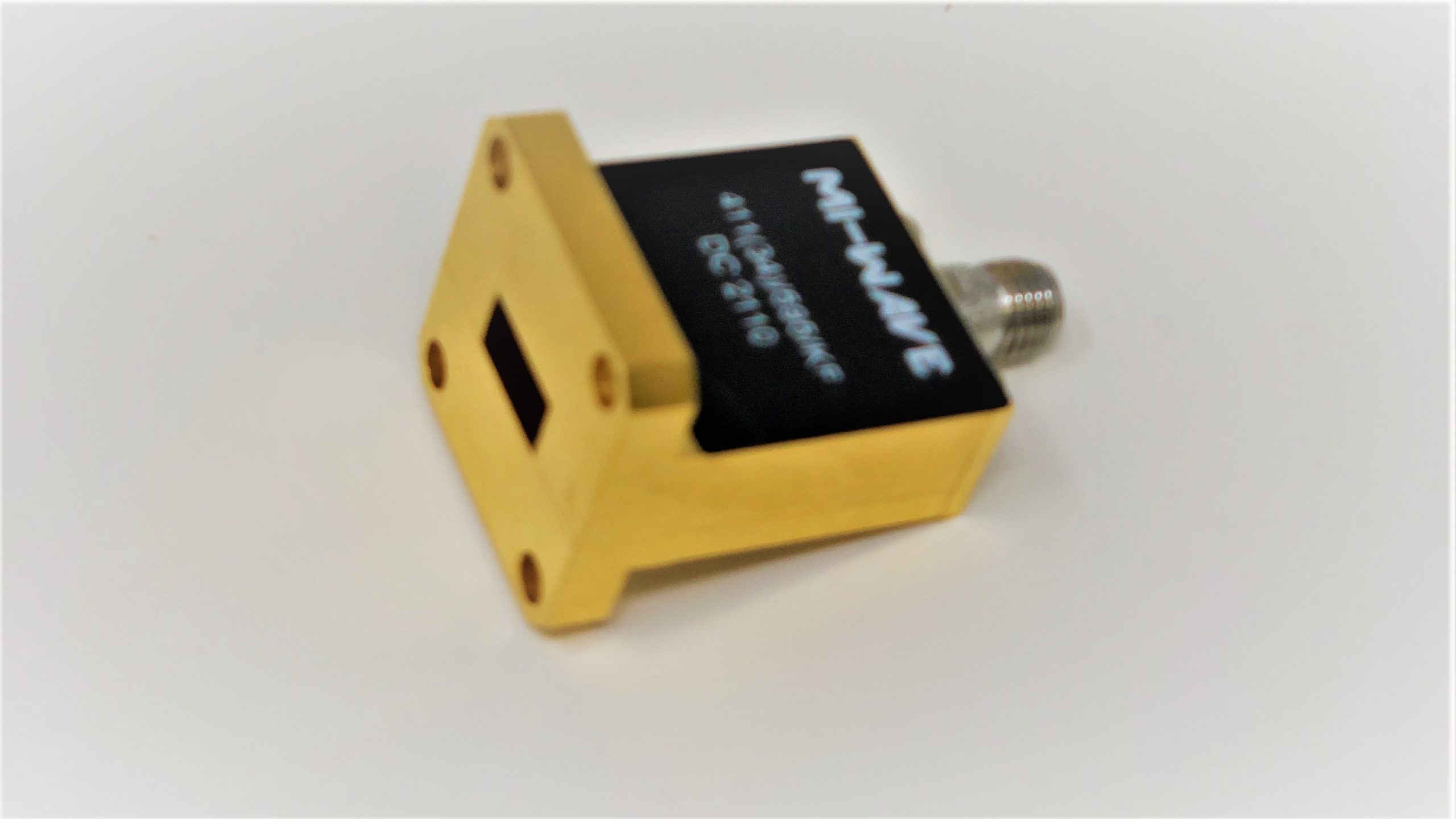

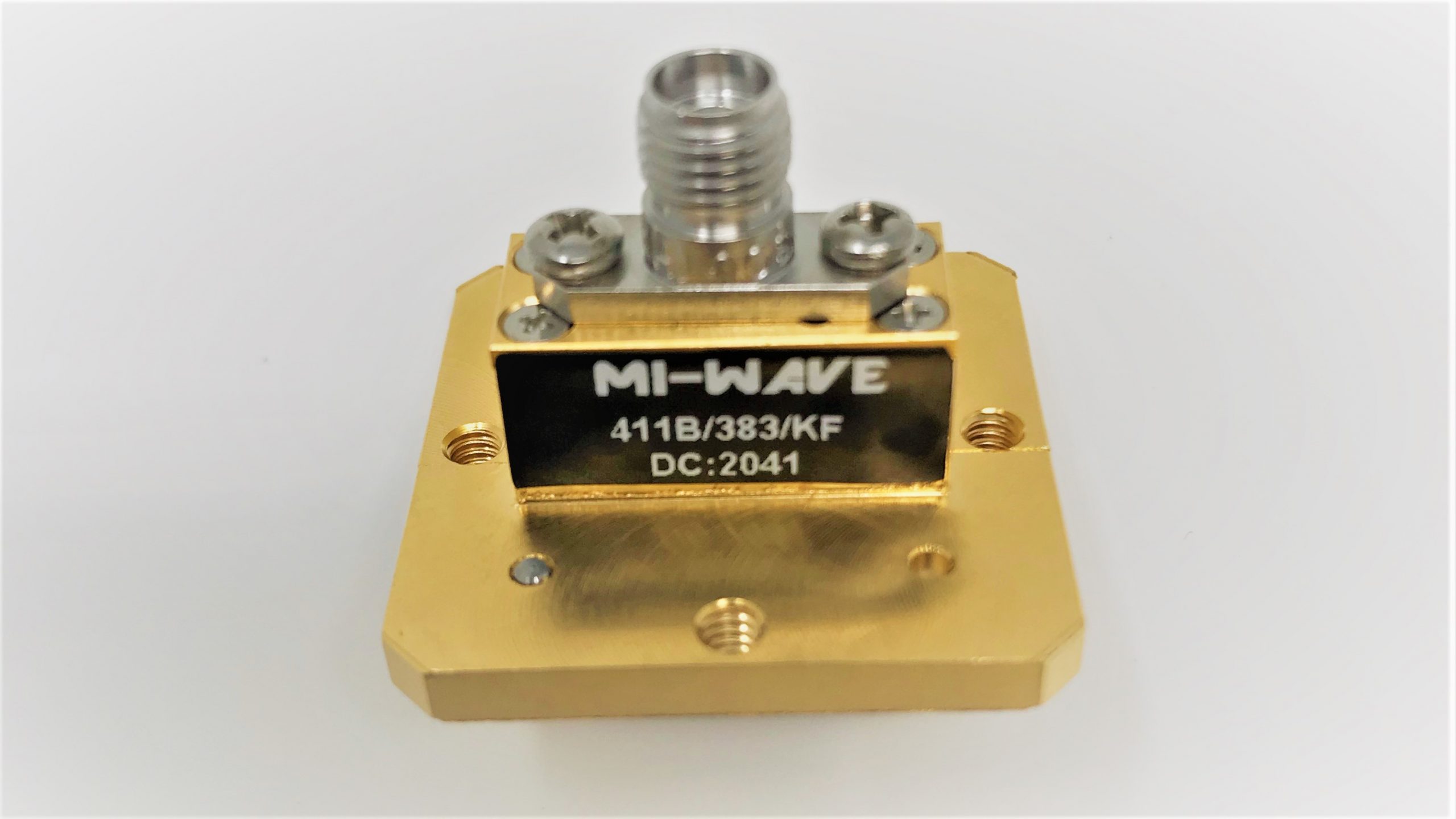

| 411(34)/595/KF | WR-34 | 22-33 | 0.4 | 17 | 20 | WR-34 Waveguide, UG-595/U-M Flange | K-Female (2.92) connector | |
| 411(34)/595/KM | WR-34 | 22-33 | 0.4 | 20 | 20 | WR-34 Waveguide, UG-595/U-M Flange | K-Male (2.92) connector | |
| 411K/595/2.4mmF | K-Band | 18.5-26.5 | 0.3 | 16 | 20 | WR-42 Waveguide, UG-595/U Flange | K (2.92 mm) Female connector | |
| 411K/595/KM | K-Band | 18.5-26.5 | 0.3 | 20 | 20 | WR-42 Waveguide, UG-595/U Flange | K-Male connector | |
| 411K/595/2.4mmF | K-Band | 18.5-26.5 | 0.3 | 17 | 20 | WR-42 Waveguide, UG-595/U Flange | K (2.92 mm) Female connector | |
| 411K/595/SMAM | K-Band | 18.5-26.5 | 0.4 | 20 | 20 | WR-42 Waveguide, UG-595/U Flange | SMA-Male | |
| 411A/599/KM | Ka-Band | 26.5-40 | 0.4 | 20 | 20 | WR-28 Waveguide, UG-599/U Flange | K-Male (2.92) connector | |
| 411A/599/KF | Ka-Band | 26.5-40 | 0.4 | 17 | 20 | WR-28 Waveguide, UG-599/U Flange | K-Female (2.92) connector | |
| 411B/383/2.4mmM | Q-Band | 33-50 | 0.7 | 17 | 15 | WR-22 Waveguide, UG-383/U Flange | 2.4mm Male connector | |
| 411B/383/2.4mmF | Q-Band | 33-50 | 0.7 | 17 | 15 | WR-22 Waveguide, UG-383/U Flange | 2.4mm Female connector | |
| 411B/383/1.85mmF | Q-Band | 33-50 | 0.7 | 20 | 15 | WR-22 Waveguide, UG-383/U Flange | 1.85mm Female connector | |
| 411B/383/1.85mmF | Q-Band | 33-50 | 0.7 | 20 | 15 | WR-22 Waveguide, UG-383/U Flange | 1.85mm Female connector | |
| 411B/383/2.4mmM | Q-Band | 33-40 | 0.7 | 17 | 15 | WR-22 Waveguide, UG-383/U Flange | 2.4mm Male connector | |
| 411B/719/2.4mmF | Q-Band | 33-50 | 0.7 | 20 | 15 | WR-22 Waveguide, UG-719/U Square Flange | 2.4mm Female connector | |

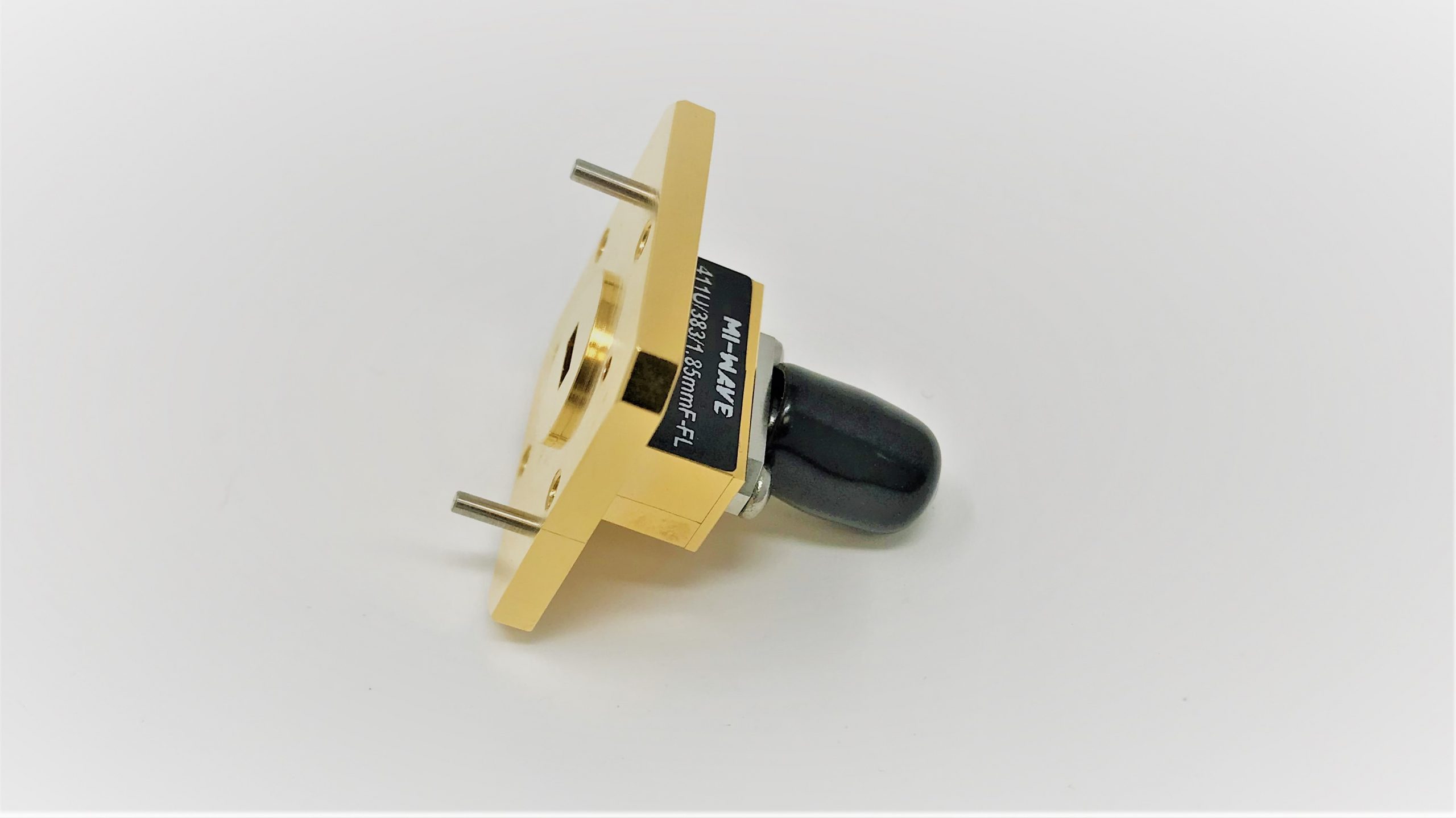

| 411U/383/1.85mmF | U-Band | 40-60 | 0.7 | 20 | 10 | WR-19 Waveguide, UG-383/U-M Flange | 1.85mm Female connector | |
| 411U/383/1.85mmM | U-Band | 40-60 | 0.7 | 20 | 10 | WR-19 Waveguide, UG-383/U-M Flange | 1.85mm Male connector | |

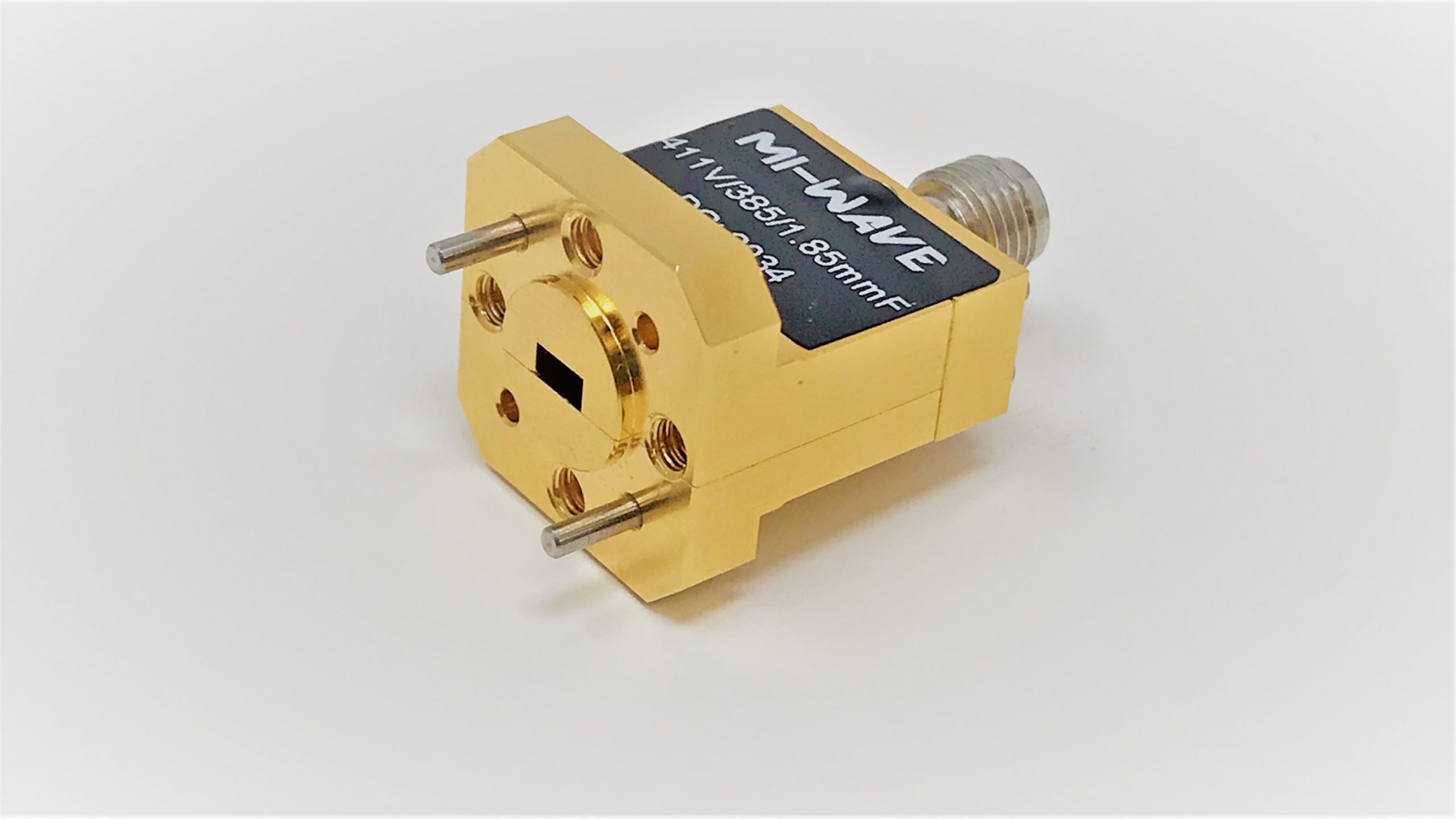

| 411V/385/1.85mmF | V-Band | 50-75 | 0.7 | 20 | 10 | WR-15 Waveguide, UG-385/U Flange | 1.85mm Female connector | |
| 411V/385/1.85mmM | V-Band | 50-75 | 0.7 | 20 | 10 | WR-15 Waveguide, UG-385/U Flange | 1.85mm Male connector | |
| 411V/385/1.85mmF | V-Band | 50-75 | 0.7 | 20 | 10 | WR-15 Waveguide, UG-385/U Flange | 1.85 mm Female connector | |
| 411V/385/1.00mmF | V-Band | 50-75 | 1 | 15 | 5 | WR-15 Waveguide, UG-385/U Flange | 1.00 mm Female connector | |
| 411E/387/1.00mmF | E-Band | 60-90 | 1 | 14 | 5 | WR-12 Waveguide, UG-387/U Flange | 1.00 mm Female connector | |
| 411E/387/1.00mmM | E-Band | 60-90 | 1 | 14 | 5 | WR-12 Waveguide, UG-387/U Flange | 1.00 mm Male connector | |
| 411W/387/1.00mmF | W-Band | 75-110 | 1 | 14 | 5 | WR-10 Waveguide, UG-387/U-M Flange | 1.00 mm Female connector | |
| 411W/387/1.00mmM | W-Band | 75-110 | 1 | 14 | 5 | WR-10 Waveguide, UG-387/U-M Flange | 1.00 mm Male connector |
Note: Our website contains just a few types of Adapters we build. Consult with us for your specific needs.
Waveguide to Coax Adapter (Inline)
If you are looking for a quality-built waveguide products, then use Millimeter wave products Inc. We specialize in manufacturing the highest quality standard Waveguide to Coax Adapter for many needs.
The 411 Series Waveguide to Coax Adapter is available in a wide variety of connectors. We can manufacture to any custom size or specification, please consult Mi-Wave for further information.
NOTE: We carry and make many types of adapters
-End Launch to Coaxial Adapters
-Flange Adapters
-Bulkhead Adapters
consult with our team to help you out!
How to Order
Order your end launch to waveguide coax adapter by providing us with.
411/_/_/_
Specify RF Band
411/K/_/_
Specify Flange
411/K/U/_
Specify Connector
411/K/U/2.4mm
Technical Specifictions for end launch waveguide to coax adapter
typical*
| Model Number | 411KU | 411KU | 411(WR-34) | 411A | 411B | 411U | 411V | 411E | 411W |
|---|---|---|---|---|---|---|---|---|---|
| Frequency Band (GHz) | 12.4–18.0 | 18.0–26.5 | 22.0–33.0 | 26.5–40.0 | 33.0–50.0 | 40.0–60.0 | 50.0–75.0 | 60.0–90.0 | 95–110.0 |
| Waveguide | WR-62 | WR-42 | WR-34 | WR-28 | WR-22 | WR-19 | WR-15 | WR-12 | WR-10 |
| Flange | UG-419/U | UG-595/U | UG-595/UM | UG-599/U | UG-599/U | UG-383/UM | UG-385/U | UG-387/U | UG-387/U |
| Standard Connectors | N, SMA | 2.92–2.4 | 2.92–2.4 | 2.92, 2.4 | 2.92, 2.4 | 2.92, 2.4 | 1.85, 1.0 | 1.0 | 1.0 |
| Available | 2.92, 2.4 | 2.0 | 1.85,1.0 | 2.0 | 1.85, 1.0 | 1.85, 1.0 | 1.0 | 1.0 | 1.0 |
| Insertion (Loss) (dB) (typ) | .3 | .3 | .3 | .4 | .7 | .7 | .7 | 1.0 | 1.0 |
| VSWR (typical) | 1.5:1 | 1.5:1 | 1.5:1 | 1.5:1 | 1.5:1 | 1.5:1 | 1.5:1 | <1.5:1 | <1.5:1 |
