Direct Reading Precision Electronic Attenuators (Series 515)

Mi-Wave’s 515 Series Direct-reading electronic Precision Attenuators provide 0 to 60 dB of calibrated attenuation by rotation of a resistive vane mounted in a circular waveguide section. These units are often referred to as precision rotary vane attenuators.

Note: Our website contains just a few types of  Attenuators we build. Consult with us for your specific needs.

ModelLINKMinimum Frequency (GHz)Maximum Frequency (GHz)Insertion Loss (dB) typicalAttenuation Range (dB)Resolution (dB)Power Handling (CW)RF PortsAccuracy
515Ku/419
View
12.4180.50-600.010.3WR-62 Waveguide with UG-419/U Flanges0.1 dB or less than 1% of setting
515K/595
View
1826.50.50-600.010.3WR-42 Waveguide with UG-595/U Flanges0.1 dB or less than 1% of setting
515(34)/595
View
22330.50-600.010.4WR-34 Waveguide with UG-595/U Flanges0.1 dB or less than 1% of setting
515A/599
View
26.5400.60-600.010.3WR-28 Waveguide, UG-599/U Flange0.1 dB or less than 1% of setting
515B/383
View
33500.60-600.010.3WR-22 Waveguide, UG-383/U Flange0.1 dB or less than 1% of setting
515U/383
View
40600.70-600.010.2WR-19 Waveguide, UG-383/U-M Flange0.1 dB or less than 1% of setting
515V/385
View
50750.90-600.010.2WR-15 Waveguide, UG-385/U Flange0.1 dB or less than 1% of setting
515V/385P
View
50750.90-610.0115WR-15 Waveguide, UG-385/U Flange0.1 dB or less than 1% of setting
515E/387
View
60901.00-600.010.1WR-12 Waveguide, UG-387/U Flanges0.1 dB or less than 1% of setting
515E/387P
View
60901.00-600.0110WR-12 Waveguide, UG-387/U Flanges0.1 dB or less than 1% of setting
515W/387
View
751101.20-600.010.1WR-10 Waveguide, UG-387/U-M Flanges0.1 dB or less than 1% of setting
515W/387P
View
751101.20-600.012WR-10 Waveguide, UG-387/U-M Flanges0.1 dB or less than 1% of setting
515F/387
View
901401.50-600.010.1WR-08 Waveguide, UG-387/U-M Flange0.1 dB or less than 1% of setting
515D/387
View
1101703.00-600.010.1WR-06 Waveguide, UG-387/U-M Flange0.1 dB or less than 1% of setting
515G/387
View
1402204.00-600.010.1WR-05 Waveguide, UG-387/U-M Flange0.1 dB or less than 1% of setting

Note: Our website contains just a few types of  Attenuators we build. Consult with us for your specific needs.

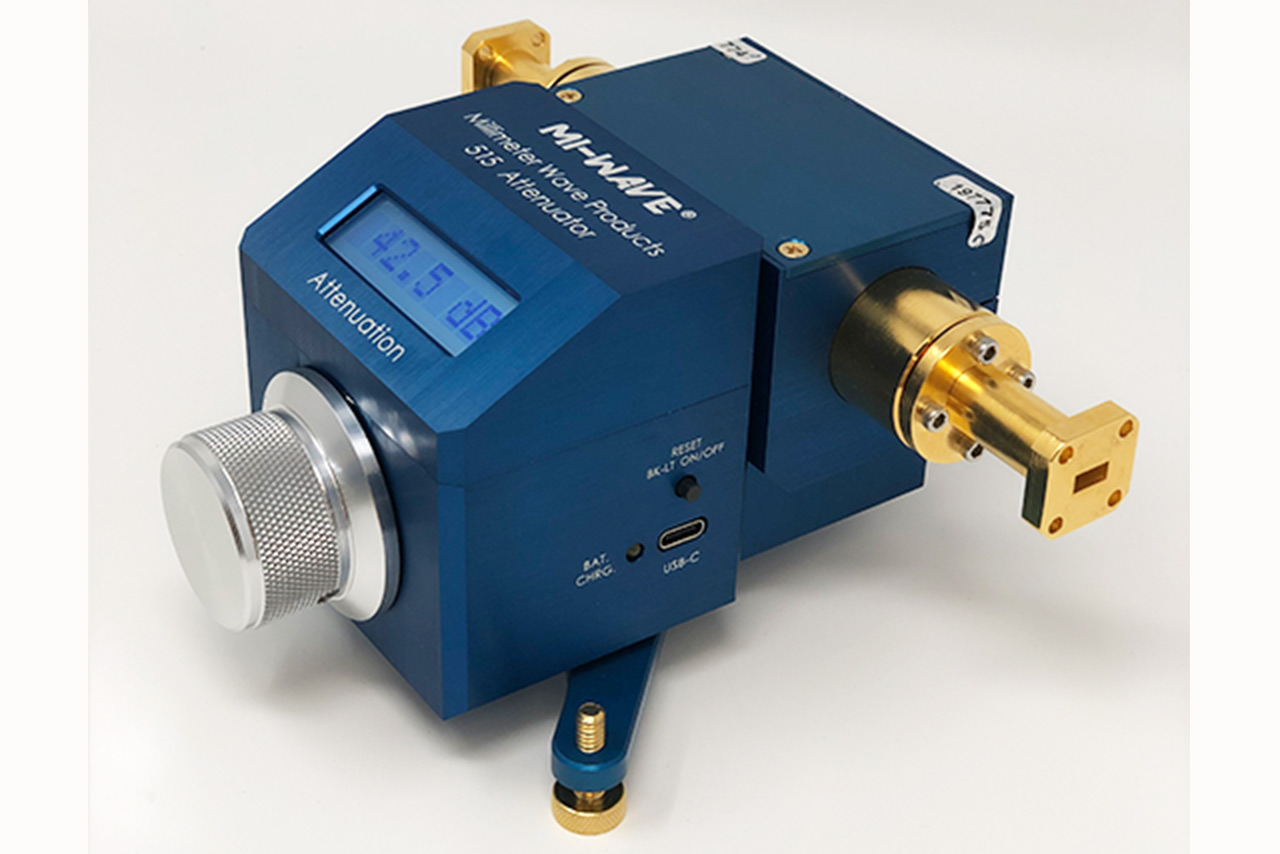

515Ku/419

12.4 – 18 GHz, Ku-Band, Insertion Loss 0.4 dB, VSWR 1.30:1

View Product

515K/595

18 – 26 GHz, K-Band, Insertion Loss 0.4 dB, VSWR 1.30:1

View Product

515(34)/595

22 – 33 GHz, WR-34, Insertion Loss 0.4 dB, VSWR 1.30:1

View Product

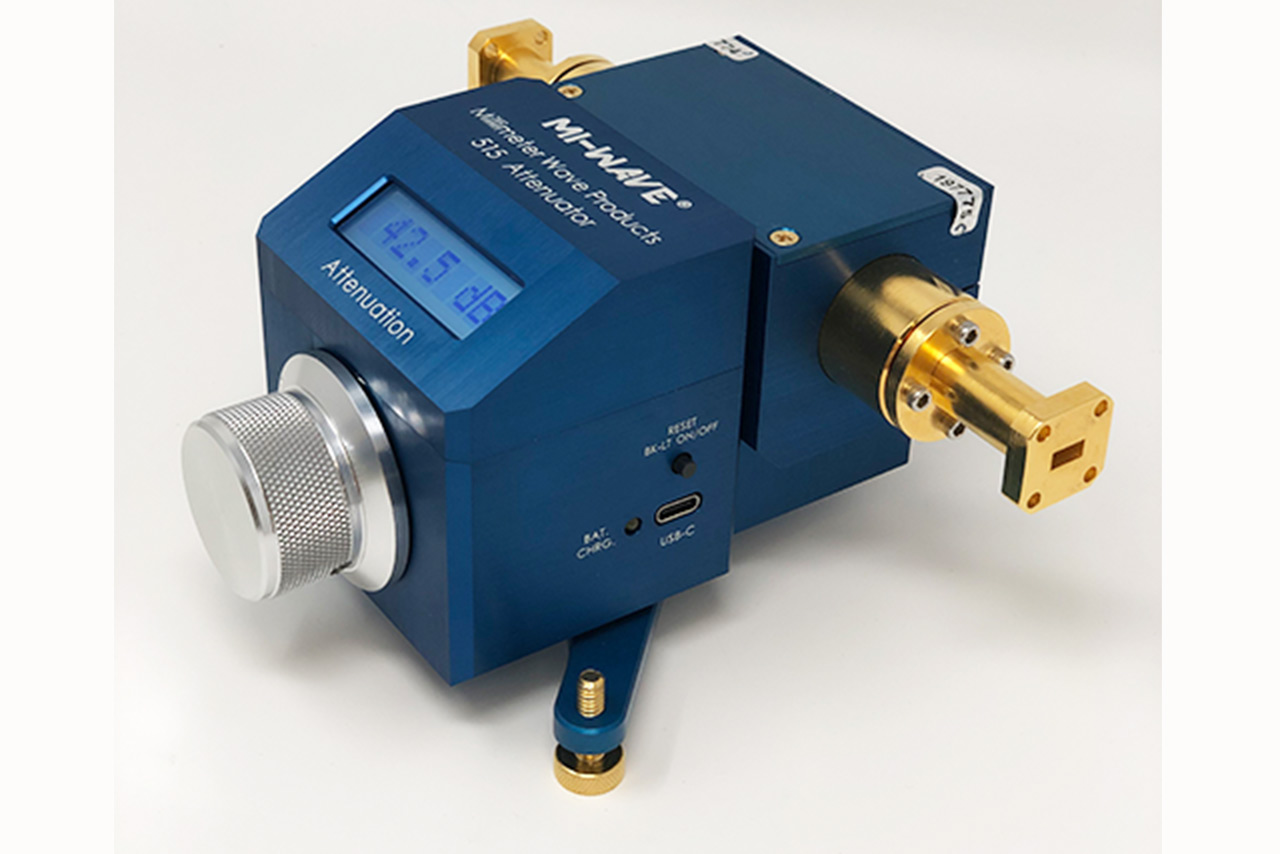

515A/599

26.5 – 40 GHz, Ka-Band, Insertion Loss 0.4 dB, VSWR 1.15:1

View Product

515B/383

33 – 50 GHz, Q-Band, Insertion Loss 0.4 dB, VSWR 1.15:1

View Product

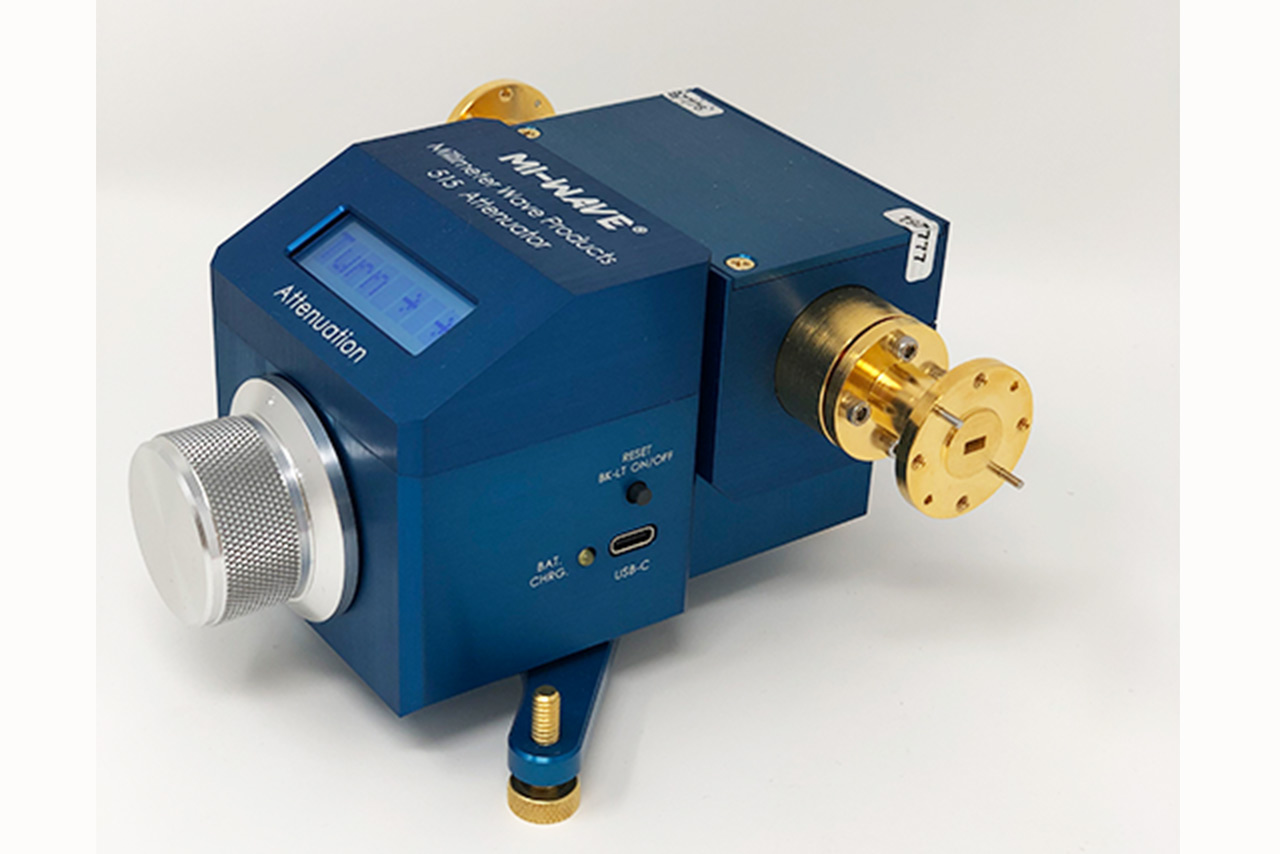

515U/383

40 – 60 GHz, U-Band, Insertion Loss 0.4 dB, VSWR 1.15:1

View Product

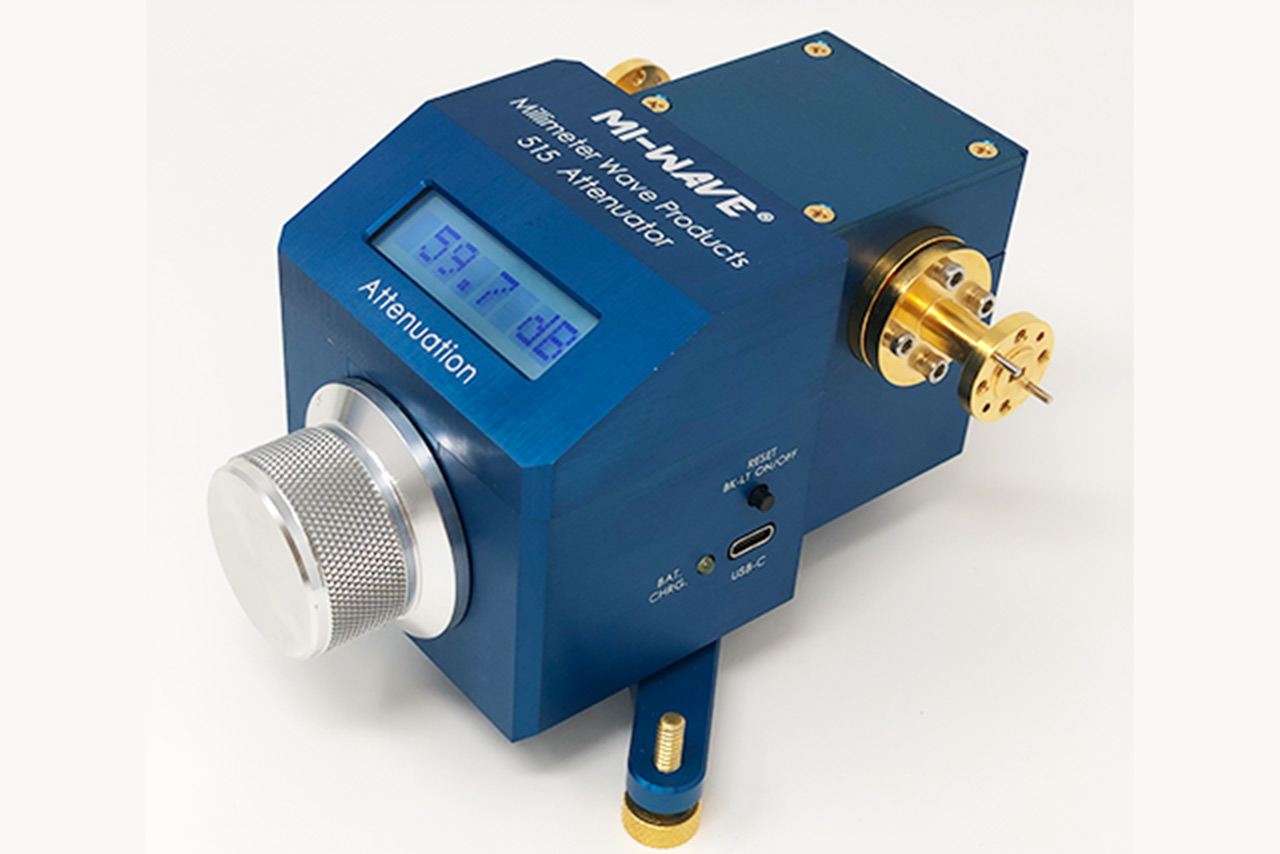

515V/385

50 – 75 GHz, V-Band, Insertion Loss 0.4 dB, VSWR 1.2:1

View Product

515V/385P

50 – 75 GHz, V-Band, High Power, VSWR 1.2:1

View Product

515E/387

60 – 90 GHz, E-Band, Insertion Loss 0.4 dB, VSWR 1.2:1

View Product

515E/387P

60 – 90 GHz, E-Band, High Power, VSWR 1.2:1

View Product

515W/387

75 – 110 GHz, W-Band, Insertion Loss 0.4 dB, VSWR 1.2:1

View Product

515W/387P

75 – 110 GHz, W-Band, High Power, VSWR 1.2:1

View Product

515F/387

90 – 140 GHz, F-Band, Insertion Loss 0.4 dB, VSWR 1.2:1

View Product

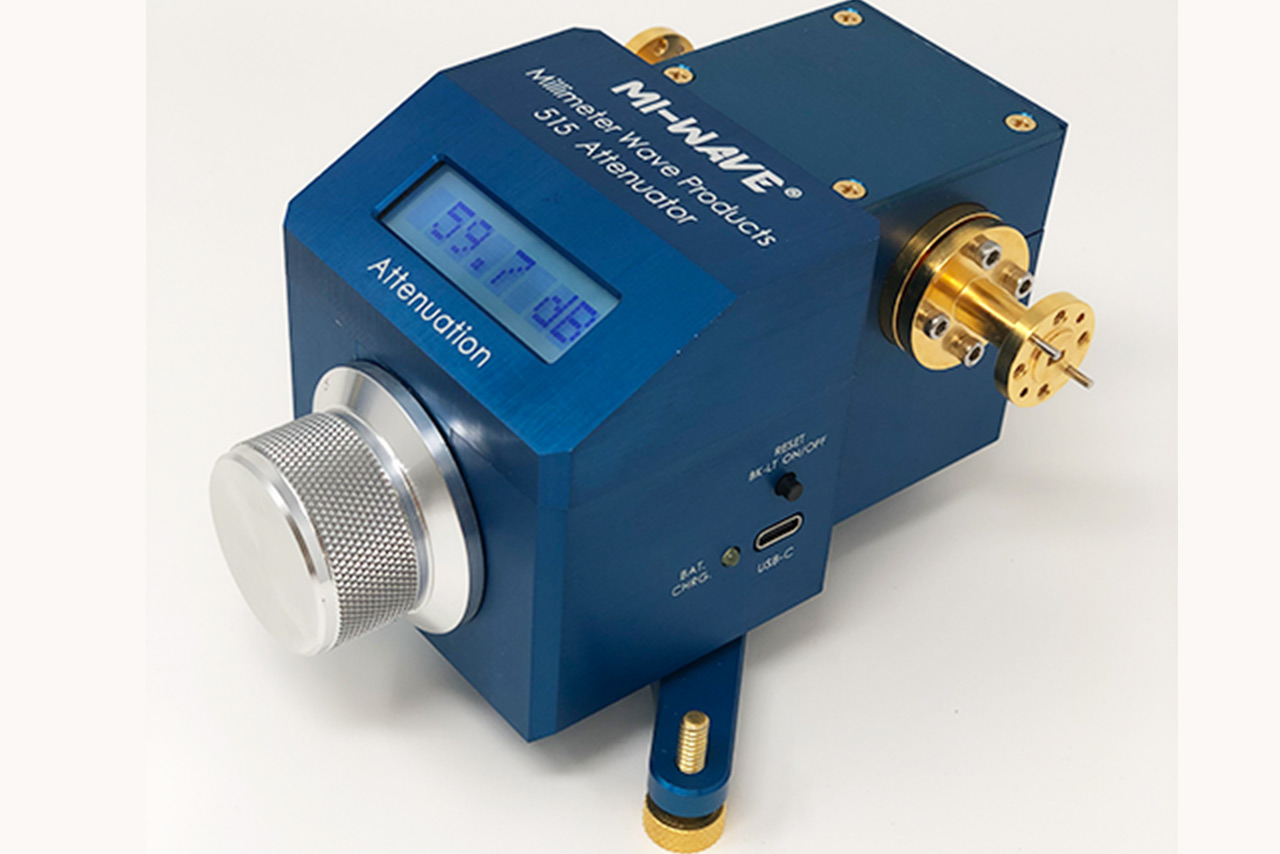

515D/387

110 – 170 GHz, D-Band, Insertion Loss 0.7 dB, VSWR 1.2:1

View Product

515G/387

140 – 220 GHz, G-Band, Insertion Loss 0.4 dB, VSWR 1.2:1

View Product
