Programmable Rotary Vane Attenuatrs (511 Series)

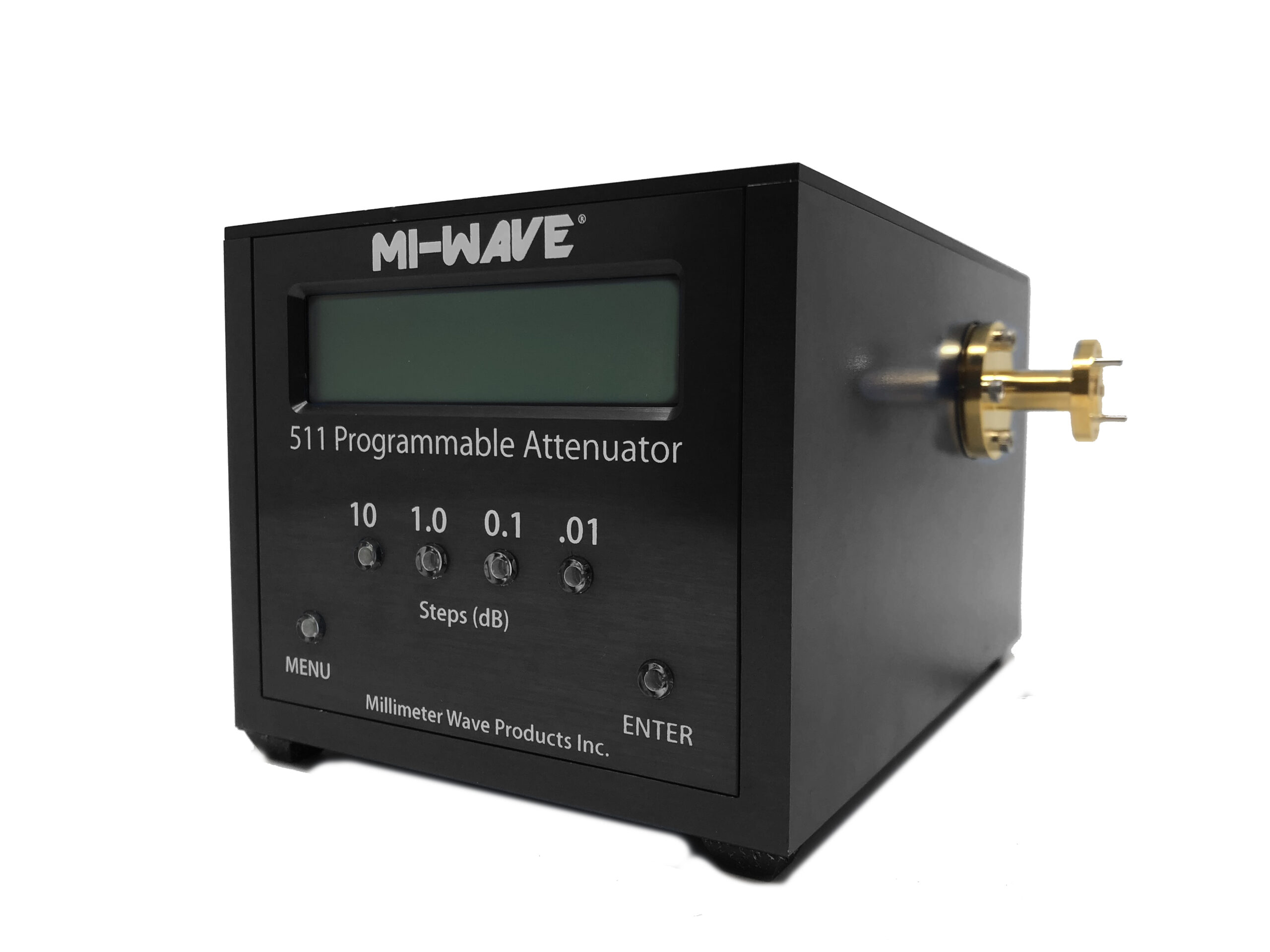

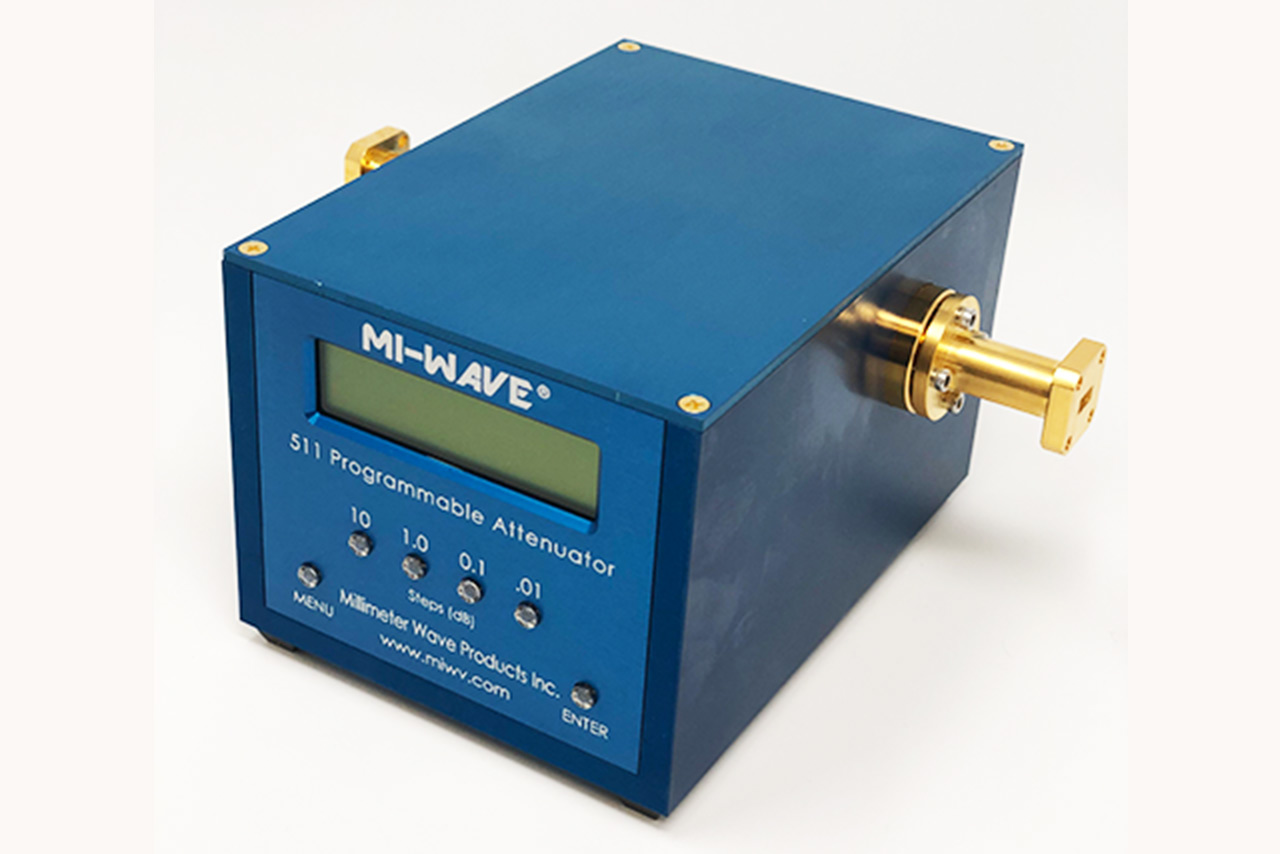

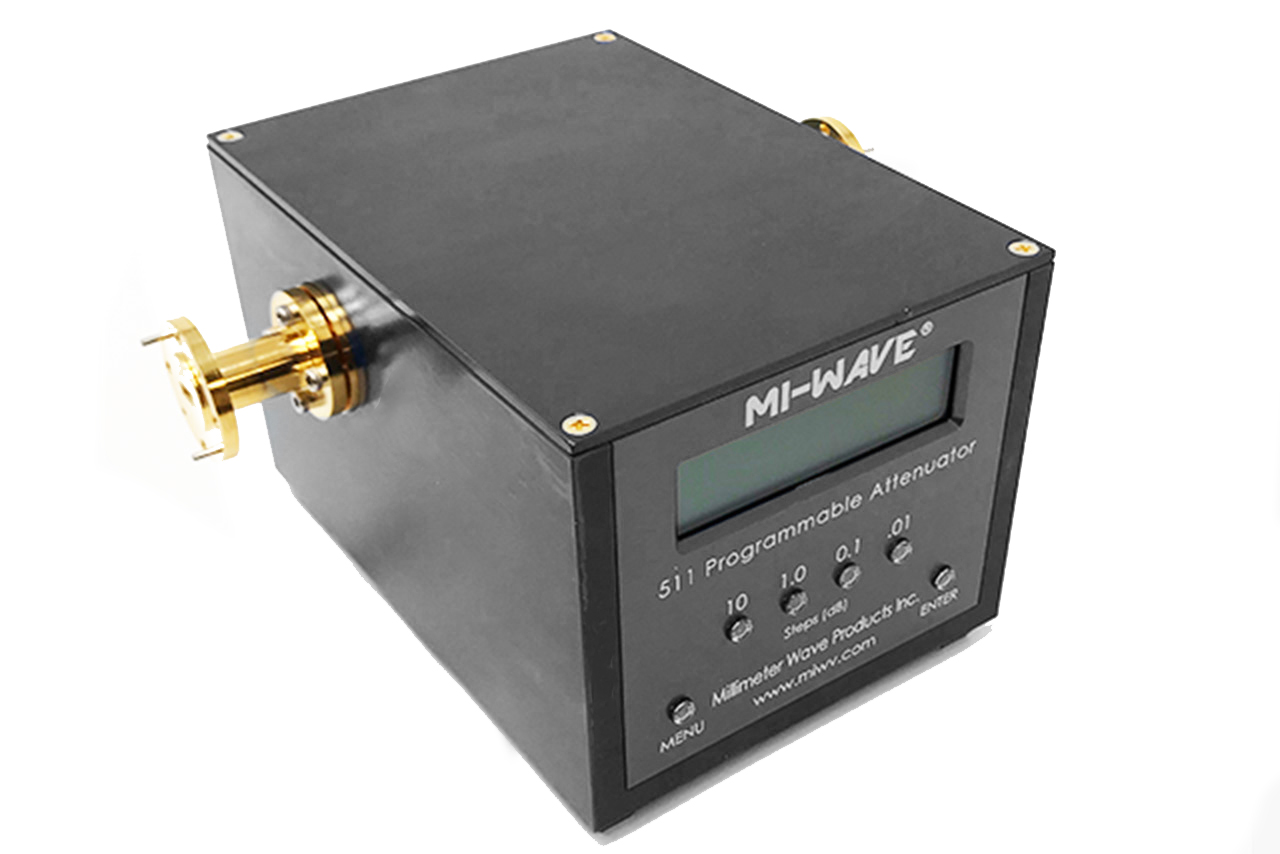

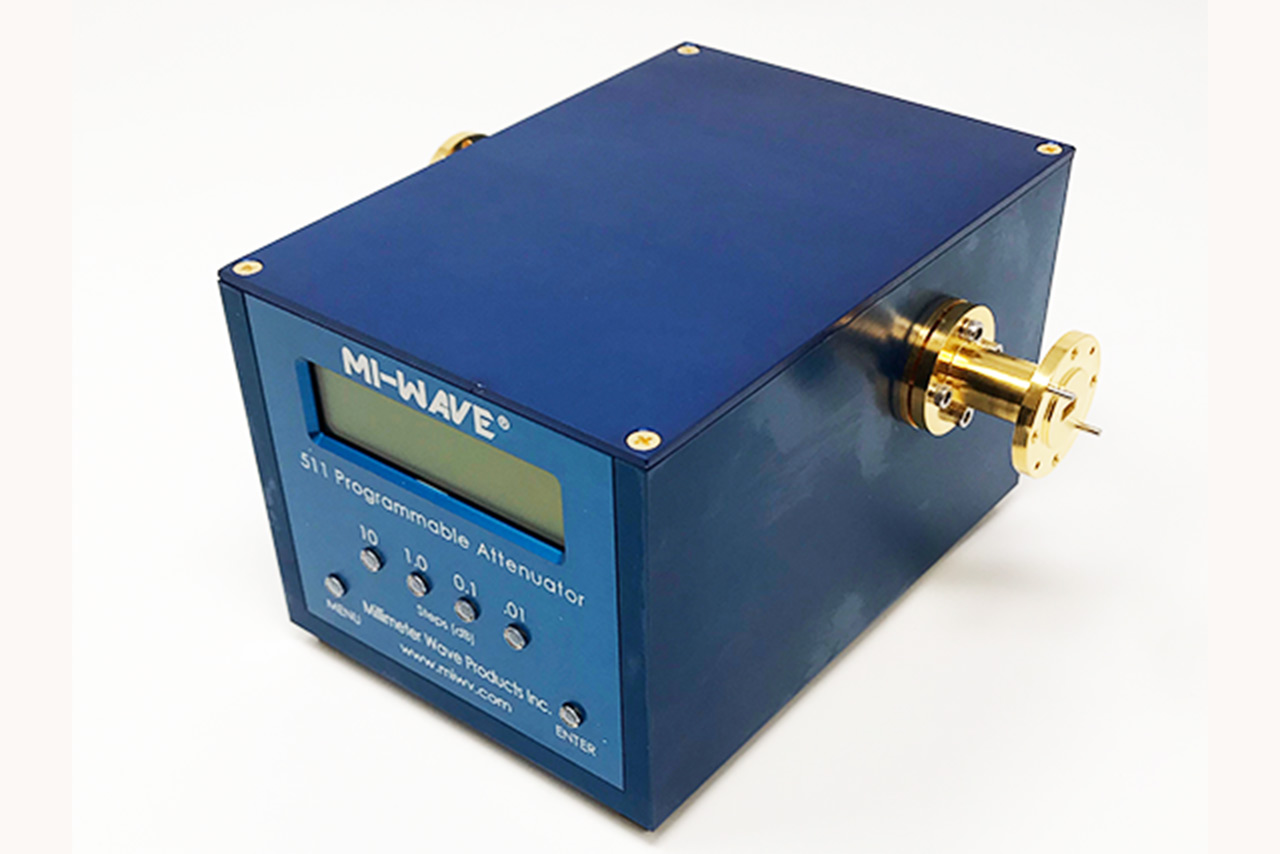

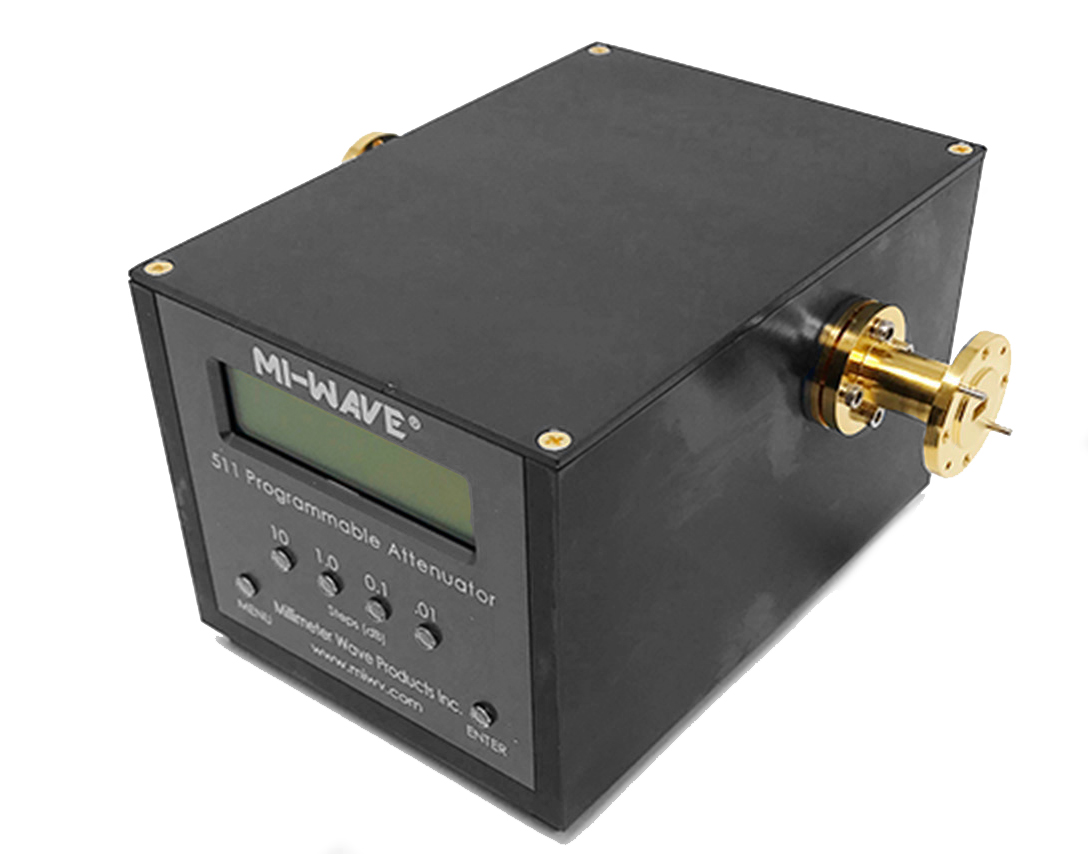

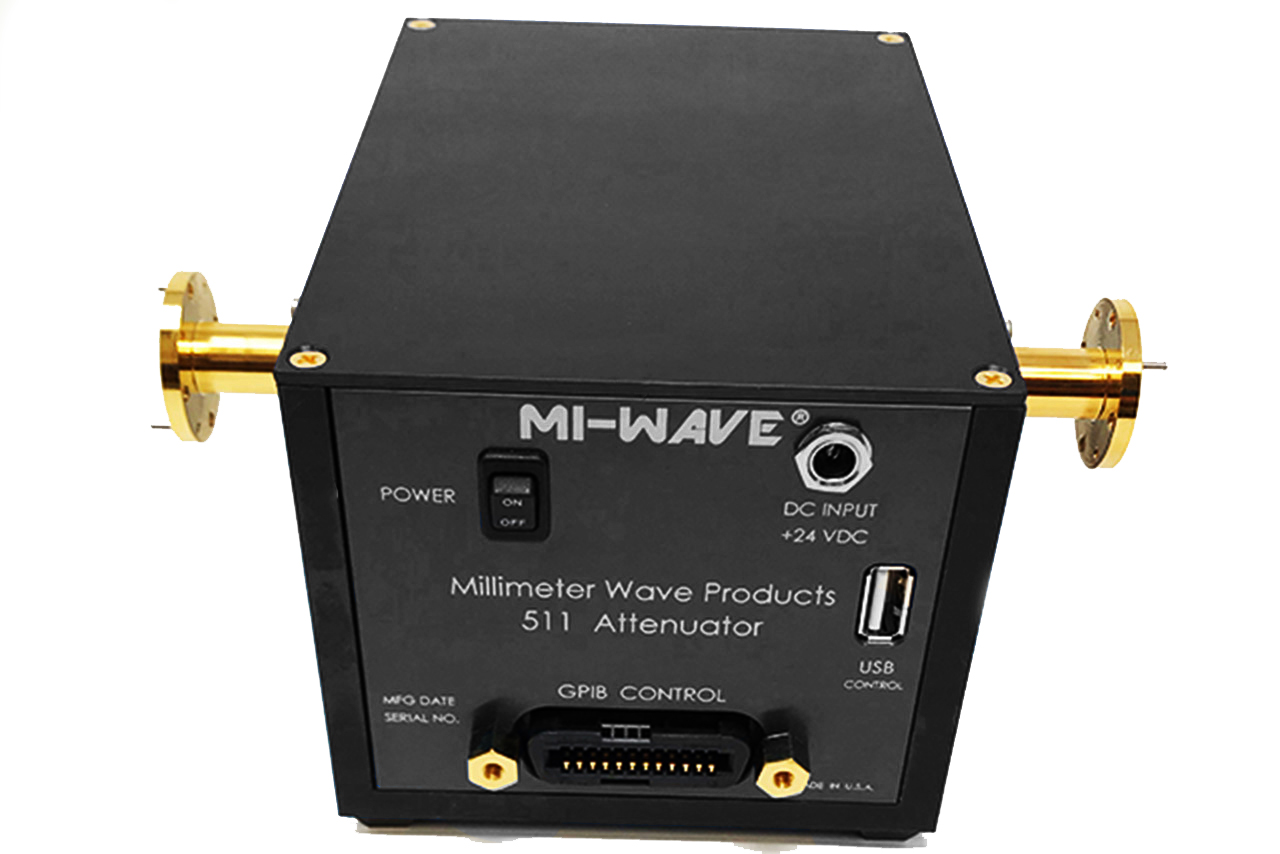

Mi-Wave’s 511 Series Precision Programmable Rotary Vane Attenuators are available in full waveguide bands from 7.0 to 220GHz. Attenuation control is performed manually via a front panel or remote controlled using a standard IEEE-488 or USB interface.

Note: Our website contains just a few types of  Attenuators we build. Consult with us for your specific needs.

ModelPower TypeMinimum Frequency (GHz)Maximum Frequency (GHz)Insertion Loss (dB) typicalAttenuation Range (dB)Resolution (dB)Programmable GPIB AddressPower Handling (Watts)RF PortsLINK
511X/39NDLow Power8.212.40.50-700.01up to 300.3WR-90 Waveguide, UG-39/U Flange
View
511Ku/419NDLow Power12.4180.50-700.01up to 300.3WR-62 Waveguide, UG-419/U Flange
View
511K/595NDLow Power18260.50-700.01up to 300.3WR-42 Waveguide with UG-595/U Flanges
View
511(34)/595NDLow Power22330.50-700.01up to 300.3WR-34 Waveguide with UG-595/U Flanges
View
511A-599NDHigh Power26.5400.50-700.01up to 3010WR-28 Waveguide, UG-599/U Flange
View
511B/383NDHigh Power33500.70-700.01up to 307WR-22 Waveguide, UG-383/U Flange
View
511U/383NDHigh Power406010-700.01up to 305WR-19 Waveguide, UG-383/U-M Flange
View
511V/385NDHigh Power50751.20-700.01up to 305WR-15 Waveguide, UG-385/U Flange
View
511E/387NDHigh Power60901.80-650.01up to 302WR-12 Waveguide, UG-387/U-M Flange
View
511W/387NDHigh Power751103.30-650.01up to 302WR-10 Waveguide, UG-387/U-M Flange
View
511F/387NDLow Power901403.40-600.01up to 300.1WR-8 Waveguide, UG-387/U-M Flange
View
511D/387NDLow Power1101703.50-600.01up to 300.1WR-6 Waveguide, UG-387/U-M Flange
View
511G/387NDLow Power1402203.80-500.01up to 300.1WR-05 Waveguide, UG-387/U-M Flange
View
511H/387NDLow Power17026060-400.01up to 300.1WR-04 Waveguide with UG-387/U-M Flange
View
511J/387NDLow Power22032570-400.01up to 300.05WR-03 Waveguide, UG-387/U Flange
View

Note: Our website contains just a few types of  Attenuators we build. Consult with us for your specific needs.

511Ku/419ND

12.4 GHz – 18 GHz, Attenuation Range up to 70 dB

View Product

511K/595ND

18 GHz – 26.5 GHz, Attenuation Range 0 dB 70 dB

View Product

511(34)/595ND

22 GHz – 33 GHz, Attenuation Range 0 dB-70 dB

View Product

511A-599ND

26.5 GHz – 40 GHz, Attenuation Range to 70 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511B/383ND

33 GHz – 50 GHz, Attenuation Range to 70 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511U/383ND

40 GHz – 60 GHz, Attenuation Range to 70 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511V/385ND

50 GHz – 75 GHz, Attenuation Range to 70 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511E/387ND

60 GHz – 90 GHz, Attenuation Range to 70 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511W/387ND

75 GHz – 110 GHz, Attenuation Range to 70 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511F/387ND

90 GHz-140 GHz, Attenuation Range to 60 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511D/387ND

110 GHz – 170 GHz, Attenuation Range to 60 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511G/387ND

140 GHz – 220 GHz, Attenuation Range to 60 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511H/387ND

170 GHz – 260 GHz, Attenuation Range to 40 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511J/387ND

220 GHz – 325 GHz, Attenuation Range to 40 dB

View Product
RF Programmable Rotary Vane Attenuator 7GHz to 220GHz

511X/39ND

8.2 GHz – 12.4 GHz, Attenuation Range to 70 dB

View Product
