Features of  Mi-Wave Manual Waveguide Switch

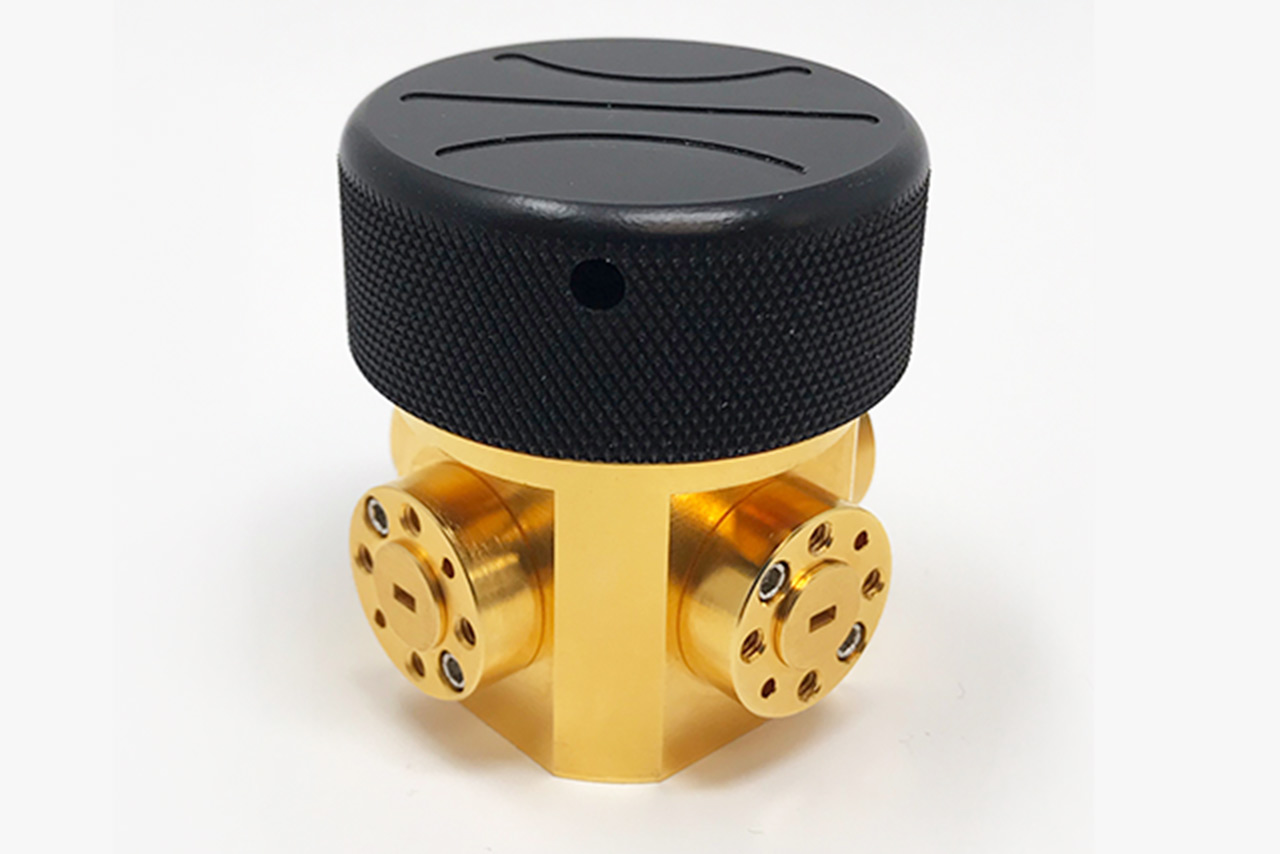

Mi-Wave’s 530 Series Manual Switches are designed for use in standard millimeter wave frequency bands from 8.4 to 325 GHz. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and maximum isolation between coupled and uncoupled waveguide sections.

Applications

The 530 Series Manual Waveguide Switches are used for transmission switching applications in millimeter wave systems. These versatile devices provide a variety of switching combinations using three waveguide channels and three positions. In a typical radar application, a three-position switch can be used manually to switch one of two transmitters to a common antenna, while simultaneously connecting the other transmitter to a suitable termination. A manual switch will also provide a convenient means for alternately connecting a test antenna and standard horn to gain-measuring test equipment .

Manual Waveguide Switch
View Catalog PDF

Manual Waveguide Switch

If you are looking for quality built manual waveguide switch, then use  Millimeter wave products Inc. We we specialize in manufacturing the highest quality standard waveguide switches for many needs.

The 530 Series switches are available from 8 to 325 GHz. We can manufacture to any custom size or specification, please consult Mi-Wave for further information.

Select Your Frequency Band

Our Manual Waveguide Switches are available in the following RF bands.

X Band Waveguide Switches | 8.2 GHz to 12.4 GHz

Xs Band Waveguide Switches | 10 GHz to 15 GHz

Ku Band Waveguide Switches | 12.4 GHz to 18 GHz

K Band Waveguide Switches | 18 GHz to 26.5 GHz

WR-34 Waveguide Switches | 22 GHz to 33 GHz

Ka Band Waveguide Switches | 26.5 GHz to 40 GHz

Q Band Waveguide Switches | 33 GHz to 50 GHz

U Band Waveguide Switches | 40 GHz to 60 GHz

V Band Waveguide Switches | 50 GHz to 75 GHz

E Band Waveguide Switches | 60 GHz to 90 GHz

W Band Waveguide Switches | 75 GHz to 110 GHz

F Band Waveguide Switches | 90 GHz to 140 GHz

D Band Waveguide Switches | 110 GHz to 170 GHz

G Band Waveguide Switches | 140 GHz to 220 GHz

H Band Waveguide Switches | 170 GHz to 260 GHz

Frequently Asked Questions for Manual Waveguide Switch.

coming soon

standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
