Circular Waveguides | 12.6 GHz – 320 GHz

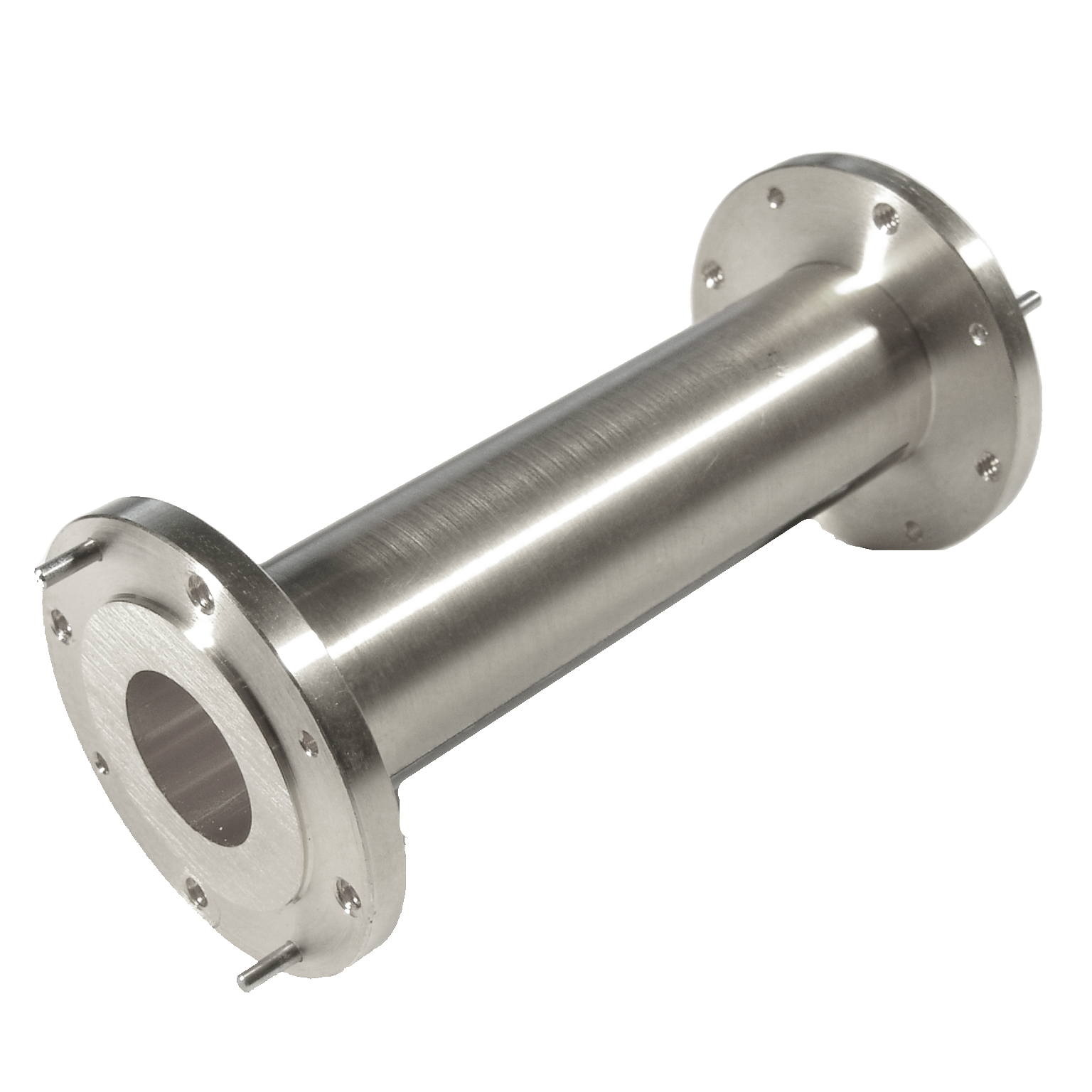

Mi-Wave’s 370 Series flanged waveguide and 371 Series un-flanged waveguides are available in standard sizes from 12.6 to 320 GHz. The 370 Series waveguide sections are fitted with Mi-Wave’s standard male/female flanges. Both waveguide types are manufactured primarily in copper.
Please note: Due to the non-standardization of this product line, we recommend that you contact Mi-Wave for more specific information about your requirements.
Features:
- Low VSWR
- Precision Size
- TE01 and TE11 modes available
Note: Our website contains just a few types of Circular Waveguides we build. Consult with us for your specific needs.
| Model | Band | Frequency (GHz) | Circular Waveguide Port Internal Diameter (inches) | Flange |
|---|---|---|---|---|
| 370X-.XXX/39 | X-Band | 8-9.97 8.5-11.6 9.7-12.4 | Option 1 1.094" ID Circular Waveguide Option 2 .938" ID Circular Waveguide Option 3 .797" ID Circular Waveguide | UG-39/U |
| 370Ku-.550/419 | Ku-Band | 12.4-14.6 14.6-17.5 | Option 1 .660" ID Circular Waveguide Option 2 .550" ID Circular Waveguide | UG-419/U |
| 370K-.328/595 | K-Band | 17.5- 20.5 20.5-24.5 24.5-26.5 | Option 1 .470" ID Circular Waveguide Option 2 .396" ID Circular Waveguide Option 3 .328" ID Circular Waveguide | UG-595/U |
| 370A-.XXX/599 | Ka-Band | 26.5-28.5 28.5-33 33-38.5 38.5-40 | Option 1 .328" ID Circular Waveguide Option 2 .281" ID Circular Waveguide Option 3 .250" ID Circular Waveguide Option 4 .219" ID Circular Waveguide | UG-599/U |
| 370B-.XXX/383 | Q-Band | 26.5-28.5 28.5-33 33-38.5 38.5-40 | Option 1 .250" ID Circular Waveguide Option 2 .219" ID Circular Waveguide Option 3 .188" ID Circular Waveguide | UG-383/U Flange |
| 370U-.219/383 | U-Band | 40-43 43-50 50-58 58-60 | Option 1 .219" ID Circular Waveguide Option 2 .188" ID Circular Waveguide Option 3 .165" ID Circular Waveguide Option 4 .141" ID Circular Waveguide | UG-383 |
| 370V-.XXX/385 | V-Band | 50-58 58-68 68-75 | Option 1 .165" ID Circular Waveguide Option 2 .141" ID Circular Waveguide Option 3 .125" ID Circular Waveguide | UG-385 |
| 370E-.XXX/387 | E-Band | 60-68 68-77 77-87 87-90 | Option 1 .141" ID Circular Waveguide Option 2 .125" ID Circular Waveguide Option 3 .110" ID Circular Waveguide Option 4 .094" ID Circular Waveguide | UG-387/U |
| 370W-.XXX/387 | W-Band | 75-77 77-87 87-100 100-110 | Option 1 .125" ID Circular Waveguide Option 2 .110" ID Circular Waveguide Option 3 .094" ID Circular Waveguide Option 4 .082" ID Circular Waveguide | UG-387/U-M |
| 370F-.XXX/387 | F-Band | 90-100 100-112 112-125 125-140 | Option 1 .094" ID Circular Waveguide Option 2 .082" ID Circular Waveguide Option 3 .075" ID Circular Waveguide Option 4 .067" ID Circular Waveguide | UG-387/U-M |
| 370D-.XXX/387 | D-Band | 110-112 112-125 125-160 160-170 | Option 1 .082" ID Circular Waveguide Option 2 .075" ID Circular Waveguide Option 3 .067" ID Circular Waveguide Option 4 .059" ID Circular Waveguide | UG-387/U-M |
| 370G-.XXX/387 | G-Band | 125-140 140-220 | Option 1 .067" ID Circular Waveguide Option 2 .059" ID Circular Waveguide | UG-387/U-M |
| 370H-.XXX/387 | H-Band | 170 | Option 1 .059" ID Circular Waveguide | UG-387/U-M |
| 370J-.049/387 | J-Band | 140-220 | Option 1 .049" ID Circular Waveguide | UG-387/U-M |
How to Order & Custom Products
As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.
Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
