RF Wide Band Voltage Controlled Oscillators VCO

Mi-Wave’s 840 Voltage controlled sources are available in 18 to 110Ghz. This source can be used as a modulated transmitter or local oscillator. Common applications include radar,  swept sources, and telecommunications systems.

Other power levels are available. Please consult the factory.

Note: Our website contains just a few types of  Voltage Control Ocsillators we build. Consult with us for your specific needs.

ModelLINKBand TypeMinimum Frequency (GHz)Maximum Frequency (GHz)Output Power (dBm)Tuning Bandwidth (GHz)Bias CurrentOutput Port
840AF-36/599
View
Ka-Band26.540360454AWR-28 Waveguide with UG-599/U Flanges
840BF-20/383
View
Q-Band335020171.2AWR-22 Waveguide with UG-383/U Flanges
840EF-17/387
View
E-Band60901730500mAWR-12 Waveguide, UG-387/U Flange
840KF-30/595
View
K-Band1826.5308.5500mAWR-42 Waveguide with UG-595/U Flanges
840UF-29/383
View
U-Band406029202AWR-19 Waveguide with UG-383/U-M Flanges
840VF-25/385
View
V-Band507525252AWR-15 Waveguide, UG-385/U Flange
840WF-15/387
View
W-Band7511015351AWR-10 Waveguide, UG-387/U-M Flange

Note: Our website contains just a few types of  Voltage Control Oscillators we build. Consult with us for your specific needs.

26.5 GHz-40 GHz Wide Band Voltage Controlled Sources (VCO)

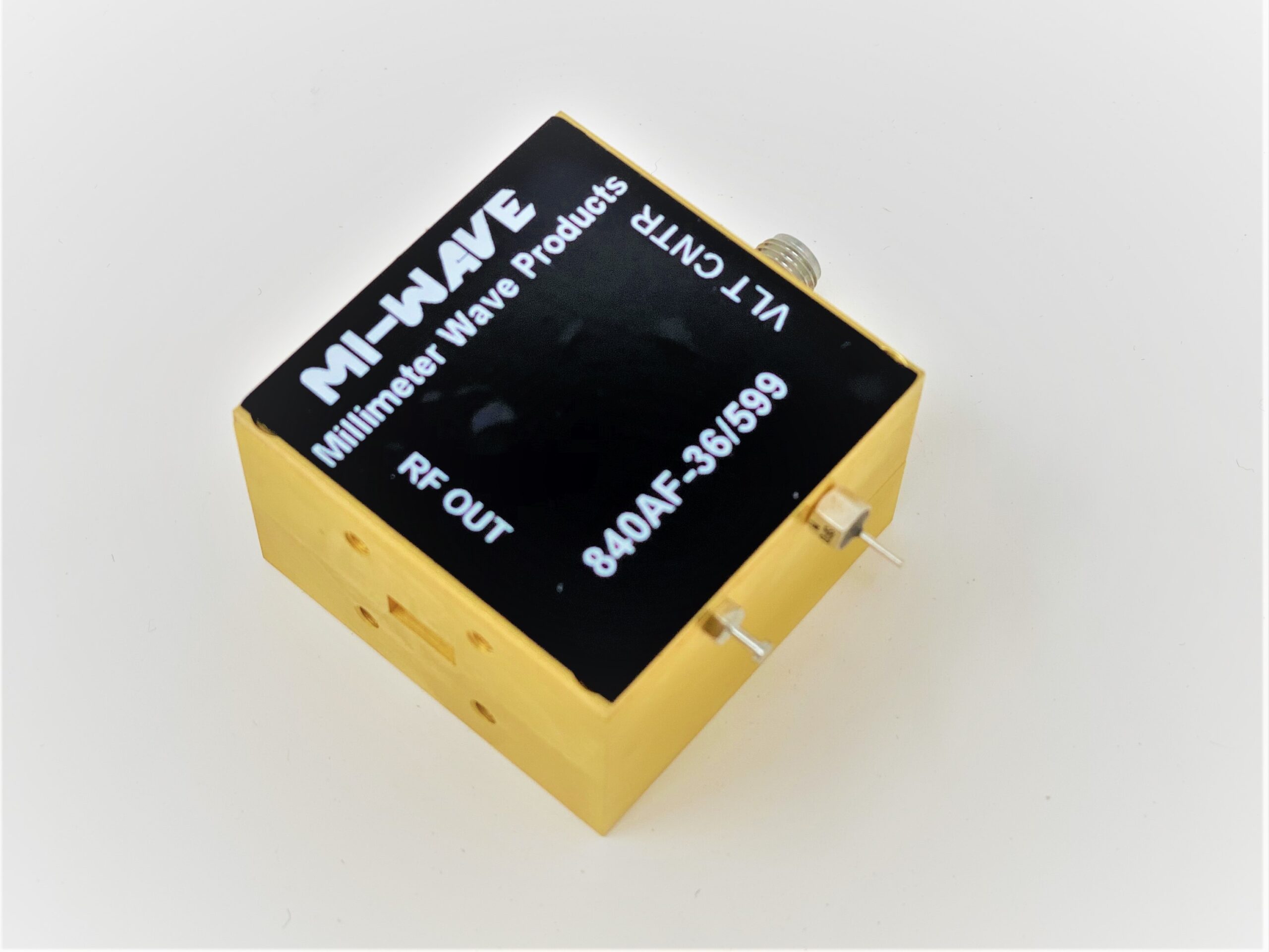

840AF-36/599, Ka-band, WR-28, 36 dBm Output Power, 13.5GHz Tuning Bandwidth

Note: Other power levels available. Please consult the factory.

View Product

33 GHz-50 GHz Wide Band Voltage Controlled Sources (VCO)

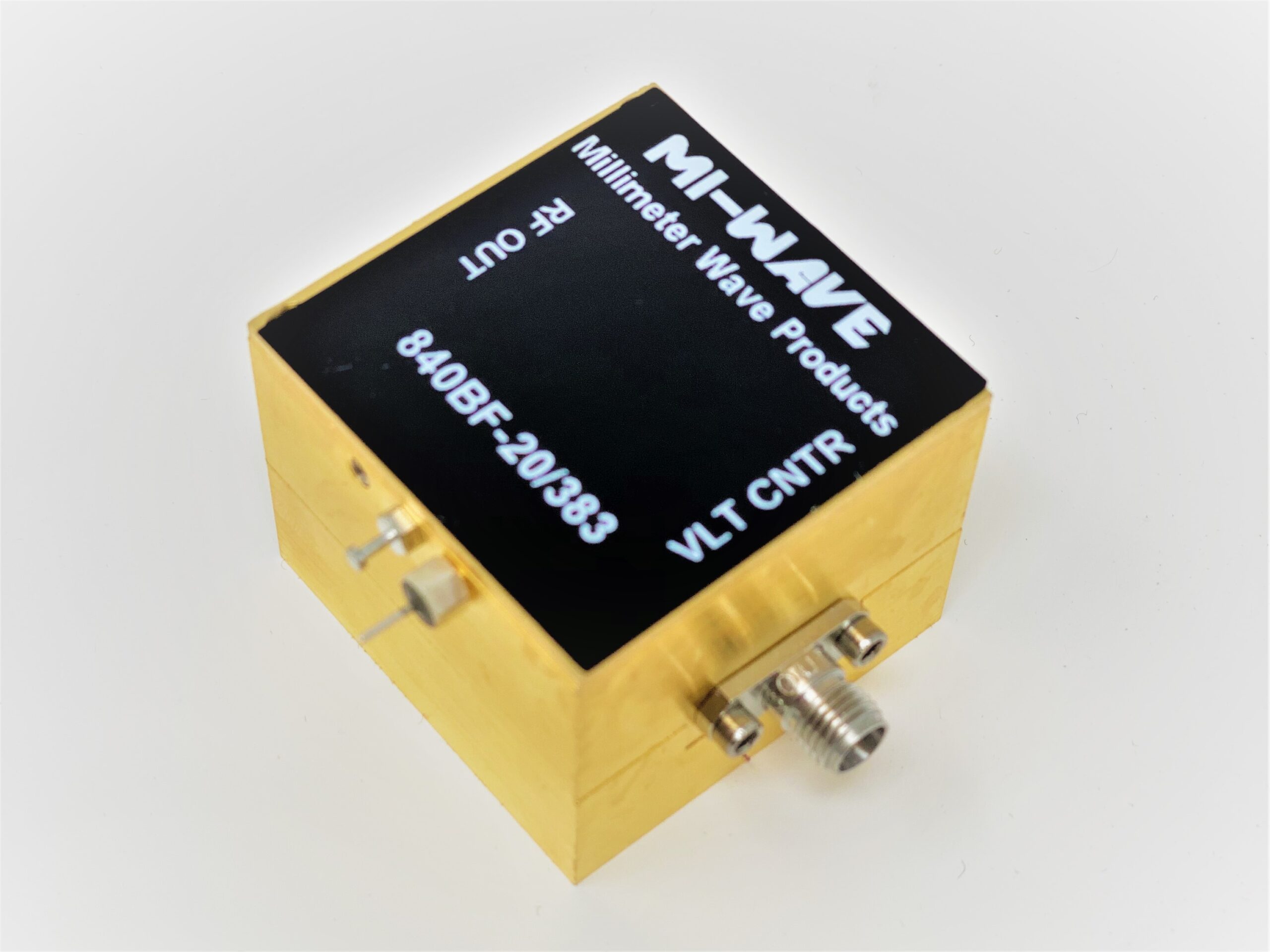

840BF-20/383, Q-band, WR-22, 20 dBm Output Power, 17 GHz Tuning Bandwidth

Note: Other power levels available. Please consult the factory.

View Product

60 GHz-90 GHz Wide Band Voltage Controlled Sources (VCO)

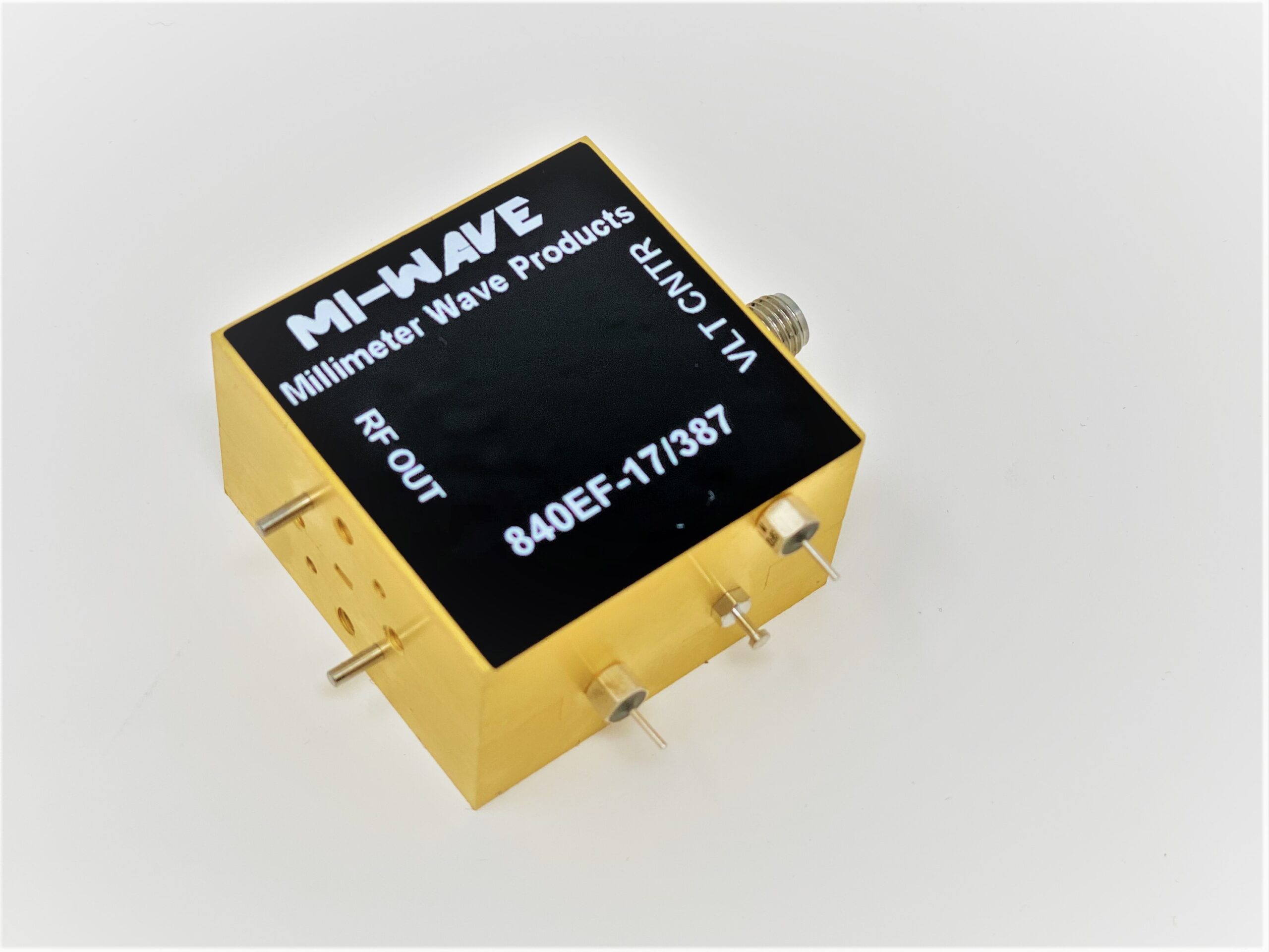

840EF-17/387, E-band, WR-12, 17 dBm Output Power, 30GHz Tuning Bandwidth

Note: Other power levels available. Please consult the factory.

View Product

18 GHz-26.5 GHz Wide Band Voltage Controlled Sources (VCO)

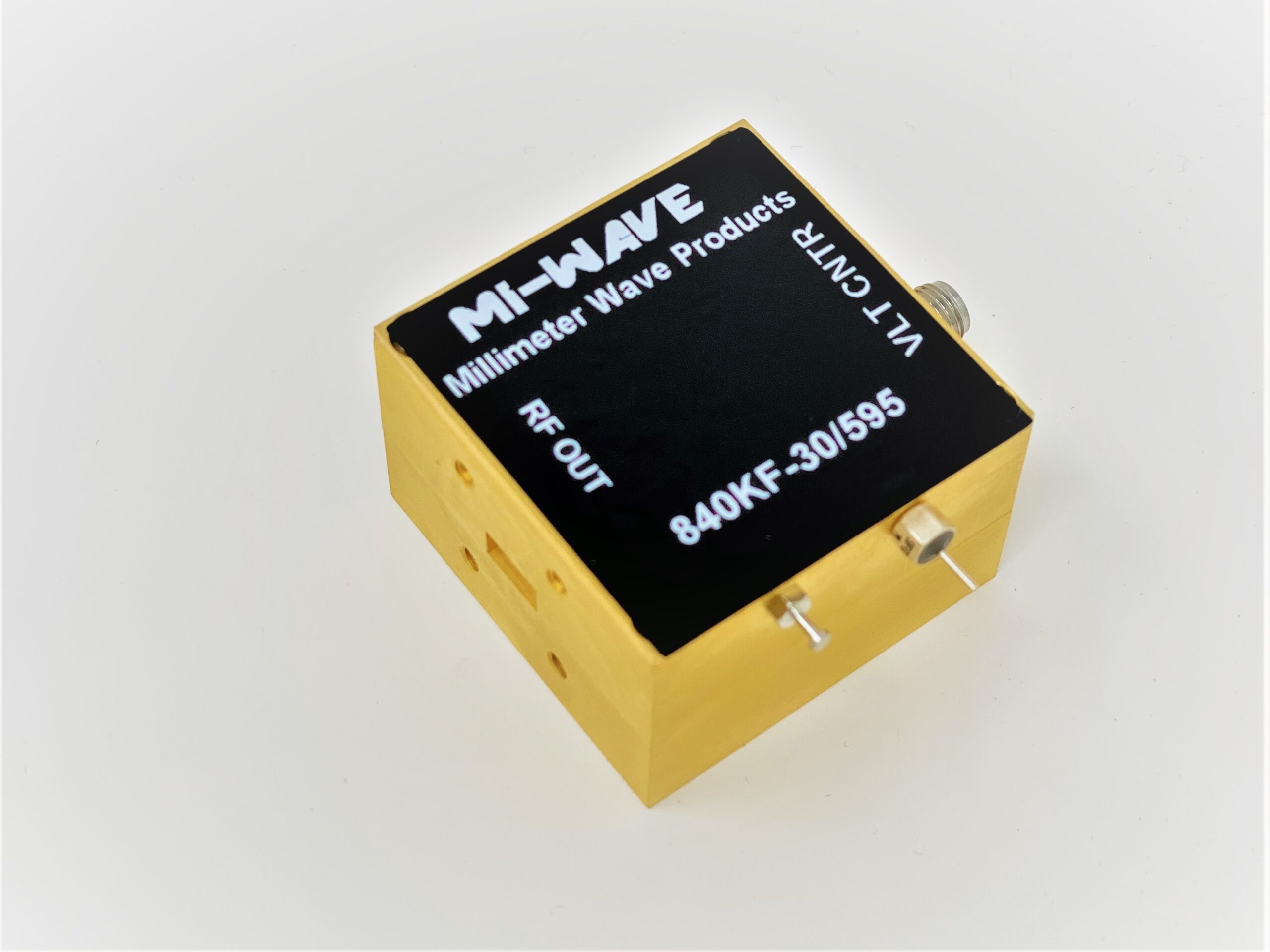

840KF-30/595, K-band, WR-42, 30 dBm Output Power, 8.5GHz Tuning Bandwidth

Note: Other power levels available. Please consult the factory.

View Product

40 GHz-60 GHz Wide Band Voltage Controlled Sources (VCO)

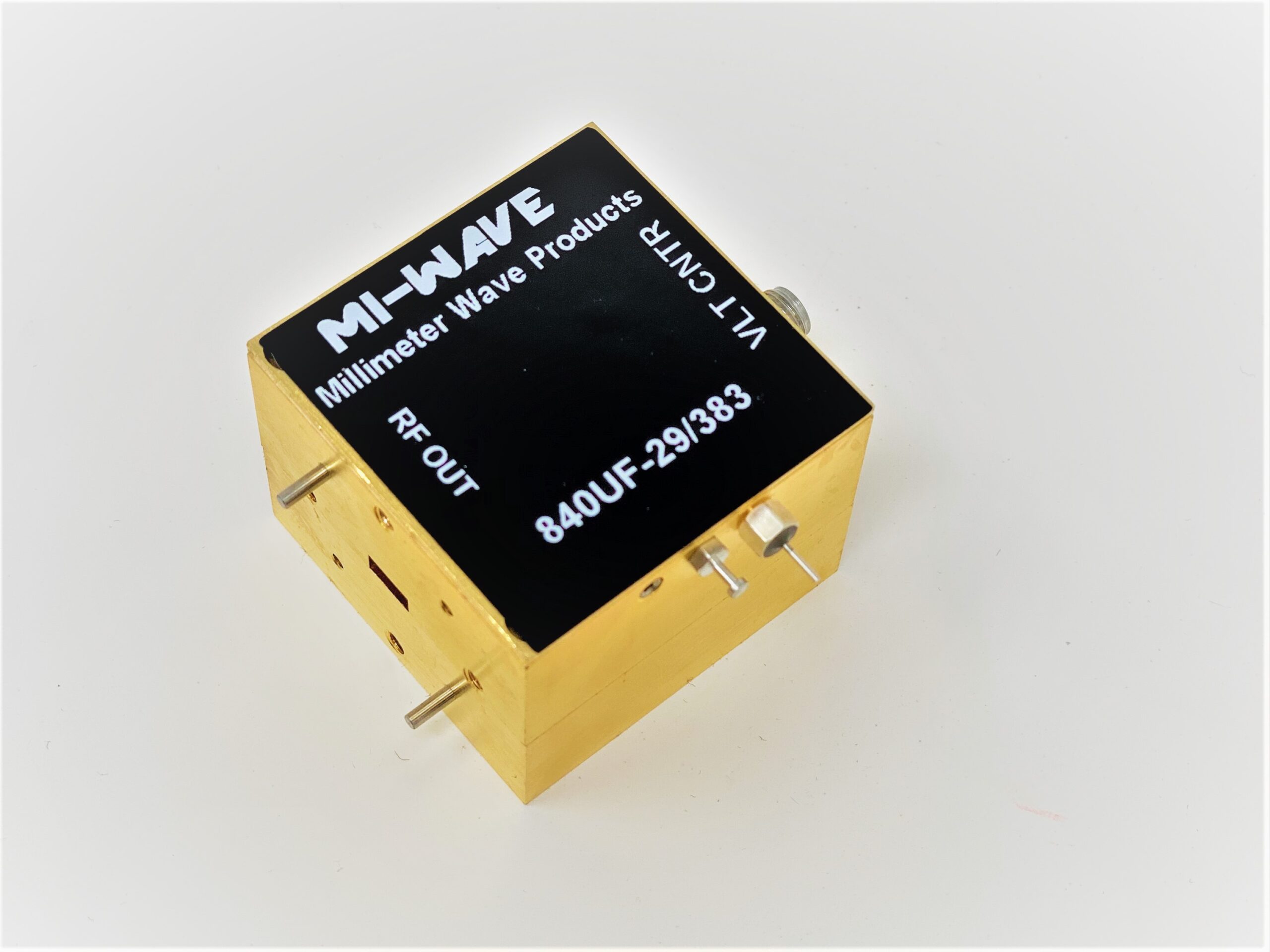

840UF-29/383, U-band, WR-19, 29 dBm Output Power, 20GHz Tuning Bandwidth

Note: Other power levels available. Please consult the factory.

View Product

50 GHz-75 GHz Wide Band Voltage Controlled Sources (VCO)

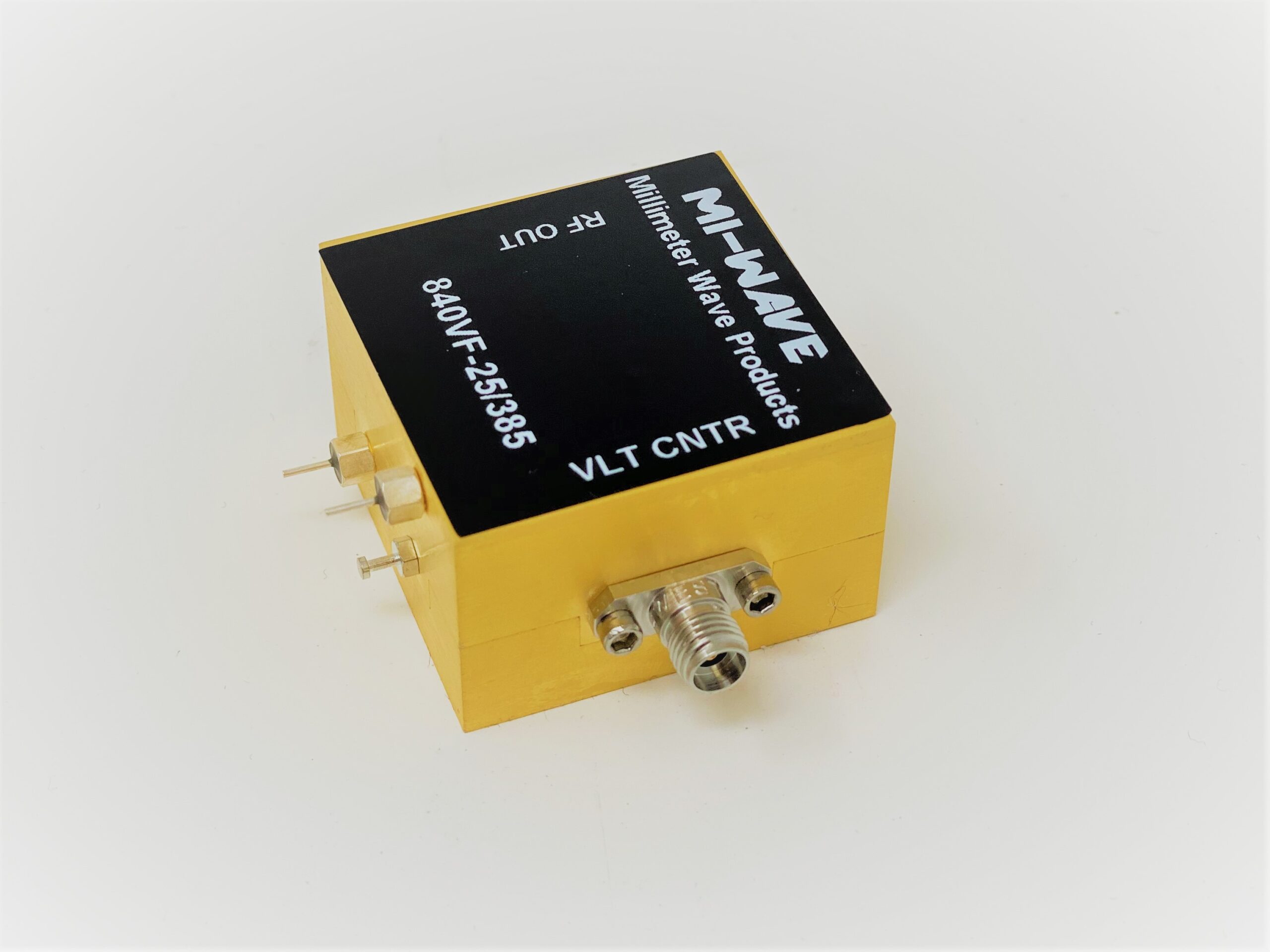

840VF-25/385, V-band, WR-15, 25 dBm Output Power, 25GHz Tuning Bandwidth

Note: Other power levels available. Please consult the factory.

View Product

75 GHz-110 GHz Wide Band Voltage Controlled Sources (VCO)

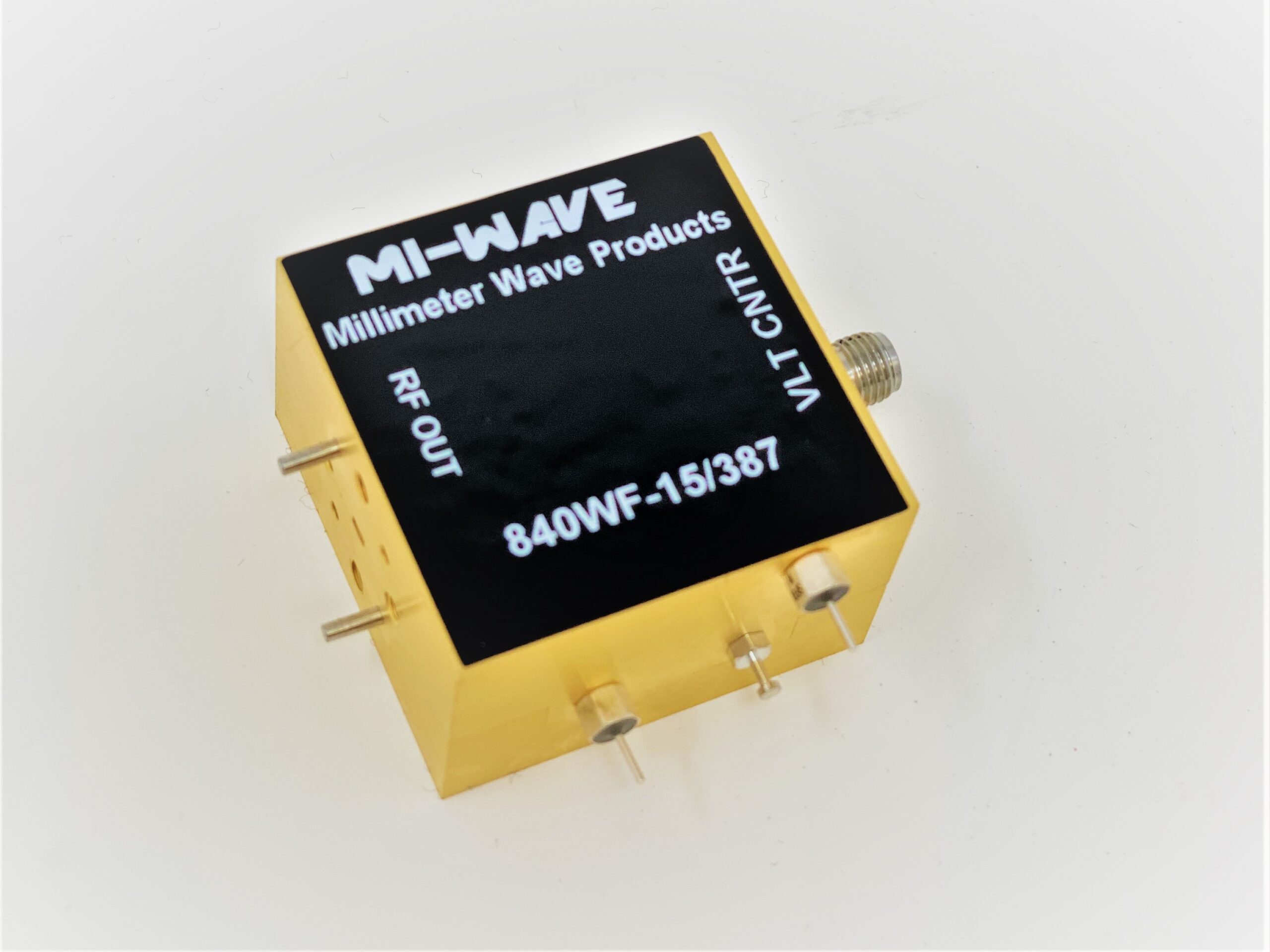

840WF-15/387, W-band, WR-10, 15 dBm Output Power, 35GHz Tuning Bandwidth

Note: Other power levels available. Please consult the factory.

View Product

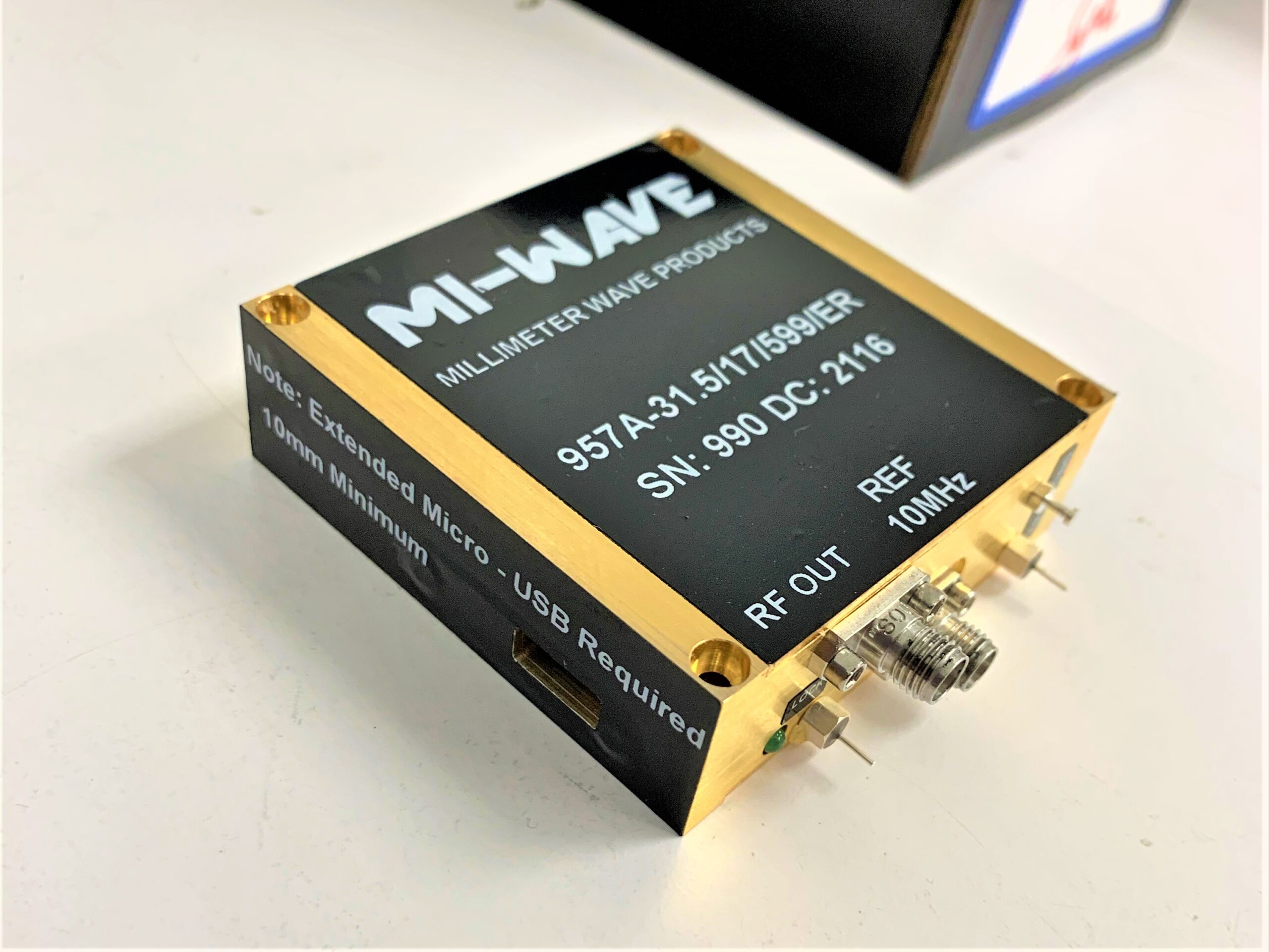

Custom 92GHz – 95GHz Voltage Controlled Sources (VCO)

840 Series/10 Hz Frequency Resolution/Output Power 30 dBm/External Reference Input Frequency 10 MHz

Note: Other power levels available. Please consult the factory.

View Product
