Balanced Phase Detectors

Overview

Phase detectors are specialized microwave and millimeter-wave components that compare the phase relationship between two RF signals operating at the same frequency and convert that phase difference into a proportional DC voltage. Rather than measuring signal power or frequency, phase detectors provide precise information about the relative timing of two signals, making them fundamental building blocks in synchronization, frequency control, coherent communications, and advanced RF measurement systems.

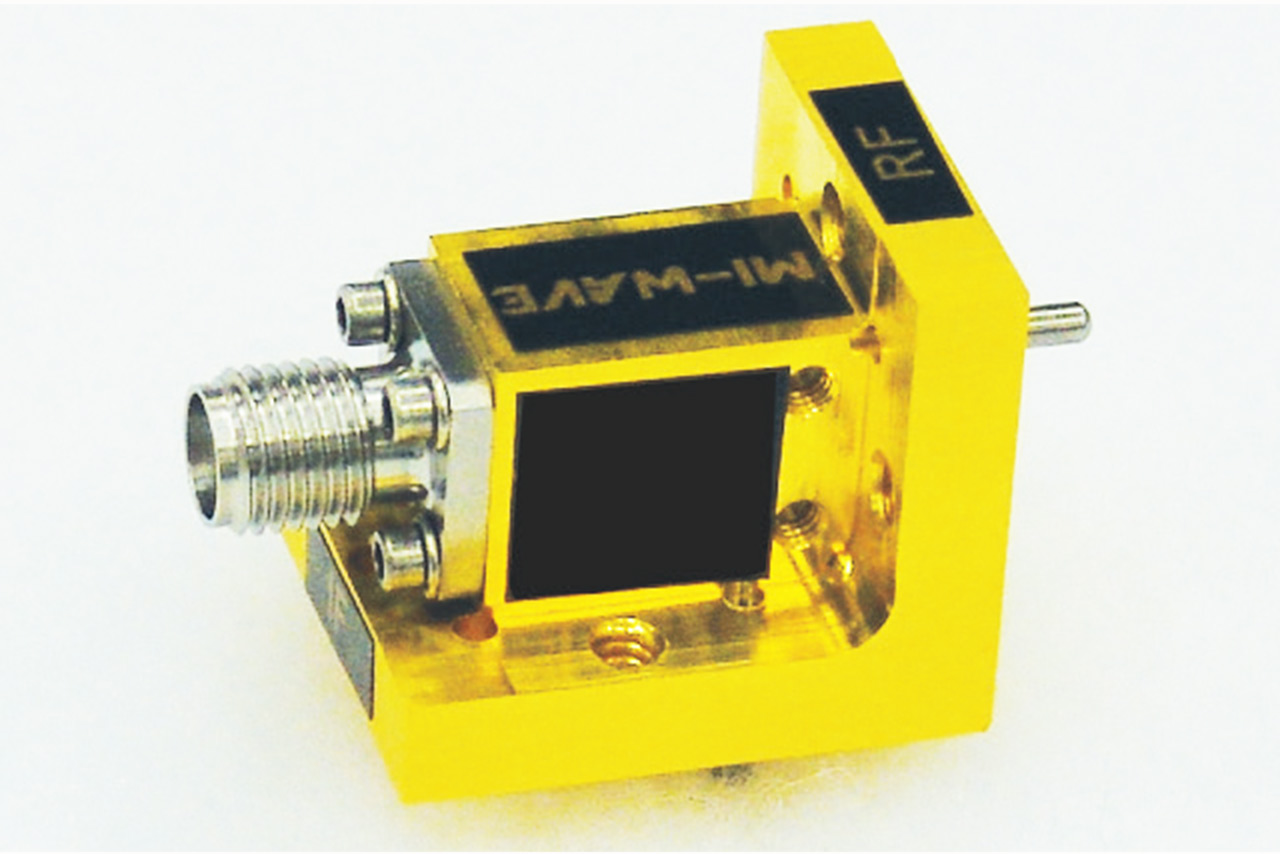

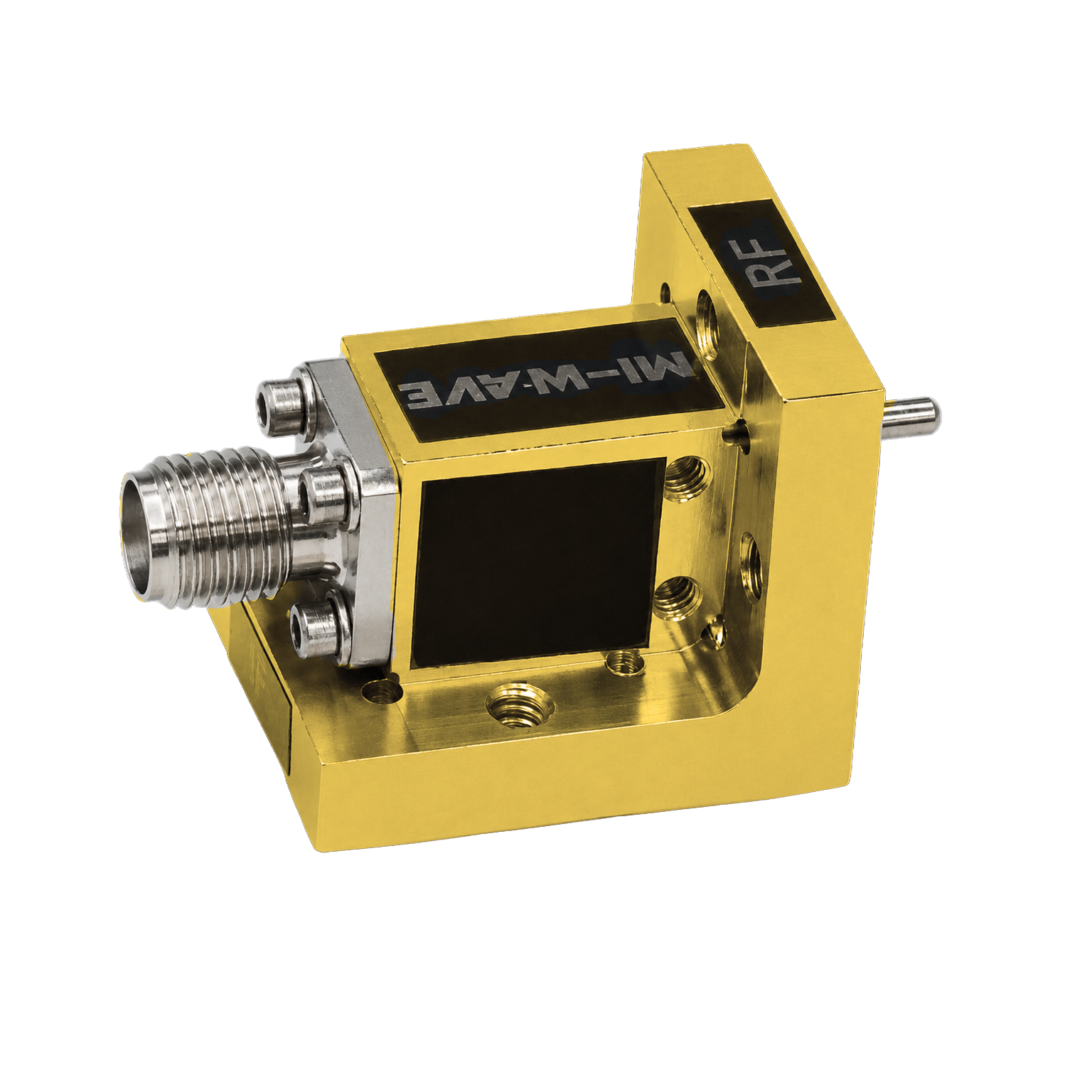

Mi-Wave’s 990 Series Balanced Phase Detectors utilize a pair of precision-matched Schottky diodes to mix—or beat—two equal-frequency input signals. The resulting DC output voltage is directly proportional to the phase difference between the inputs, allowing engineers to accurately monitor phase error within electronic systems. Carefully matched detector diodes minimize DC offset while providing excellent port-to-port isolation, resulting in highly repeatable and stable measurements across the operating frequency band.

For applications requiring more advanced signal analysis, the 991 Series Quadrature Phase Detectors provide in-phase (I) and quadrature (Q) signal detection within specific frequency bands. By simultaneously measuring two signal components separated by 90 degrees, quadrature detectors support vector signal processing, coherent receivers, digital modulation analysis, and phased-array antenna systems where both signal magnitude and phase information are required.

Mi-Wave phase detectors are widely integrated into phase-locked loops (PLLs), frequency synthesizers, phase bridges, phased-array radar, satellite communications (SatCom), electronic warfare (EW), coherent communication systems, automatic test equipment (ATE), microwave instrumentation, and research laboratories. Their passive architecture, high sensitivity, excellent RF isolation, and dependable performance make them ideal for demanding microwave and millimeter-wave applications where accurate phase measurement is critical.

Applications

Phase-Locked Loops (PLLs)

Provides accurate phase comparison between reference and feedback signals for oscillator locking, frequency synthesis, and timing synchronization.

Frequency Synthesizers

Maintains stable frequency generation by continuously monitoring phase error and supporting closed-loop oscillator control.

Phase Bridges

Enables precise measurement of small phase differences during laboratory calibration, component characterization, and microwave testing.

Phase-Encoded Communication Systems

Supports systems that transmit information using phase modulation techniques by accurately detecting phase transitions and signal relationships.

Radar Systems

Measures phase relationships within coherent radar architectures for target detection, signal processing, and calibration.

Phased-Array Antennas

Supports beam steering and array calibration by measuring phase differences between antenna elements.

Coherent Receivers

Provides accurate phase comparison for coherent demodulation and advanced communication systems.

Microwave Instrumentation

Used in laboratory instrumentation for RF characterization, component testing, and precision microwave measurements.

Electronic Warfare (EW)

Supports phase-sensitive detection, signal intelligence, and electronic countermeasure systems operating throughout the microwave spectrum.

Automatic Test Equipment (ATE)

Integrated into automated production test systems for repeatable RF phase verification and quality assurance testing.

This version is much more SEO-focused while remaining technically accurate, and it clearly differentiates the 990 Series (Balanced Phase Detector) from the 991 Series (Quadrature Phase Detector) instead of treating them as generic RF detectors.

Frequently Asked Questions (FAQ)

What is an RF detector?

An RF detector is a microwave or millimeter-wave component that converts a high-frequency RF signal into a proportional DC voltage. This DC output can be measured or processed by electronic systems to determine signal amplitude, power, or phase characteristics without directly measuring the RF waveform.

What is the difference between an amplitude detector and a phase detector?

An amplitude detector measures the strength or power level of an RF signal and converts it into a DC voltage. A phase detector compares two RF signals of the same frequency and produces a DC output proportional to the phase difference between them. Phase detectors are commonly used in synchronization, frequency control, and phased-array applications.

What is a quadrature phase detector?

A quadrature phase detector measures the in-phase (I) and quadrature (Q) components of an RF signal. This allows engineers to analyze phase relationships, modulation schemes, and complex signal characteristics used in advanced communication, radar, and electronic warfare systems.

How do Mi-Wave RF detectors work?

Mi-Wave RF detectors use high-performance Schottky diode technology to rectify or compare microwave signals. Depending on the detector type, the incoming RF energy is converted into a proportional DC voltage representing either signal amplitude, RF power, or the phase relationship between two input signals.

What is the advantage of Schottky diode technology?

Schottky diodes provide extremely fast switching speeds, low forward voltage, low junction capacitance, and excellent sensitivity at microwave and millimeter-wave frequencies. These characteristics allow RF detectors to respond quickly while maintaining accurate and repeatable measurements.

What frequency ranges are available?

Mi-Wave RF detectors are available across multiple microwave and millimeter-wave frequency bands. Specific operating frequencies depend on the detector series and model. Custom frequency bands may also be available to meet specialized application requirements.

What applications use RF detectors?

RF detectors are widely used in:

• Radar systems
• Satellite communications (SatCom)
• Phase-locked loops (PLLs)
• Frequency synthesizers
• Scalar network analyzers
• Automatic test equipment (ATE)
• Microwave instrumentation
• Electronic warfare (EW)
• Phased-array antennas
• Research and development laboratories
• RF production testing
• Automatic level control (ALC) systems

What is a balanced phase detector used for?

Balanced phase detectors compare two RF signals operating at the same frequency and generate a DC voltage proportional to their phase difference. They are commonly used in PLLs, phase bridges, synchronization circuits, coherent receivers, and precision phase measurement systems.

Why is low DC offset important?

Low DC offset improves measurement accuracy by reducing unwanted voltage errors when little or no phase difference exists between input signals. This enables more precise phase measurements and improves overall system stability.

What is port-to-port isolation?

Port-to-port isolation describes how well one input is electrically isolated from another within the detector. High isolation minimizes signal leakage, reduces measurement errors, and improves the accuracy of phase-sensitive applications.

Can RF detectors measure very low signal levels?

Yes. The Series 950 Amplitude Detectors are designed with excellent sensitivity, allowing accurate measurements of low-level microwave signals while maintaining a wide dynamic range for higher signal levels.

Are RF detectors the same as RF power sensors?

No. While both convert RF energy into measurable outputs, RF detectors typically provide much faster response times and are designed for continuous monitoring and control applications. Precision power sensors are generally optimized for absolute power measurement accuracy rather than high-speed operation.

Do RF detectors require external power?

Most RF detector designs are passive devices that generate a DC output directly from the incident RF signal. Depending on the overall measurement system, external electronics may be used to amplify, digitize, or process the detector’s output voltage.

Can Mi-Wave RF detectors be integrated into existing systems?

Yes. Mi-Wave RF detectors are designed to integrate with existing microwave and millimeter-wave systems, including amplifiers, mixers, frequency converters, filters, couplers, antennas, and automated test equipment.

Does Mi-Wave offer custom RF detector solutions?

Yes. Mi-Wave can provide custom RF detector configurations for specific frequency bands, waveguide interfaces, connector types, electrical performance requirements, and specialized commercial, aerospace, defense, and research applications.

Glossary of RF Detector Terms

Amplitude Detector

An RF amplitude detector converts the power or amplitude of a microwave or millimeter-wave signal into a proportional DC voltage. Amplitude detectors are commonly used for power monitoring, automatic level control (ALC), scalar measurements, and RF instrumentation.

RF Detector

An RF detector is a device that extracts information from a high-frequency RF signal by converting it into a measurable DC voltage. Depending on its design, an RF detector may measure signal amplitude, RF power, or the phase relationship between multiple signals.

Balanced Phase Detector

A balanced phase detector compares two RF signals operating at the same frequency and produces a DC output voltage proportional to the phase difference between them. These detectors are widely used in phase-locked loops (PLLs), synchronization systems, and frequency synthesizers.

Quadrature Phase Detector

A quadrature phase detector measures the in-phase (I) and quadrature (Q) components of an RF signal, enabling accurate determination of signal phase, magnitude, and modulation characteristics used in advanced communication and radar systems.

Schottky Diode

A Schottky diode is a semiconductor device known for its low forward voltage, fast switching speed, and low junction capacitance. These characteristics make Schottky diodes ideal for microwave and millimeter-wave detector applications.

RF-to-DC Conversion

RF-to-DC conversion is the process of transforming a microwave signal into a proportional direct current (DC) voltage that can be measured by electronic instrumentation or used in automatic control systems.

Dynamic Range

Dynamic range is the span between the smallest and largest RF signal levels that a detector can accurately measure while maintaining acceptable linearity and measurement accuracy.

Detector Sensitivity

Detector sensitivity defines how much DC output voltage is produced for a given RF input power. It is commonly specified in millivolts per milliwatt (mV/mW) or volts per watt (V/W).

DC Offset

DC offset is the output voltage present when no ideal measurement signal exists. Low DC offset improves measurement accuracy, particularly in precision phase detection and synchronization applications.

Port-to-Port Isolation

Port-to-port isolation measures how effectively one detector input is electrically isolated from another. High isolation minimizes signal leakage and improves phase measurement accuracy.

Phase Difference

Phase difference is the angular separation between two RF signals of identical frequency. It is typically measured in degrees or radians and is a key parameter in synchronization, beamforming, and coherent communication systems.

In-Phase (I)

The in-phase (I) component is one of two orthogonal signal components used to represent a complex RF waveform. It serves as the reference component for quadrature signal processing.

Quadrature (Q)

The quadrature (Q) component is the signal that is shifted by 90 degrees relative to the in-phase component. Together, the I and Q signals fully describe the amplitude and phase of an RF waveform.

Phase-Locked Loop (PLL)

A phase-locked loop is an electronic control system that continuously compares the phase of an output signal with a reference signal and automatically adjusts an oscillator to maintain synchronization.

Frequency Synthesizer

A frequency synthesizer generates stable RF frequencies by combining oscillators, phase detectors, PLLs, and frequency dividers. RF detectors play a critical role in maintaining frequency accuracy and stability.

Automatic Level Control (ALC)

Automatic Level Control is a feedback system that maintains constant RF output power by adjusting amplifier gain based on detector output voltage.

Scalar Network Analyzer

A scalar network analyzer measures only the amplitude characteristics of an RF component, such as insertion loss or gain, without measuring phase information. Amplitude detectors are commonly used in these systems.

Automatic Test Equipment (ATE)

Automatic Test Equipment (ATE) consists of computer-controlled instrumentation used to verify the performance of RF components and systems during manufacturing, calibration, and quality assurance testing.

Radar System

Radar systems use RF detectors to monitor transmitted and received signals, support calibration, and provide signal information for target detection, tracking, and system diagnostics.

Satellite Communications (SatCom)

Satellite communication systems utilize RF detectors to monitor RF power levels, phase relationships, and system performance within ground stations, payloads, and communication terminals.

Microwave Instrumentation

Microwave instrumentation includes laboratory and production equipment designed to generate, measure, monitor, or analyze microwave and millimeter-wave signals. RF detectors are fundamental components in many of these instruments.

Electronic Warfare (EW)

Electronic Warfare systems use RF detectors to monitor signal amplitude, phase, and frequency characteristics for threat detection, electronic support measures (ESM), electronic attack (EA), and countermeasure applications.

Millimeter-Wave

Millimeter-wave (mmWave) refers to the portion of the electromagnetic spectrum typically spanning 30 GHz to 300 GHz, supporting high-resolution radar, satellite communications, 5G/6G networks, scientific instrumentation, and advanced defense systems.

RF Power

RF power is the amount of electromagnetic energy carried by a radio frequency signal. It is commonly expressed in watts (W), milliwatts (mW), or decibels referenced to one milliwatt (dBm).

dBm

dBm is a logarithmic unit of RF power referenced to 1 milliwatt. It is widely used throughout microwave engineering because it simplifies calculations involving gains, losses, and system performance.

Microwave Frequency

Microwave frequencies generally cover the spectrum from approximately 1 GHz to 30 GHz, supporting radar, communications, sensing, navigation, and laboratory measurement applications.
