RF Power Dividers & Waveguide Hybrid Magic Tees

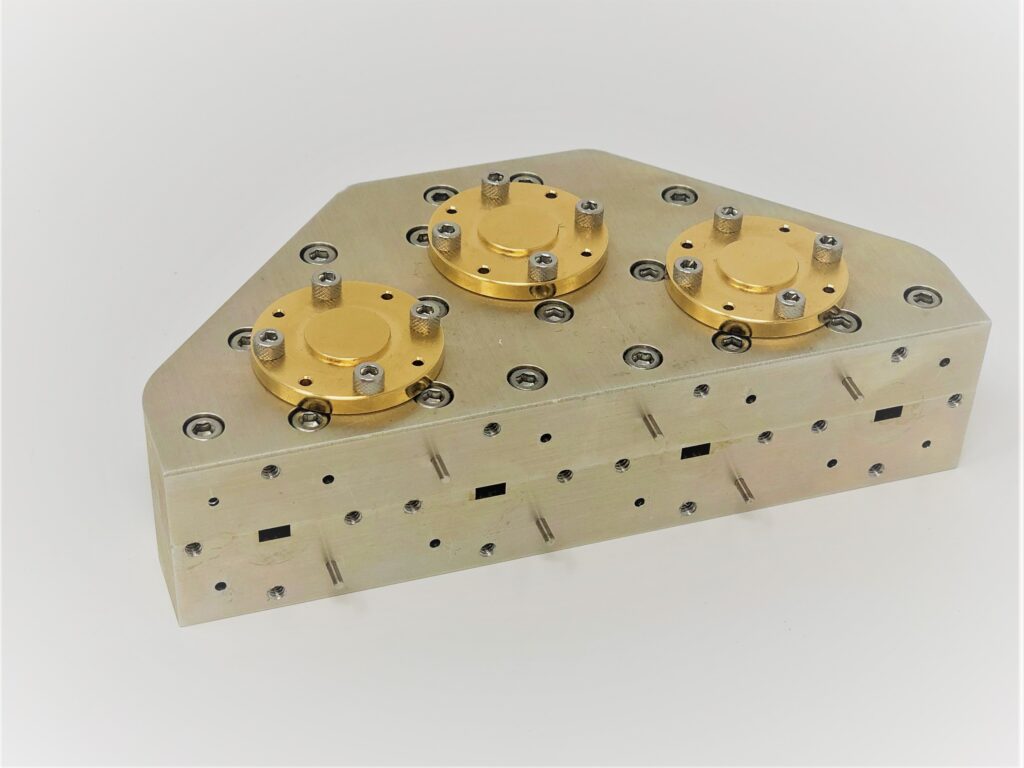

Mi-Wave’s RF power dividers and hybrid magic tees are precision-matched 3 dB power splitting devices built for microwave and millimeter-wave signal distribution. Available across standard waveguide sizes from 8.0 to 140.0 GHz, these power divider RF components are engineered for phase-stable in-phase splitting, combining, and beam-forming applications. E/H Hybrid and Magic Tees provide both E-plane and H-plane connections in a single unit.

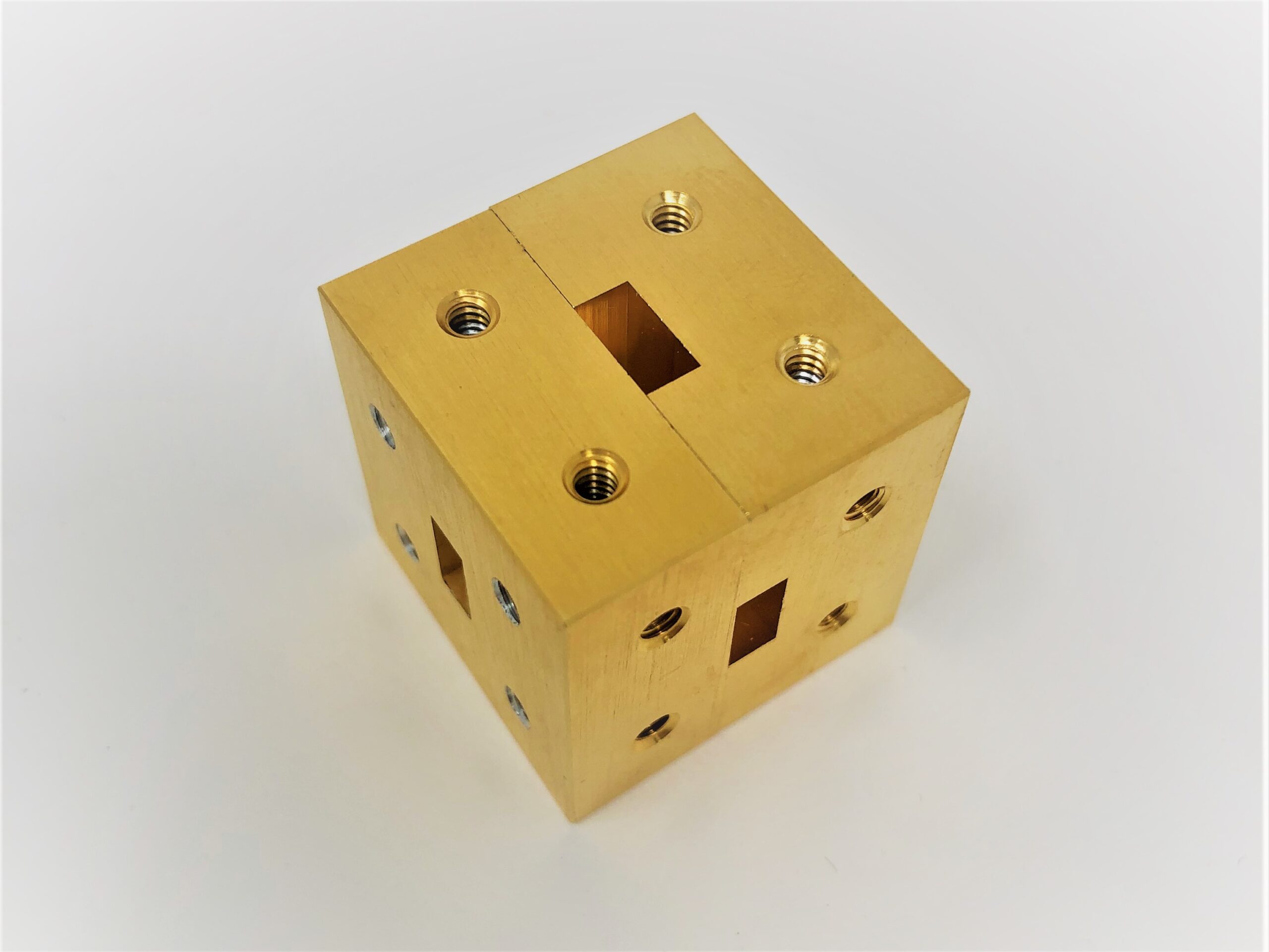

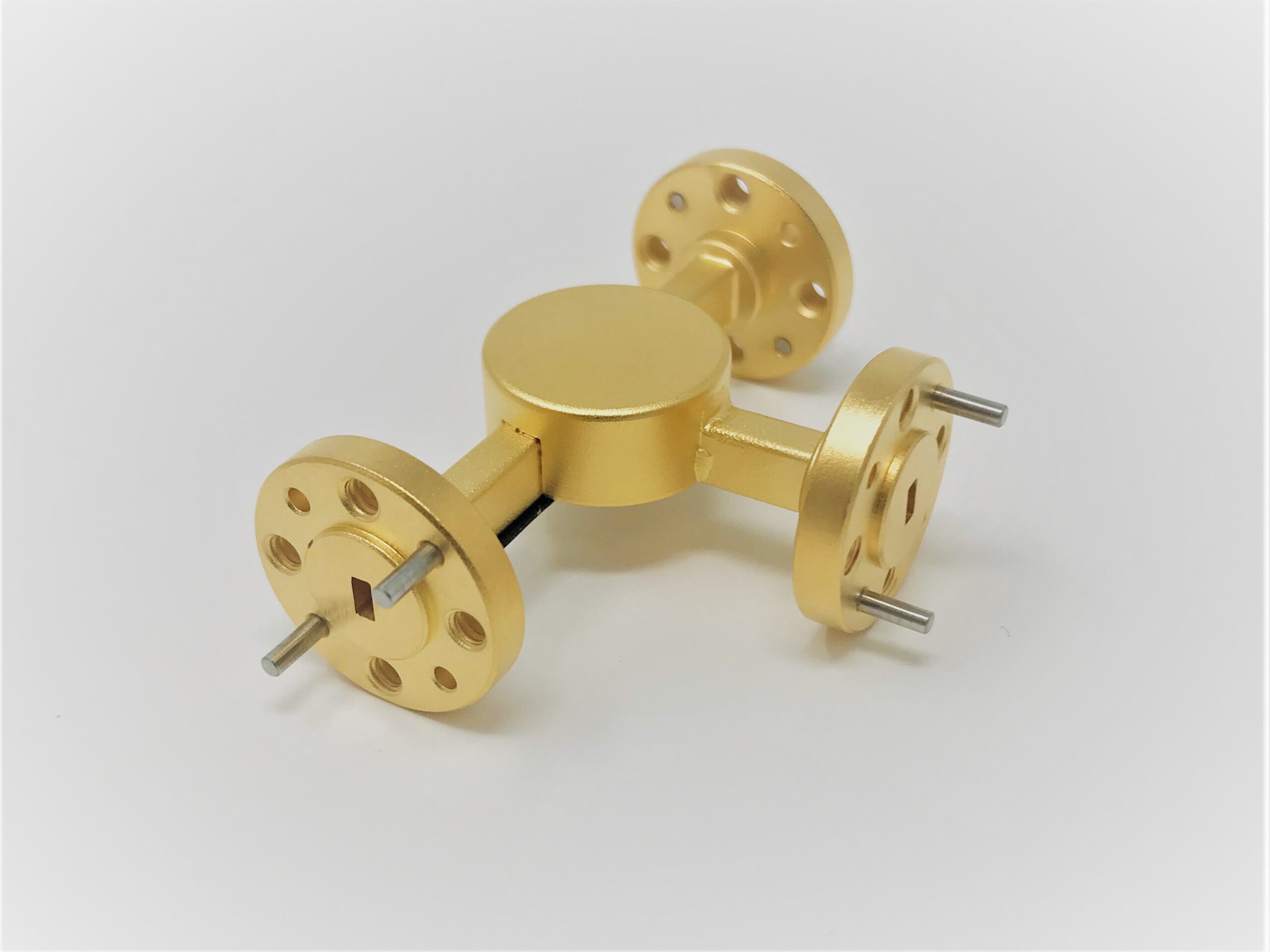

These units are capable of in-phase splitting. E/H Hybrid and Magic Tees consist of three mutually perpendicular flanged sections of a standard waveguide. Two of these sections are symmetrically located on the broad and narrow walls of the main tee section to provide E-plane and H-plane connections.
