High Power Load Terminations

Mi-Wave’s 582 Series Terminations are designed with standard waveguide flanges for use from 12.4 to 220 GHz. Each unit consists of a short length of the waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full waveguide bandwidth.

Note: Power requirements for the 482 Series is up to 250 Watts CW, please consult Mi-Wave for other power availabilities and further technical information.

Ka-Band, 26.5 – 40 GHz, High Power Terminations

582A/599, Power Handling 75W, VSWR 1.10:1

View Product

Q-Band, 33 – 50 GHz, High Power Terminations

582B/383 || 719, Power Handling 50W, VSWR 1.10:1

View Product

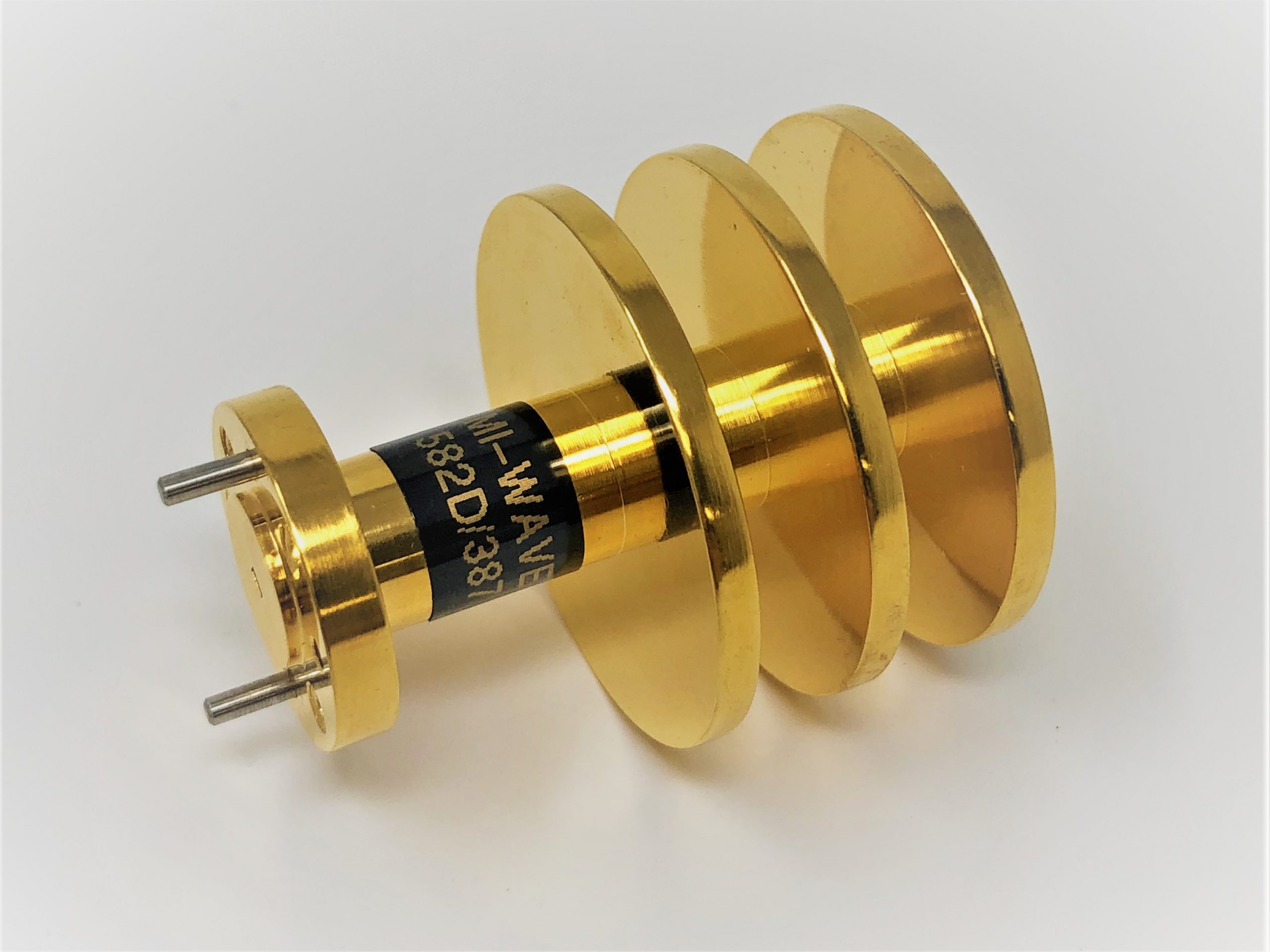

D-Band, 110 – 170 GHz, High Power Terminations

582D/387, Power Handling 2.0W, VSWR 1.15:1

View Product

E-Band, 60 – 90 GHz, High Power Terminations

582E/387, Power Handling 10.0W, VSWR 1.10:1

View Product

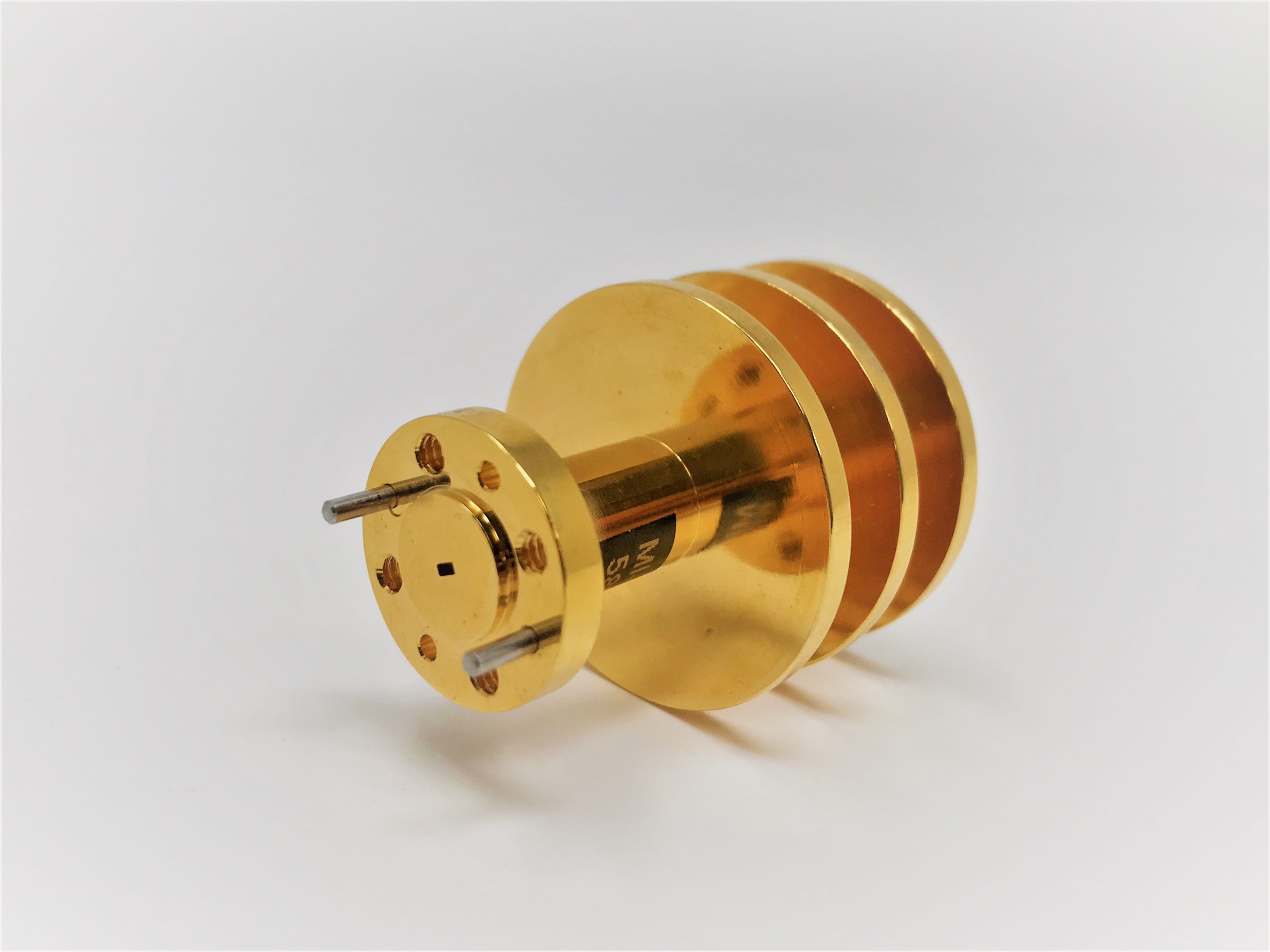

F-Band, 90 –140 GHz, High Power Terminations

582F/387, Power Handling 5.0W, VSWR 1.15:1

View Product

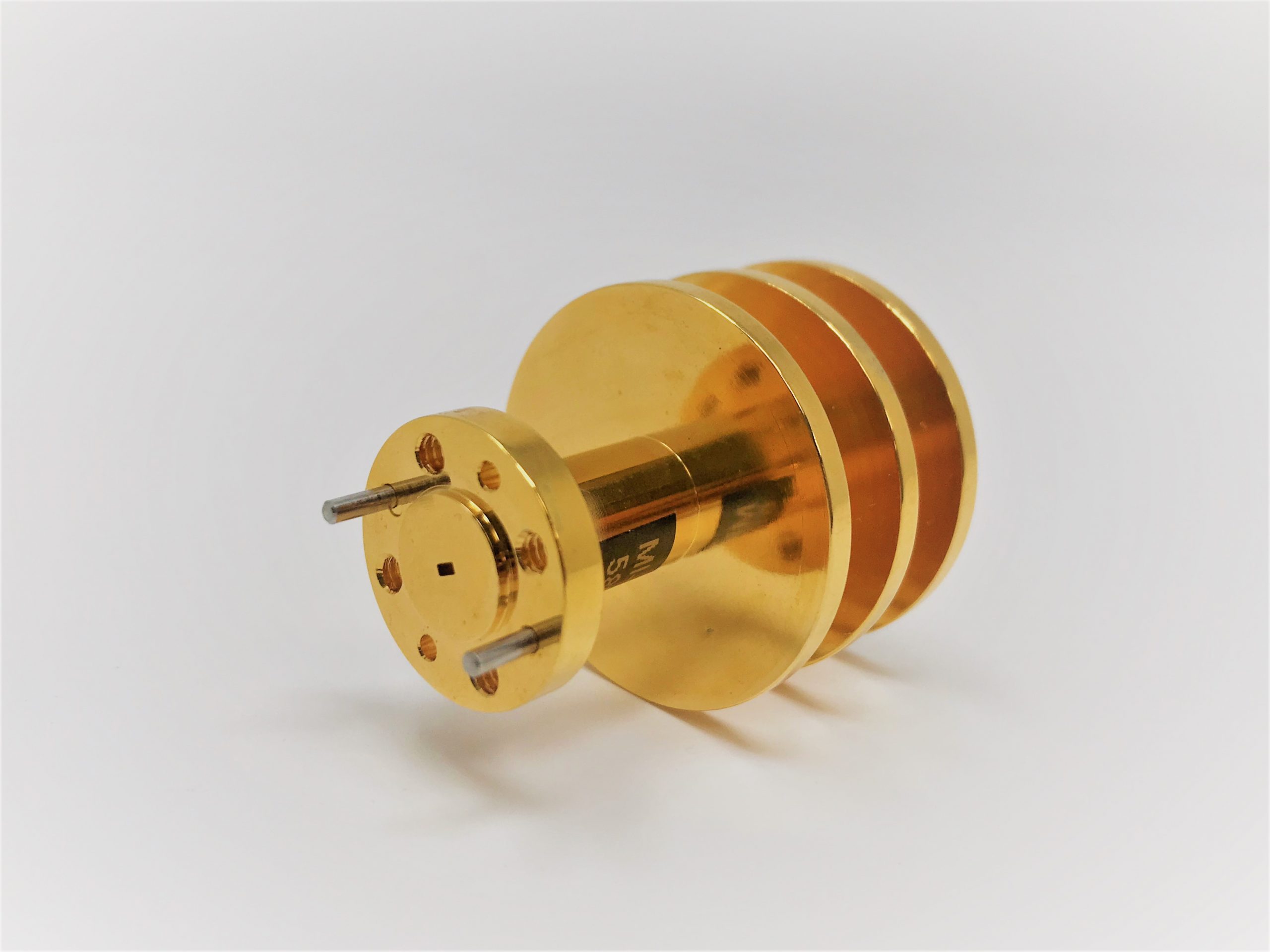

G-Band, 140 –220 GHz, High Power Terminations

582G/387, Power Handling 1.0W, VSWR 1.15:1

View Product

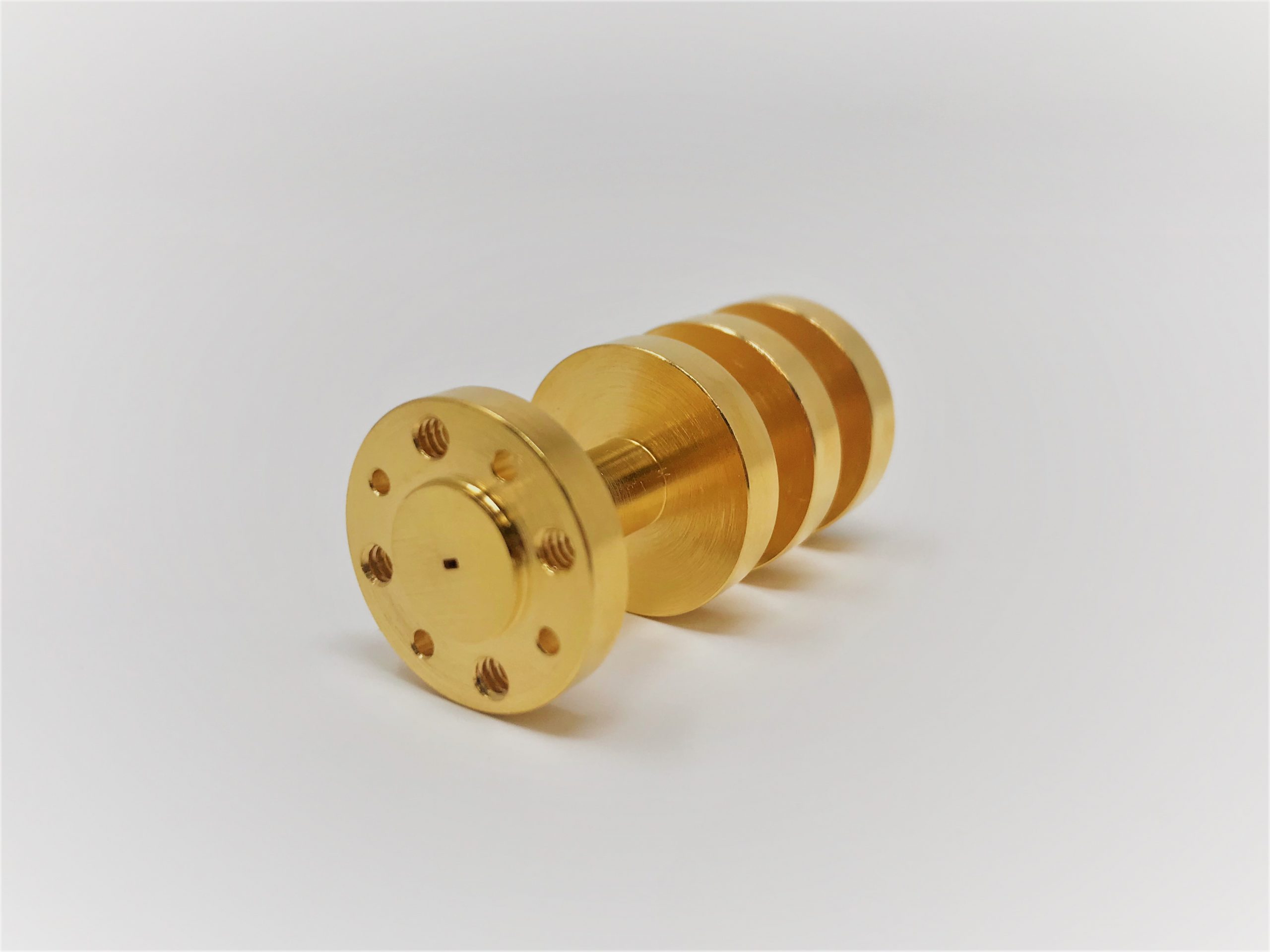

H-Band, 170 –260 GHz, High Power Terminations

582H/387, Power Handling 0.5W, VSWR 1.2:1

View Product

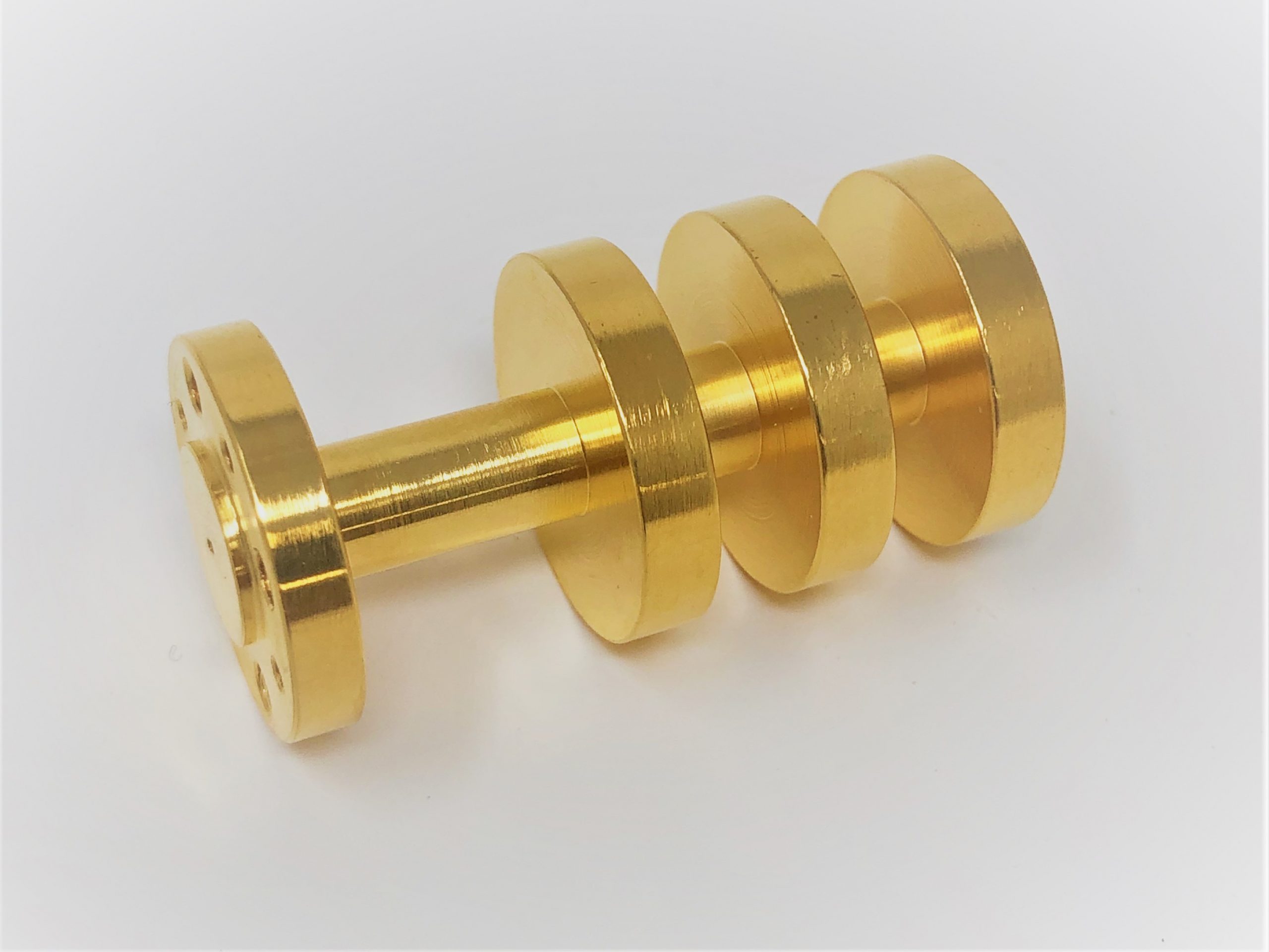

J-Band, 220 –325 GHz, High Power Terminations

582J/387, Power Handling 0.25W, VSWR 1.2:1

View Product

U-Band, 40 –60 GHz, High Power Terminations

582U/383, Power Handling 10.0W, VSWR 1.10:1

View Product

V-Band, 50 – 75 GHz, High Power Terminations

582V/385, Power Handling 10.0W, VSWR 1.10:1

View Product

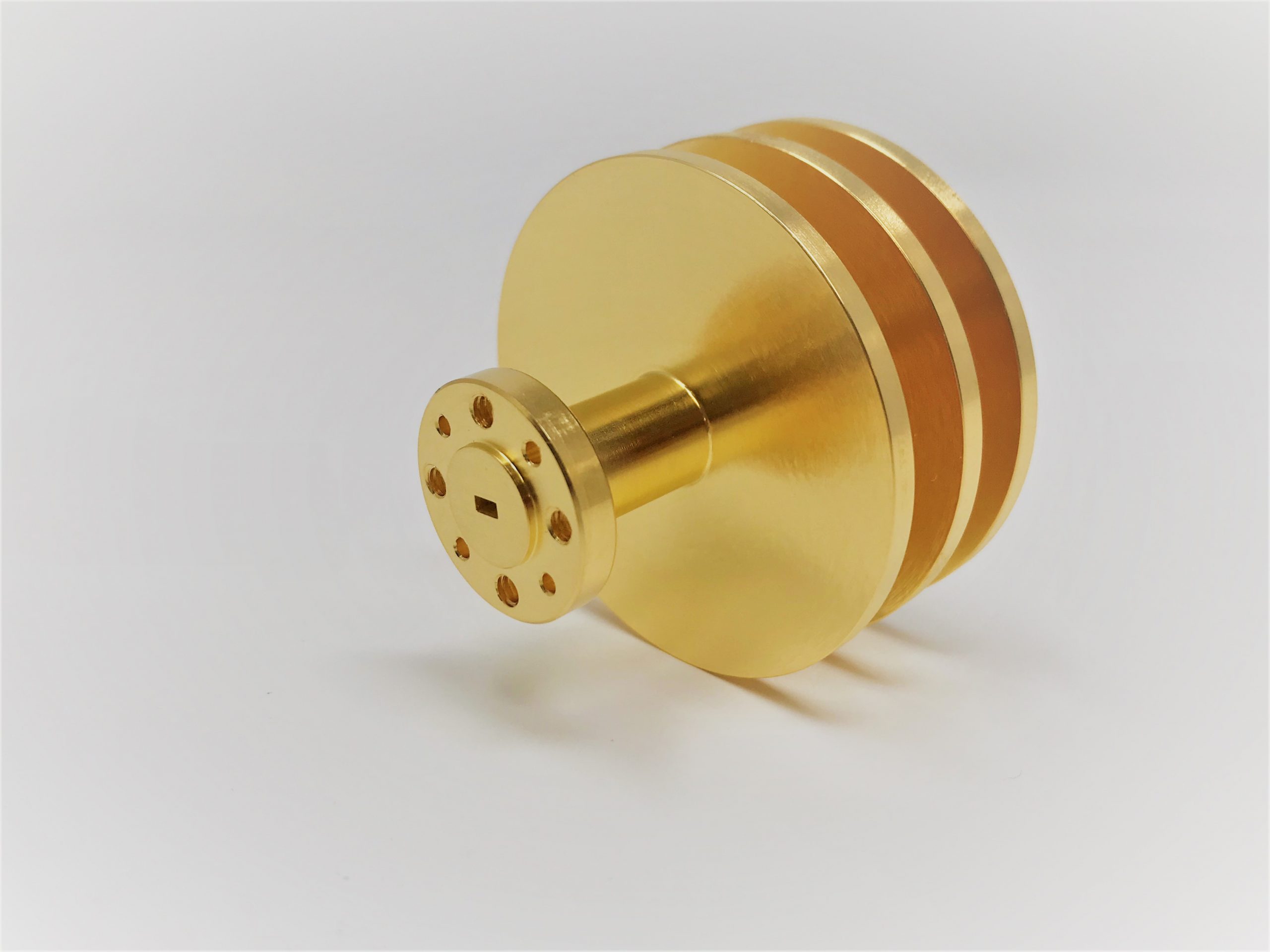

W-Band, 75 – 110 GHz, High Power Terminations

582W/387, Power Handling 10.0W, VSWR 1.10

View Product
