Harmonic Mixers with DiPlexers
Mi-Wave’s 922 Series Harmonic Mixers include optional LO-IF frequency diplexer and are used to downconvert millimeter wave signals using a Schottky barrier mixer diode. Measurements can be made by mixing the harmonic of the LO with the desired RF signal and observing the resulting IF.
Note: Our website contains just a few types of Mixers we build. Consult with us for your specific needs.
Recommended for use with a harmonic number less than 14
| Model | Band | RF Frequency | LO Frequency | IF Frequency | LO Power | LO + RF Power | RF Port | LO / IF Port | LINK |
|---|---|---|---|---|---|---|---|---|---|

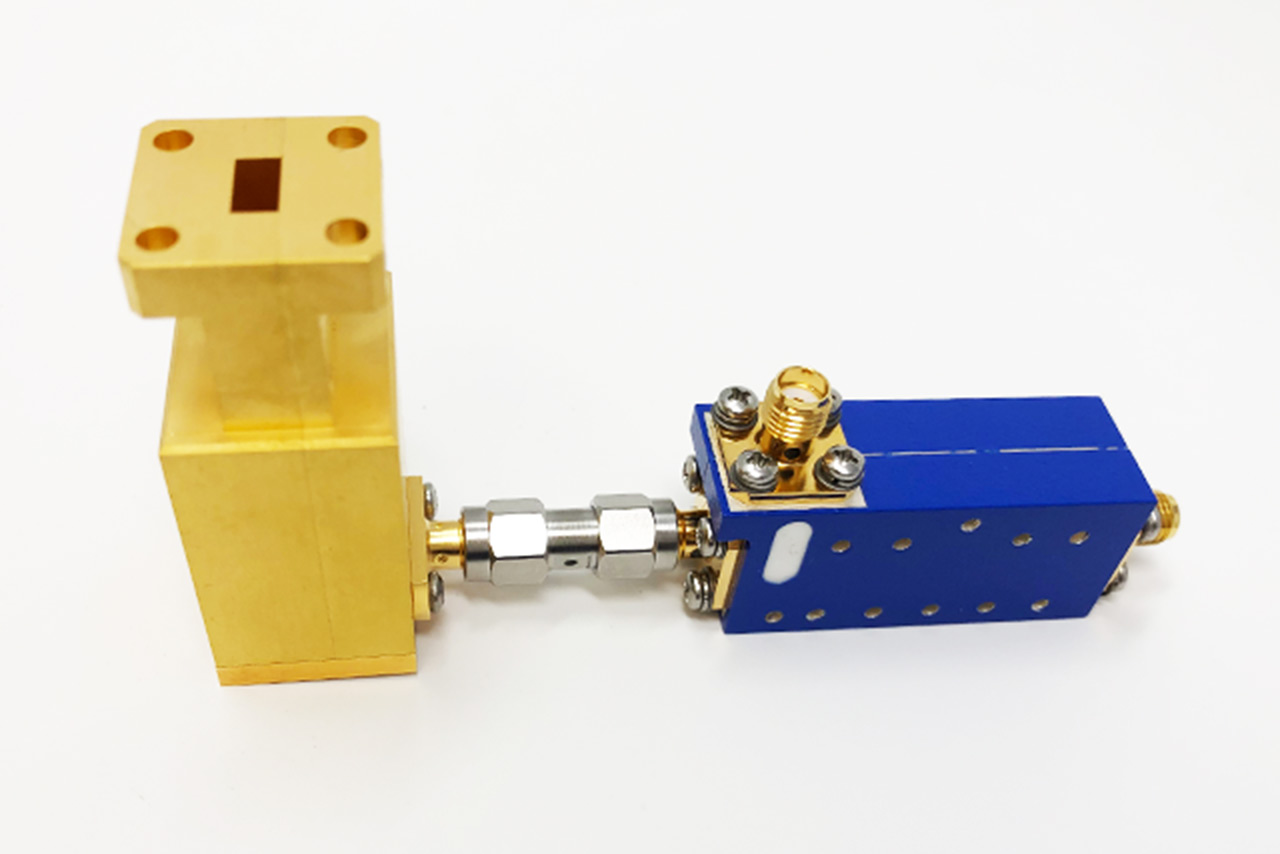

| 922A/599 | Ka-Band | 26.5–40 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-28 Waveguide, UG-599/U Flange | SMA Female | |

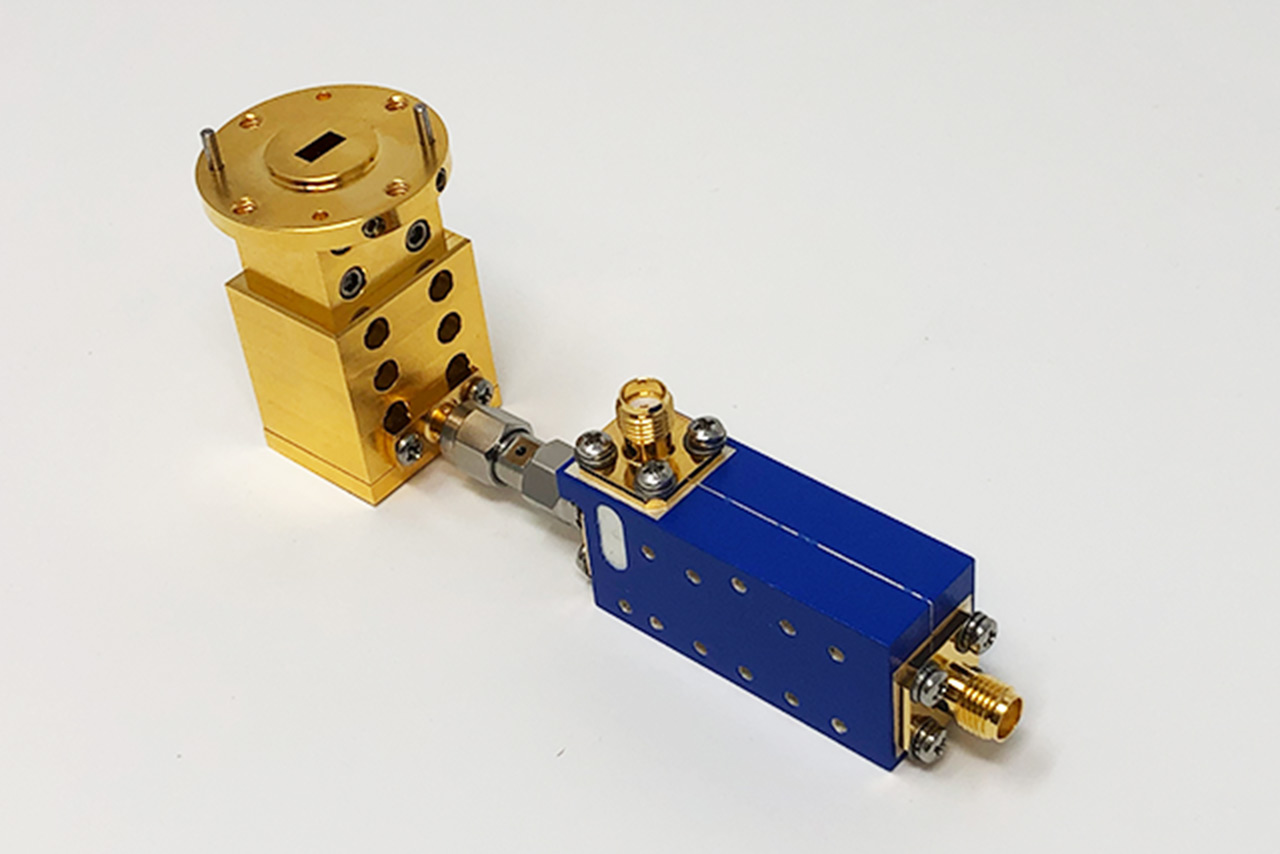

| 922B/383 | Q-Band | 33–50 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-22 Waveguide, UG-383/U Flange | SMA Female | |

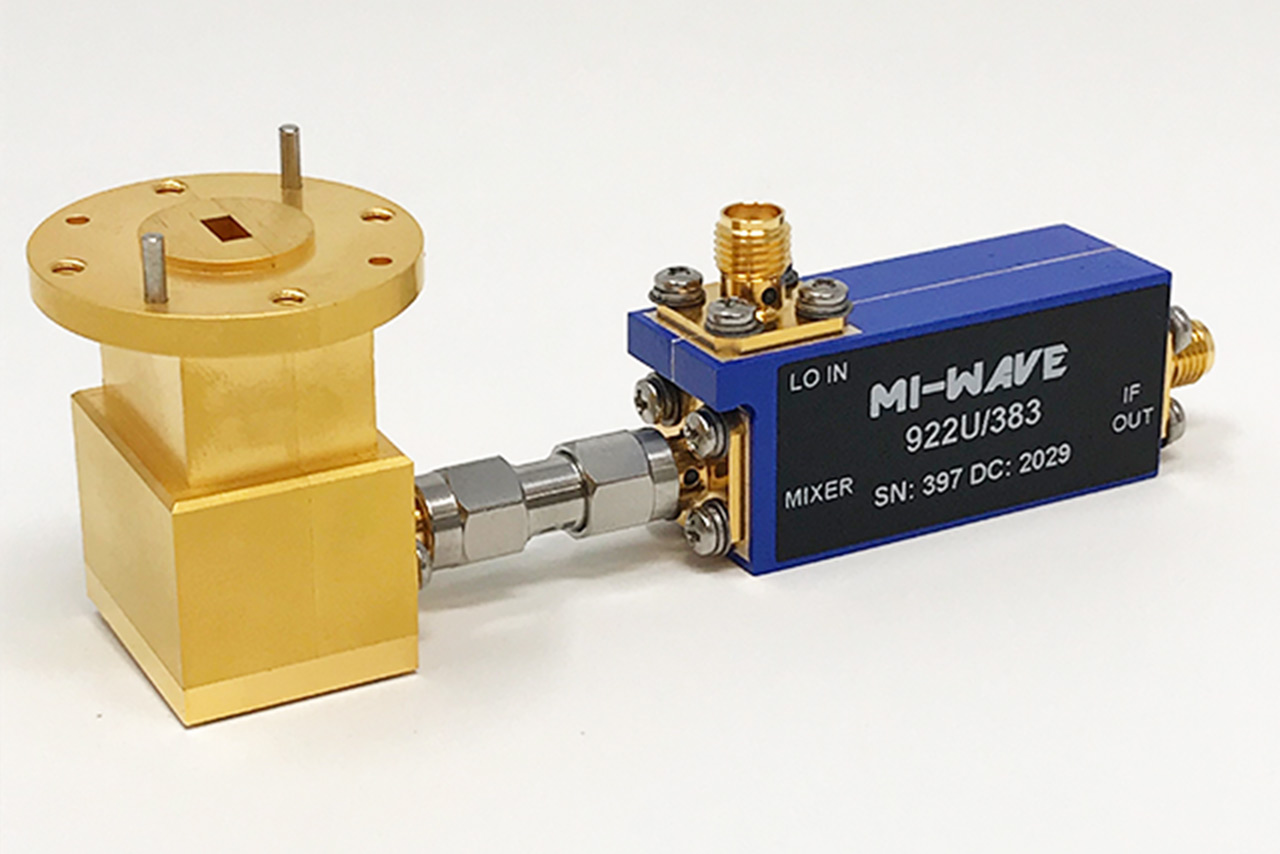

| 922U/383 | U-Band | 40–60 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-19 Waveguide, UG-383/U-M Flange | SMA Female | |
| 922E/387 | E-Band | 60–90 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-12 Waveguide, UG-387/U-M Flange | SMA Female | |

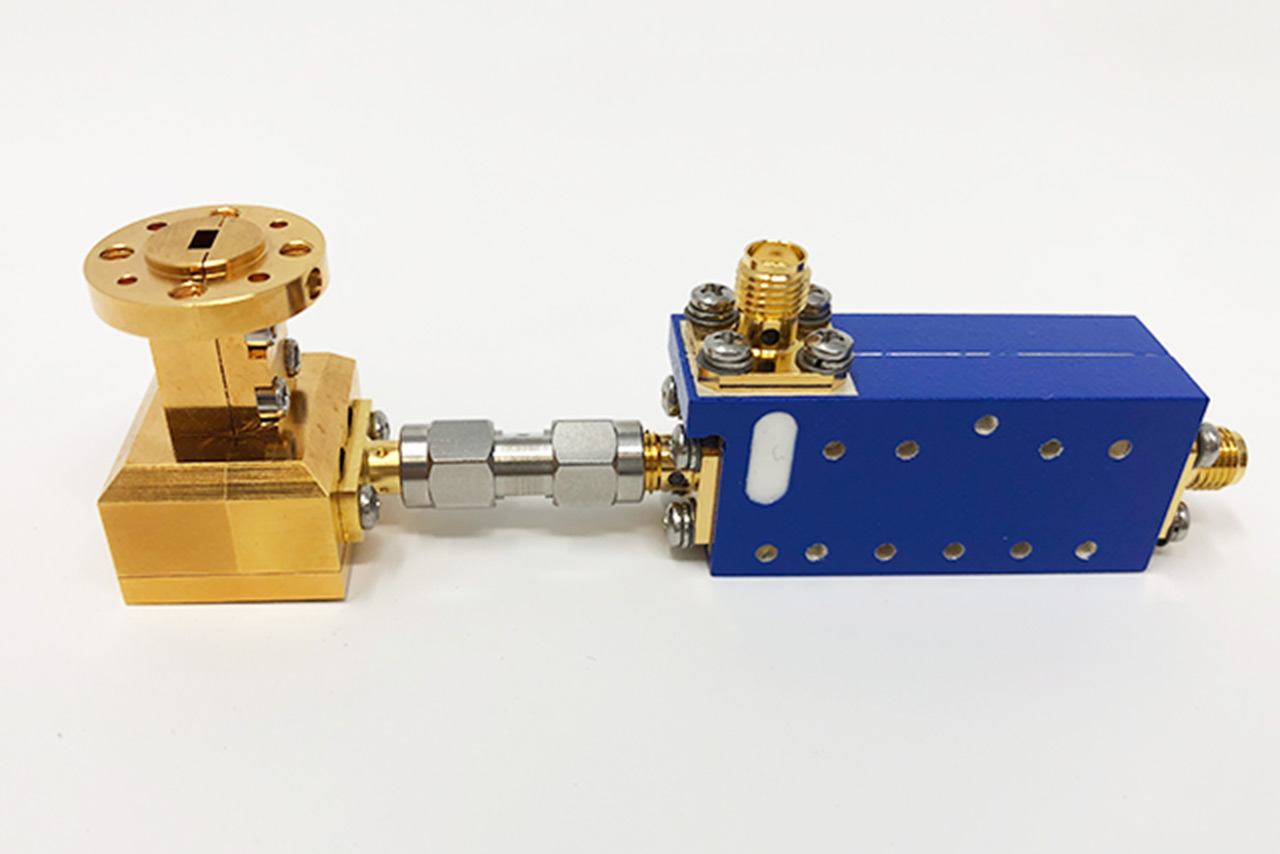

| 922V/385 | V-Band | 50–75 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-15 Waveguide, UG-385/U Flange | SMA Female | |

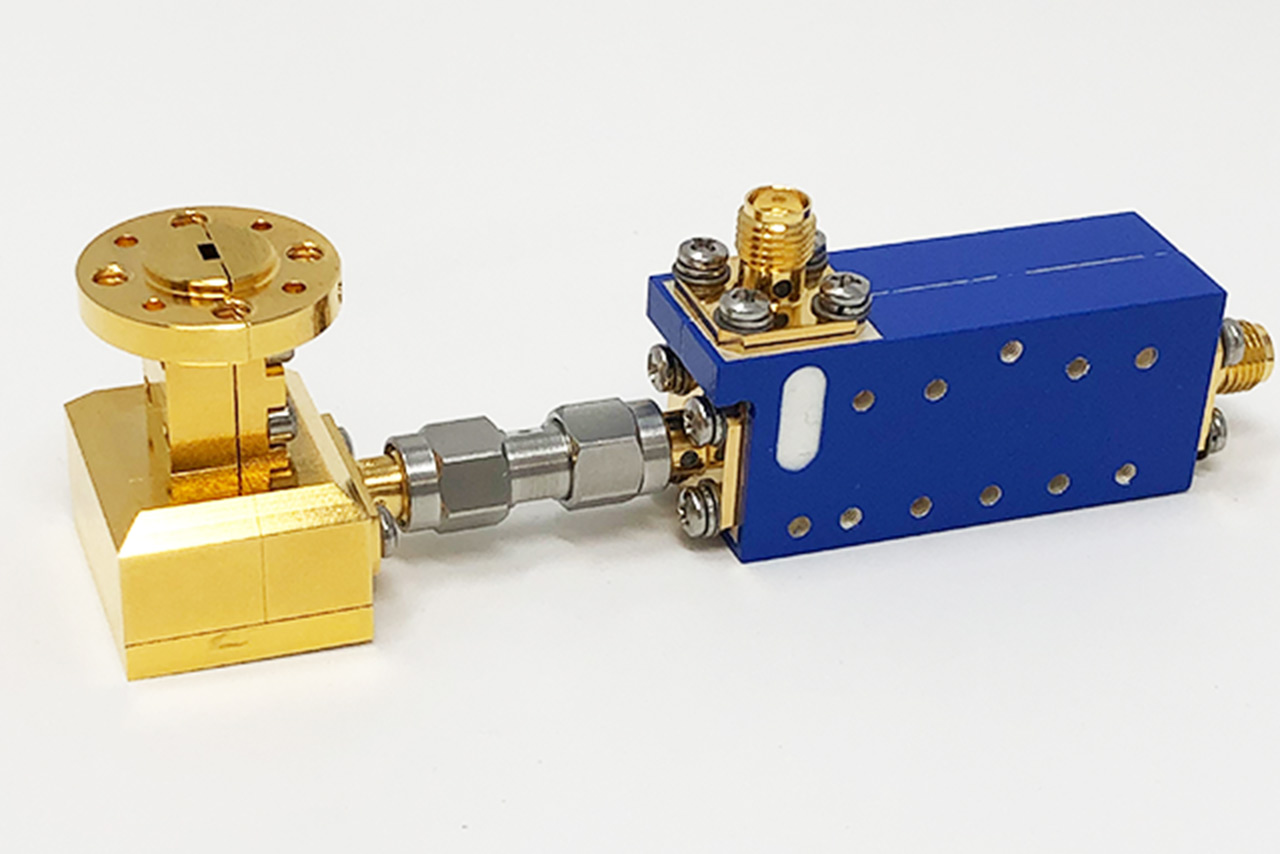

| 922W/387 | W-Band | 75–110 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-10 Waveguide, UG-387/U-M Flange | SMA Female | |

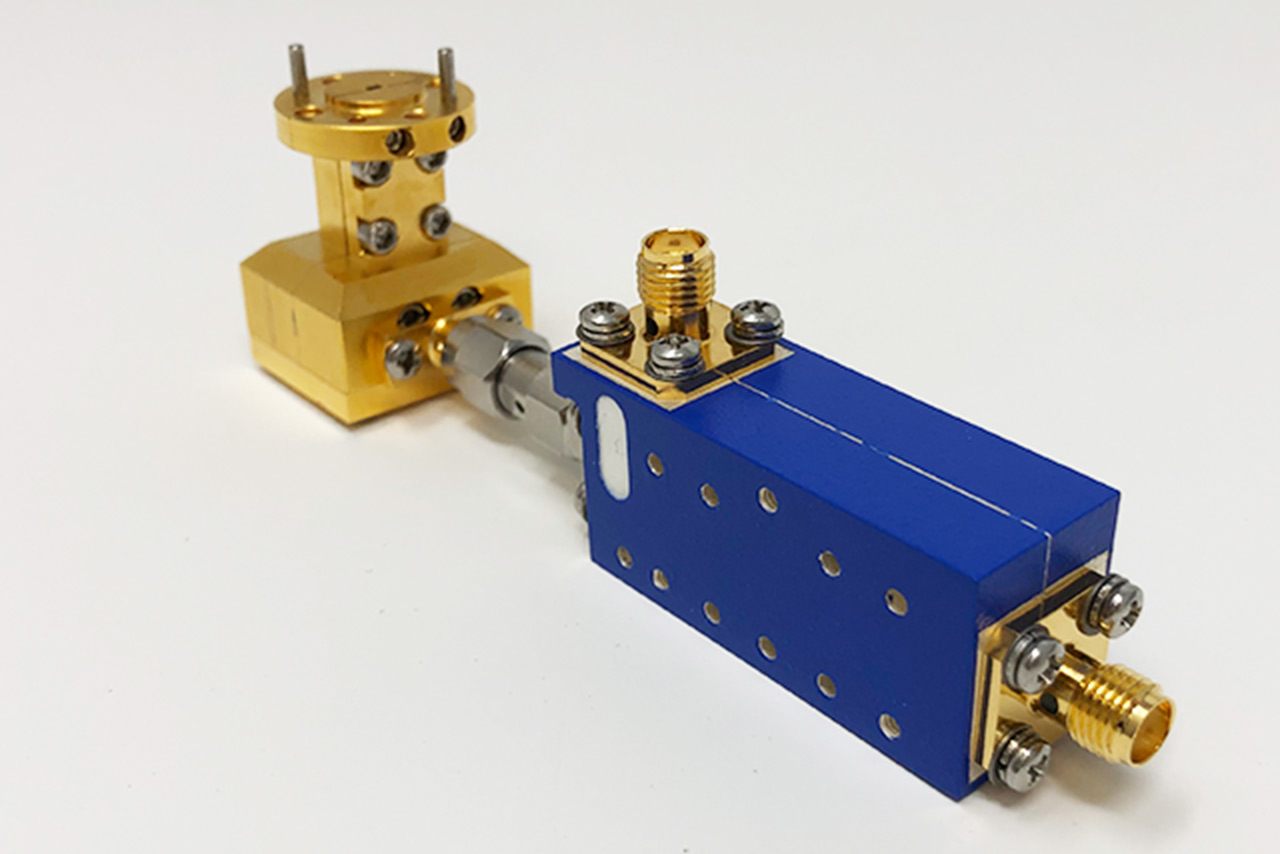

| 922F/387 | F-Band | 90–140 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-08 Waveguide, UG-387/U-M Flange | SMA Female | |

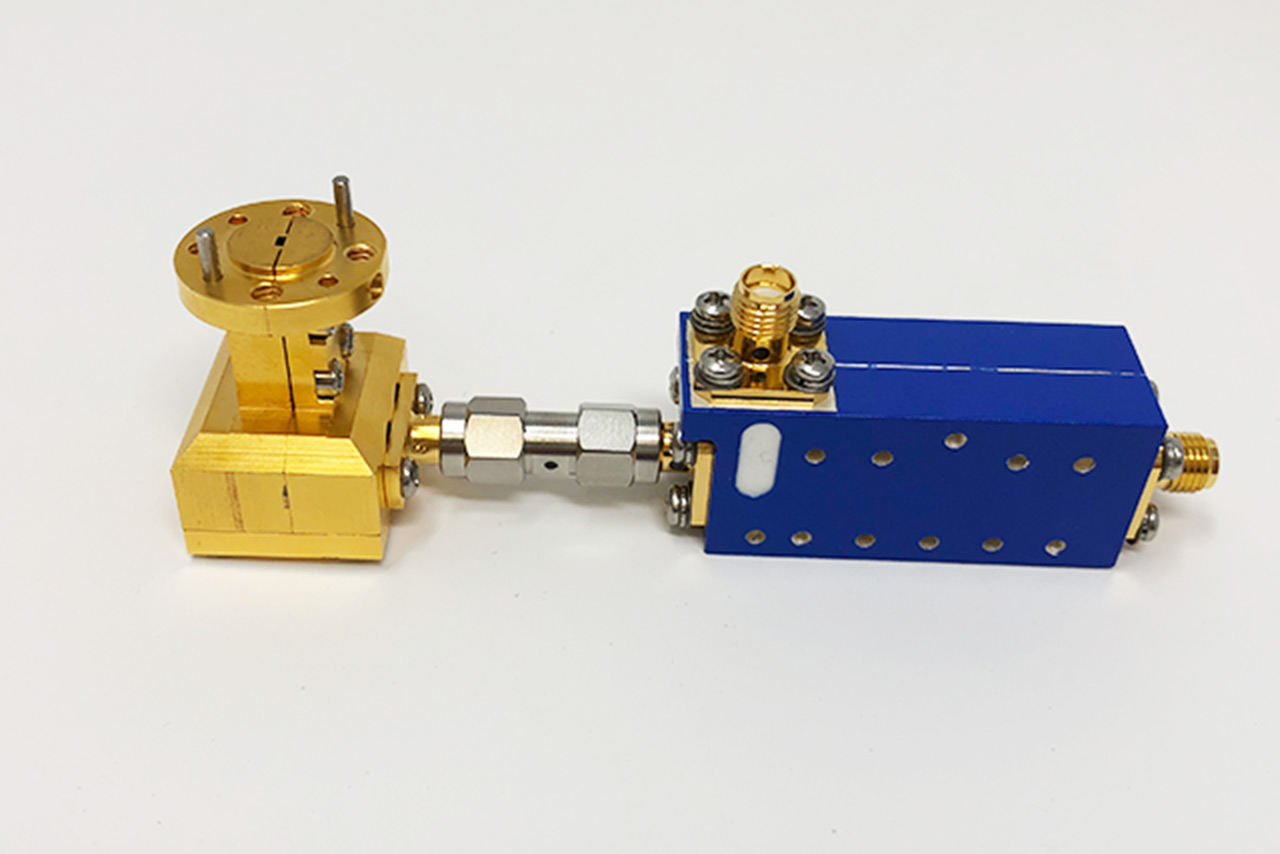

| 922D/387 | D-Band | 110–170 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-06 Waveguide, UG-387/U-M Flange | SMA Female | |
| 922G/387 | G-Band | 140–220 GHz | Option 1: 4–20 GHz | Option 2: 6–20 GHz | Option 1: DC–3 GHz | Option 2: DC–5 GHz | +13 dBm | +13 dBm | WR-05 Waveguide, UG-387/U-M Flange | SMA Female |
Note: Our website contains just a few types of Mixers we build. Consult with us for your specific needs.
Recommended for use with a harmonic number less than 14
