Low Power Terminations

Mi-Wave’s 580 Series Terminations are designed with standard waveguide flanges for use from 5 to 500 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full waveguide bandwidth.

TABLE LIST VIEW
GRID VIEW

TABLE LIST VIEW

Note: Our website contains just a few types of Terminaions we build. Consult with us for your specific needs.

Model	Band	Frequency Low (GHz)	Frequency High (GHz)	Power Handling (CW)	VSWR	RF Ports	LINK
580K/595	K-Band	18	26.5	6 W	1.05:1	WR-42 Waveguide, UG-595/U	View
580(34)/595	WR-34	22	33	5 W	1.05:2	WR-34 Waveguide, UG-595	View

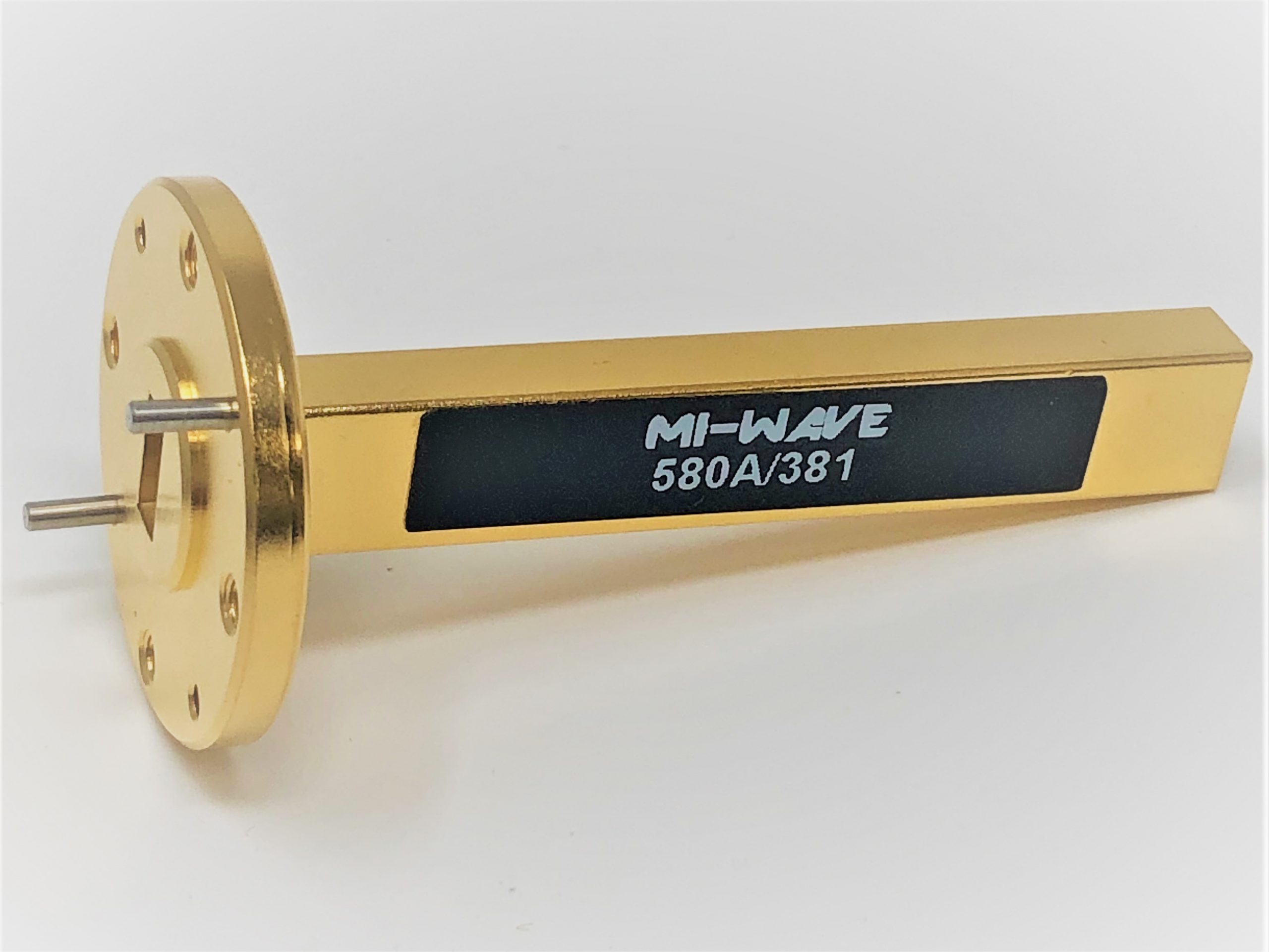

580A/381	Ka-Band	26.5	40	5 W	1.05:3	WR-28 Waveguide, UG-381/U Flange	View

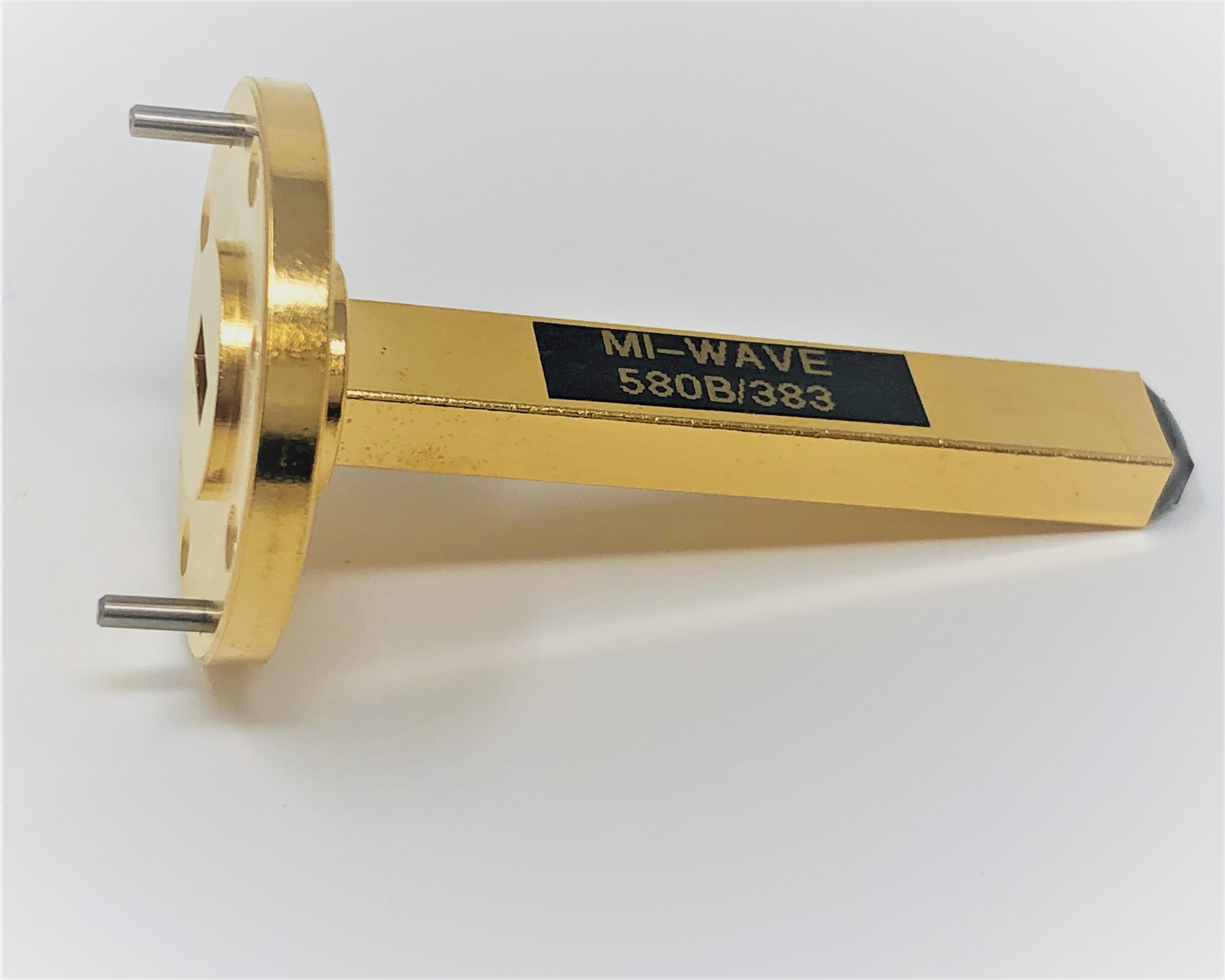

580B/383	Q-Band	33	50	4 W	1.05:4	WR-22 Waveguide, UG-383/U Flange	View
580U/383	U-Band	40	60	2 W	1.06:1	WR-19 Waveguide, UG-383/U Flange	View
580V/385	V-Band	50	75	1 W	1.06:1	WR-15 Waveguide, UG-385/U Flange	View
580E/387	E-Band	60	90	0.6 W	1.06:1	WR-12 Waveguide, UG-387/U Flange	View

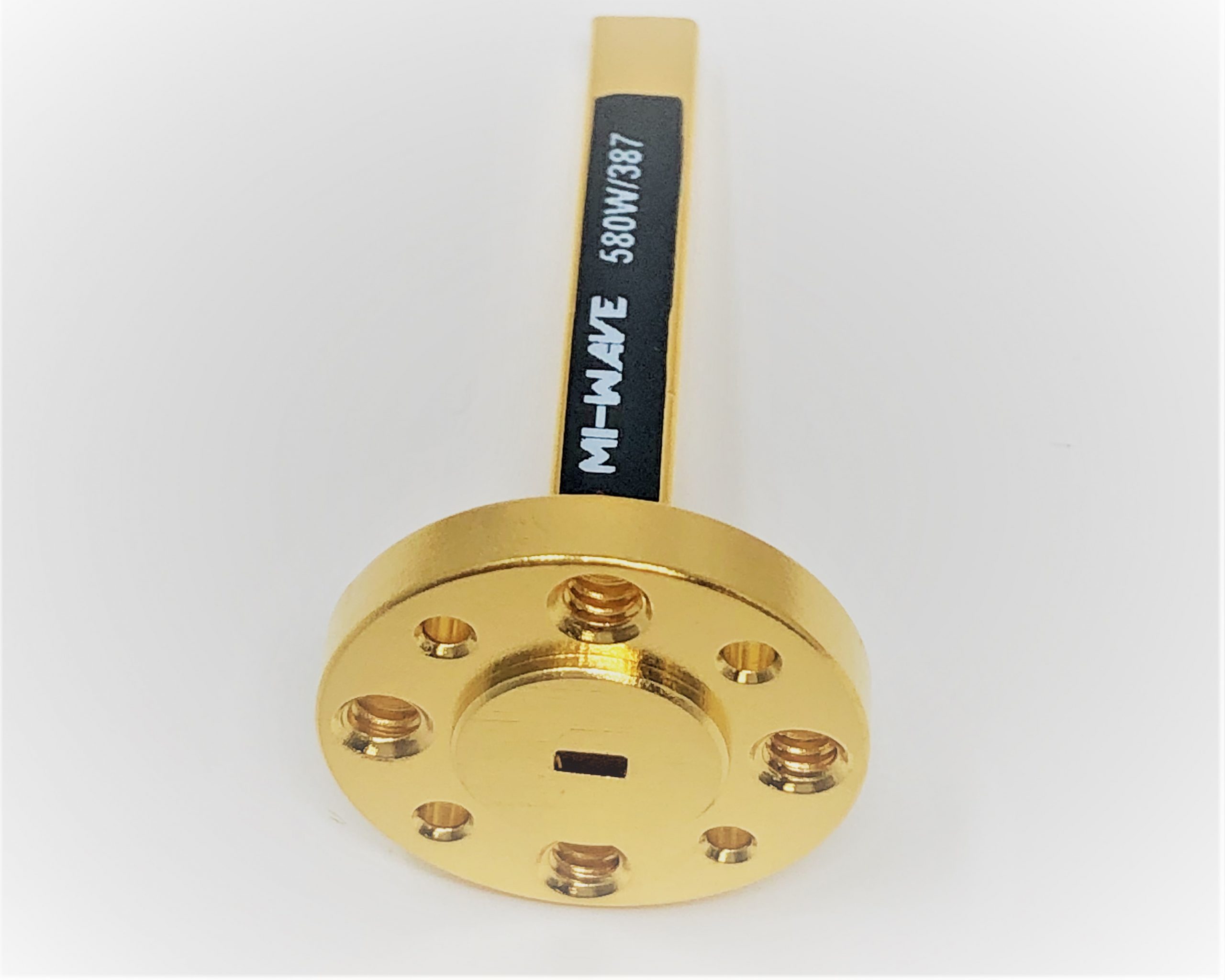

580W/387	W-Band	75	110	0.4 W	1.06:1	WR-10 Waveguide, UG-387/U Flange	View
580F/387	F-Band	90	140	0.2 W	1.10:1	WR-8 Waveguide, UG-387/U Flange	View
580D/387	D-Band	110	170	0.1	1.1	WR-6 Waveguide with UG-387/U-M Flange	View
580G/387	G-Band	140	220	0.1 W	1.1	WR-5 Waveguide, UG-387/U Flange	View
580H/387	H-Band	170	260	0.05 W	1.05:1	WR-4 Waveguide, UG-387/U Flange	View
580J/387	J-Band	220	325	0.02 W	1.05:1	WR-3 Waveguide, UG-387/U Flange	View
580(2.2)/387	WR-2.2	325	500		1.06:1	WR-2.2 Waveguide, UG-387/U Flange	View

GRID VIEW

Note: Our website contains just a few types of Terminations we build. Consult with us for your specific needs.

K-Band, 18 – 26.5 GHz, Low Power Terminations

580K/595, Power Handling 6W, VSWR 1.05:1

View Product

WR-34, 22 – 33 GHz, Low Power Terminations

580(34)/595, Power Handling 5W, VSWR 1.05:1

View Product

Ka-Band, 26.5 – 40 GHz, Low Power Terminations

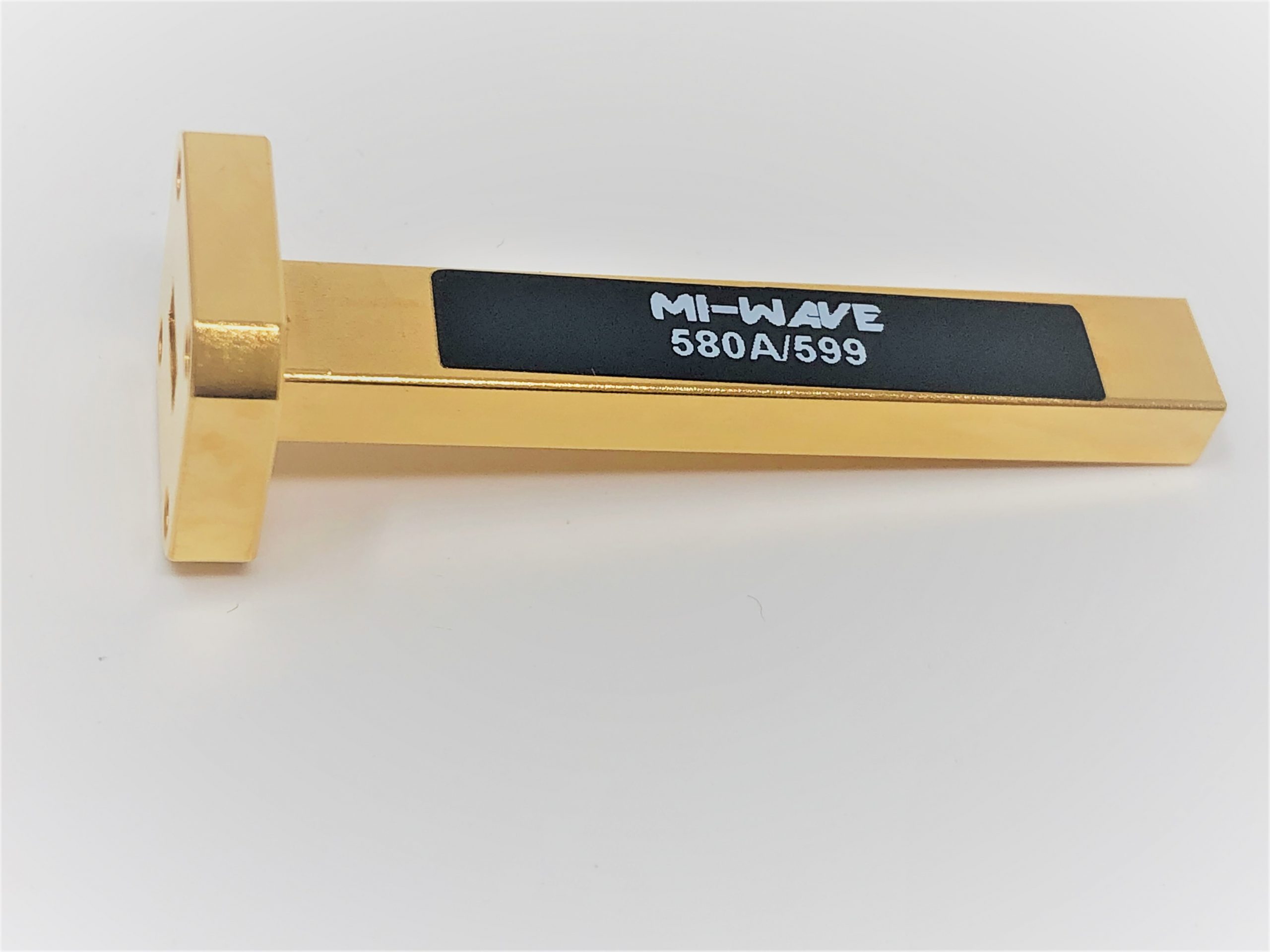

580A/381 || 599, Power Handling 5W, VSWR 1.05:1

View Product

Q-Band, 33 – 50 GHz, Low Power Terminations

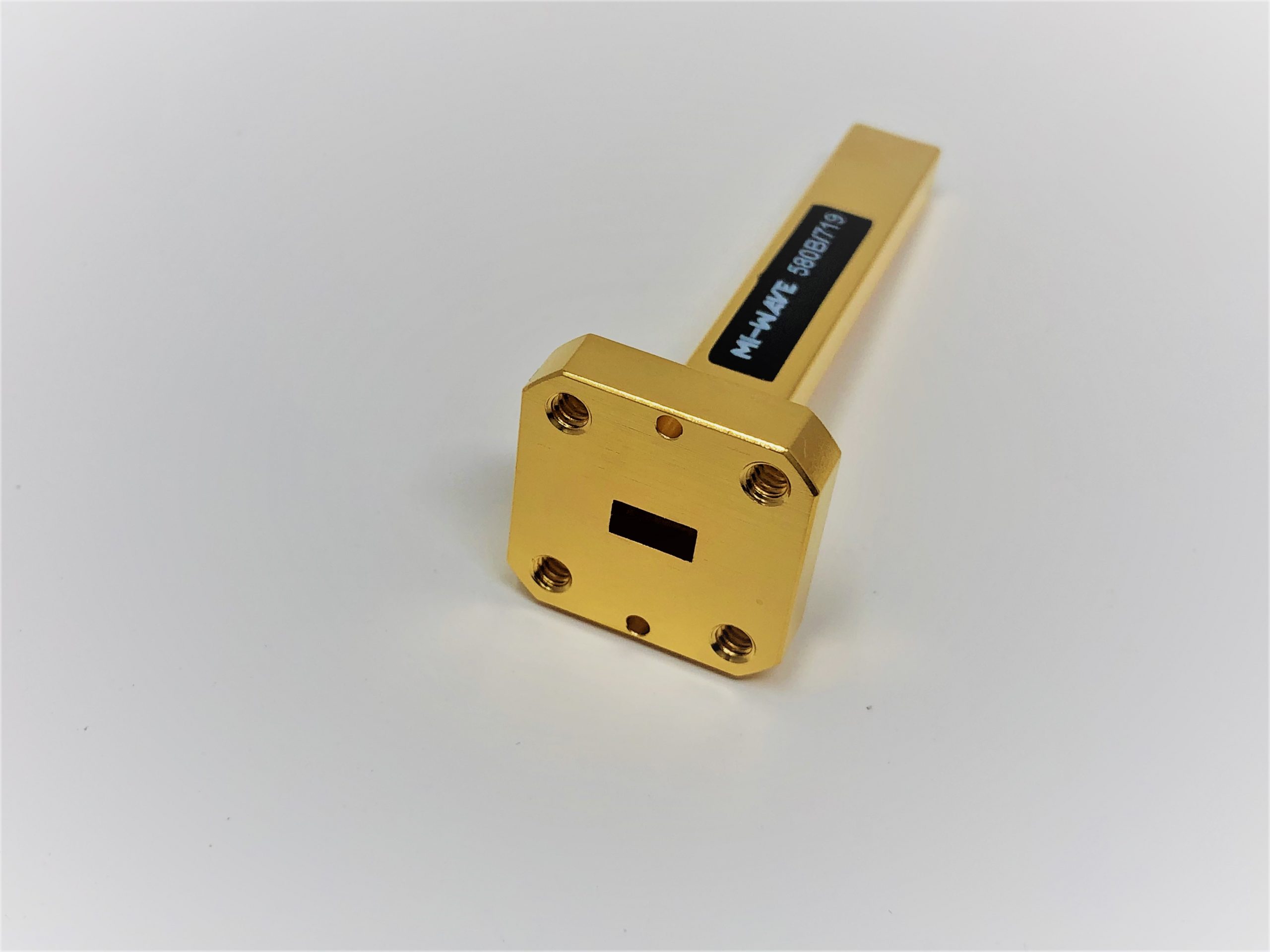

580B/383 || 719, Power Handling 4W, VSWR 1.05:1

View Product

U-Band, 40 – 60 GHz, Low Power Terminations

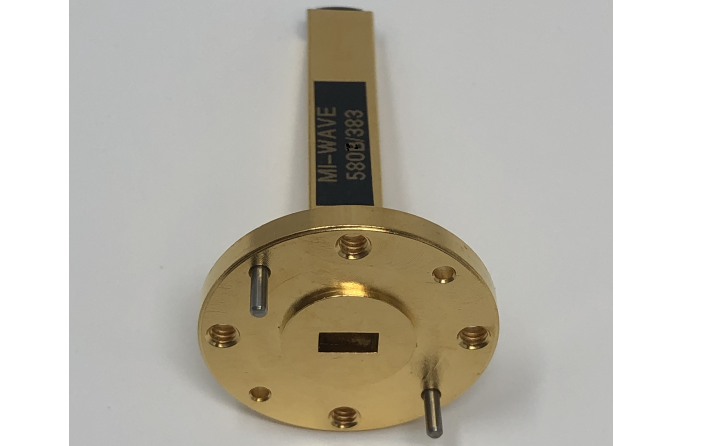

580U/383, Power Handling 2W, VSWR 1.06:1

View Product

V-Band, 50 – 75 GHz, Low Power Terminations

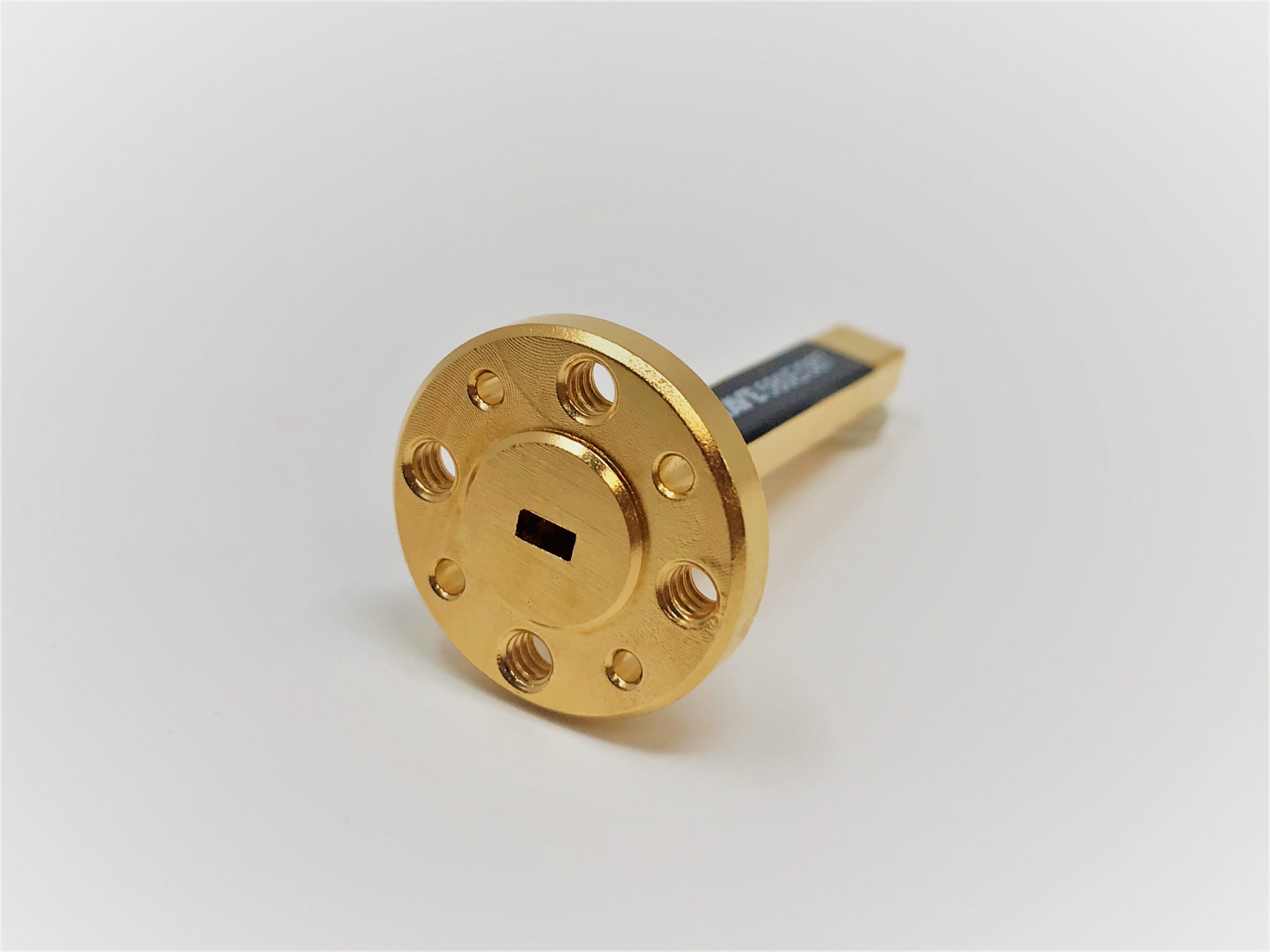

580V/385, Power Handling 1.0W, VSWR 1.06:1

View Product

E-Band, 60 – 90 GHz, Low Power Terminations

580E/387, Power Handling 0.6W, VSWR 1.06

View Product

W-Band, 75 – 110 GHz, Low Power Terminations

580W/387, Power Handling 0.4W, VSWR 1.06:1

View Product

F-Band, 90 – 140 GHz, Low Power Terminations

580F/387, Power Handling 0.2W, VSWR 1.10:1

View Product

D-Band, 110 – 170 GHz, Low Power Terminations

580D/387, Power Handling 0.1W, VSWR 1.10

View Product

G-Band, 140 – 220 GHz, Low Power Terminations

580G/387, Power Handling 0.1W, VSWR 1.10

View Product

H-Band, 170 – 260 GHz, Low Power Terminations

580H/387, Power Handling 0.05W, VSWR 1.05:1

View Product

J-Band, 220 – 325 GHz, Low Power Terminations

580J/387, Power Handling 0.02W, VSWR 1.05:1

View Product

WR-2.2, 325 – 500 GHz, Low Power Terminations

580(2.2)/387

View Product
