4 – Way Power Divider/Combiner

Mi-Wave’s 604 Series Four-way Power Divider, inherently-matched 2 dB power splitting devices. Available in standard waveguide sizes from 8.0 to 325.0 GHz, these units are capable of in-phase splitting.

TABLE LIST VIEW
GRID VIEW

TABLE LIST VIEW

Note: Our website contains just a few types of Power Dividers we build. Consult with us for your specific needs.

Model	Band	Frequency Range	Isolation E-H	Insertion Loss	Power Imbalance	LINK
604K/595	K-Band	18–26.5 GHz	20 dB	1.3 dB	±0.5 dB	View
604A/599	Ka-Band	26.5–40 GHz	20 dB	1.5 dB	±0.5 dB	View
604B/383	Q-Band	33–50 GHz	20 dB	1.6 dB	±0.5 dB	View
604U/383	U-Band	40–60 GHz	20 dB	1.6 dB	±0.7 dB	View
604V/385	V-Band	50–75 GHz	20 dB	1.8 dB	±0.8 dB	View
604E/387	E-Band	60–90 GHz	20 dB	1.9 dB	±0.8 dB	View
604W/387	W-Band	75–110 GHz	20 dB	2.0 dB	±0.8 dB	View
604F/387	F-Band	90–140 GHz	20 dB	3.0 dB	±1.2 dB	View
604D/387	D-Band	110–170 GHz	20 dB	3.5 dB	±1.3 dB	View
604G/387	G-Band	140–220 GHz	20 dB	4.0 dB	±1.6 dB	View
604H/387	H-Band	170–260 GHz	22 dB	5.0 dB	±1.6 dB	View
604J/387	J-Band	220–325 GHz	20 dB	5.5 dB	±2.1 dB	View

GRID VIEW

Note: Our website contains just a few types of Power Dividers we build. Consult with us for your specific needs.

K-Band, 18 – 26.5 GHz, 4-Way Power Divider/Combiner

604K/595, Isolation 20dB, Insertion Loss 1.3dB

Ka-Band, 26.5 – 40 GHz, 4-Way Power Divider/Combiner

604A/599, Isolation 20dB, Insertion Loss 1.5dB

Q-Band, 33 – 50 GHz, 4-Way Power Divider/Combiner

604B/383, Isolation 20dB, Insertion Loss 1.6dB

U-Band, 40 – 60 GHz, 4-Way Power Divider/Combiner

604U/383, Isolation 20dB, Insertion Loss 1.6dB

V-Band, 50 – 75 GHz, 4-Way Power Divider/Combiner

604V/385, Isolation 20dB, Insertion Loss 1.8dB

W-Band, 75 – 110 GHz, 4-Way Power Divider/Combiner

604W/387, Isolation 20dB, Insertion Loss 2.0dB

E-Band, 60 – 90 GHz, 4-Way Power Divider/Combiner

604E/387, Isolation 20dB, Insertion Loss 1.9dB

F-Band, 90 – 140 GHz, 4-Way Power Divider/Combiner

604F/387, Isolation 20dB, Insertion Loss 3.0dB

D-Band, 110 – 170 GHz, 4-Way Power Divider/Combiner

604D/387, Isolation 20dB, Insertion Loss 3.5dB

G-Band, 140 – 220 GHz, 4-Way Power Divider/Combiner

604G/387, Isolation 20dB, Insertion Loss 4.0dB

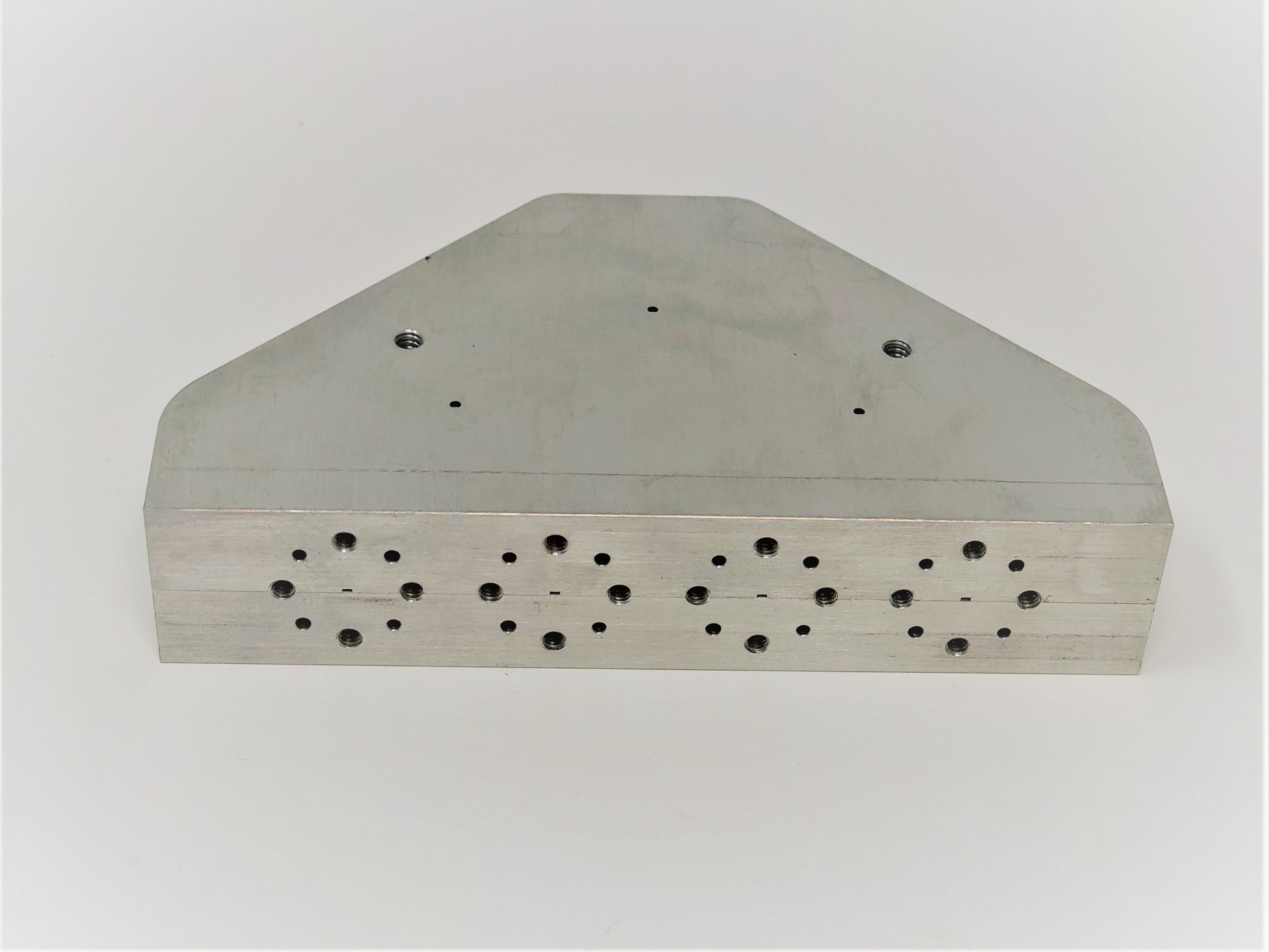

H-Band, 170 – 260 GHz, 4-Way Power Divider/Combiner

604H/387, Isolation 22dB, Insertion Loss 5.0dB

J-Band, 220 – 325 GHz, 4-Way Power Divider/Combiner

604J/387, Isolation 20dB, Insertion Loss 5.5dB
