Features of  Mi-Wave RF Low Pass Filter

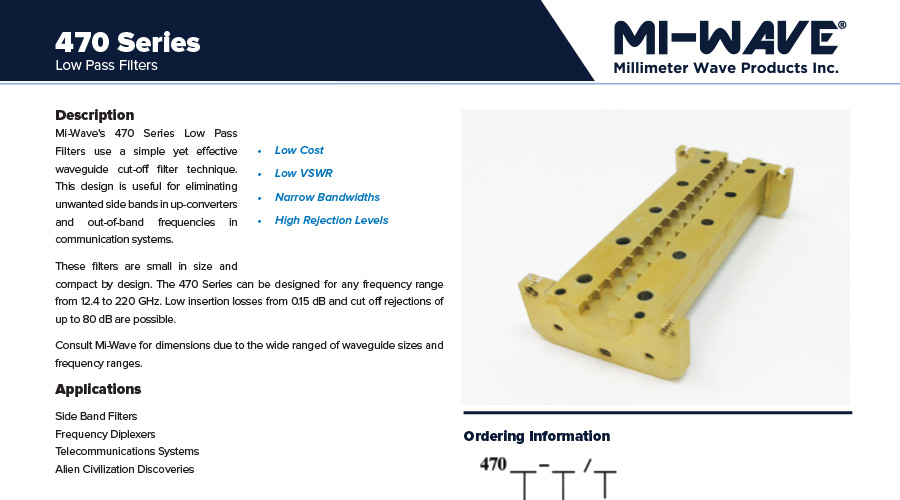

Mi-Wave’s 470 Series RF Low Pass Filter uses a simple yet effective waveguide cut-off filter technique. This design is useful for eliminating unwanted side bands in up-converters and out-of-band frequencies in communication systems. These filters are small in size and compact by design. The 470 Series can be designed for any frequency range from 12.4 to 220 GHz. Low insertion losses from 0.15 dB and cut off rejections of up to 80 dB are possible. Consult Mi-Wave for dimensions due to the wide range of waveguide sizes and frequency ranges.

• Low Cost

• Low VSWR

• Narrow Bandwidths

• High Rejection Levels

Waveguide Sizes Available

WR-10 Waveguide

WR-12 Waveguide

WR-15 Waveguide

WR-19 Waveguide

WR-22 Waveguide

WR-28 Waveguide

WR-34 Waveguide

WR-42 Waveguide

WR-51 Waveguide

WR-62 Waveguide

WR-90 Waveguide

RF Low Pass Filter
View Catalog PDF

RF Low Pass Filter

If you are looking for quality built waveguide low pass filter, then use  Millimeter wave products Inc. We we specialize in manufacturing the highest quality standard lowpass filter for any need.

The 470 Series waveguide lowpass filter is available from 12.4 to 220 GHz. We can manufacture to any custom size or specification, please consult Mi-Wave for further information.

Select Your Frequency Band

Our waveguide low pass filter is available in the following RF bands.

X Band waveguide low pass filter | 8.2 GHz to 12.4 GHz

Xs Band waveguide low pass filter | 10 GHz to 15 GHz

Ku Band waveguide low pass filter| 12.4 GHz to 18 GHz

K Band waveguide low pass filter | 18 GHz to 26.5 GHz

WR-34 waveguide low pass filter | 22 GHz to 33 GHz

Ka Band waveguide low pass filter | 26.5 GHz to 40 GHz

Q Band waveguide low pass filter | 33 GHz to 50 GHz

U Band waveguide low pass filter | 40 GHz to 60 GHz

V Band waveguide low pass filter | 50 GHz to 75 GHz

E Band waveguide low pass filter | 60 GHz to 90 GHz

W Band waveguide low pass filter | 75 GHz to 110 GHz

F Band waveguide low pass filter | 90 GHz to 140 GHz

D Band waveguide low pass filter | 110 GHz to 170 GHz

G Band waveguide low pass filter | 140 GHz to 220 GHz

H Band waveguide low pass filter | 170 GHz to 260 GHz

Frequently Asked Questions for the Series 470 RF Low Pass Filter.

coming soon

View Highpass Filters

View Bandpass Filters

standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
