Electromechanical Waveguide Switches

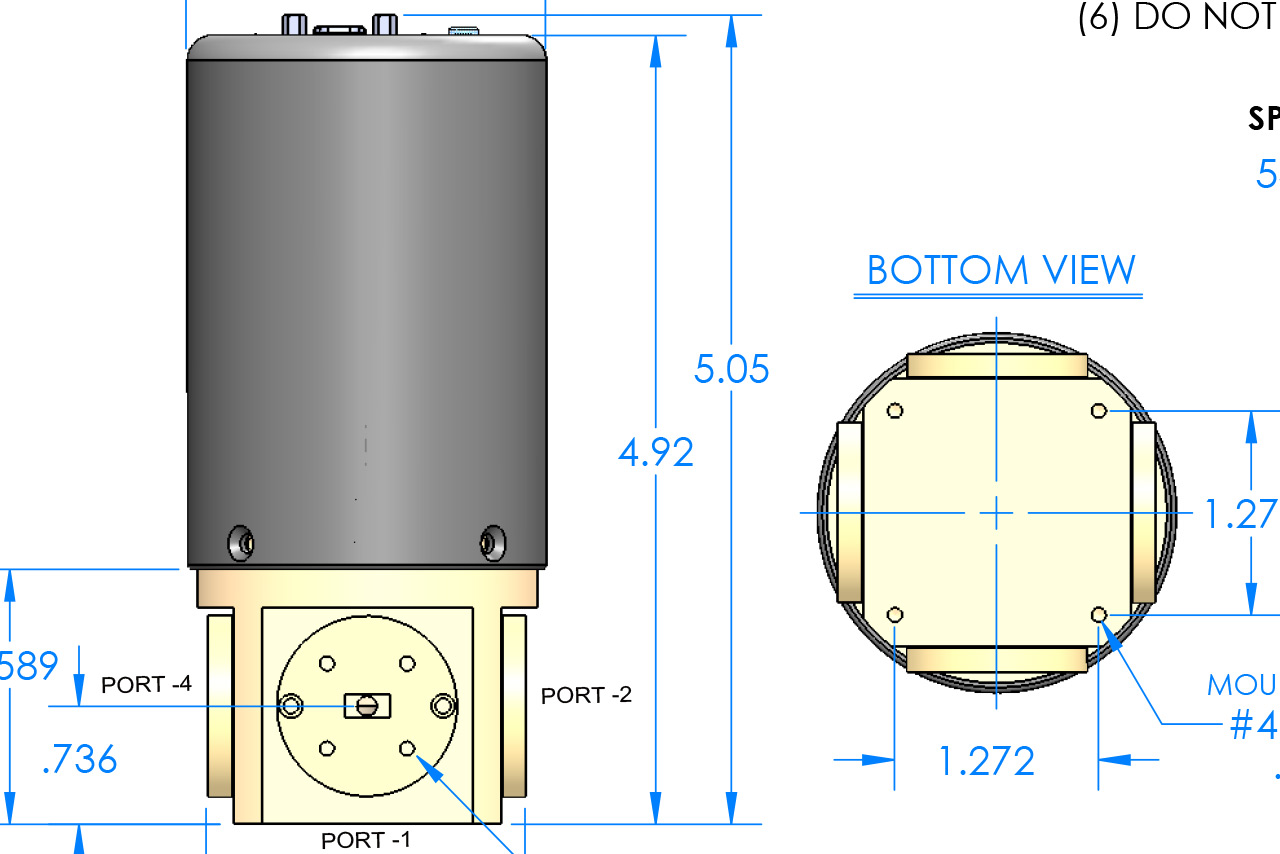

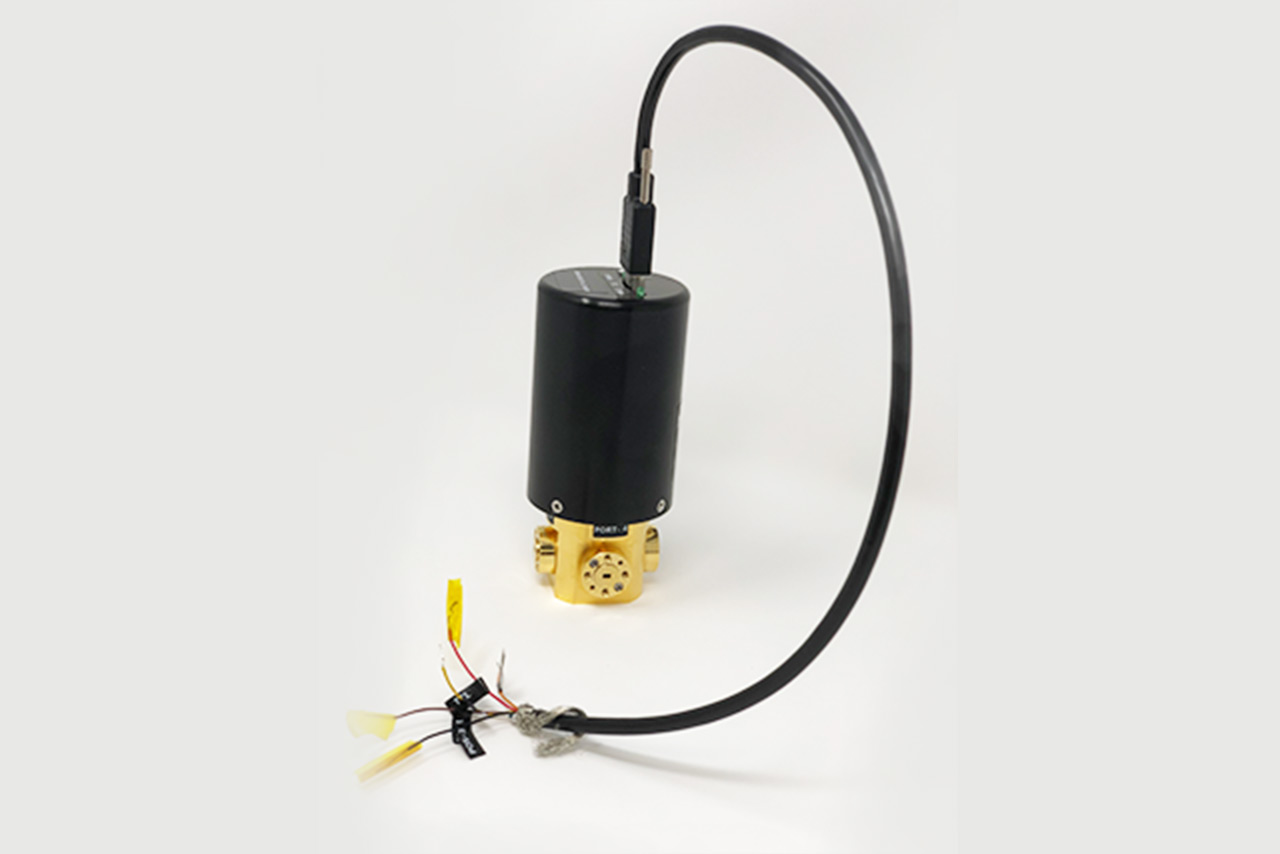

Each of Mi-Wave’s 535 Series Waveguide Switches consists of a waveguide switch selection similar to the 530 Series switch and a rotary motor encased in a machined housing.

The 535 Series Solenoid Switches are used in applications that require remote-controlled or timed transmission line switching. They are particularly useful in operational systems and test setups where they supply a variety of switching combinations

  • Low Loss
  • Low VSWR
  • Accurate Positioning
  • High Isolation Between Ports
  • GPIB IEEE-488 Control Available
  • TTL Control Standard

Note: Our website contains just a few types of  Switches we build. Consult with us for your specific needs.

ModelBandFrequency (GHz)Insertion Loss (dB)IsolationPower Handling (CW)Bias Voltage (V)Bias Current (mA)Switching Speed (sec)RF PortsLINK
535A/599TTLKa-Band26.5-400.360100W12 to 151500.5WR-28 Waveguide UG-599/U Flange
View
535B/383TTLQ-Band33-500.370100W12 to 151500.5WR-22 Waveguide UG-383/U Flange
View
535U/383TTLU-Band40-600.370100W12 to 151500.5WR-19 Waveguide UG-383/U-M Flange
View
535V/385/TTLV-Band50-750.470100W12 to 151500.5WR-15-Waveguide UG-385/U Flange
View
535E/387TTLE-Band60-900.470100W12 to 151500.5WR-12 Waveguide UG-387/U Flange
View
535W/387TTLW-Band75-1100.570100W12 to 151500.5WR-10 Waveguide UG-387/U-M Flange
View
535F/387TTLF-Band90-1400.860100W12 to 151500.5WR-8 Waveguide UG-387/U-M Flange
View
535D/387TTLD-Band110-170160100W12 to 151500.5WR-6 Waveguide UG-387/U-M Flange
View
535G/387TTLG-Band140-201.360100W12 to 151500.5WR-5 Waveguide UG-387/U-M Flange
View

Note: Our website contains just a few types of  Switches we build. Consult with us for your specific needs.

535A/599TTL

26.5 – 40 GHz
Ka-Band/WR-28

View Product

535B/383TTL

33 – 50 GHz
Q-Band/WR-22

View Product

535U/383TTL

40 – 60 GHz
U-Band/WR-19

View Product

535V/385/TTL

50 – 75 GHz
V-Band/WR-15

View Product

535E/387TTL

60 – 90GHz
E-Band/WR-12

View Product

535W/387TTL

75 – 110 GHz
W-Band/WR-10

View Product

535F/387TTL

90 – 140 GHz
F-Band/WR-8

View Product

535D/387TTL

110 – 170 GHz
D-Band/WR-6

View Product

535G/387TTL

140 – 220 GHz
G-Band/WR-5

View Product

Electromechanical Waveguide Switches

If you are looking for quality built Electromechanical Waveguide Switches, then use  Millimeter wave products Inc. We we specialize in manufacturing the highest quality standard corner reflector antennas for many needs. We can manufacture to any custom size or specification, please consult Mi-Wave for further information.

standard gain horn antenna page

Sales & Quoting

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem!

Contact us so we can work on solutions to meet your needs.
