2 – Way Power Divider | Combiner | Magic Hybrid Tees

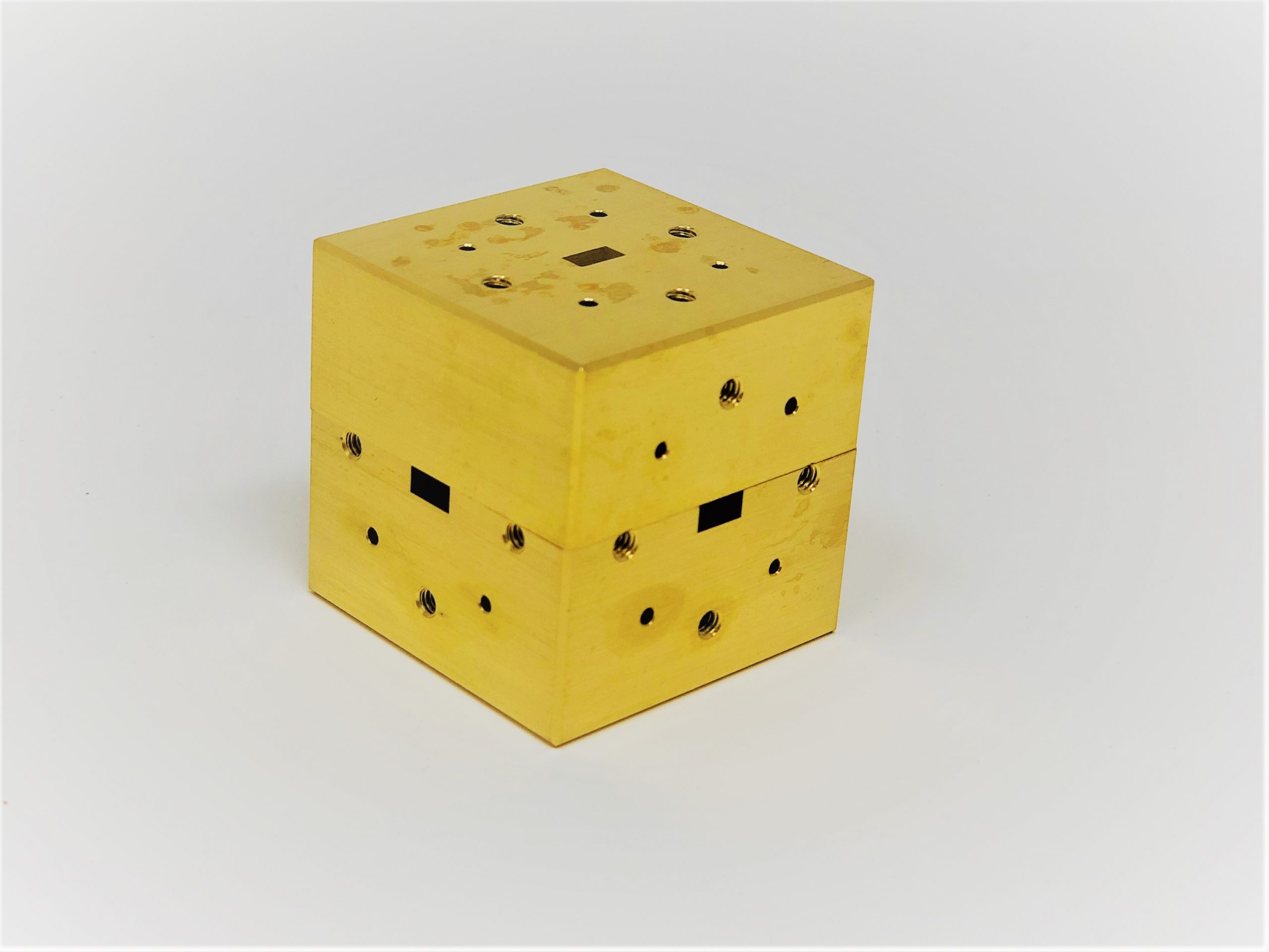

Mi-Wave’s 630/635 Series E/H Hybrid and Magic Tees consist of three mutually perpendicular flanged sections of a standard waveguide. Two of these sections are symmetrically located on the broad and narrow walls of the main tee section to provide E-plane and H-plane connections.

Note: Magic Tees can be used as a 2-way power divider by terminating the E-Plane port using the 580 Series Low Power Terminations

Note: Our website contains just a few types of  Magic Hybrid Tees we build. Consult with us for your specific needs.

ModelLINKBandLow Frequency (GHz)High Frequency (GHz)Isolation (E-H)Insertion Loss (dB)Power Imbalance (± dB)
635X/39
View
X-Band8.212.4350.50.5
635K/595
View
K-Band1826.5350.50.5
635A/599
View
Ka-Band26.540200.70.5
635B/383
View
Q-Band3350300.70.5
635U/383
View
U-Band40603010.5
635V/385
View
V-Band50753010.5
635E/387
View
E-Band60903010.5
635F/387
View
F-Band90140301.70.8
635W/387
View
W-Band751102010.5
635D/387
View
D-Band1101703010.5
635G/387
View
G-Band140220252.51.5
635H/387
View
H-Band1702602531.5
635J/387
View
J-Band2203252531.5

Note: Our website contains just a few types of  Magic Hybrid Tees we build. Consult with us for your specific needs.

X-Band, 8.2 – 12.4 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635X/39, Isolation (E-H) 35dB, Insertion Loss 0.5dB

View Product

K-Band, 18 – 26.5 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635K/595, Isolation (E-H) 35dB, Insertion Loss 0.5dbi

View Product

Ka-Band, 26.5 – 40 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635A/599, Isolation (E-H) 20dB, Insertion Loss 0.7dB

View Product

Q-Band, 33 – 50 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635B/383 || 635B/719, Isolation (E-H) 30dB, Insertion Loss 0.7dB

View Product

U-Band, 40 – 60 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635U/383, Isolation (E-H) 30dB, Insertion Loss 1.0dB

View Product

V-Band, 50 – 75 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635V/385, Isolation (E-H) 30dB, Insertion Loss 1.0dB

View Product

E-Band, 60 – 90 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635E/387, Isolation (E-H) 30dB, Insertion Loss 1.0dB

View Product

F-Band, 90 – 140 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635F/387, Isolation (E-H) 30dB, Insertion Loss 1.7dB

View Product

W-Band, 75 – 110 GHz, 4-Way Power Divider/Combiner

635W/387, Isolation (E-H) 20dB, Insertion Loss 1.0dB

View Product

D-Band, 110 – 170 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635D/387, Isolation (E-H) 30dB, Insertion Loss 1.0dB

View Product

G-Band, 140 – 220 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635G/387, Isolation (E-H) 25dB, Insertion Loss 2.5dB

View Product

H-Band, 170 – 260 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635H/387, Isolation (E-H) 25dB, Insertion Loss 3.0dB

View Product

J-Band, 220 – 325 GHz, 2-Way Power Divider/Combiner Magic Hybrid Tee

635J/387, Isolation (E-H) 25dB, Insertion Loss 3.0dB

View Product
