Q-Band, 33 – 50 GHz, 2-Way Power Divider | Combiner | Magic Hybrid Tee

635B/383 || 635B/719, Isolation (E-H) 30dB, Insertion Loss 0.7dB

Description:

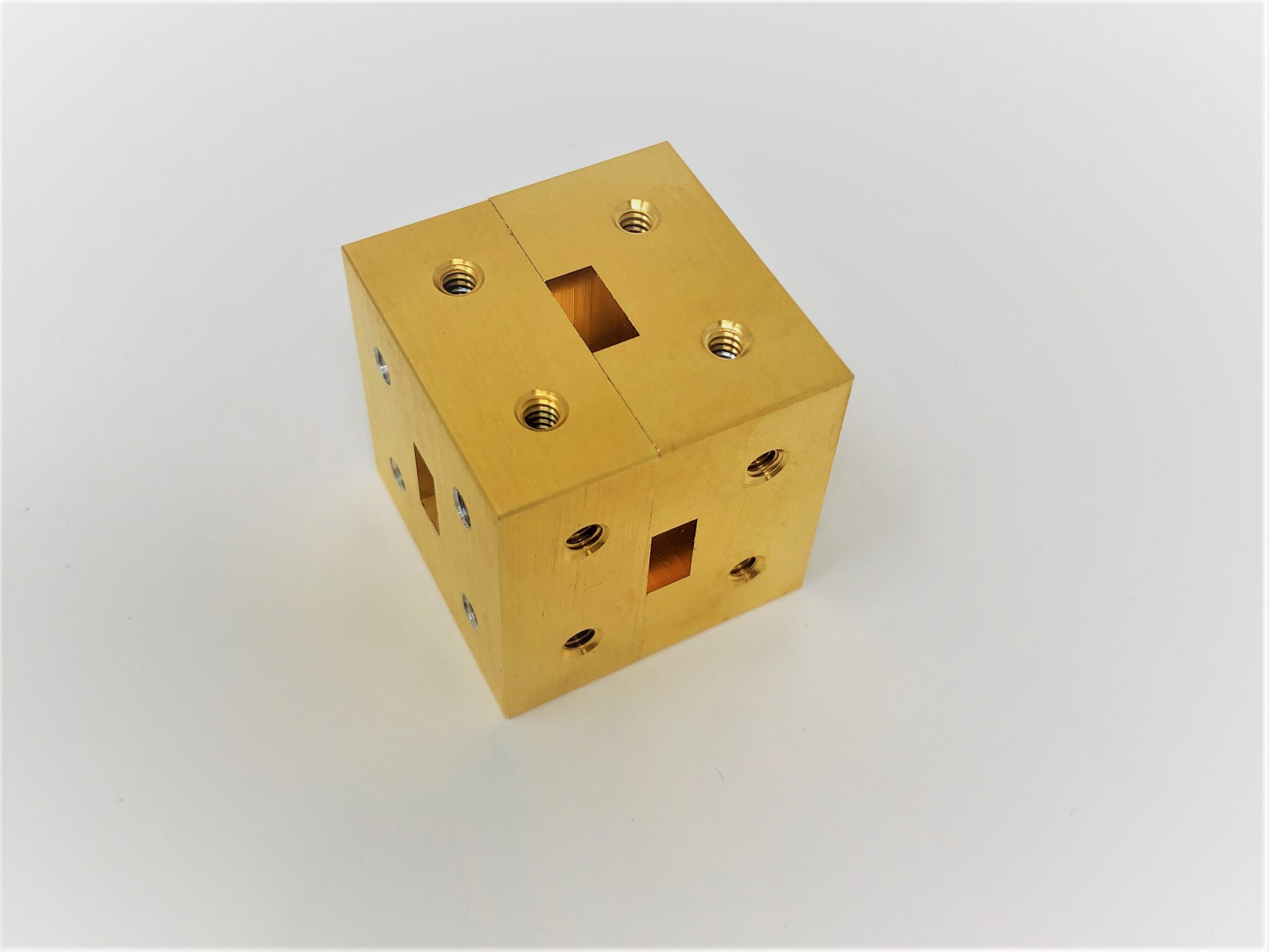

Mi-Wave’s 635 Series E/H Hybrid and Magic Tees consist of three mutually perpendicular flanged sections of a standard waveguide. Two of these sections are symmetrically located on the broad and narrow walls of the main tee section to provide E-plane and H-plane connections.

The internal geometry of these hybrids provides a power-dividing and phase inverting characteristic. Power applied to the shunt H-plane arm is divided between
the two in-line ports of the main tee section to result in equal power, in-phase output
signals. Power applied to the series E-plane arm is also divided between these
two ports, but with a phase reversal which provides equal power, opposite-phase
outputs. With symmetrical construction, good isolation is maintained between
the E-plane and H-plane arms. The 635 Series Hybrid Tees are available in
standard wave-guide sizes from 8.2 to 325 GHz

Note: Magic Tees can be used as a 2-way power divider by terminating the E-Plane port using the 580 Series Low Power Terminations

Features

• Full Band

• Low Insertion Loss

• Low VSWR

• High Reliability

• Inline Configuration

Applications

• 5G Systems

• Test Set

• Radar & Astronomy Systems

• Test Equipment & Labs

• Sub-Assemblies

Test Datasheet (383)
Test Datasheet (719)
Outline Drawing
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

2-Way Power Divider | Combiner | Magic Hybrid Tees

The 635 Series Hybrid Tees are four-port transmission line components designed for basic power-splitting and mixing applications. These devices are useful as integral parts of RF bridge circuits for routine impedance comparisons and reflection coefficient measurements or as power dividers and isolators in radar balanced mixer circuits.

standard gain horn antenna page

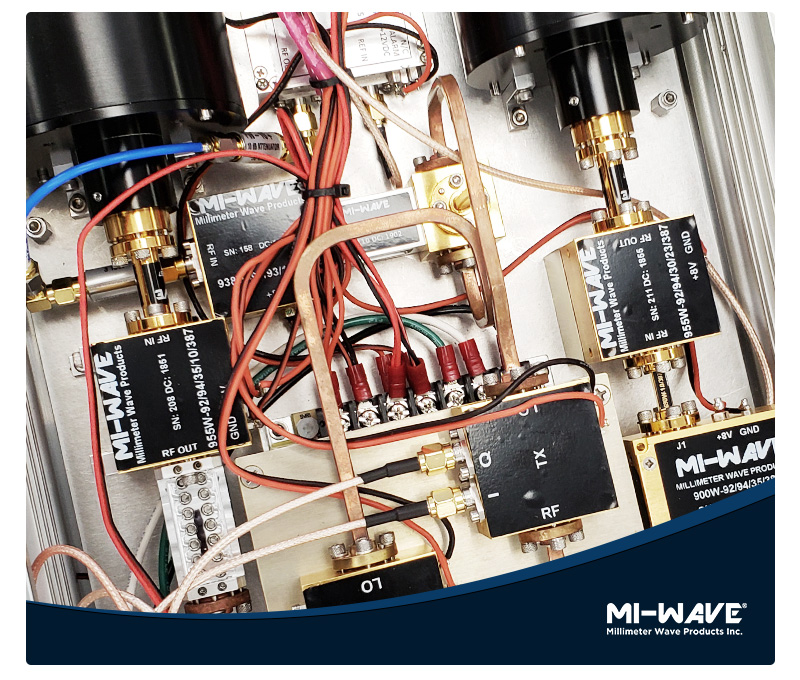

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
