Motorized | Programmable | Rotary Vane Phase Shifters

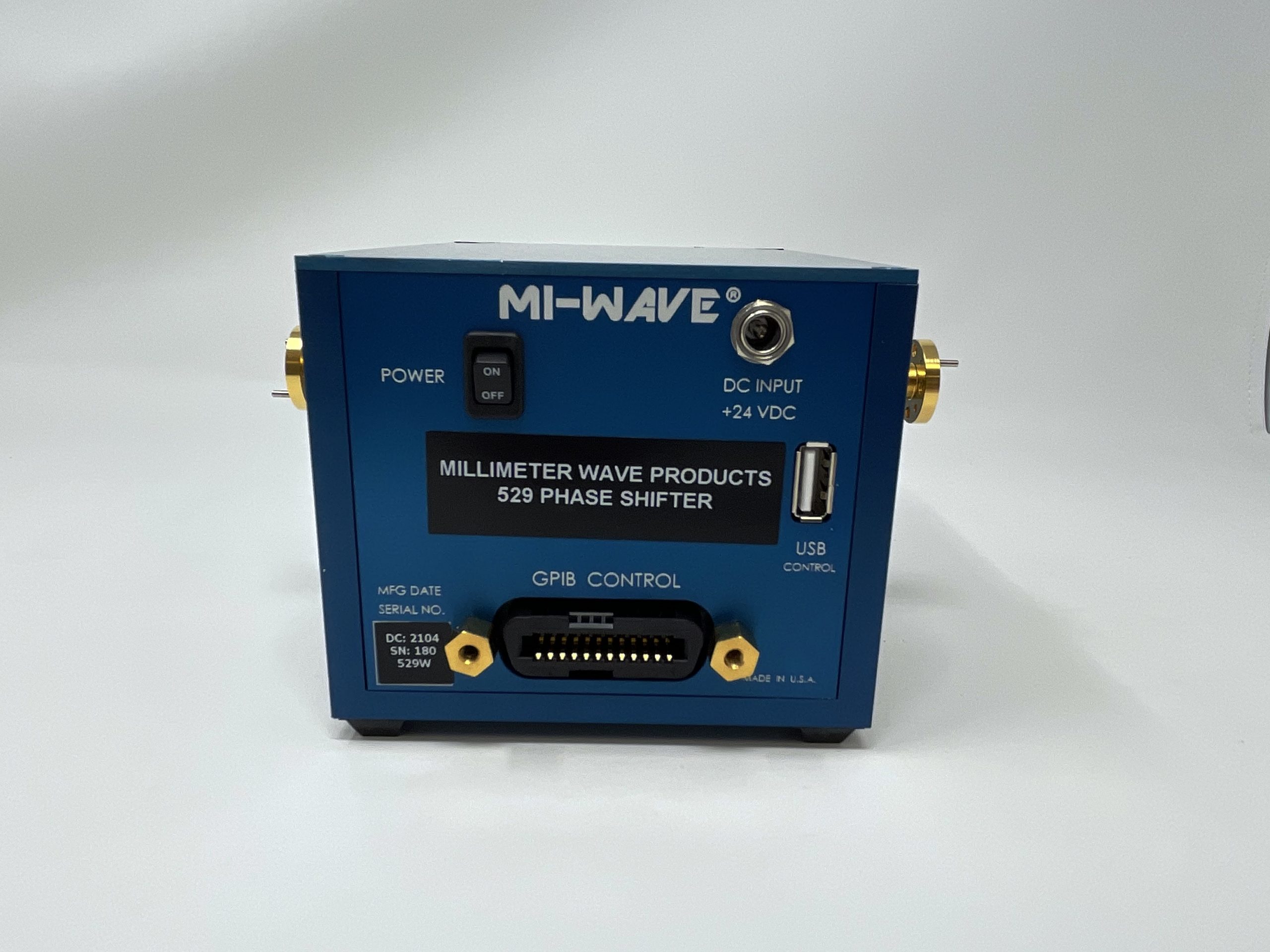

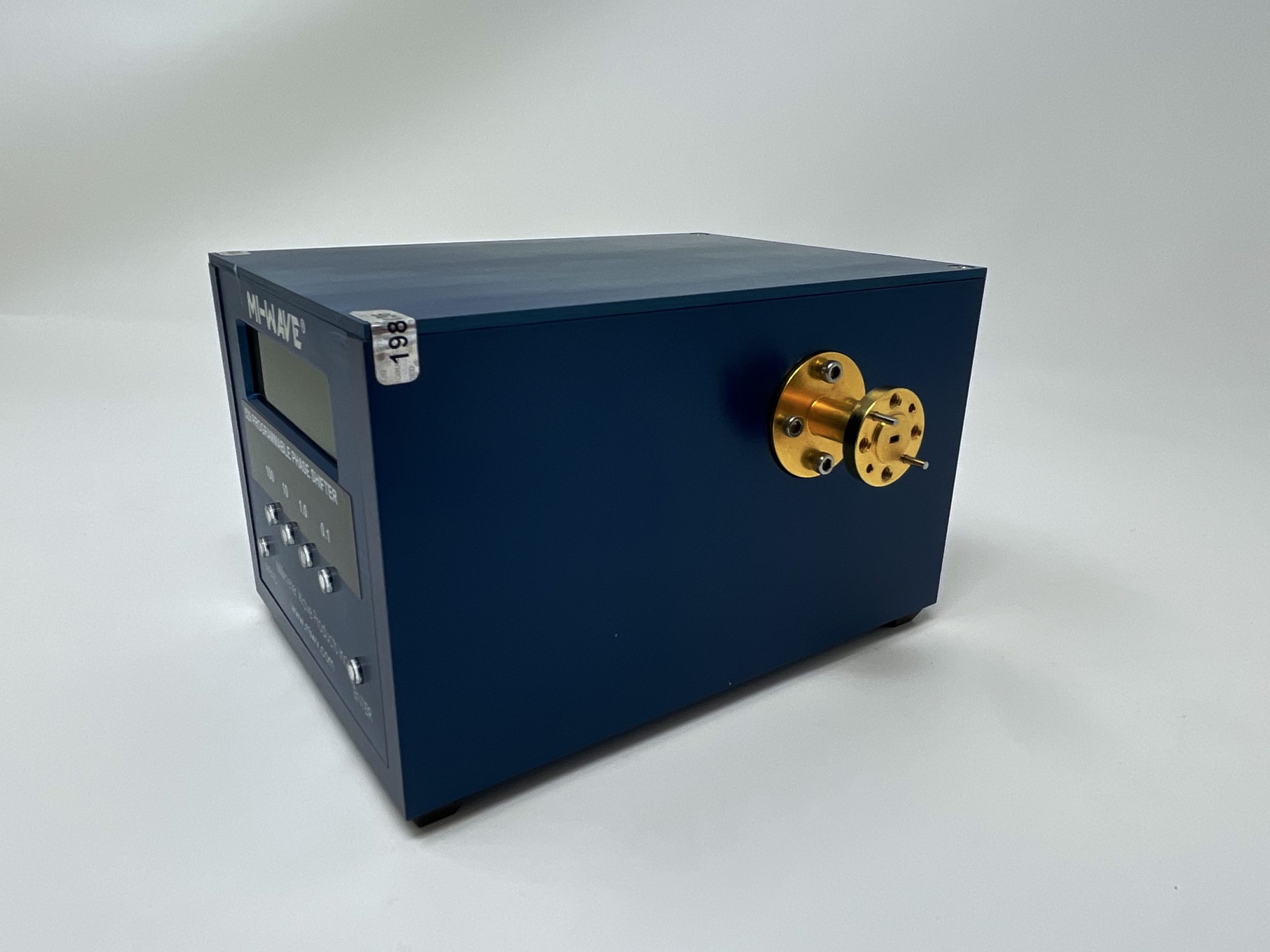

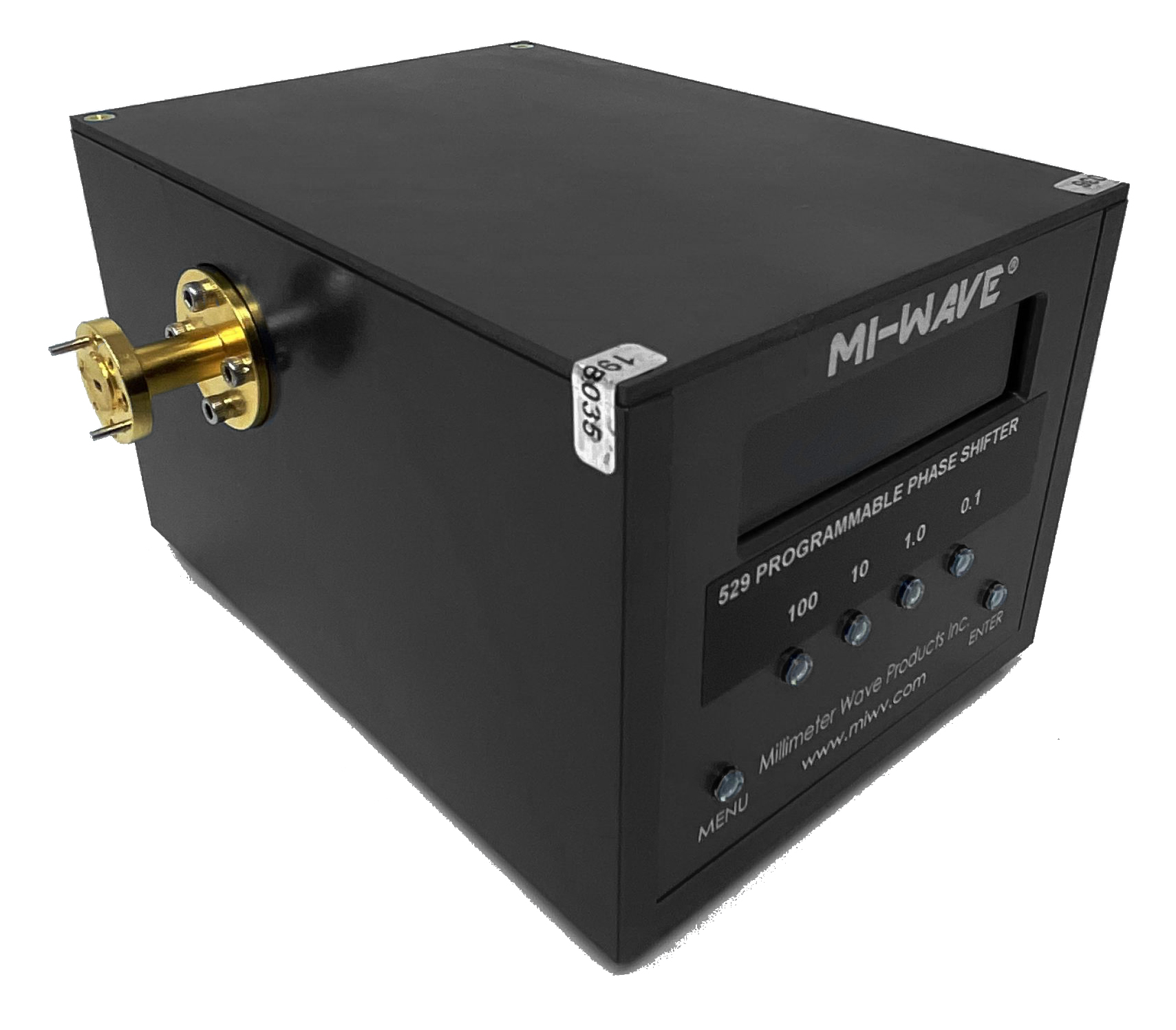

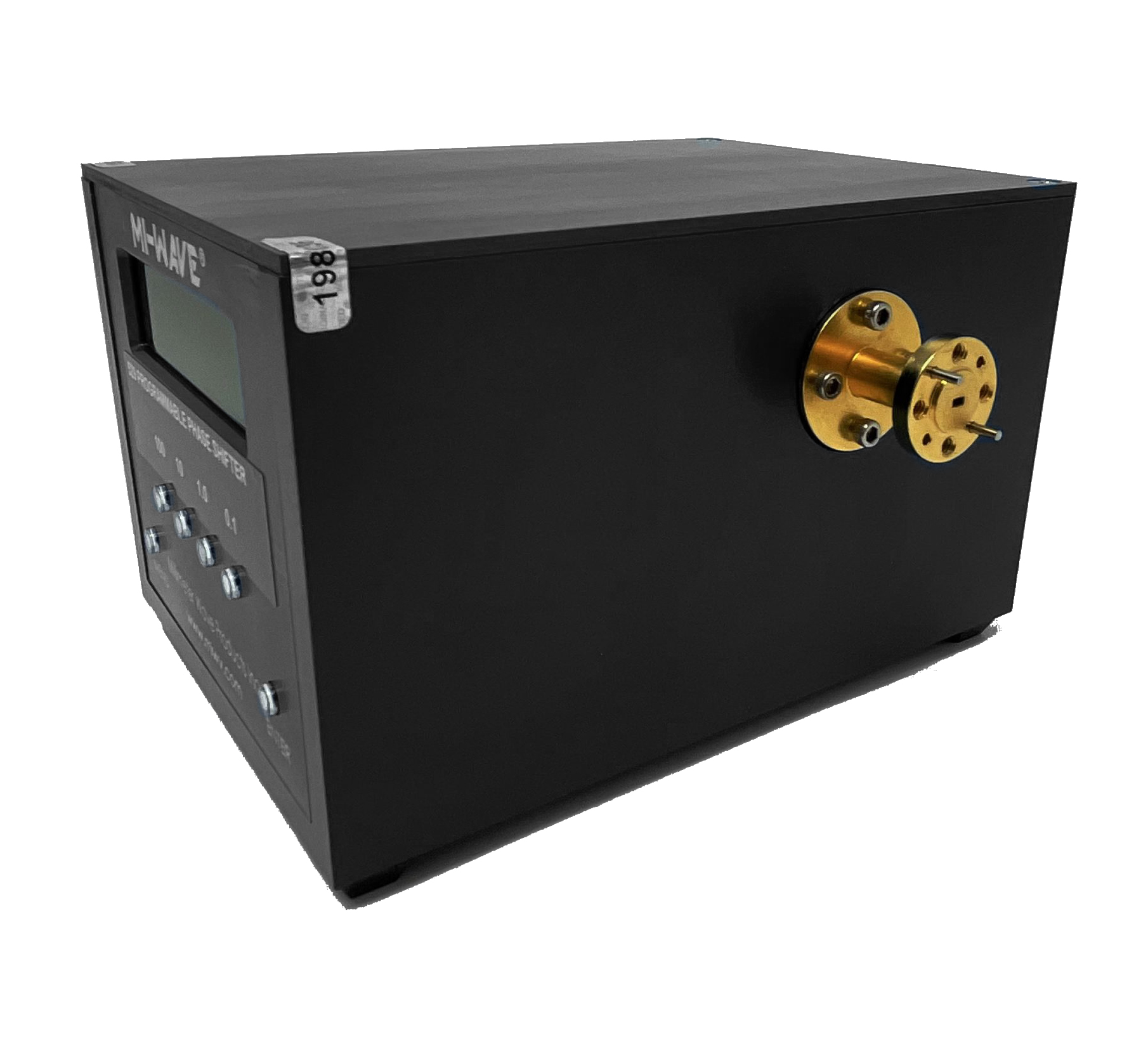

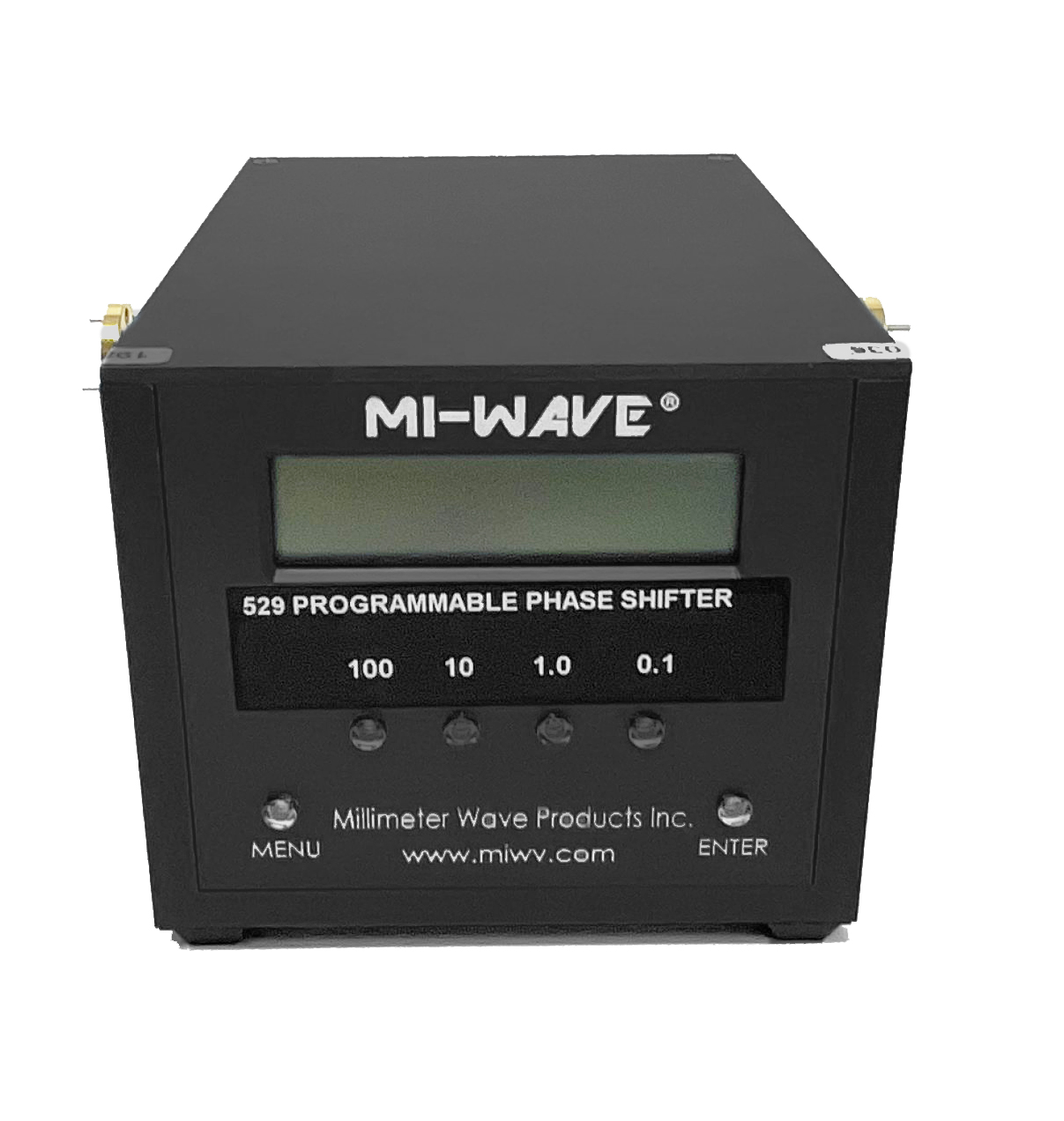

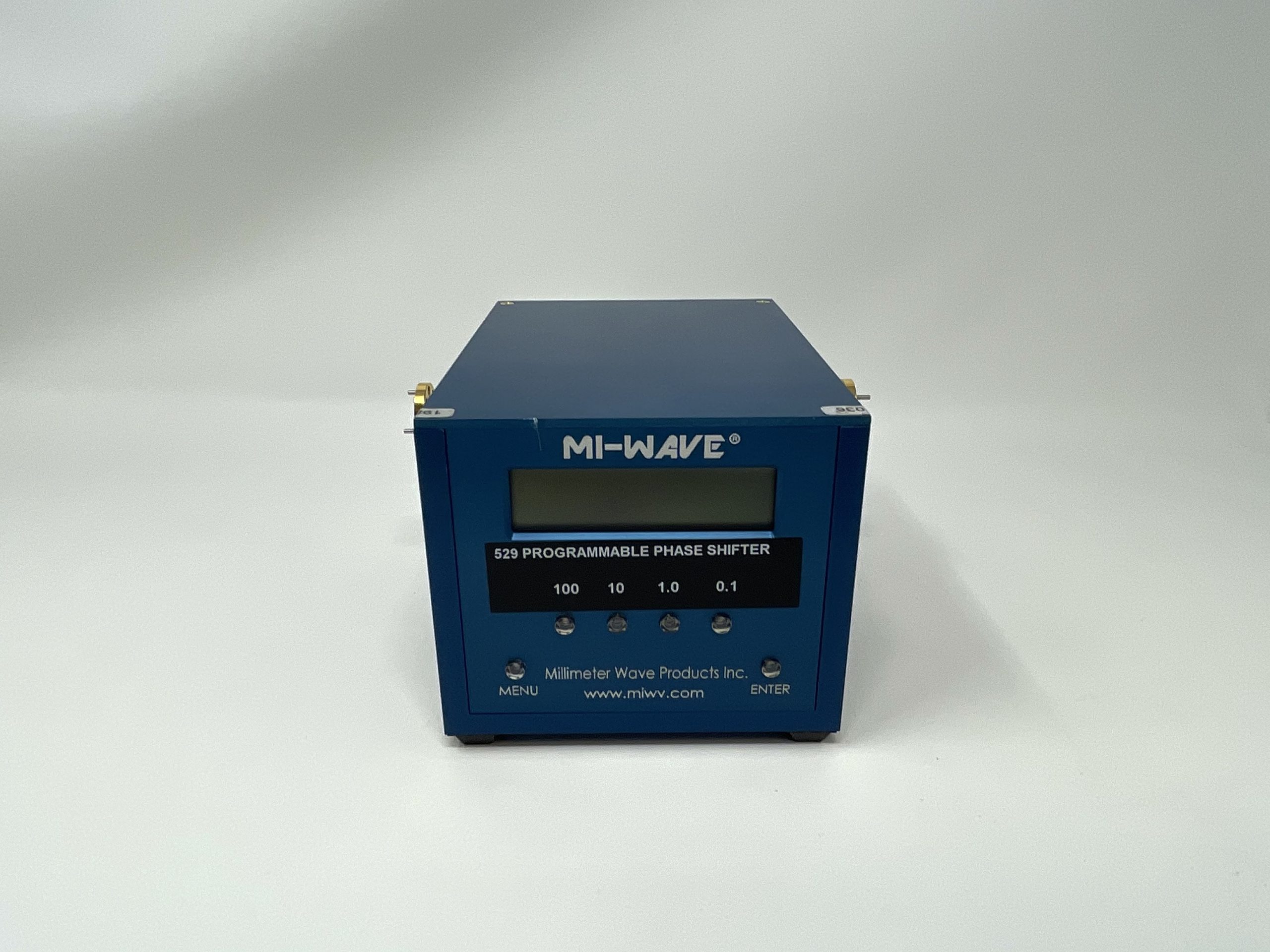

Mi-Wave has developed a new motorized rotary vane phase shifter which is available in W/G bands from 18.0 to 170 GHz. The 529 Series is a computer-controlled
version of Mi-Waves’ standard direct reading phase shifter and features a 0º to 360º range with 0.5-degree resolution. IEEE-488 & USB available.

The 529 Series Motorized Direct-reading Phase Shifters are used in all RF automated measurement systems. They are most frequently used in RF substitution type set-ups for precise measurement of characteristics including bridge circuits and phased arrays.

TABLE LIST VIEW
GRID VIEW

TABLE LIST VIEW

Note: Our website contains just a few types of Phase Shifters we build. Consult with us for your specific needs.

Model	Band	Frequency Low (GHz)	Frequency High (GHz)	Resolution (Degrees)	Accuracy (+-)	Power Handling (CW)	Insertion Loss	I/O Ports	LINK
529K/595	K-Band	18	26.5	0.5	4	1	1	WR-42 Waveguide, UG-595/U Flange	View
529A/599	Ka-Band	26.5	40	0.5	4	0.5	1	WR-28 Waveguide, UG-599/U-M Flange	View
529B/383	Q-Band	33	50	0.5	4	0.5	1	WR-22 Waveguide, UG-383/U Flange	View
529U/383	U-Band	40	60	0.5	4	0.4	1.1	WR-19 Waveguide, UG-383/U-M Flange	View
529V/385	V-Band	50	75	0.5	4	0.3	1.2	WR-15 Waveguide, UG-385/U Flange	View
529E/387	E-Band	60	90	0.5	4	0.2	1.4	WR-12 Waveguide, UG-387/U Flange	View
529W/387	W-Band	75	110	0.5	4	0.2	1.5	WR-10 Waveguide, UG-387/U-M Flange	View
529F/387	F-Band	90	140	0.5	5	0.2	2	WR-08 Waveguide, UG-387/U-M Flange	View
529D/387	D-Band	110	170	0.5	5	0.1	3	WR-06 Waveguide, UG-387/U-M Flange	View

GRID VIEW

Note: Our website contains just a few types of Phase Shifters we build. Consult with us for your specific needs.

K-Band, 18 – 26.5 GHz, Motorized Rotary Vane Phase Shifters

529K/595, Accuracy ± 4°, Power Handling 0.5 Watts, Insertion Loss 1.0dB

View Product

Ka-Band, 26.5 – 40 GHz, Motorized Rotary Vane Phase Shifters

529A/599, Accuracy ± 4°, Power Handling 0.5 Watts, Insertion Loss 1.0dB

View Product

Q-Band, 33 – 50 GHz, Motorized Rotary Vane Phase Shifters

529B/383 || 719, Accuracy ± 4°, Power Handling 0.5 Watts, Insertion Loss 1.0dB

View Product

U-Band, 40 – 60 GHz, Motorized Rotary Vane Phase Shifters

529U/383, Accuracy ± 4°, Power Handling 0.4 Watts, Insertion Loss 1.1dB

View Product

V-Band, 50 – 75 GHz, Motorized Rotary Vane Phase Shifters

529V/385, Accuracy ± 4°, Power Handling 0.3 Watts, Insertion Loss 1.2dB

View Product

E-Band, 60 – 90 GHz, Motorized Rotary Vane Phase Shifters

529E/387, Accuracy ± 4°, Power Handling 0.5 Watts, Insertion Loss 1.4dB

View Product

W-Band, 75 – 110 GHz, Motorized Rotary Vane Phase Shifters

529W/387, Accuracy ± 4°, Power Handling 0.2 Watts, Insertion Loss 1.5dB

View Product

F-Band, 90 – 140 GHz, Motorized Rotary Vane Phase Shifters

529F/387, Accuracy ± 5°, Power Handling 0.2 Watts, Insertion Loss 2.0dB

View Product

D-Band, 110 – 170 GHz, Motorized Rotary Vane Phase Shifters

529D/387, Accuracy ± 5°, Power Handling 0.1 Watts, Insertion Loss 3.0dB

View Product
