Millimeter Wave Terminations & Sub-THz Waveguide Loads
Mi-Wave’s waveguide terminations and loads are precision-matched, broadband passive components designed to absorb microwave and millimeter-wave energy with minimal reflection. Available in low power (Series 580), medium power (Series 581), high power (Series 582), and sliding matched (Series 585) configurations, these waveguide loads cover frequencies from 18 GHz up to 500 GHz — placing them firmly in the sub-THz and terahertz components category used in advanced test, measurement, and research systems.

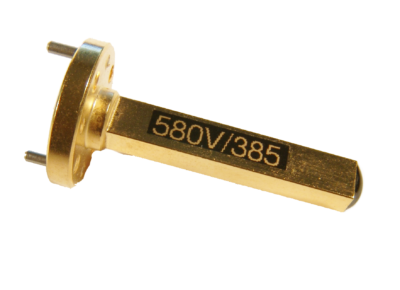

LOW POWER
TERMINATIONS
Series 580

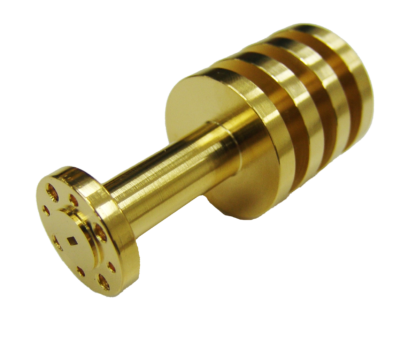

MEDIUM POWER
TERMINATIONS
Series 581

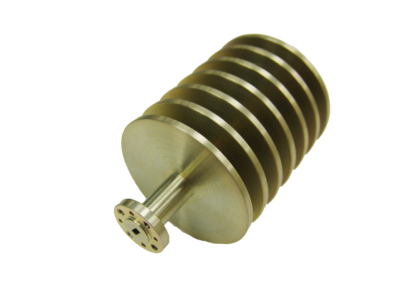

HIGH POWER
TERMINATIONS
Series 582

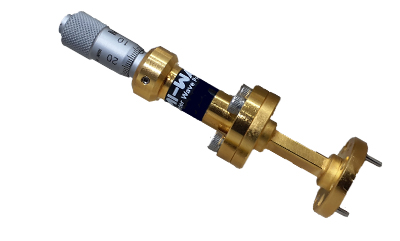

SLIDING MATCHED
TERMINATIONS
Series 585
Sub-THz & Terahertz Components for Test & Measurement
Mi-Wave’s termination and load series extend beyond conventional millimeter-wave ranges into the sub-THz and terahertz spectrum. With Series 580 low power loads operating up to 500 GHz, these components serve as essential sub-THz components for VNA calibration, signal termination, and passive load applications in THz imaging, spectroscopy, and materials characterization systems. Contact the factory for custom sub-THz and terahertz component requirements.
