Broadband Calibrated RF Noise Source

Mi-Wave’s 870 Series Broadband Calibrated Noise Sources are available in 18 to 110 GHz frequency range offering the best stability and switching speed over other brands. Mi-Wave’s 870 Series have tailored the response so ripple is minimized through the frequency range specified.

Note: Customer can choose to include isolator with the noise source

Note: Our website contains just a few types of  Noise Sources we build. Consult with us for your specific needs.

ModelBand TypeMinimum Frequency (GHz)Maximum Frequency (GHz)ENR (dB)ENR Flatness (dB)Output PortLINK
870A/599Ka-Band26.54015.51.5WR-28 Waveguide with UG-599/U Flanges
View
870B/383Q-Band335015.51.5WR-22 Waveguide with UG-383/U Flanges
View
870E/387E-Band6090156WR-12 Waveguide, UG-387/U Flange
View
870K/595K-Band1826.515.51.5WR-42 Waveguide, UG-595/U Flange
View
870V/385V-Band507515.53WR-15 Waveguide with UG-385/U Flange
View
870W/387W-Band75110135WR-10 Waveguide with UG-387/U-M Flanges
View

Note: Our website contains just a few types of  Noise Sources we build. Consult with us for your specific needs.

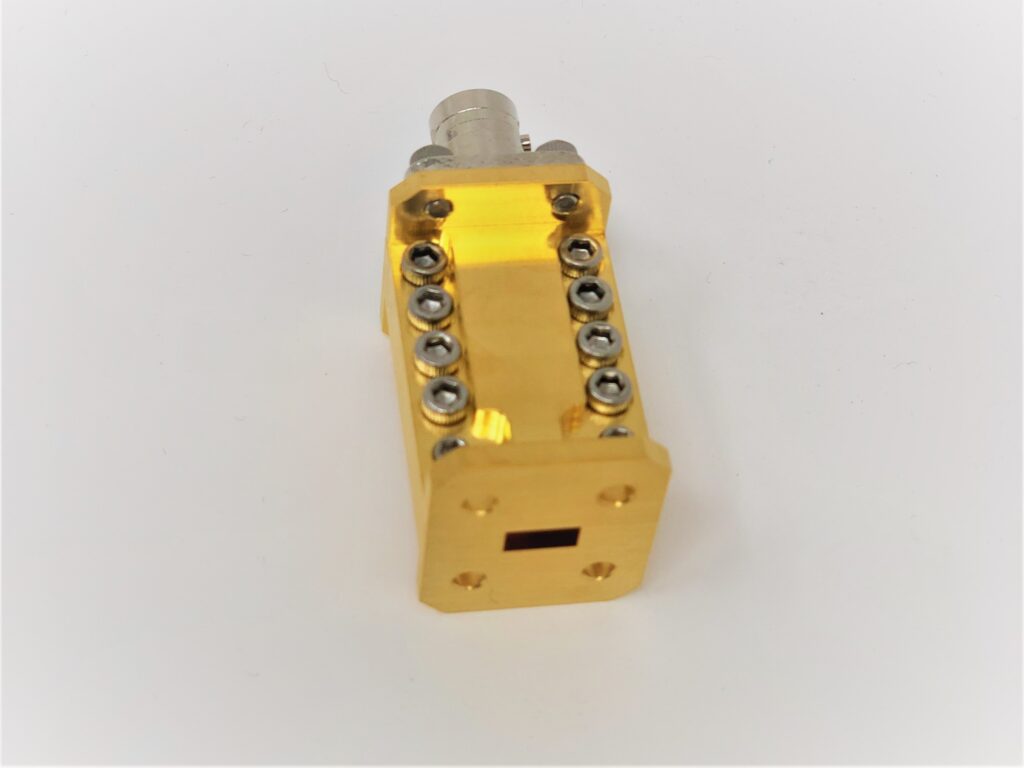

26.5 GHz-40 GHz Broadband Calibrated Noise Source

870A/599, Ka-band, ENR 15.5 dB, VSWR 1.6:1

View Product

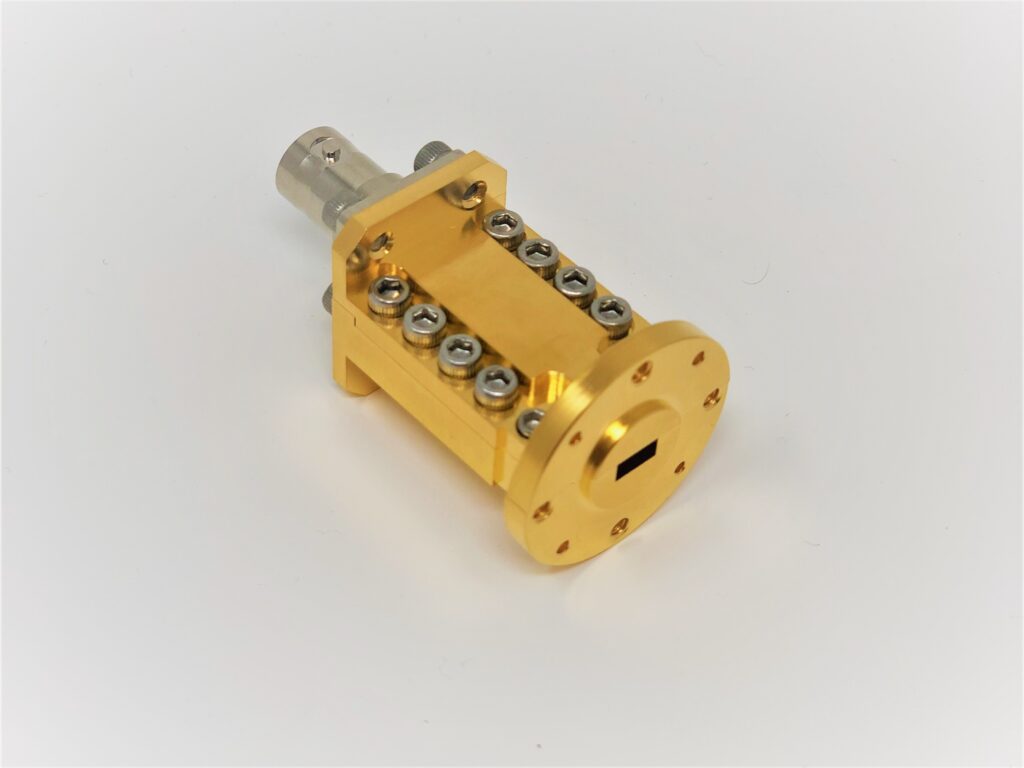

33 GHz – 50 GHz Broadband Calibrated Noise Source

870B/383, Q-band, ENR 15.5 dB, VSWR 1.3:1

View Product

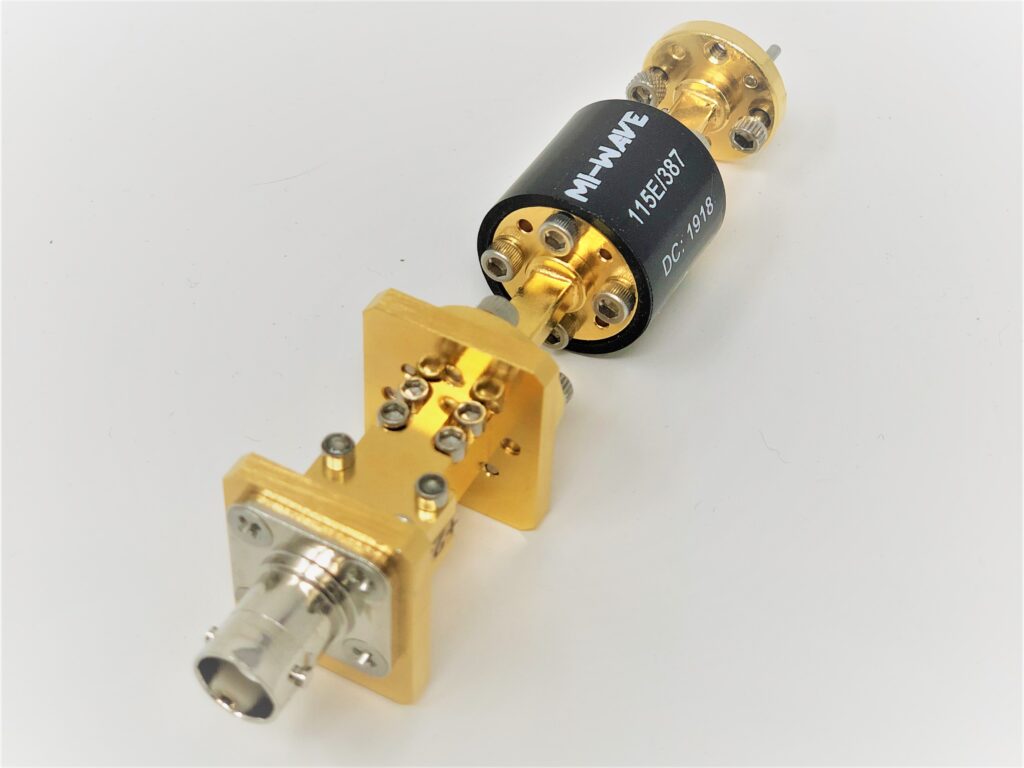

60 GHz – 90 GHz Broadband Calibrated Noise Source

870E/387, E-Band, ENR 15.0 dB, VSWR 1.6:1

View Product

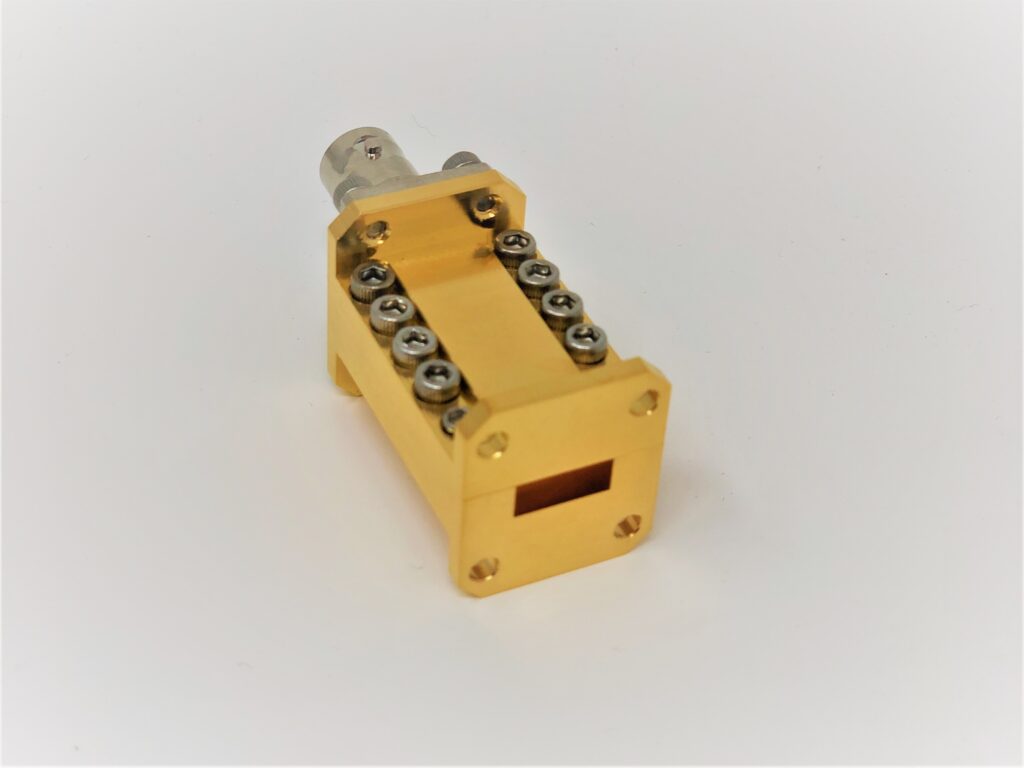

18 GHz – 26.5 GHz BroadBand Calibrated Noise Sources

870K/595, K-band, ENR 15.5 dB, VSWR 1.6:1

View Product

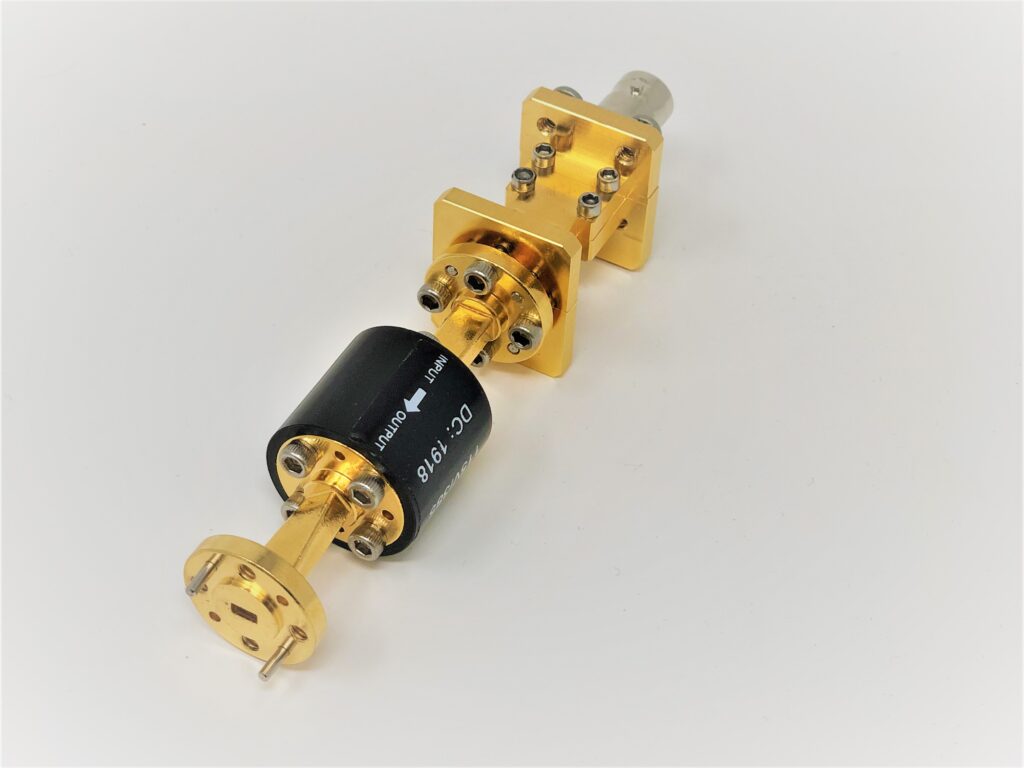

50 GHz – 75GHz Broadband Calibrated Noise Source

870V/385, V-band, ENR 15.5 dB, VSWR 1.6:1

View Product

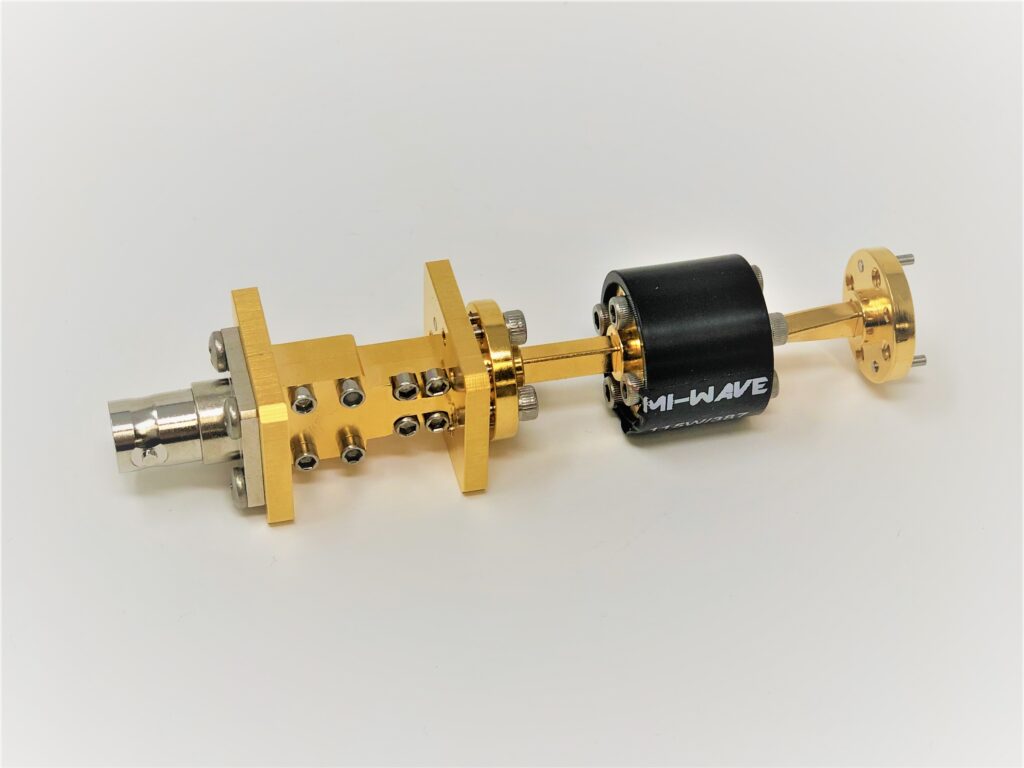

75 GHz – 110 GHz Broadband Calibrated Noise Source

870W/387, W-band, ENR 13.0 dB, VSWR 1.6:1

View Product

RF Noise Source

Mi-Wave RF noise sources (also known as noise generators) are microwave components that produce white noise for system performance evaluation such as noise figure throughout test labs. RF noise sources or noise generators from Mi-Wave are manufactured from some of the highest quality materials and standards.

standard gain horn antenna page

Sales & Quoting

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem!

Contact us so we can work on solutions to meet your needs.
