5G mmWave Frequency Products

Welcome to Millimeter Wave Products 5G product area. Here we will have a growing list of products within their respective bands available for purchase. The 5G frequency bands as defined by 3GPP for 5G mmWave using Millimeter Wave (mmWave) frequencies are listed here and navigable via the frequency menu.

Choose a band:

Please note we only display Millimeter-Wave (mmWave) Frequency Bands. For a complete list including sub-6GHz (FR1 bands), we can suggest providers for you to contact.

N257 Band – 26.5 to 29.5 GHz
N258 Band – 24.25 to 27.5
N259 Band – 39.5 to 43.5 GHz
N260 Band – 37.0 to 40.0 GHz
N261 Band – 27.5 to 28.35 GHz
45.5 to 52.6 GHz
57.0 to 66.0 GHz
66.0 to 71.0 GHz
95.0 to 110.0 GHz

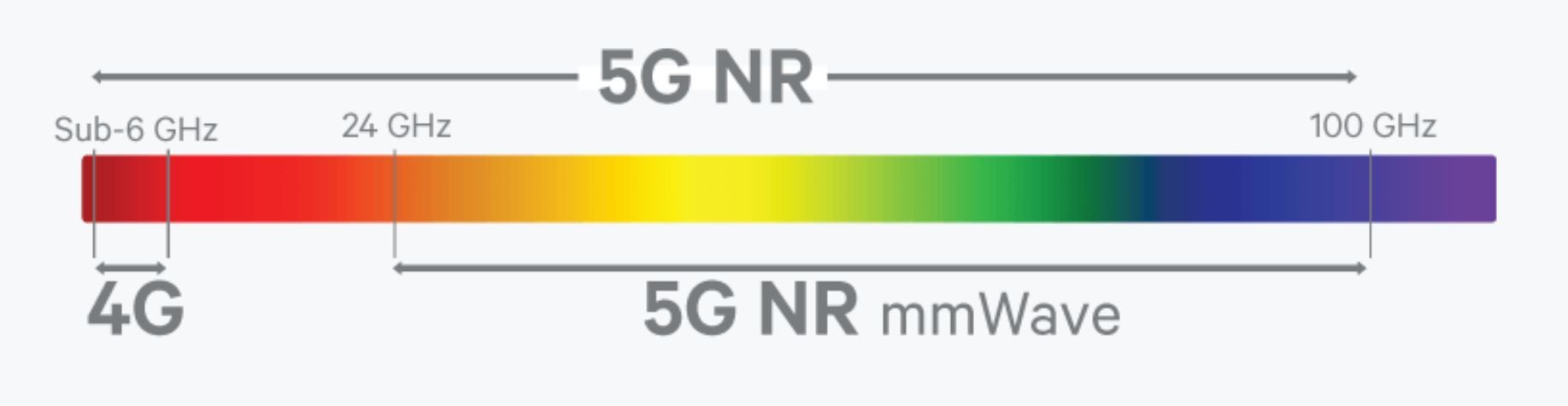

FR2 mmWave Frequencies

5G in the 24 GHz range or above use higher frequencies than 4G. Some 5G signals are not capable of traveling large distances (over a few hundred meters), unlike 4G or lower frequency 5G signals (sub 6 GHz). This requires placing 5G base stations/repeaters every few hundred meters in order to use these higher frequency bands.

These higher frequency 5G signals cannot penetrate solid objects easily, such as cars, trees, and walls and depending on weather conditions can also be affected. Because of the nature of the physics involved in high frequency electromagnetic waves, 5G stations can be designed to have a low profile. This makes it very useful in places like restaurants, hotels, shopping malls and in urban centers globally.

Research continues to this day in making higher frequency bands usable and fault proof for commercial use like autonomous vehicles, IoT, high speed internet and urban communication systems.

NR 5G mmWave frequency bands above 24 GHz

Band Freq. (GHz) Common Name Subset of Band Uplink/Downlink GHz Channel Bandwidths (MHz)
n257 28 LMDS 26.50 – 29.50 50, 100, 200, 400
n258 26 K-Band 24.25 – 27.50 50, 100, 200, 400
n259 42 V-Band 39.50 – 43.50 50, 100, 200, 400
n260 39 Ka-Band 37.00 – 40.00 50, 100, 200, 400
n261 28 Ka-Band n257 27.50 – 28.35 50, 100, 200, 400
standard gain horn antenna page

Sales & Quoting

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem!

Contact us so we can work on solutions to meet your needs.
