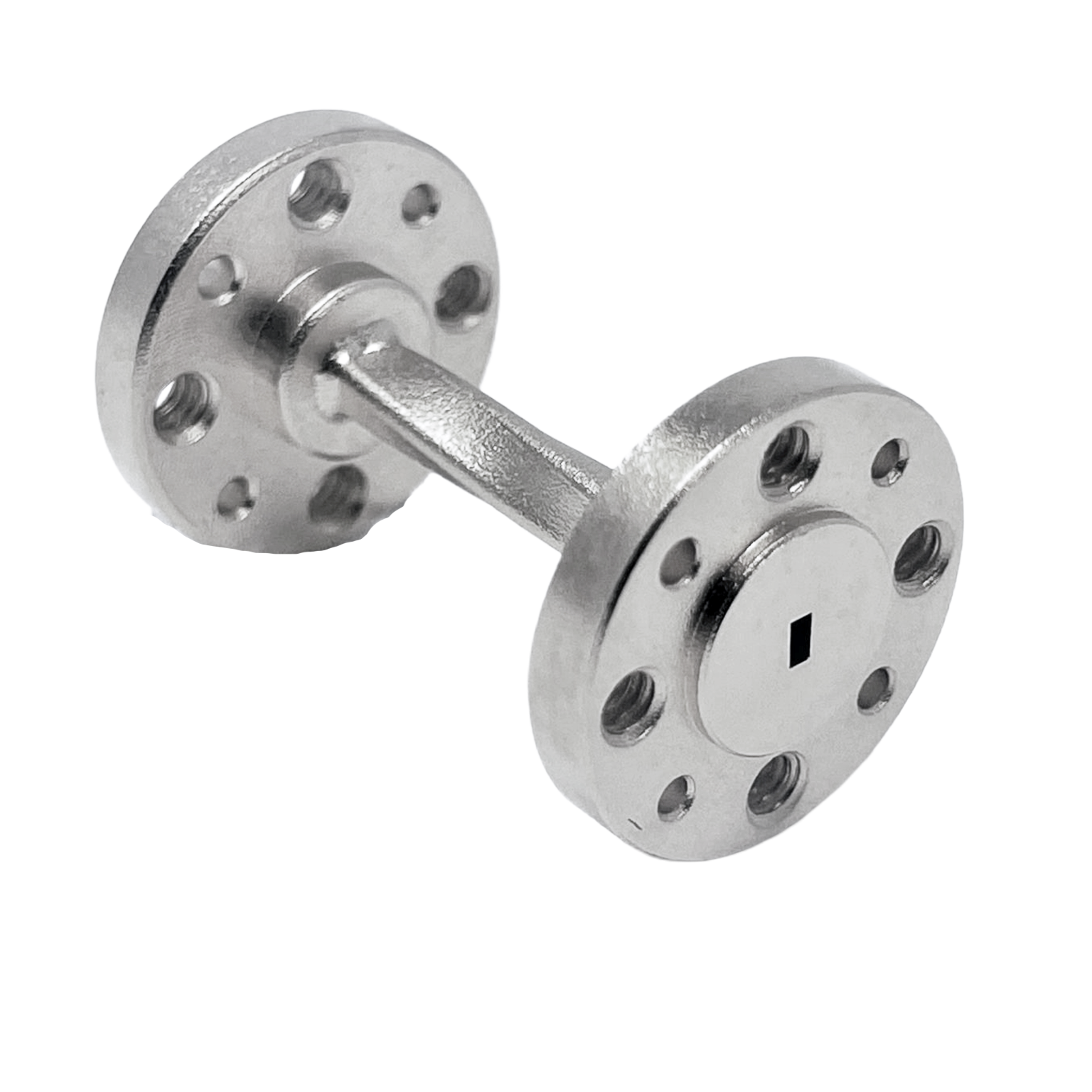

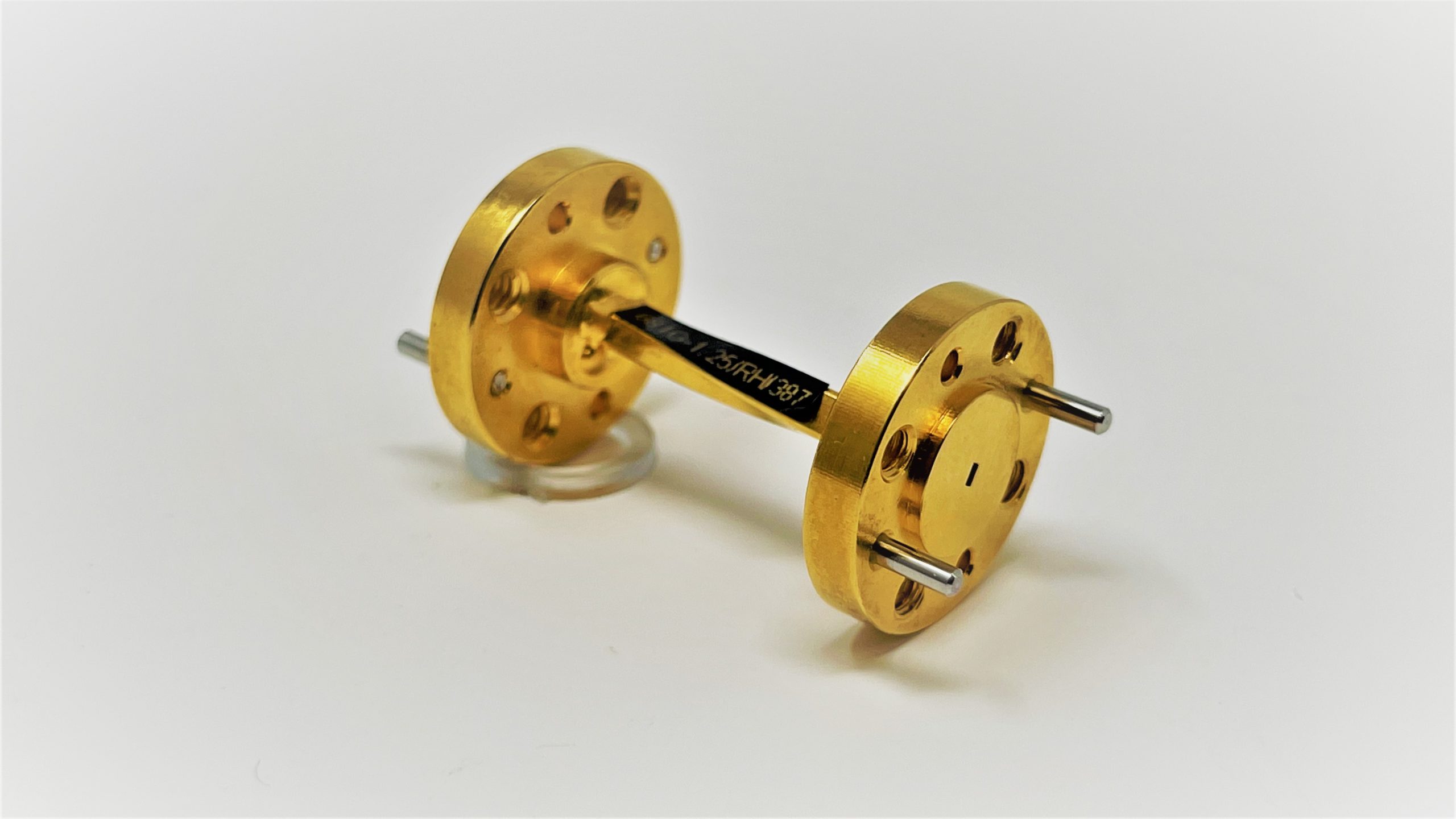

Waveguide Twists | High Precision | 8.2 GHz – 325 GHz

Features & Performance Characteristics

Precise Polarization Rotation

Waveguide twists rotate the electromagnetic field orientation inside the waveguide without significantly disturbing signal propagation, enabling proper alignment between system components.

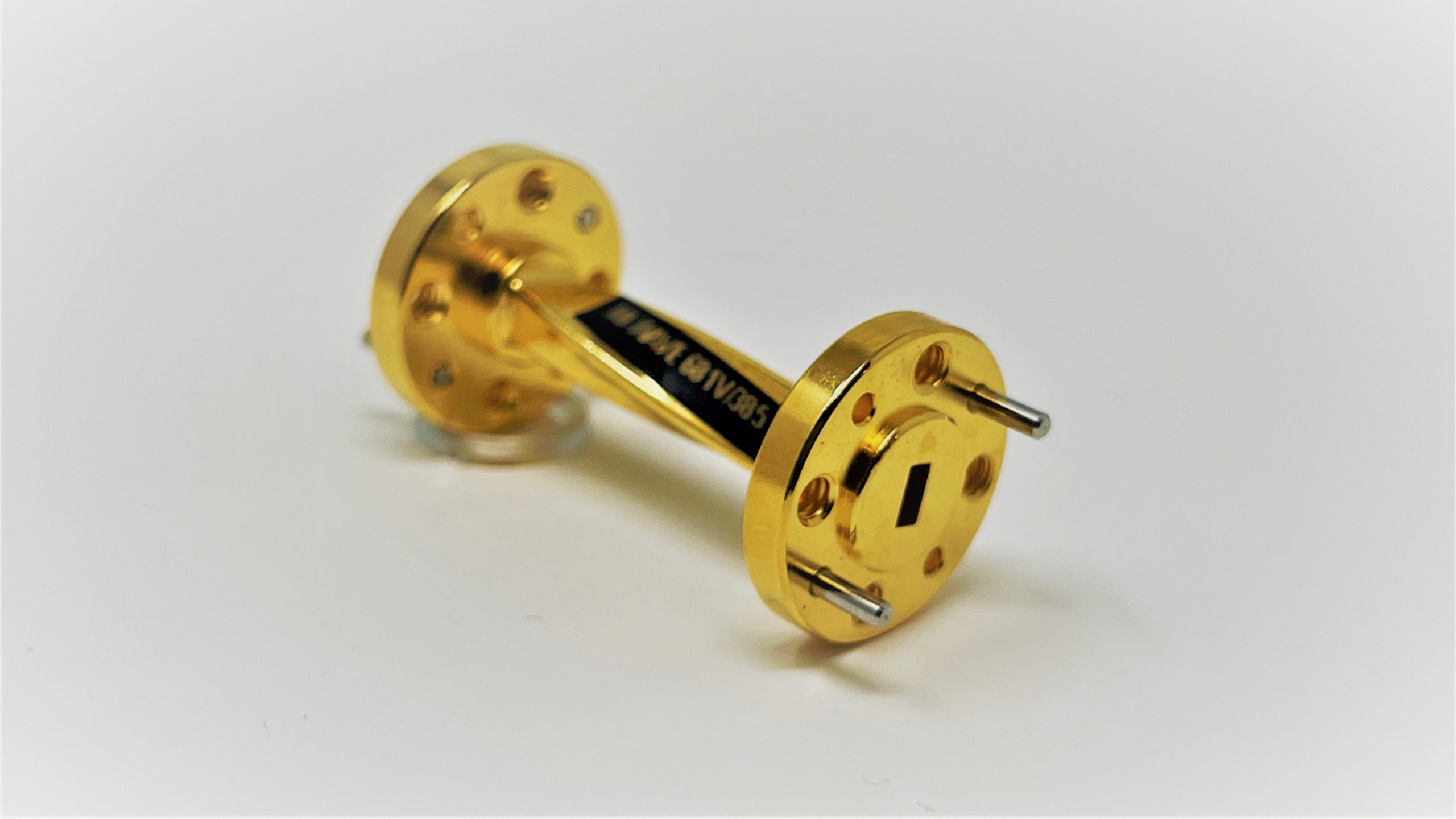

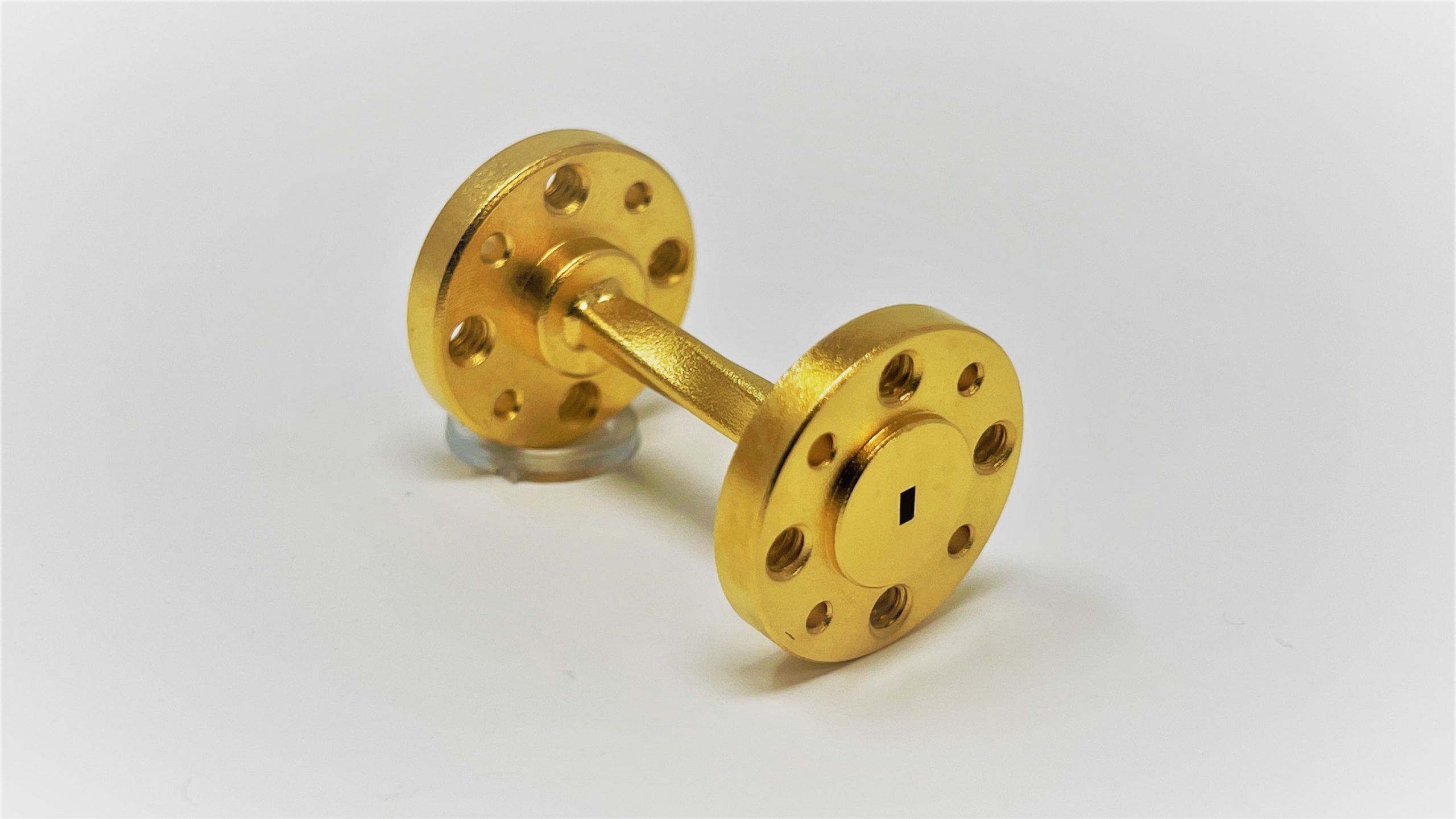

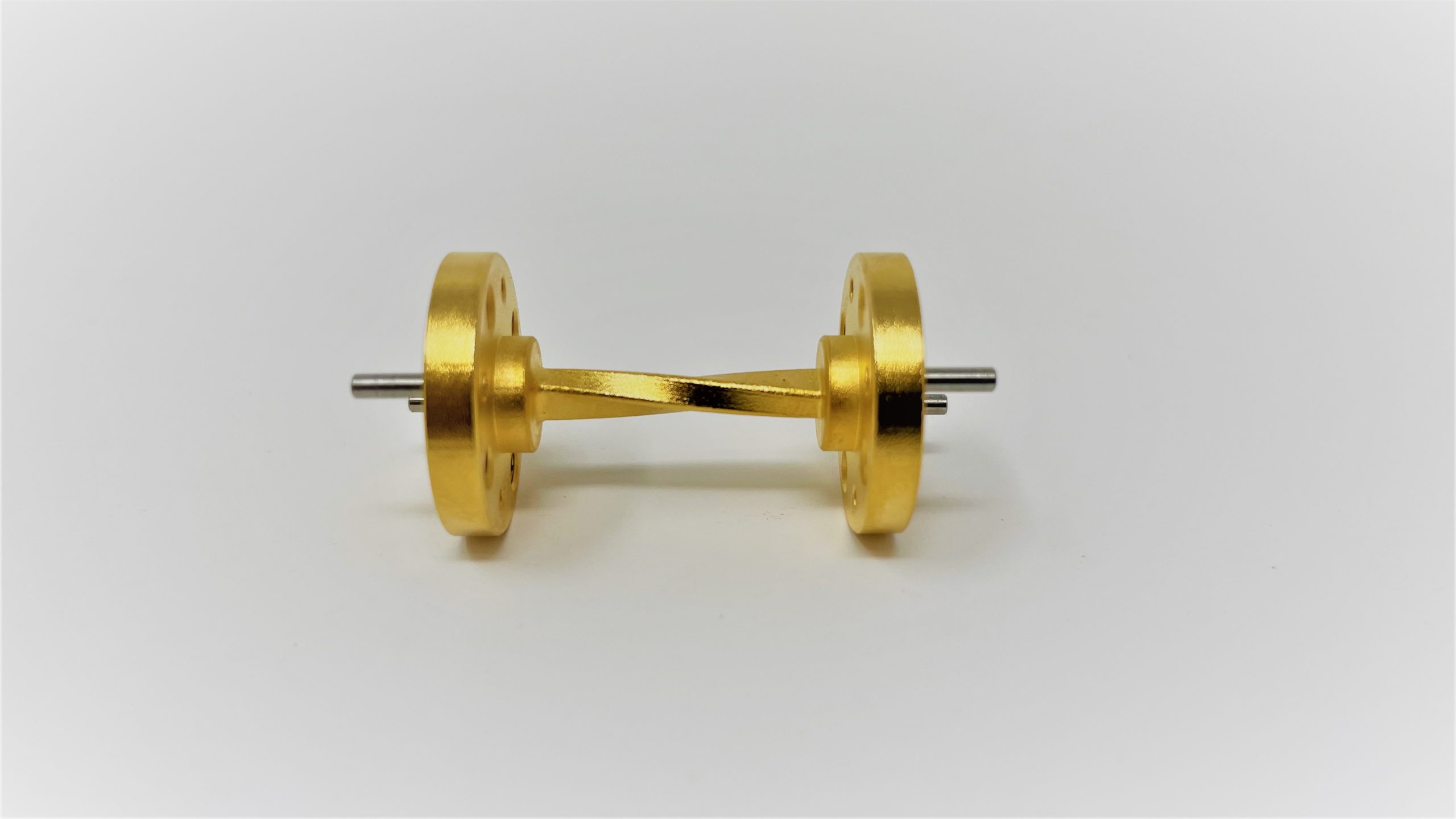

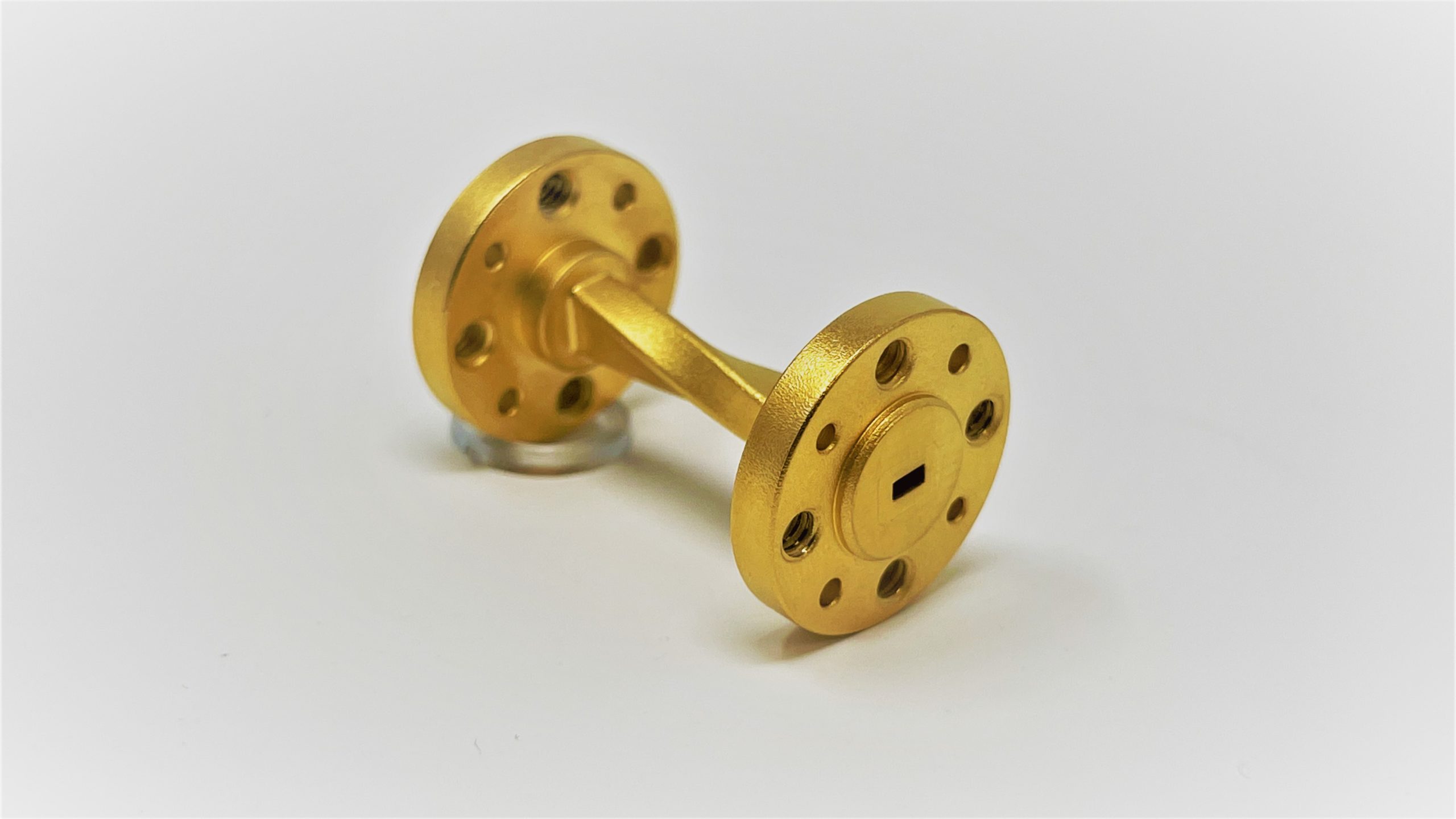

45° and 90° Twist Configurations

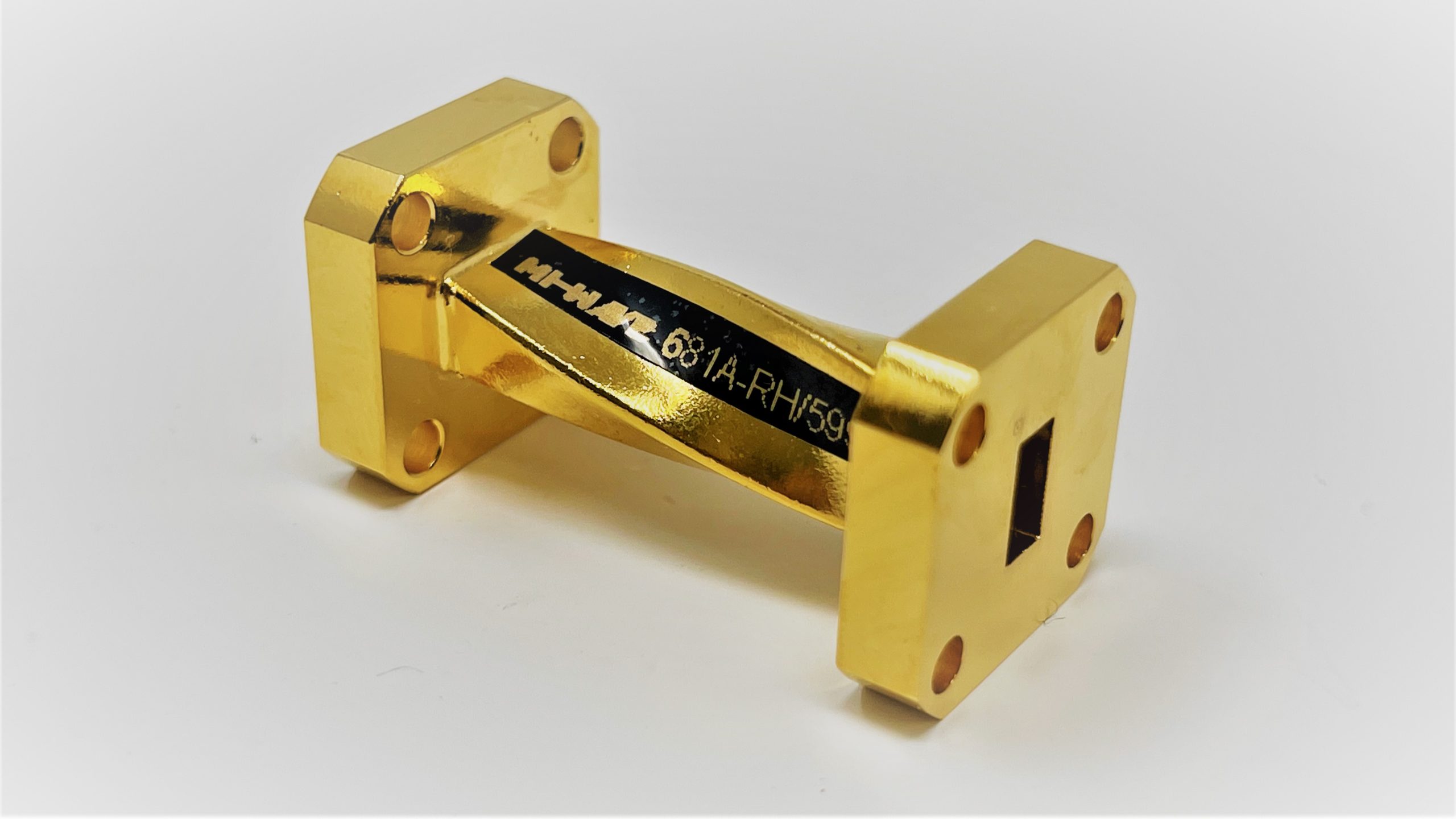

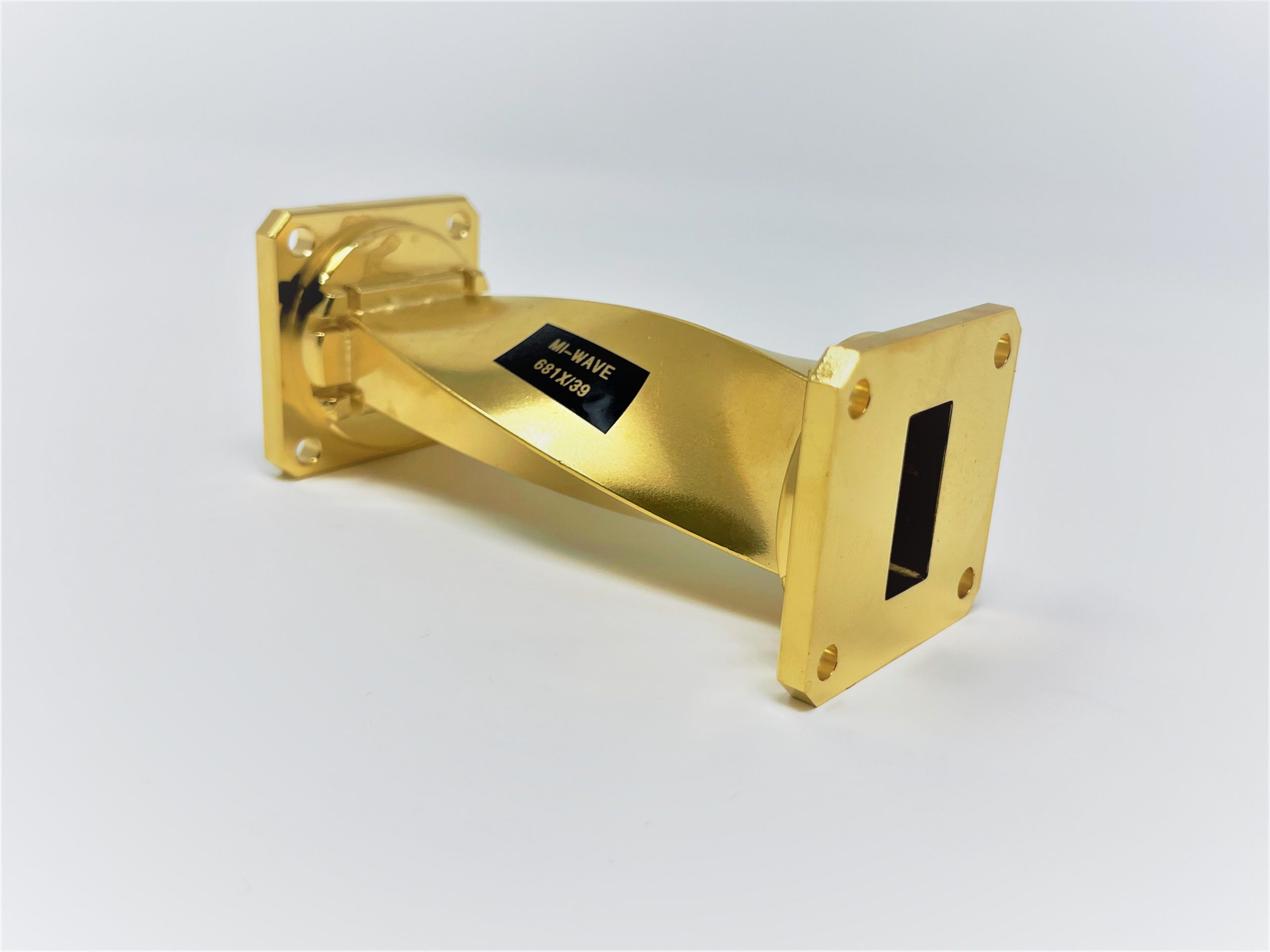

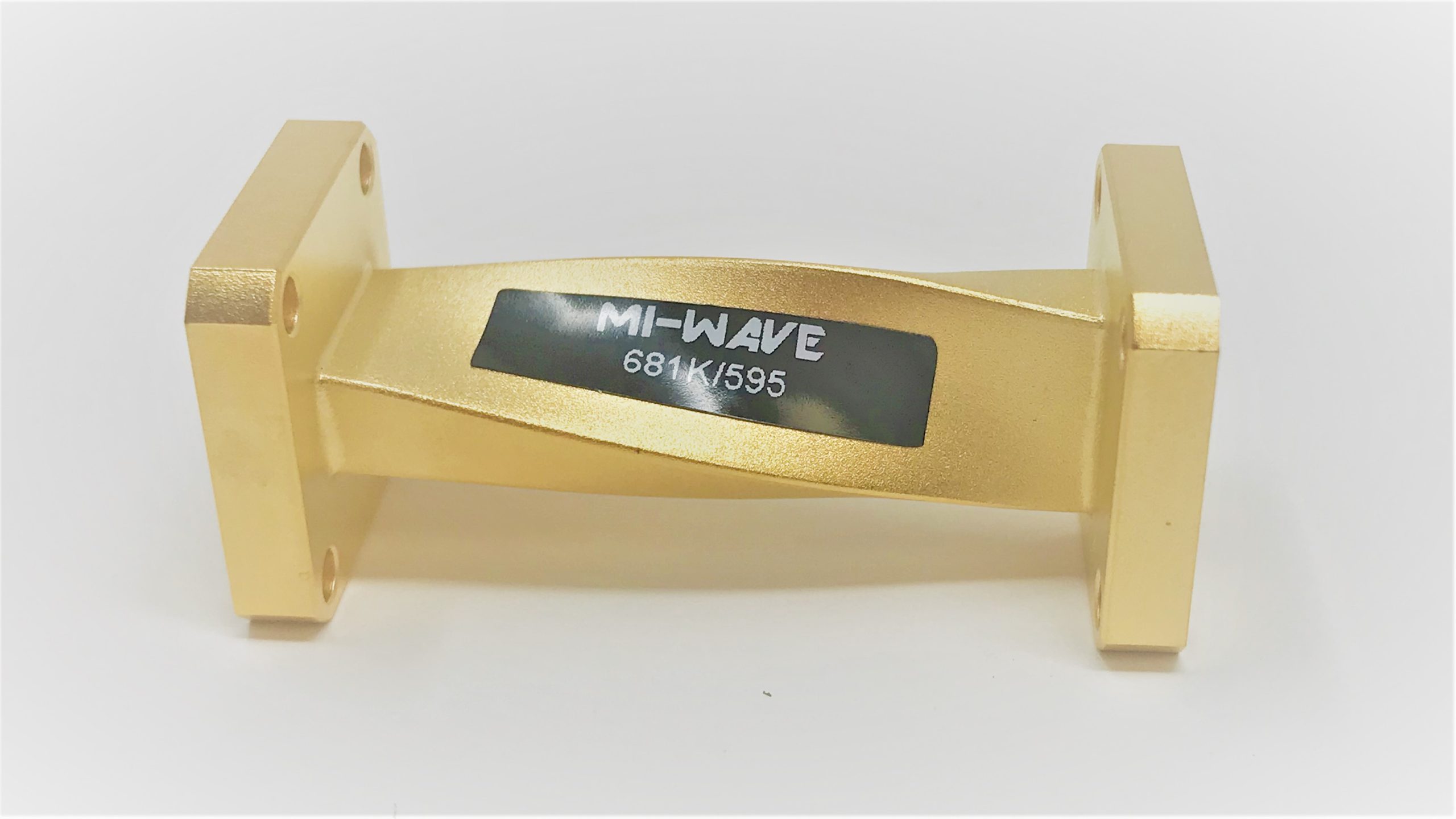

The 680 Series provides 45° twists, while the 681 Series provides 90° twists, allowing engineers to select the appropriate rotation for system requirements.

Left-Hand and Right-Hand Options

Twists are available in left-hand or right-hand configurations, giving flexibility in mechanical layout and field rotation direction.

Broad Frequency Coverage

Supporting frequencies from 8.2 GHz to 325 GHz, these twists are suitable for both microwave and millimeter-wave applications.

Low Loss and Minimal Reflection

Manufactured with precision tolerances, Mi-Wave twists are designed to minimize insertion loss and reduce reflections, preserving signal integrity across the operating band.

Standard Flanged Interfaces

Each unit uses standard flanged waveguide interfaces for easy integration into existing RF systems and assemblies.

How Waveguide Twists Work

Waveguide twists function by gradually rotating the cross-sectional orientation of the waveguide along its length. As the RF signal propagates through the twist, the electric and magnetic field components rotate with the physical geometry of the waveguide.

This controlled rotation allows the polarization of the signal to be reoriented without significantly disturbing the propagation mode. The twist must be carefully designed so that the transition is smooth, preventing mode conversion, reflections, or excessive insertion loss.

The direction of rotation, whether left-hand or right-hand, determines how the electromagnetic field is reoriented relative to the rest of the system. Proper selection ensures compatibility with downstream components such as antennas, OMTs, or ferrite devices.

Applications

Waveguide Orientation Alignment

Waveguide twists are used to align the orientation of waveguide components when mechanical layouts require rotation between sections.

Polarization Control

They are commonly used to rotate the polarization of RF signals to match antennas, orthomode transducers, or other polarization-sensitive components.

Ferrite Device Integration

Waveguide twists are often integrated into isolators, circulators, and other ferrite-based devices to properly align electromagnetic fields within the system.

Antenna Feed Systems

In antenna systems, twists ensure correct field orientation for efficient radiation and reception.

RF Test and Measurement Systems

Used in laboratory environments where waveguide routing and polarization control are required for accurate measurement setups.

Frequently Asked Questions (FAQ)

What is a waveguide twist?

A waveguide twist is a component that rotates the orientation of the electromagnetic field within a waveguide without significantly affecting signal transmission.

What twist angles are available?

Mi-Wave offers 45° twists (680 Series) and 90° twists (681 Series), with custom configurations available upon request.

What is the difference between left-hand and right-hand twists?

Left-hand and right-hand twists refer to the direction of rotation of the electromagnetic field as it travels through the waveguide. The correct choice depends on system alignment requirements.

What frequency range do these twists support?

Waveguide twists are available from 8.2 GHz to 325 GHz, depending on waveguide size and configuration.

Do waveguide twists affect signal performance?

When properly designed and manufactured, waveguide twists introduce minimal insertion loss and maintain low reflection levels.

Where are waveguide twists used?

They are used in antenna systems, ferrite devices, waveguide routing, RF test systems, and microwave or millimeter-wave subsystems.

Glossary of Waveguide Twist Terms

Waveguide Twist

A waveguide component that rotates the electromagnetic field orientation along the propagation path.

Polarization Rotation

The rotation of the electric field orientation of an RF signal.

Left-Hand Twist

A twist where the field rotates in a left-hand (counterclockwise) direction along the propagation path.

Right-Hand Twist

A twist where the field rotates in a right-hand (clockwise) direction.

Insertion Loss

The amount of signal attenuation introduced by a component.

Mode Conversion

The unintended transition from one propagation mode to another, often caused by abrupt geometry changes.

Rectangular Waveguide

A metallic structure used to guide microwave and millimeter-wave signals.

Flanged Waveguide

A waveguide section with standardized mechanical interfaces for connection to other components.

Ferrite Devices

RF components such as isolators and circulators that rely on magnetic materials and often require precise field alignment.

Millimeter-Wave

Frequencies typically above 30 GHz where precision RF components are critical.
