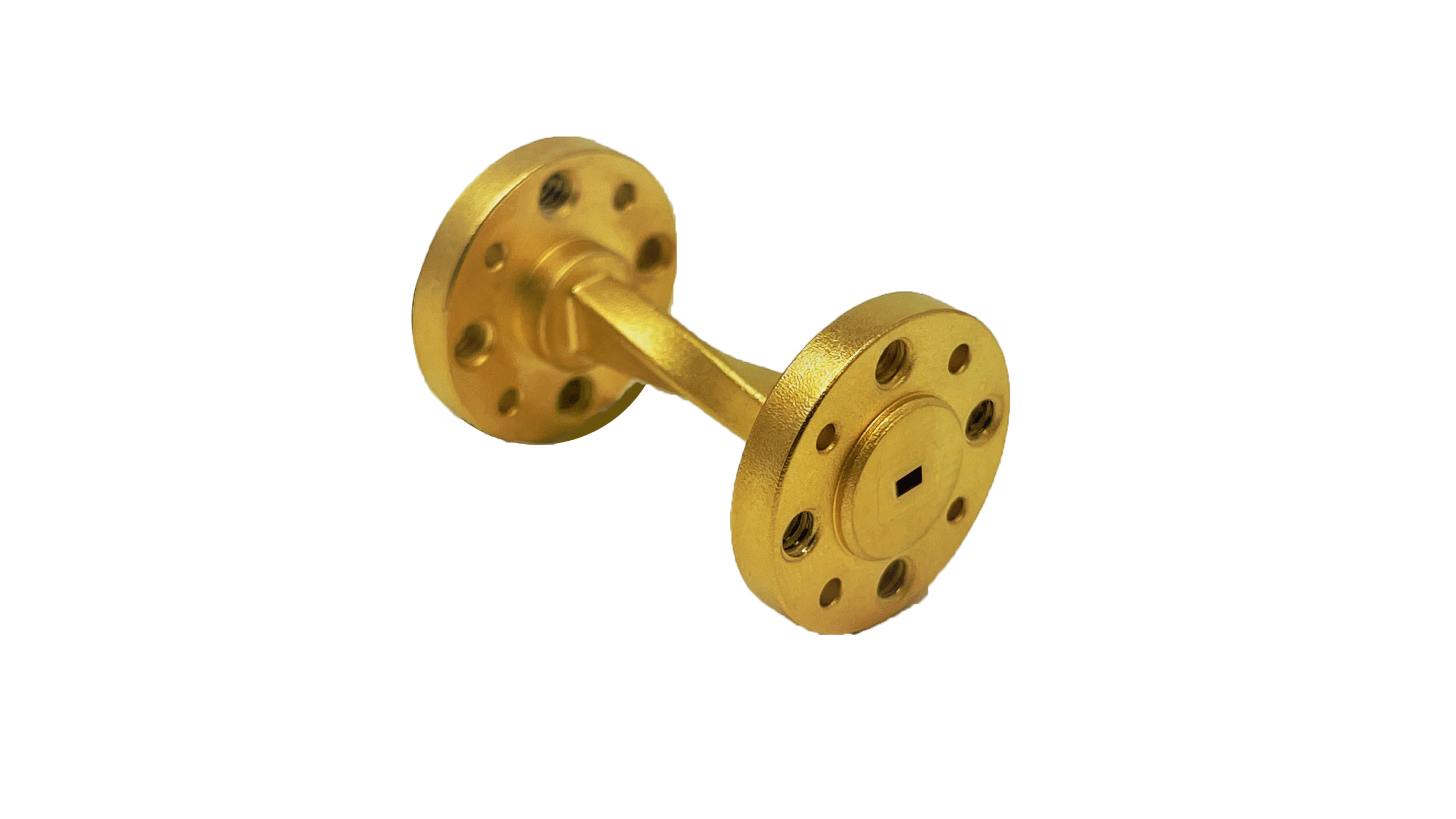

W-Band Precision Waveguide Twist

681W/387, 75GHz – 110GHz WR-10, UG-387/U-M

Note: Customer can purchase a custom configuration or dimension. Please consult with the factory.


Mi-Wave’s 680 Series Twists are short sections of standard flanged waveguide with left-hand or 45º twist configurations while the 681 Series Twists provide 90º twist configurations. The units are available in standard waveguide sizes from 8.2 to 325 GHz. Please be sure to specify the left-hand or right-hand configuration when ordering.

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
