Waveguide Type Cross Guide Directional Couplers

Low Cost • Low VSWR • Four-port Device • Broadband Operation

Description

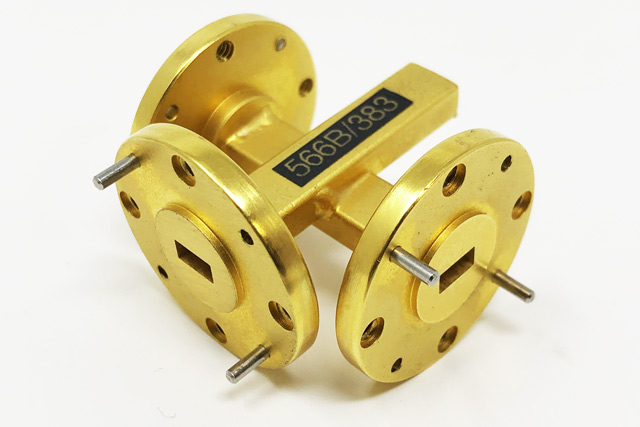

Mi-Wave’s 566 Series Cross Guide Coupler Consists of two waveguides at right angles to each other, joined by small coupling slots whose size, location, and orientation determine the coupling and directivity of the unit. All ports are available for sampling or injecting energy and are clearly marked to indicate the coupling direction.

Applications

The 566 Series Cross Guide Directional Couplers provide an efficient means for sampling power or injecting a signal into a waveguide transmission line.

Block Type Coupler
View Catalog PDF

Note: Our website contains just a few types of  Couplers we build. Consult with us for your specific needs.

ModelFrequency (GHz)Coupling Value (dB)Directivity (dB)VSWRWeight (oz)RF Port
566K-20/59518-26.520151.153WR-42 Waveguide, UG-595
566K-30/59518-26.530151.153WR-42 Waveguide, UG-595
566K-40/59518-26.540151.153WR-42 Waveguide, UG-595
566K-50/59518-26.550151.153WR-42 Waveguide, UG-595
566A-20/59926.5-4020151.153WR-28 Waveguide, UG-599
566A-30/59926.5-4030151.153WR-28 Waveguide, UG-599
566A-40/59926.5-4040151.153WR-28 Waveguide, UG-599
566A-50/59926.5-4050151.153WR-28 Waveguide, UG-599
566B-20/38333-5020151.153WR-22 Waveguide, UG-383
566B-30/38333-5030151.153WR-22 Waveguide, UG-383
566B-40/38333-5040151.153WR-22 Waveguide, UG-383
566B-50/38333-5050151.153WR-22 Waveguide, UG-383
566U-20/38340-6020151.153WR-19 Waveguide, UG-383
566U-30/38340-6030151.153WR-19 Waveguide, UG-383
566U-40/38340-6040151.153WR-19 Waveguide, UG-383
566U-50/38340-6050151.153WR-19 Waveguide, UG-383
566V-20/38350-7520201.22WR-15 Waveguide, UG-385
566V-30/38350-7530201.22WR-15 Waveguide, UG-385
566V-40/38350-7540201.22WR-15 Waveguide, UG-385
566V-50/38350-7550201.22WR-15 Waveguide, UG-385

Features

• Full band Operation

• Compact Sizes

• Low VSWR

• Rugged Construction

Applications

• Measurement Systems

• Transmitter Applications / Dummy Loads

• Satellite

• Microwave Radio

• Source Leveling

• 5G & 6G

standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
