40 GHz-60 GHz Wide Band Voltage Controlled Sources (VCO)

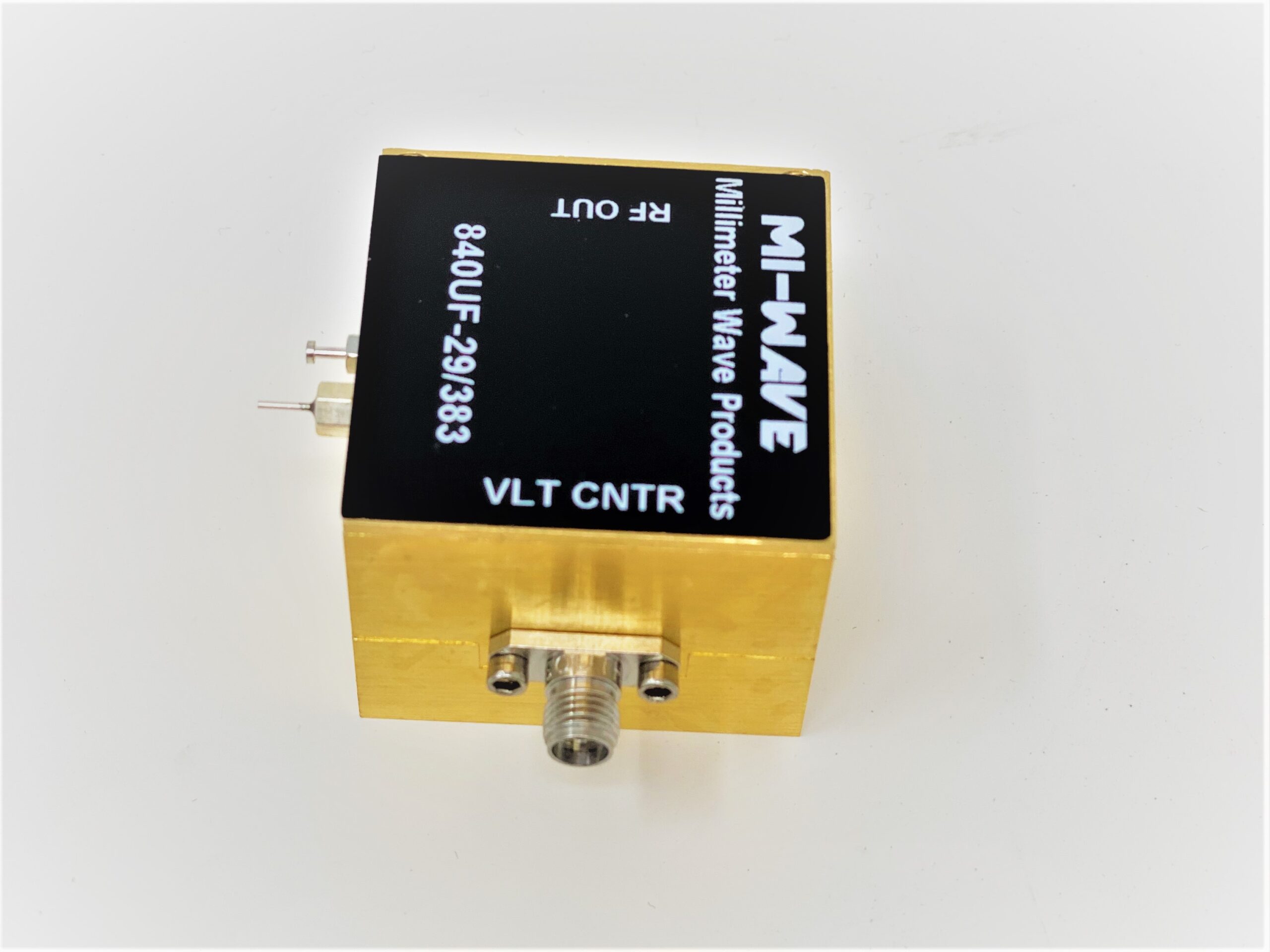

840UF-29/383, U-band, WR-19, 29 dBm Output Power, 20GHz Tuning Bandwidth

Description:

Mi-Wave’s 840 Voltage controlled oscillator (VCO) sources are available in 18 to 110Ghz. This source can be used as a modulated transmitter or local oscillator. Common applications include radar,  swept sources, and telecommunications systems.

Features

  • High Stability
  • Broadband Tuning
  • Built-In Regulator
  • Heatsink included for high power sources
  • Excellent Reliability

Applications

  • Radar Systems
  • Radiometers
  • Local Oscillators
  • Telecommunications
  • Military Applications
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

Wide Band Voltage Controlled Sources (VCO)

A voltage-controlled oscillator (VCO) is an electronic oscillator whose output frequency is proportional to its input voltage. The applied input voltage determines the instantaneous oscillation frequency. Consequently, a VCO can be used for frequency modulation (FM) or phase modulation (PM) by applying a modulating signal to the control input.
