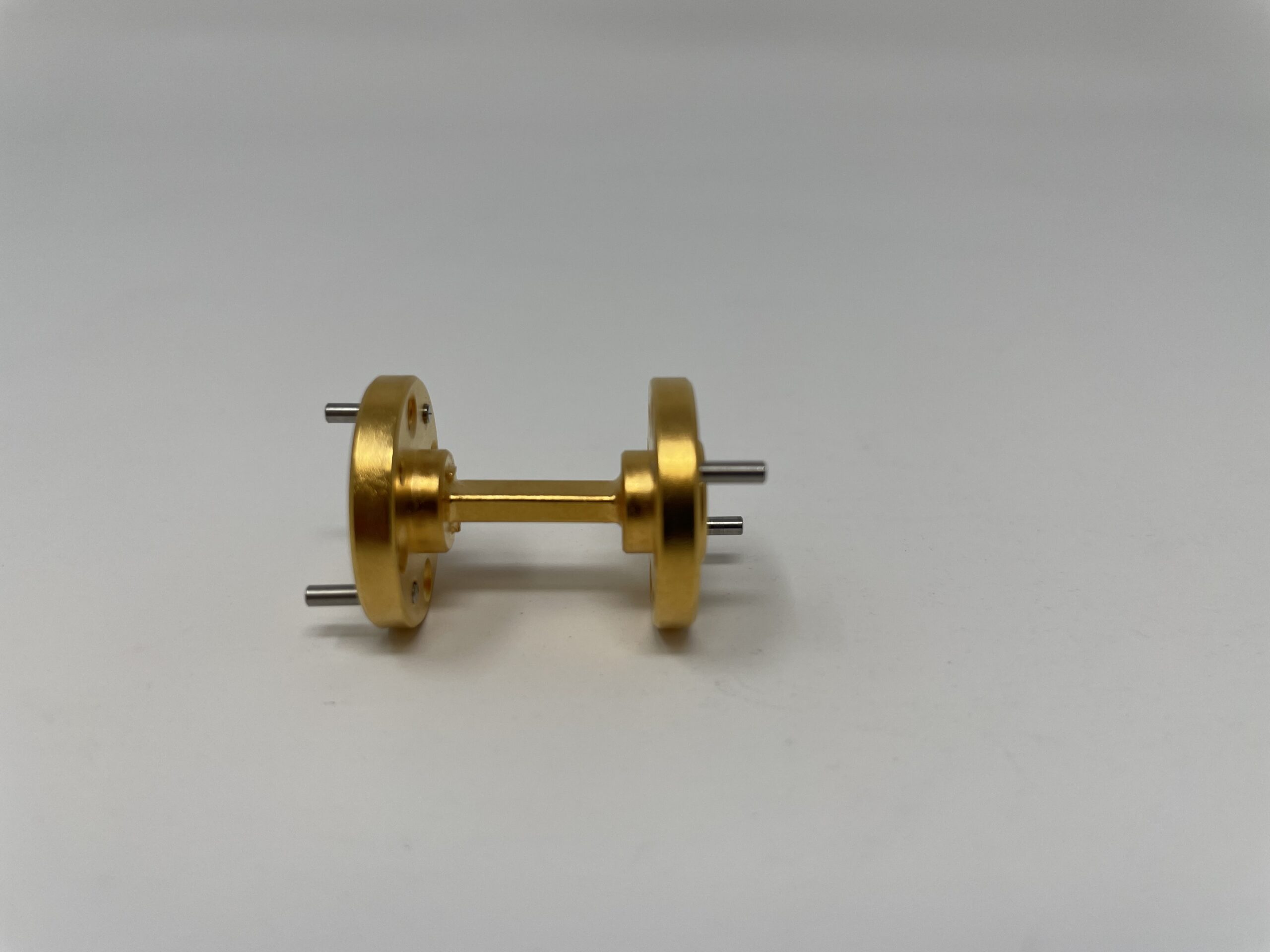

D-Band Waveguide Straights

690D-1/387, 110 GHz-170GHz WR-6, UG-387/U-M

Note: Customer can purchase a custom configuration or dimension. Please consult with the factory.

Description:

Mi-Wave’s 690 Series flanged waveguide sections & bends are available in standard waveguide sizes from 8 to 500 GHz. Each section is precisely fabricated using MIL-SPEC waveguide and flanges. Precise control of the fabrication processes eliminates waveguide discontinuities and distortion.  The 690 Series waveguide is available in a wide variety of materials. Available lengths are limited by raw waveguide which varies in length with each waveguide size. Check with Mi-Wave’s sales engineer for available lengths. Longer sections different wave-guide materials, and special flanges are all available upon request.

Outline Drawing
Test Data
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
