G-Band | Rectangular – to – Rectangular Waveguide Adapters

Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss.

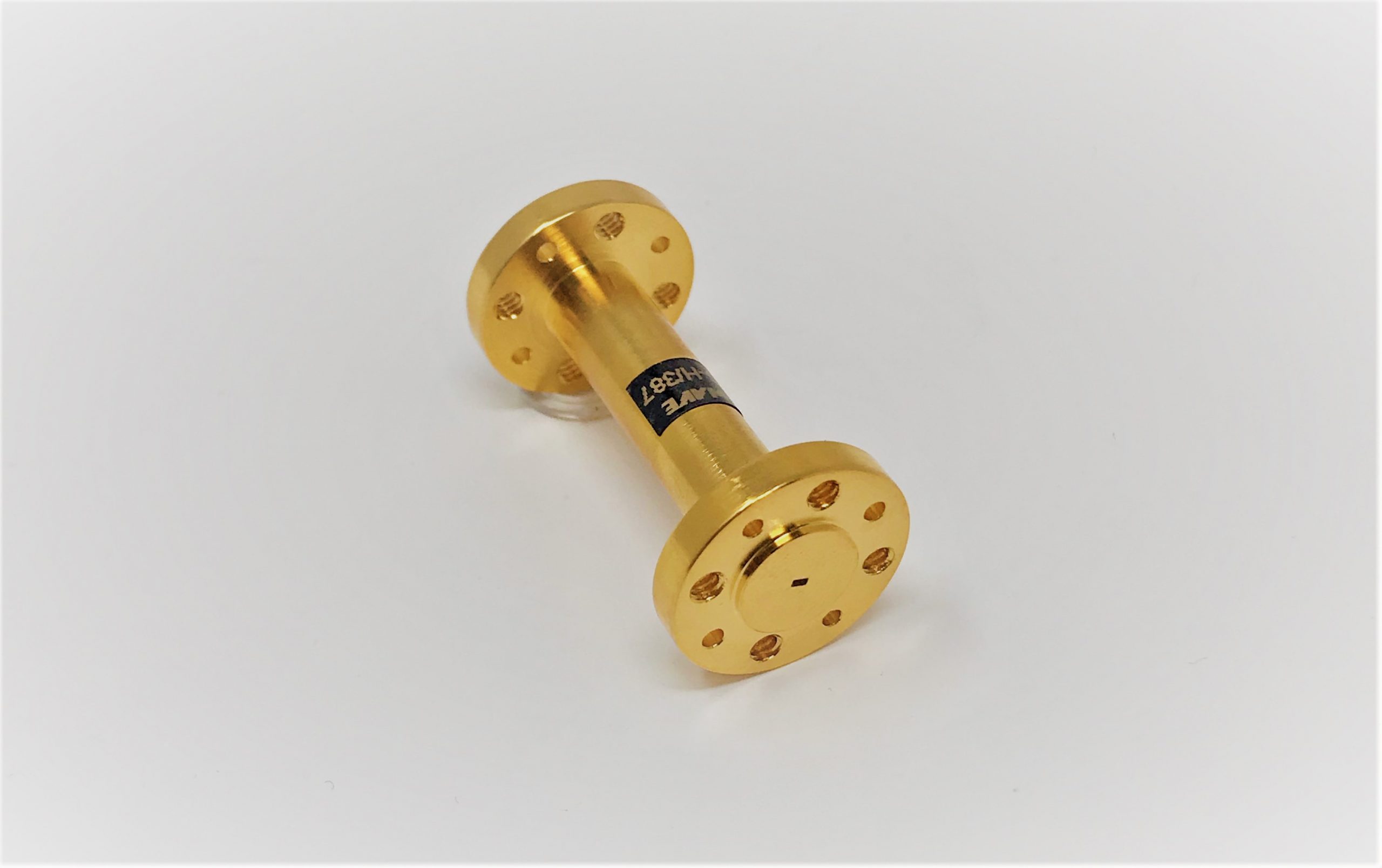

G-H-Band, WR-05 to WR-04, Rectangular to Rectangular Waveguide Adapter

692G-H/387, VSWR 1.25:1

D-G-Band, WR-06 to WR-05, Rectangular to Rectangular Waveguide Adapter

692D-G/387, VSWR 1.15:1
