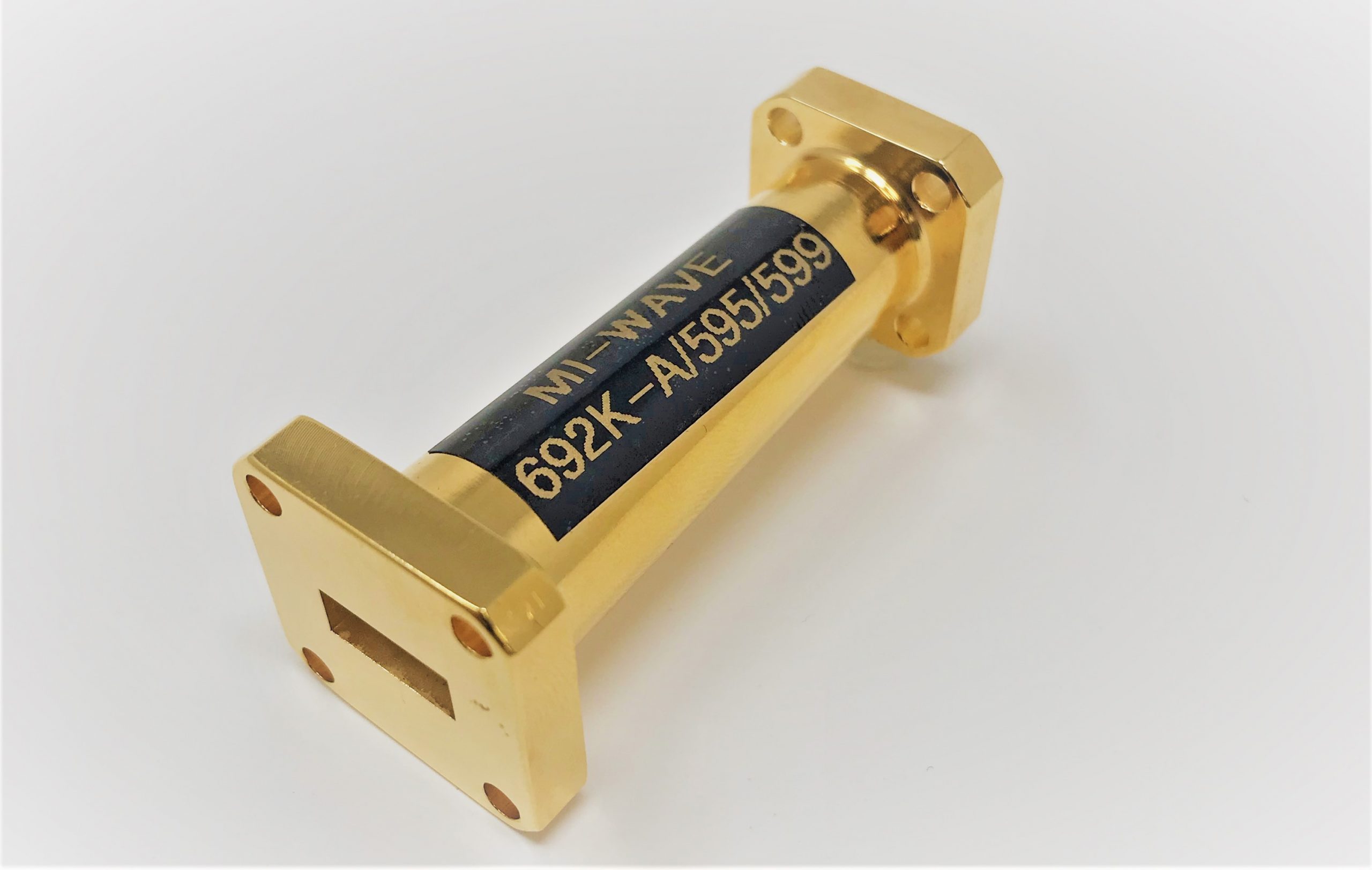

K-Ka-Band Rectangular to Rectangular Adapter

692K-A/595/599 , 18GHz – 26.5GHz WR-42, UG-595/U Flange

Description:

Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss. These adapters are available in many waveguide size combinations from 8.4 to 320 GHz. In addition to the standard configurations listed in this section, many special transitions will be developed upon request

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
