50 GHz–110 GHz Broadband Downconverter

Model: 970 Series Downconverter

Description

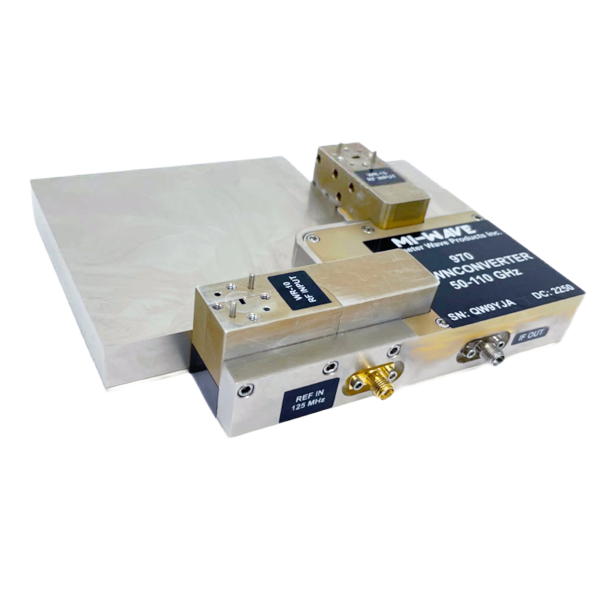

The Mi-Wave 970 Series 50–110 GHz Broadband Downconverter provides wideband frequency conversion across the millimeter-wave spectrum. Its dual-band architecture covers RF input frequencies from 50 to 75 GHz through a WR-15 input and 75 to 110 GHz through a WR-10 input.

The WR-15 path produces IF output frequencies from 9 to 25.75 GHz, while the WR-10 path provides IF output coverage from 3.5 to 26 GHz. This broad IF range supports integration with microwave receivers, digitizers, spectrum analyzers, signal-processing systems, and test equipment.

The downconverter provides a minimum RF-to-IF gain of approximately +18 dB, with typical noise figures of 6.5 dB for WR-15 and 7.0 dB for WR-10. A typical band-switching time of approximately 3 microseconds enables rapid transitions between the two RF input bands.

Designed for broadband millimeter-wave reception, the unit offers low LO-to-RF leakage, controlled internal spurious performance, and separate WR-15 and WR-10 RF inputs. A 2.92 mm female connector provides the IF output, while a female SMA connector accepts the external reference signal.

The converter is housed in a compact 6061-T6 aluminum enclosure measuring approximately 5.3 × 6.1 × 1.3 inches. Nickel, iridite, and gold finish options are available. Power and control connections are provided through an 18-pin Molex connector with a 2 mm pitch.

Typical applications include V-band, E-band, and W-band receivers; electronic warfare; signal intelligence; radar testing; spectrum monitoring; millimeter-wave communications; laboratory research; and broadband test and measurement systems.

Watch our informational video to learn more about this product family, including its key features, operating principles, and common applications.

*Actual product may be different from the image shown per customers specifcations
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

Key Specifications

Overall RF Frequency Range: 50–110 GHz
WR-15 RF Range: 50–75 GHz
WR-10 RF Range: 75–110 GHz
WR-15 IF Range: 9–25.75 GHz
WR-10 IF Range: 3.5–26 GHz
RF-to-IF Gain: +18 dB minimum
WR-15 Noise Figure: 6.5 dB typical
WR-10 Noise Figure: 7.0 dB typical
Band-Switching Time: 3 µs typical; 10 µs maximum
RF Input VSWR: 2.1:1 typical
IF Output VSWR: 2.0:1 typical
LO-to-RF Leakage: Less than −75 dB typical
IF Output Connector: 2.92 mm female
Reference Input: SMA female, 125 MHz
Power and Control: 18-pin Molex connector, 2 mm pitch


Features

  • Broadband 50–110 GHz RF coverage
  • Dual WR-15 and WR-10 RF input architecture
  • 50–75 GHz coverage through the WR-15 input
  • 75–110 GHz coverage through the WR-10 input
  • IF output coverage extending to 26 GHz
  • Minimum +18 dB RF-to-IF gain
  • Typical noise figure as low as 6.5 dB
  • Typical 3 µs band-switching time
  • Low LO-to-RF leakage
  • Controlled internal spurious performance
  • 2.92 mm female IF output
  • Female SMA reference input
  • 125 MHz external reference
  • Compact 6061-T6 aluminum enclosure
  • Nickel, iridite, or gold finish options
  • Integrated power and control connector
  • Suitable for broadband millimeter-wave receiver systems

Phase, Spurs, and Linearity

Phase Noise: Low phase noise suitable for wideband modulation

Spurious Performance: Low spurious content across tuning range

Harmonic Suppression: Designed to minimize harmonic and image products

Linearity: Supports broadband and multi-carrier operation


Control and Configuration

Frequency Control: Digital tuning via Ethernet

Gain Control: Digital gain control and attenuation

Control Interface: RJ45 Ethernet with graphical user interface (GUI)

Remote Operation: Supported for configuration and monitoring


Test and Monitoring

Built-In Monitoring: Software-based frequency and gain readback

External Test Ports: Not required for normal operation


Mechanical and Power

RF Output Interface: Coaxial (model-dependent configuration)

Packaging: Commercial rack-mount or ruggedized enclosure options

AC Input Voltage: 100 – 240 VAC, 50/60 Hz

Operating Temperature: Commercial operating range
