Ku Band Downconverter with integrated Omni Antenna

Model: 970 Series Downconverter | 14-16 GHz

Description

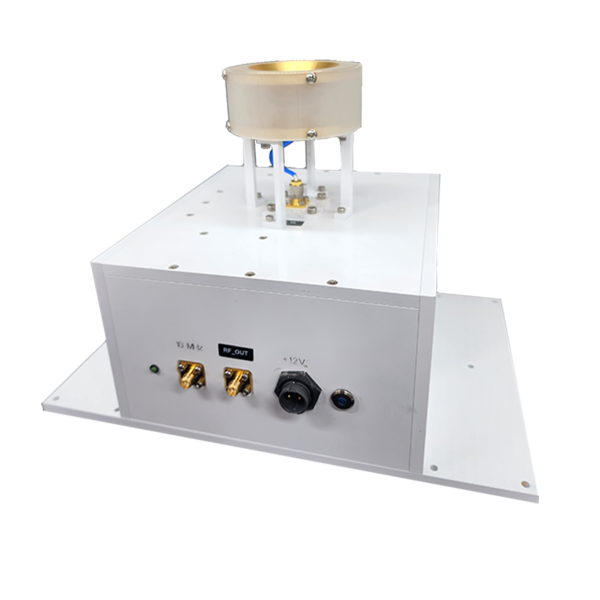

Mi-Wave’s 14–16 GHz downconverter with an integrated omnidirectional antenna provides a compact, self-contained solution for receiving and converting microwave signals into a lower intermediate-frequency output. The system combines an omnidirectional antenna, an internal local oscillator, frequency-conversion electronics, and signal amplification within a single integrated assembly.

The unit accepts RF input signals across 14 to 16 GHz and converts them to an IF output frequency range of 3 to 5 GHz. An internal 11 GHz local oscillator performs the frequency translation, eliminating the need for a separate external LO source during normal operation.

With approximately 45 dB of conversion gain, the downconverter provides a strong IF output for connection to receivers, signal-processing equipment, spectrum analyzers, and other 50-ohm microwave systems. The unit delivers a typical output P1dB of 12 dBm and typical saturated output power of 17 dBm.

A 10 MHz external reference input allows the internal frequency source to be synchronized with other system equipment. The reference input accepts power levels from +3 to +7 dBm, with +5 dBm typical.

The system is housed in a rugged 6061-T6 aluminum enclosure measuring approximately 10.395 × 7 × 4 inches. It operates from a typical +12 VDC supply and includes an SMA-female IF output and a 2.92 mm female RF interface.

Typical applications include microwave signal monitoring, telemetry reception, radar support systems, spectrum surveillance, test and measurement, communication receivers, direction-independent signal collection, and laboratory research.

Watch our informational video to learn more about this product family, including its key features, operating principles, and common applications.

*Actual product may be different from the image shown per customers specifcations
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

Key Specifications

RF Input Frequency: 14–16 GHz
IF Output Frequency: 3–5 GHz
Internal LO Frequency: 11 GHz
Conversion Gain: 45 dB typical
Output P1dB: 12 dBm typical
Saturated Output Power: 17 dBm typical
Reference Frequency: 10 MHz
Reference Input Power: +3 to +7 dBm; +5 dBm typical
Supply Voltage: +12 VDC typical
Antenna: Integrated omnidirectional antenna
IF Output Connector: SMA female
RF Connector: 2.92 mm female (K)


Features

  • Integrated omnidirectional receiving antenna
  • Wide 14–16 GHz RF input range
  • 3–5 GHz IF output frequency range
  • Internal 11 GHz local oscillator
  • Typical 45 dB conversion gain
  • Typical 12 dBm output P1dB
  • Typical 17 dBm saturated output power
  • External 10 MHz reference input
  • Reference input range of +3 to +7 dBm
  • Typical +12 VDC operation
  • SMA-female IF output
  • 2.92 mm female RF interface
  • Rugged 6061-T6 aluminum housing
  • Integrated antenna and frequency-conversion assembly
  • Suitable for fixed, mobile, laboratory, and field installations

Phase, Spurs, and Linearity

Phase Noise: Low phase noise suitable for wideband modulation

Spurious Performance: Low spurious content across tuning range

Harmonic Suppression: Designed to minimize harmonic and image products

Linearity: Supports broadband and multi-carrier operation


Control and Configuration

Frequency Control: Digital tuning via Ethernet

Gain Control: Digital gain control and attenuation

Control Interface: RJ45 Ethernet with graphical user interface (GUI)

Remote Operation: Supported for configuration and monitoring


Test and Monitoring

Built-In Monitoring: Software-based frequency and gain readback

External Test Ports: Not required for normal operation


Mechanical and Power

RF Output Interface: Coaxial (model-dependent configuration)

Packaging: Commercial rack-mount or ruggedized enclosure options

AC Input Voltage: 100 – 240 VAC, 50/60 Hz

Operating Temperature: Commercial operating range
