RF Transmitter, Receiver and Transceiver FAQ

These quick answers cover RF transmitters, RF receivers, and RF transceivers used in satellite communications (SatCom), point-to-point microwave links, radar, telemetry, electronic warfare, RF test and measurement, and 5G/mmWave systems.

Quick Answers

What does an RF transmitter do?

An RF transmitter prepares a signal for wireless or guided transmission by performing functions such as frequency conversion, filtering, gain control, and power amplification. It produces an RF or microwave output that can be delivered to an antenna, waveguide system, cable, or other RF component.

What does an RF receiver do?

An RF receiver captures an incoming RF, microwave, or millimeter-wave signal and prepares it for processing. The receiver may include low-noise amplification, filtering, gain control, and downconversion to an intermediate frequency or baseband output.

What does an RF transceiver do?

An RF transceiver combines transmitter and receiver functions within a single integrated platform. It can transmit and receive signals through separate RF connections or a shared antenna interface, depending on the system architecture.

What is the difference between a transmitter and an upconverter?

An upconverter primarily translates a lower-frequency input signal to a higher RF frequency. A complete RF transmitter may include the upconverter along with filtering, gain control, power amplification, monitoring, and control functions.

What is the difference between a receiver and a downconverter?

A downconverter translates a high-frequency RF signal to a lower intermediate frequency. A complete RF receiver may also include an LNA, RF and IF filtering, gain control, signal monitoring, and other components required to detect and process incoming signals.

What is the difference between a transceiver and separate transmitter and receiver units?

A transceiver combines transmit and receive functions into one enclosure, which can reduce size, weight, cabling, and integration complexity. Separate transmitter and receiver units may provide greater flexibility, isolation, serviceability, or independent signal-path control.

What frequency bands can RF transmitters, receivers, and transceivers support?

Systems can be designed for microwave and millimeter-wave bands, including X-Band, Ku-Band, Ka-Band, Q-Band, V-Band, W-Band, and frequencies beyond 110 GHz. Custom frequency ranges may also be available for application-specific requirements.

More Technical Questions

What input signals can an RF transmitter accept?

Depending on its design, an RF transmitter can accept baseband, intermediate-frequency, L-Band, or direct RF inputs. Common IFs include 70 MHz, 140 MHz, and L-Band frequencies such as 950–2150 MHz.

What output signals can an RF receiver provide?

An RF receiver may provide baseband, IF, L-Band, or another lower-frequency RF output. The appropriate output depends on the modem, digitizer, signal processor, test equipment, or other downstream system.

Why is output power important in an RF transmitter?

Transmitter output power helps determine whether the transmitted signal can overcome path loss and reach the intended receiver at a usable level. Required output power depends on distance, frequency, antenna gain, atmospheric loss, modulation, and the overall link budget.

Why is noise figure important in an RF receiver?

Noise figure indicates how much noise a receiver adds to an incoming signal. A lower noise figure improves receiver sensitivity and helps the system detect weak signals, particularly in satellite communications, radar, radio astronomy, and remote-sensing applications.

What is receiver sensitivity?

Receiver sensitivity is the minimum input-signal level that a receiver can detect while meeting a specified performance requirement. It is influenced by noise figure, bandwidth, gain, modulation, required signal-to-noise ratio, and receiver architecture.

What does low phase noise mean for a transmitter or receiver?

Low phase noise indicates minimal short-term frequency fluctuations from the local oscillator or synthesizer. In transmitters, it helps produce cleaner output spectra and improved modulation quality. In receivers, it supports better signal detection, demodulation, and separation of closely spaced signals.

What is LO leakage and why does it matter?

LO leakage is unwanted local-oscillator energy that appears at the RF, IF, or output ports. Low LO leakage helps reduce spurious emissions, self-mixing effects, receiver interference, and unwanted signals within nearby channels.

Why is image rejection important in an RF receiver?

An image frequency is an unwanted RF signal that can convert to the same IF as the desired signal. High image rejection reduces this interference, improving receiver sensitivity, selectivity, and overall signal integrity.

Why is a 10 MHz reference input used?

A 10 MHz reference can lock the transmitter, receiver, or transceiver local oscillator to a stable external source. This improves frequency accuracy and allows multiple channels, radios, converters, and test systems to operate from a synchronized reference.

What is gain, and how does gain control help?

Gain is the increase in signal level through a transmitter or receiver signal path. Adjustable gain or digital attenuation provides repeatable level control, helps prevent compression or overload, improves dynamic range, and simplifies system calibration.

What does AGC do in an RF receiver?

Automatic Gain Control adjusts receiver gain or attenuation as the incoming signal level changes. This helps maintain a consistent output level, prevents downstream overload, and supports reliable operation across a wide range of input powers.

What is receiver dynamic range?

Receiver dynamic range is the range between the weakest detectable signal and the strongest signal the receiver can process without unacceptable distortion or compression. Greater dynamic range allows the receiver to operate effectively in environments containing both weak and strong signals.

What is instantaneous bandwidth?

Instantaneous bandwidth is the frequency span a transmitter, receiver, or transceiver can process at one tuning setting without retuning. Wider instantaneous bandwidth supports broadband modulation, multi-carrier signals, wideband radar waveforms, and high-data-rate communications.

What is the difference between operating bandwidth and instantaneous bandwidth?

Operating bandwidth is the complete frequency range across which a unit can be tuned. Instantaneous bandwidth is the portion of that range the system can process at one time. A system may cover a wide operating range while processing a smaller instantaneous bandwidth at each tuning setting.

Can RF transceivers transmit and receive simultaneously?

Some transceivers support simultaneous transmit and receive operation, while others alternate between modes using time-division duplexing or RF switching. The supported method depends on the transceiver architecture, isolation requirements, antenna configuration, and application.

Why is transmit-to-receive isolation important?

Transmit-to-receive isolation prevents high-power transmitter energy from entering and potentially overloading or damaging the sensitive receiver path. Isolation may be provided through separate antennas, filters, diplexers, circulators, switches, or physical separation.

Are multichannel configurations available?

Multichannel transmitters, receivers, and transceivers can support multiple independent or synchronized signal paths in one platform. These configurations are useful for phased arrays, MIMO systems, multi-carrier SatCom terminals, radar systems, and automated test equipment.

Can RF transmitters, receivers, and transceivers be remotely controlled?

Depending on the configuration, systems can include Ethernet, RJ45, USB, serial, or other digital interfaces. Remote controls may include frequency selection, gain adjustment, attenuation, operating-mode control, status monitoring, and stored configurations.

Where are RF transmitters, receivers, and transceivers used?

These systems are used in satellite terminals and gateways, point-to-point microwave links, radar, telemetry, electronic warfare, meteorology, remote sensing, radio astronomy, 5G/mmWave development, and RF test and measurement platforms.

Glossary of RF Frequency Conversion Terms

---

Core Frequency Conversion Definitions

Upconversion
The process of translating a lower-frequency signal, typically intermediate frequency (IF) or L-band, to a higher RF, microwave, or millimeter-wave frequency using a mixer and local oscillator (LO).
Upconversion is used in transmit chains for satellite communication, radar systems, telemetry links, point-to-point radio, and wireless infrastructure, and is commonly followed by RF power amplification.

Downconversion
The process of translating a high-frequency RF signal down to a lower intermediate frequency for easier amplification, filtering, digitization, and demodulation.
Downconversion is fundamental in receiver architectures, particularly where low noise figure and high dynamic range are required.

Frequency Converter
A general RF component that performs upconversion, downconversion, or both, enabling frequency translation between IF, RF, and millimeter-wave bands. Frequency converters form the core of modern RF signal chains in communications, sensing, and test systems.

Intermediate Frequency (IF)
A fixed or standardized frequency used between RF and baseband stages to simplify filtering, amplification, and signal processing.
Common IFs include 70 MHz, 140 MHz, and L-band (950–2150 MHz).

IF Bandwidth
The usable frequency range around the intermediate frequency that can be processed without distortion or degradation. IF bandwidth determines supported modulation schemes, channel density, and overall system flexibility.

Frequency Inversion
A condition where the spectral order of a signal is reversed during the frequency conversion process. Frequency inversion must be accounted for in system design to ensure proper demodulation and signal interpretation.

RF Frequency
The operating radio frequency after conversion, typically ranging from X-band through millimeter-wave bands such as Ku-, Ka-, Q-, and V-band.

Channel Spacing
The frequency separation between adjacent carriers or channels. Proper channel spacing is critical in multi-carrier and multi-channel systems to prevent adjacent-channel interference.

---

Converter Types, Channels, and Packaging

Converter Type
Defines the frequency conversion approach and physical implementation.

Synthesized Converter
Uses a digitally controlled synthesizer to generate the local oscillator. Synthesized converters provide fine tuning resolution, high frequency accuracy, repeatability, and agile frequency selection, making them well suited for multi-carrier and frequency-agile systems.

Block Converter
A self-contained unit that integrates frequency conversion, filtering, amplification, and LO generation. Commonly implemented as Block Upconverters (BUCs) and Low-Noise Block Downconverters (LNBs) for satellite and microwave systems.

Number of Channels
The number of independent frequency conversion paths within a single unit.

Single-Channel
One conversion path for dedicated or fixed links.

Multi-Channel (1, 2, 3, or 4 Channels)
Multiple parallel conversion paths used in multi-carrier systems, phased arrays, MIMO architectures, beamforming platforms, and spectrum monitoring systems.

Multichannel Operation
A configuration where multiple independent frequency conversion paths operate in parallel within a single unit, often sharing reference and LO resources for synchronization.

Packaging
The mechanical form factor and intended operating environment.

Commercial Rack
Rack-mount enclosures designed for indoor laboratories, test benches, data centers, and satellite ground stations.

Environmental or Ruggedized
Sealed enclosures designed for outdoor, rooftop, mobile, airborne, or harsh environments, with extended temperature operation.

---

Local Oscillator and Mixing Terms

Local Oscillator (LO)
A stable signal source used in a mixer to translate frequencies. LO quality directly impacts phase noise, spurious performance, image rejection, and overall system stability.

Internal Reference Oscillator
A built-in frequency reference used to stabilize the LO when an external reference is not provided. Internal references offer convenience but typically lower long-term accuracy than external references.

Reference Input
An external frequency reference, commonly 10 MHz, used to lock the LO for improved stability, phase coherence, and synchronization across multiple systems.

Phase Coherence
The ability of multiple signals or channels to maintain a fixed phase relationship. Phase coherence is critical in multi-channel converters, phased arrays, beamforming systems, and coherent radar architectures.

Channel-to-Channel Phase Matching
A measure of phase alignment consistency between channels in a multi-channel converter. Tight phase matching is essential for polarization integrity, beam steering, and array performance.

Mixer
A nonlinear RF component that combines the input signal and LO to produce sum and difference frequencies, enabling frequency conversion.

LO Leakage
Unwanted LO energy that appears at the RF or IF ports. Low LO leakage is critical for minimizing spurious emissions and system interference.

Image Frequency
An unwanted frequency that also converts to the same IF during mixing and must be suppressed through filtering or image-reject architectures.

Image Rejection
The ability of a frequency converter to suppress unwanted image frequencies. High image rejection improves receiver sensitivity, spectral purity, and dynamic range.

---

Stability and Signal Quality Metrics

Phase Noise
Short-term frequency fluctuations of the LO or output signal, expressed in dBc/Hz. Low phase noise is essential for high-order modulation, low EVM, radar resolution, and clean spectra.

Frequency Stability
The ability of a converter or LO to maintain accurate frequency over time, temperature, and environmental changes, often specified in ppm or ppb.

Spurious Responses (Spurs)
Unwanted discrete frequency components generated by mixing products, harmonics, and nonlinearities, which must be minimized in dense RF environments.

---

Gain, Linearity, and Dynamic Range

Conversion Gain
The gain or loss introduced by the frequency conversion process, specified in dB.

Gain Control
An adjustable feature that allows optimization of signal levels to prevent compression and improve system dynamic range.

Digital Attenuation
Digitally controlled attenuation that enables precise, repeatable gain adjustment and remote system control.

Automatic Gain Control (AGC)
A control function that automatically adjusts gain or attenuation to maintain a consistent output level despite variations in input signal strength.

Input Power Range
The acceptable signal level range at the converter input over which performance specifications are maintained. Exceeding this range can result in compression or distortion.

Output Power (P1dB)
The output power level at which gain compression reaches 1 dB, defining the linear operating range of the converter.

Third-Order Intercept Point (IP3 / OIP3)
A measure of linearity indicating resistance to intermodulation distortion. Higher IP3 values improve performance in multi-carrier and high-dynamic-range systems.

Noise Figure (NF)
A measure of how much noise a component adds to the signal. Low noise figure is especially critical in downconverters, LNBs, and receiver front ends.

Linearity
The ability of the converter to process signals without distortion. High linearity reduces intermodulation products and spurious emissions.

Dynamic Range
The range between the smallest and largest signal levels that can be processed without excessive noise or distortion.

---

Bandwidth and Channel Characteristics

Bandwidth
The frequency range over which the converter can operate without performance degradation.

Instantaneous Bandwidth
The frequency range over which the converter can operate at a given tuning setting without retuning, supporting wideband and multi-carrier signals.

Tuning Step Size
The minimum frequency increment by which the LO or output frequency can be adjusted.

---

Hardware and System Architectures

Block Upconverter (BUC)
A transmit module that upconverts IF or L-band signals to microwave or millimeter-wave frequencies for satellite uplinks and point-to-point links, often integrating RF power amplification.

Low-Noise Block Downconverter (LNB)
A receive module that amplifies and downconverts high-frequency RF signals to IF or L-band with minimal added noise.

Heterodyne Architecture
A frequency conversion approach using one or more mixing stages and intermediate frequencies to improve selectivity and image rejection.

Direct Conversion
A receiver architecture that converts RF directly to baseband without an intermediate frequency stage.

Frequency Plan
The defined relationship between RF, IF, and LO frequencies across a system. Proper frequency planning minimizes spurs, images, and interference.

Multi-Carrier Operation
The ability to process multiple carriers simultaneously within the same frequency band.

Beamforming Support
Architectural capability that enables phase- and amplitude-controlled signal paths used in electronically steered antenna arrays.

---

Measurement and Performance Parameters

S-Parameters
Scattering parameters used to characterize RF performance. For converters, S21 represents conversion gain or loss, while S11 and S22 represent input and output matching.

Return Loss (S11 / S22)
A measure of impedance matching at the input or output ports. Higher return loss indicates better matching and lower reflections.

VSWR (Voltage Standing Wave Ratio)
A ratio derived from return loss that indicates impedance matching quality. Lower VSWR values correspond to improved power transfer.

Group Delay
The frequency-dependent time delay introduced by conversion and filtering stages. Excessive variation can distort wideband or digitally modulated signals.

---

Mechanical, Interface, and Environmental Terms

Waveguide Interface
A high-frequency RF interface used at millimeter-wave bands to minimize loss and maintain signal integrity. Common examples include WR-28, WR-22, WR-15, and WR-10.

Flange Standard
Defines the mechanical mating interface of a waveguide connection, such as UG-383, UG-599, or UG-387, ensuring compatibility between RF components.

Control Interface
The electrical interface used for configuration and monitoring, such as Ethernet, RS-232, RS-485, USB, or discrete logic control.

Operating Temperature Range
The temperature range over which RF performance specifications are guaranteed.

Storage Temperature Range
The allowable temperature range when the unit is not powered.

MTBF (Mean Time Between Failures)
A statistical measure of reliability indicating expected operational lifetime under normal conditions.

---

Application and System-Level Terms

Receiver Front-End Protection
The use of frequency converters and filtering to prevent strong out-of-band signals from overloading LNAs and mixers.

Spectral Purity
The cleanliness of the output spectrum, including low phase noise, low spurious content, and strong image suppression.

Interference Mitigation
Reducing the impact of adjacent-channel signals, harmonics, and unwanted emissions through proper frequency conversion and filtering.

Synchronization
The alignment of frequency and phase across multiple converters or channels, often achieved using a shared reference source.

Regulatory Compliance
Ensuring frequency-converted signals meet spectral mask, emission, and interference requirements imposed by regulatory authorities.

Model	Band	Description	Frequency Range	Converter Type	# of Channels	Packaging	User Preferences	LINK
980-2/18/10/smaF	C-Band, S-Band, X-Band	Transmitter	2–18 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
14–16 GHz Receiver with integrated Omni Antenna	Ku-Band	Receiver	14–16 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970980-25/27/14/383AC	Ka-Band	Transceiver	25–27 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
980A-34.5/381 S	Ka-Band	Transmitter	26.5–40 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
27–29 GHz Receiver with integrated Omni Antenna	Ka-Band	Receiver	27–29 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970980A-35.61 /KF	Ka-Band	Transceiver	35.61 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970B-37.5/42.5/383	Q-Band	Receiver	37.5–42.5 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970B-38.25/383S	Q-Band	Receiver	38.0–38.5 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970A-39.65/599	Ka-Band	Receiver	39.4–39.9 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
980B-43.25/383S	Q-Band	Transmitter	42.0–43.5 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970980-43.5/50/14/383AC	U-Band	Transceiver	43.5–50 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
980U-45.5/51.4/10/1.85mmF/387	U-Band	Receiver	45.5–51.4 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970U-47.2/51 .4/1.85mmF	U-Band	Receiver	47.2–51.4 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970980U B-47.2/51 .4/1.85mmF-PLO	U-Band	Transceiver	47.2–51.4 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
980U/47.5/52.5/383	U-Band	Transmitter	47.5–52.5 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
50–110 GHz Broadband Receiver	Wideband	Receiver	50–110 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970E-60/90-12/10F	E-Band	Receiver	60–90 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View

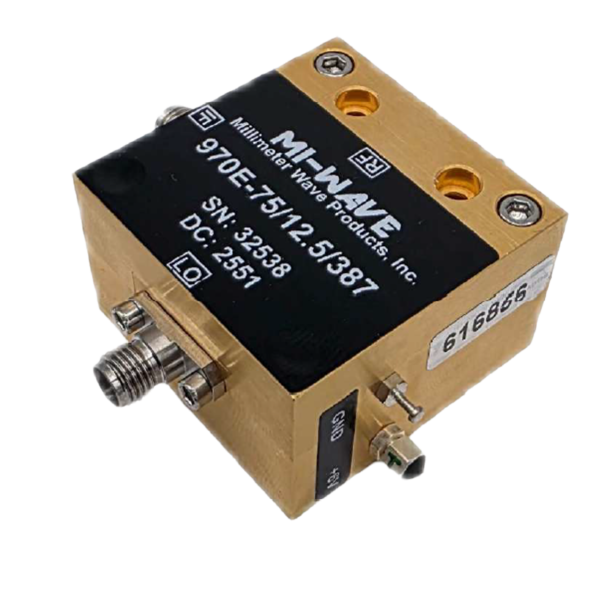

970E-75/12.5/387	E-Band	Receiver	60–90 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970V-62.5/385	V-Band	Receiver	70–65 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970E-70.4/86.4/387	E-Band	Receiver	70.4–86.4 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
980E-75/12.5/387	E-Band	Transmitter	71–86 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
970980W-20/387S	W-Band	Transceiver	95–100 GHz	Synthesized | Block	1, 2, 3, 4	Commercial Rack Environmental	Bandwidth | Internal/External Ref | Digital Attenuation | AGC	View
