RF Upconverters and RF Downconverters from X-Band to W-Band and Beyond
Mi-Wave designs and manufactures high-performance frequency converters for precision RF signal conversion across X-Band (8–12 GHz), Ku-Band (12–18 GHz), Ka-Band (26–40 GHz), Q-Band (33–50 GHz), V-Band (40–75 GHz), and W-Band (75–110 GHz), with solutions extending beyond W-Band. Our portfolio includes RF frequency converters, frequency upconverters, frequency downconverters, microwave upconverters, microwave downconverters, and custom built RF frequency converters for radar, telemetry, 5G and microwave links, test and measurement, and satellite communication systems.
Designed through expert custom RF design, Mi-Wave frequency products emphasize stable local oscillator (LO) frequency planning, precise gain control, and high signal integrity. Available as millimeter wave frequency converters, wideband converters, Block Upconverters (BUCs), low noise upconverters, low noise downconverters, multi-channel RF converters, and integrated RF modules and subsystems, these solutions deliver low phase noise, high stability frequency conversion in both commercial and ruggedized RF converter units, forming complete RF engineering solutions from X-Band to W-Band and beyond.

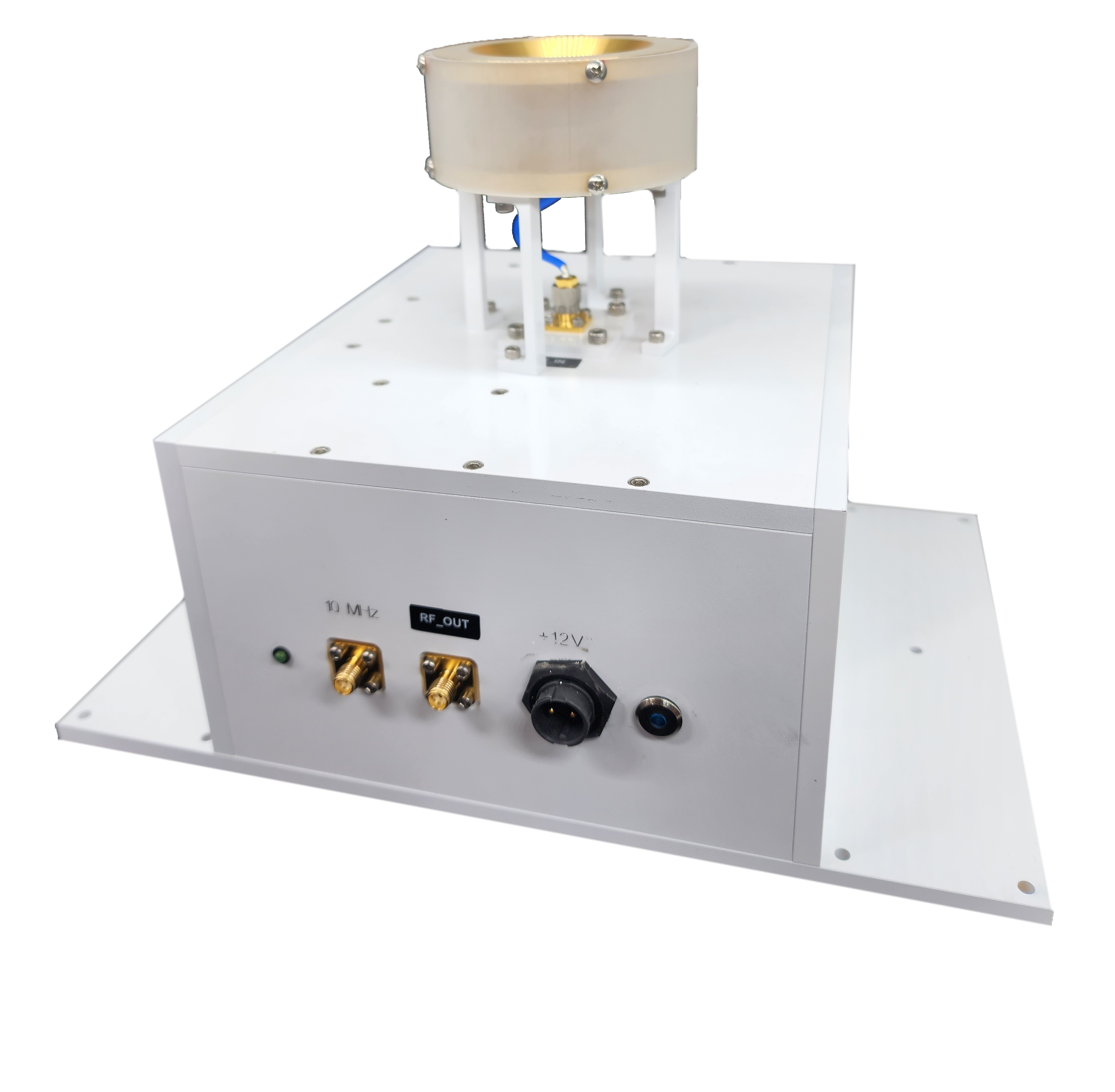

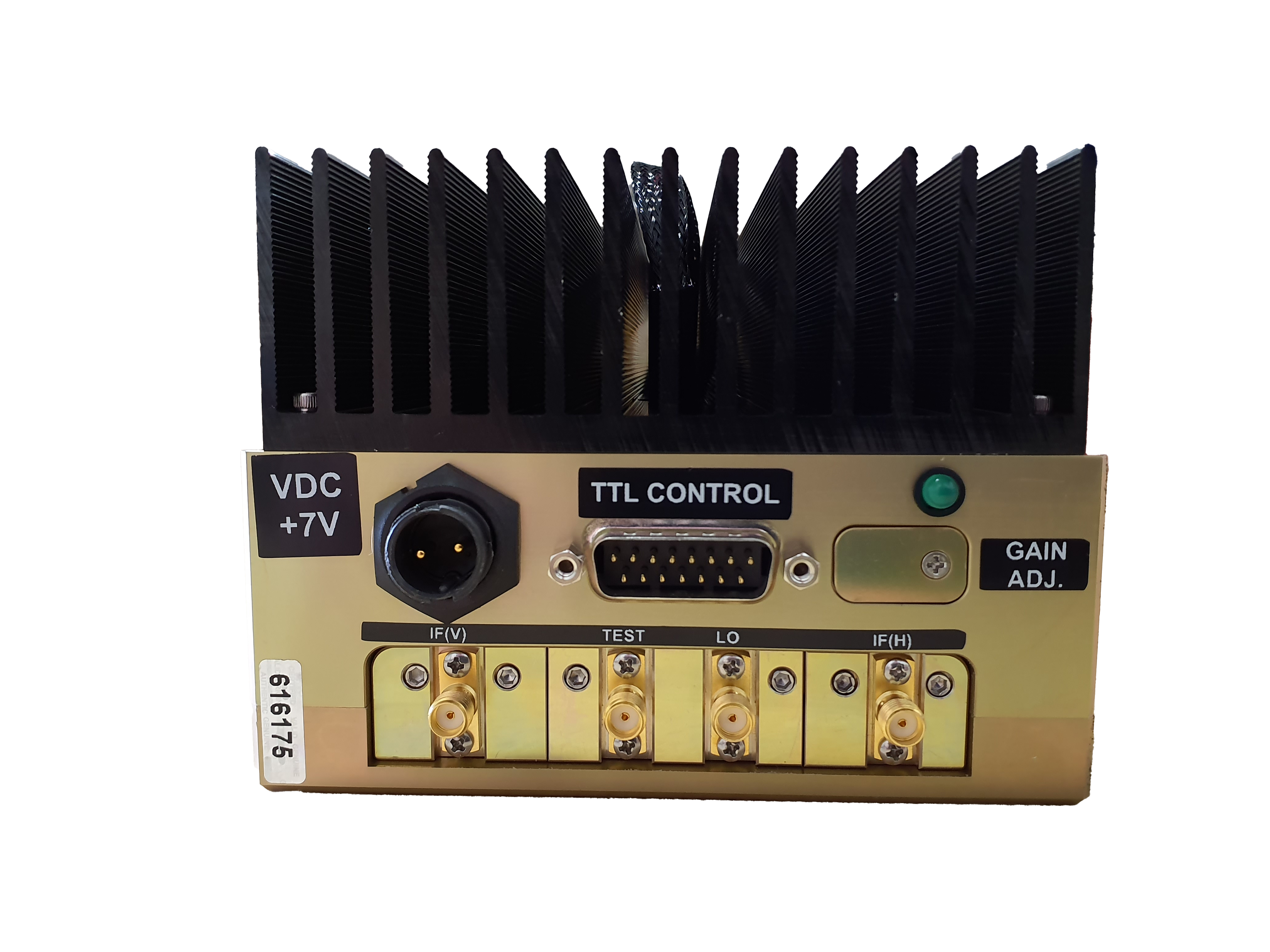

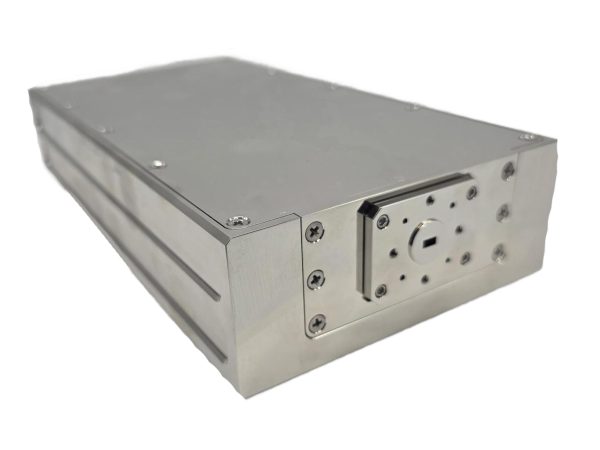

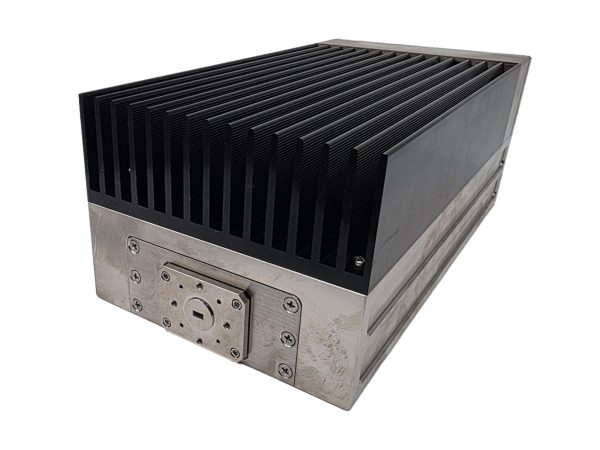

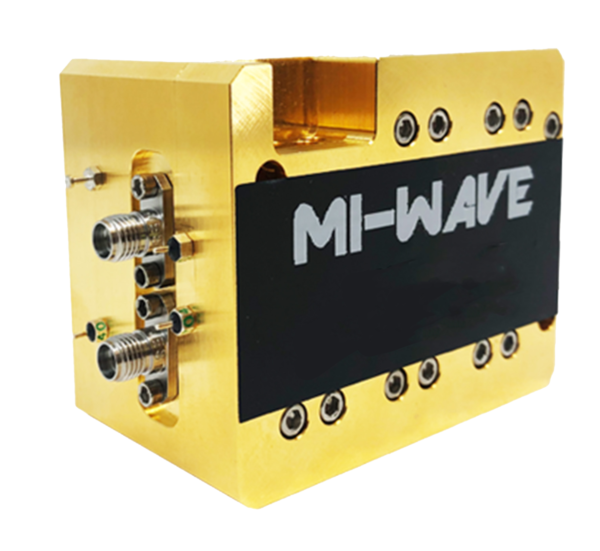

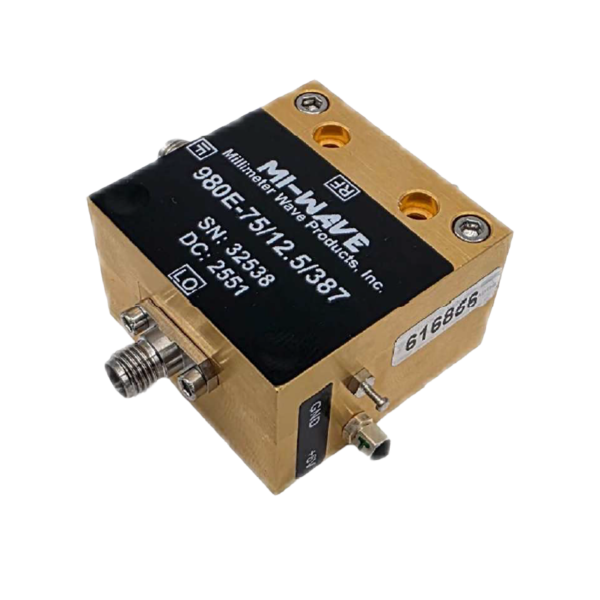

| Model Number | Band | Description | Frequency (GHz) | Converter Type | # of Channels | Packaging | User Preferences | LINK |
|---|---|---|---|---|---|---|---|---|
| 980-10/385S | C, S, X | Upconverter | 2-18 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 980A-34.5/381 S | Ka | Upconverter | 26.5-40 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980A-35.61 /KF | Ka | Up-Downconverter | 35.61 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970B-38.25/383S | Q | Downconverter | 38.0-38.5 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970A-39.65/599 | Ka | Downconverter | 39.4-39.9 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 980B-43.25/383S | Q | Upconverter | 42.0-43.5 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970U-47.2/51 .4/1.85mmF | U | Downconverter | 47.2-51.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980U B-47.2/51 .4/1.85mmF-PLO | U | Up-Downconverter | 47.2-51.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970V-62.5/385 | V | Downconverter | 70-65 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970E-70.4/86.4/387 | E | Downconverter | 70.4-86.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |

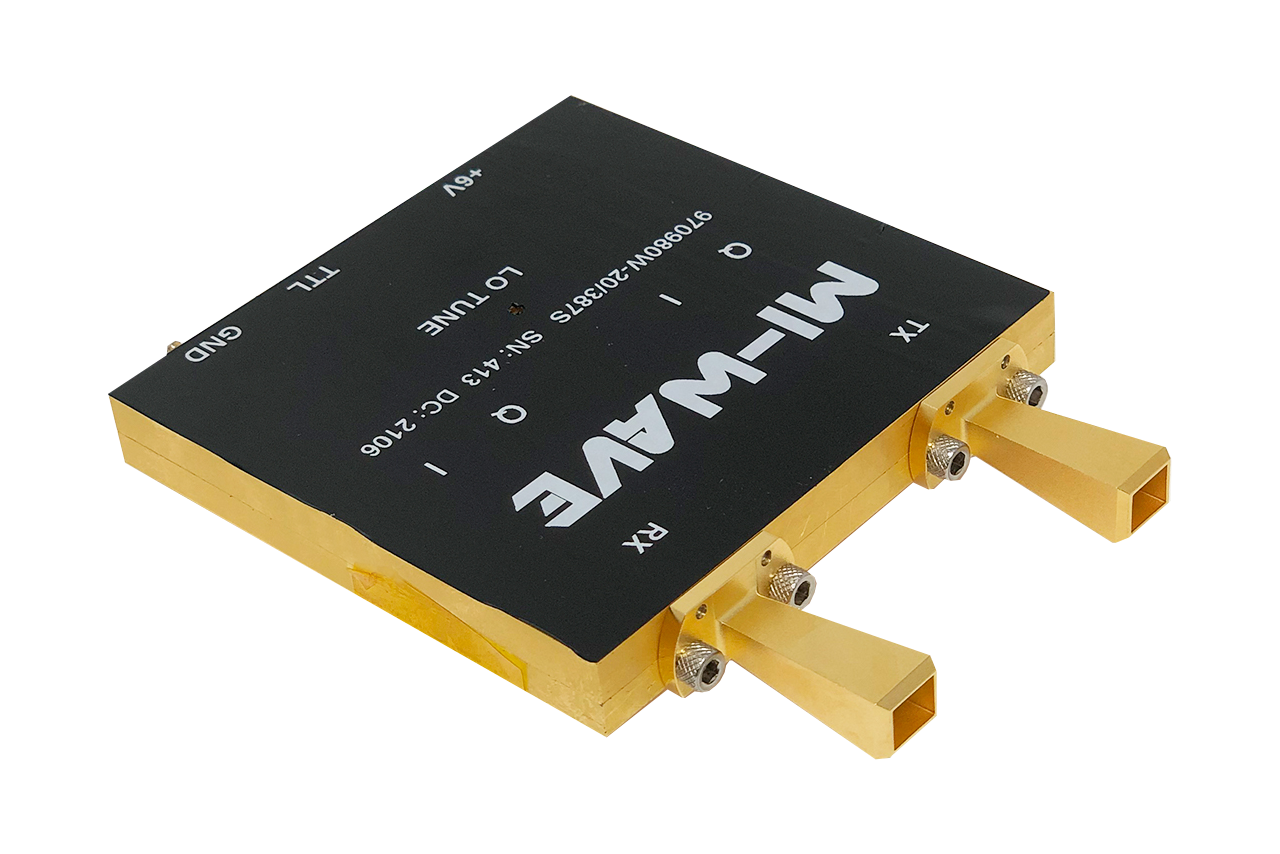

| 970980W-20/387S | W | Up-Downconverter | 95-100 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC |
RF Frequency Conversion Calculator (GHz)
Calculate RF and image frequencies for RF upconverters and downconverters using GHz units.
Formulas
- High-side LO: RF = LO + IF, Image = LO − IF
- Low-side LO: RF = LO − IF, Image = LO + IF
Image Frequency Calculator (GHz)
Calculate the image frequency for a mixer/downconverter using LO and IF in GHz.
How it works
- Desired RF: LO ± IF (depends on side)
- Image RF: LO ∓ IF (opposite side from desired)
- Separation between desired and image: 2 × IF
Conversion Gain & Output Power Calculator (dBm)
Calculate output power for RF upconverters, downconverters, and frequency conversion chains using dBm and dB.
Formula
- Pout (dBm) = Pin + Conversion Gain + Amplifier Gain − Attenuation
- Net Gain (dB) = Conversion Gain + Amplifier Gain − Attenuation
Cascaded Noise Figure Calculator (Friis)
Calculate total receiver noise figure and total gain for LNA + downconverter + IF stages using Friis.
Formulas (Friis)
- Convert NF(dB) to noise factor: F = 10^(NF/10)
- Convert Gain(dB) to linear: G = 10^(Gain/10)
- Total noise factor: Ftotal = F1 + (F2−1)/G1 + (F3−1)/(G1·G2) + (F4−1)/(G1·G2·G3)
- Total NF(dB) = 10·log10(Ftotal)
- Equivalent noise temperature: Te = (Ftotal−1)·T0, with T0 = 290 K
Frequency Stability Calculator (ppm/ppb → Hz)
Convert oscillator or LO stability (ppm/ppb) into frequency error at a given carrier frequency.
Formula
- Error (Hz) = Frequency (Hz) × Stability
- ppm = 1×10-6, ppb = 1×10-9
dBm ↔ Watts Converter
Convert RF power between dBm, Watts, milliWatts, and dBW for amplifiers, BUCs, and RF chains.
Formulas
- W = 10^((dBm − 30)/10)
- dBm = 10·log10(W) + 30
- dBW = dBm − 30
Free-Space Path Loss (FSPL) Calculator
Estimate free-space path loss for point-to-point links, SatCom, telemetry, and RF system planning.
Formula
- FSPL(dB) = 92.45 + 20·log10(fGHz) + 20·log10(dKm)
- Valid for free-space propagation (no atmospheric/terrain losses included)
Key Features & Performance Benefits
Low Phase Noise
Ultra-low phase noise local oscillators preserve signal integrity during frequency translation. This is critical for high-order modulation schemes, narrowband carriers, and systems where EVM, BER, and spectral purity are tightly specified.
Excellent Frequency Stability
High-stability reference options support long-term accuracy and repeatability across temperature and environmental changes. Ideal for satellite ground equipment, precision measurement systems, and synchronized multi-channel architectures.
Superfine Tuning Steps
Fine frequency resolution allows precise channel placement and easy alignment within crowded spectra. This capability is especially valuable for lab testing, interference mitigation, and dynamic frequency planning.
Multichannel Options Available
Multi-channel upconversion and downconversion configurations reduce system complexity and footprint while supporting parallel signal paths. Well suited for MIMO systems, phased arrays, and multi-carrier SatCom terminals.
Gain Control Options Available
Integrated gain control enables level optimization across varying input powers and link conditions. This helps prevent compression, improves dynamic range, and simplifies system calibration.
Low LO Leakage
Careful RF and LO isolation minimizes spurious emissions and unwanted leakage, improving spectral compliance and reducing interference in dense RF environments.
High Image Rejection
Advanced filtering and conversion techniques deliver strong image suppression, ensuring clean output spectra and improved receiver sensitivity.
Small, Compact Packages
Space-efficient designs support tight installations in racks, shelters, airborne platforms, and outdoor enclosures without sacrificing performance.
Applications for RF Upconverters, RF Downconverters & RF Signal Conversion Solutions
RF upconverters, RF downconverters, LNBs, BUCs, and frequency conversion solutions are designed for integration into a wide range of RF, microwave, and millimeter-wave systems where accurate frequency translation, spectral purity, and long-term stability are critical. These products are widely deployed across commercial, industrial, scientific, and defense-grade platforms, supporting fixed, mobile, airborne, and outdoor installations.
Satellite Communication
RF signal conversion products are core building blocks in satellite uplink and downlink architectures, enabling reliable translation between IF and high-frequency RF bands.
Typical satellite communication applications include:
-
Ground-based satellite terminals and gateway stations
-
Teleports and network operation centers
-
VSAT and transportable SatCom terminals
-
Ku-, Ka-, Q-, and V-band uplink and downlink systems
-
Integration with BUCs, LNBs, LNAs, and modems
-
Payload testing and frequency planning support
These solutions help maintain clean spectra, reduce phase noise, and ensure stable links in crowded satellite frequency allocations.
Point-to-Point Radio Communication
RF upconverters and downconverters are commonly used in high-capacity point-to-point radio links for telecom, private networks, and critical infrastructure.
Common use cases include:
-
Microwave and millimeter-wave backhaul links
-
Fixed wireless access and private radio networks
-
High-throughput data transport between sites
-
Urban and rural point-to-point connectivity
-
Spectrum-efficient, narrow-channel radio systems
Precise frequency translation and high image rejection help maximize link reliability and spectral efficiency.
Radar Communication and Radar Systems
In radar communication and sensing platforms, frequency converters play a critical role in signal generation and receiver processing.
Typical radar applications include:
-
Surveillance and tracking radar systems
-
Weather and meteorological radar
-
FMCW and pulse-Doppler radar architectures
-
Ground-based, airborne, and maritime radar platforms
-
Receiver front-end frequency translation and filtering
-
Clean local oscillator distribution for radar transmit chains
Low phase noise and excellent frequency stability improve range resolution, Doppler accuracy, and target discrimination.
Meteorology and Atmospheric Sensing
RF signal conversion solutions are widely used in meteorological and environmental monitoring systems that rely on radar and remote sensing techniques.
Applications include:
-
Weather radar for precipitation and storm tracking
-
Atmospheric profiling and cloud monitoring
-
Climate research and environmental observation systems
-
Doppler radar signal processing chains
-
Long-duration outdoor monitoring installations
Stable frequency performance ensures accurate data collection under varying environmental conditions.
Telemetry
Telemetry systems depend on reliable RF frequency translation to transmit real-time data from remote or mobile platforms.
Common telemetry applications include:
-
Aerospace and flight testing telemetry
-
Defense and range instrumentation
-
Automotive and motorsports testing
-
Industrial monitoring and remote sensing
-
UAV and unmanned platform data links
Low LO leakage and precise tuning support accurate data recovery in dynamic operating environments.
5G and Millimeter-Wave Wireless
RF upconverters and downconverters support development, testing, and deployment of 5G and emerging mmWave wireless technologies.
Typical applications include:
-
5G FR2 base station and small cell testing
-
Beamforming and MIMO system validation
-
mmWave signal generation and analysis
-
Wireless backhaul and access research platforms
-
Prototype and pre-deployment verification systems
Fine tuning resolution and multi-channel options enable flexible system architectures for next-generation wireless networks.
Astronomy and Scientific Research
In radio astronomy and scientific instrumentation, RF signal conversion solutions enable detection and processing of extremely weak signals.
Applications include:
-
Radio astronomy observatories and receiver chains
-
Space science and deep-space signal monitoring
-
University and government research laboratories
-
Spectral analysis and long-duration observations
-
Precision frequency translation for low-noise receivers
Exceptional frequency stability and low phase noise are essential for high-sensitivity scientific measurements.
RF Test, Measurement, and System Integration
Across all industries, RF upconverters and downconverters are widely used in laboratory, production, and system integration environments.
Typical uses include:
-
RF and mmWave test benches
-
Signal generators and receiver test setups
-
Automated test equipment and calibration systems
-
Device characterization and validation
-
System-level integration and troubleshooting
These solutions provide reliable, repeatable performance for both R&D and manufacturing workflows.
System Performance and Signal Integrity Benefits
Across all applications, RF signal conversion solutions help:
-
Maintain spectral purity and signal integrity
-
Reduce spurious responses and image products
-
Improve system dynamic range
-
Support stable, repeatable frequency translation
-
Enable scalable and modular RF architectures
RF upconverters, RF downconverters, LNBs, BUCs, and frequency converters serve as foundational components in modern RF, microwave, and millimeter-wave systems where performance and reliability are essential.
RF Upconverter and Downconverter FAQ
These quick answers cover RF upconverters, RF downconverters, BUCs, LNBs, and frequency conversion specs used in satellite communications (SatCom), point-to-point microwave links, radar, telemetry, test and measurement, and 5G/mmWave systems.
Quick Answers
What does an RF upconverter do?
An RF upconverter translates a lower-frequency signal, such as IF or L-band, to a higher RF or microwave frequency so it can be transmitted by an antenna. In many transmit chains, the upconverter is followed by an RF power amplifier; when integrated, it is often called a Block Upconverter (BUC).
What does an RF downconverter do?
An RF downconverter converts a high-frequency RF input to a lower intermediate frequency (IF) that is easier to filter, amplify, digitize, and demodulate. In receiver front ends, a downconverter is often paired with an LNA; when integrated, it is commonly called an LNB (Low-Noise Block downconverter).
What is the difference between a BUC and an RF upconverter?
A BUC combines an RF upconverter with an integrated power amplifier to deliver higher output power for satellite uplinks and other transmit applications. An RF upconverter alone performs frequency translation but may not include the high-power amplification stage.
What IF frequencies are commonly used in RF systems?
Common IF frequencies include 70 MHz and 140 MHz, plus L-band IF ranges such as 950–2150 MHz. The best IF depends on the modem interface, channel plan, filtering requirements, and the overall superheterodyne architecture.
Why is image rejection important in frequency converters?
Image rejection suppresses unwanted signals that can downconvert to the same IF as the desired signal during mixing. Higher image rejection improves receiver sensitivity, reduces interference, and helps maintain spectral purity in dense RF environments.
More Technical Questions
What is an image frequency in a mixer or downconverter?
What is LO leakage and why does it matter?
What does low phase noise mean for RF upconverters and downconverters?
Why is a 10 MHz reference input used?
What is conversion gain, and how do gain control and digital attenuation help?
What does AGC do in a frequency conversion chain?
What is instantaneous bandwidth?
Where are RF frequency converters used?
Glossary of RF Frequency Conversion Terms
Core Frequency Conversion Definitions
Upconversion
The process of translating a lower-frequency signal, typically intermediate frequency (IF) or L-band, to a higher RF, microwave, or millimeter-wave frequency using a mixer and local oscillator (LO).
Upconversion is used in transmit chains for satellite communication, radar systems, telemetry links, point-to-point radio, and wireless infrastructure, and is commonly followed by RF power amplification.
Downconversion
The process of translating a high-frequency RF signal down to a lower intermediate frequency for easier amplification, filtering, digitization, and demodulation.
Downconversion is fundamental in receiver architectures, particularly where low noise figure and high dynamic range are required.
Frequency Converter
A general RF component that performs upconversion, downconversion, or both, enabling frequency translation between IF, RF, and millimeter-wave bands. Frequency converters form the core of modern RF signal chains in communications, sensing, and test systems.
Intermediate Frequency (IF)
A fixed or standardized frequency used between RF and baseband stages to simplify filtering, amplification, and signal processing.
Common IFs include 70 MHz, 140 MHz, and L-band (950–2150 MHz).
RF Frequency
The operating radio frequency after conversion, typically ranging from X-band through millimeter-wave bands such as Ku-, Ka-, Q-, and V-band.
Converter Types, Channels, and Packaging
Converter Type
Defines the frequency conversion approach and physical implementation.
Synthesized Converter
Uses a digitally controlled synthesizer to generate the local oscillator. Synthesized converters provide fine tuning resolution, high frequency accuracy, repeatability, and agile frequency selection, making them well suited for multi-carrier and frequency-agile systems.
Block Converter
A self-contained unit that integrates frequency conversion, filtering, amplification, and LO generation. Commonly implemented as Block Upconverters (BUCs) and Low-Noise Block Downconverters (LNBs) for satellite and microwave systems.
Number of Channels
The number of independent frequency conversion paths within a single unit.
-
Single-Channel
One conversion path for dedicated or fixed links. -
Multi-Channel (1, 2, 3, or 4 Channels)
Multiple parallel conversion paths used in multi-carrier systems, phased arrays, MIMO architectures, and spectrum monitoring platforms.
Packaging
The mechanical form factor and intended operating environment.
-
Commercial Rack
Rack-mount enclosures designed for indoor laboratories, test benches, data centers, and satellite ground stations. -
Environmental or Ruggedized
Sealed enclosures designed for outdoor, rooftop, mobile, airborne, or harsh environments, with extended temperature operation.
Local Oscillator and Mixing Terms
Local Oscillator (LO)
A stable signal source used in a mixer to translate frequencies. LO quality directly impacts phase noise, spurious performance, image rejection, and overall system stability.
Mixer
A nonlinear RF component that combines the input signal and LO to produce sum and difference frequencies, enabling frequency conversion.
LO Leakage
Unwanted LO energy that appears at the RF or IF ports. Low LO leakage is critical for minimizing spurious emissions and system interference.
Image Frequency
An unwanted frequency that also converts to the same IF during mixing and must be suppressed through filtering or image-reject architectures.
Image Rejection
The ability of a frequency converter to suppress unwanted image frequencies. High image rejection improves receiver sensitivity, spectral purity, and dynamic range.
Stability and Signal Quality Metrics
Phase Noise
Short-term frequency fluctuations of the LO or output signal, expressed in dBc/Hz. Low phase noise is essential for high-order modulation, low EVM, radar resolution, and clean spectra.
Frequency Stability
The ability of a converter or LO to maintain accurate frequency over time, temperature, and environmental changes, often specified in ppm or ppb.
Reference Input
An external frequency reference, commonly 10 MHz, used to lock the LO for improved stability, phase coherence, and synchronization across multiple systems.
Spurious Responses (Spurs)
Unwanted discrete frequency components generated by mixing products, harmonics, and nonlinearities, which must be minimized in dense RF environments.
Gain, Linearity, and Dynamic Range
Conversion Gain
The gain or loss introduced by the frequency conversion process, specified in dB.
Gain Control
An adjustable feature that allows optimization of signal levels to prevent compression and improve system dynamic range.
Digital Attenuation
Digitally controlled attenuation that enables precise, repeatable gain adjustment and remote system control.
Automatic Gain Control (AGC)
A control function that automatically adjusts gain or attenuation to maintain a consistent output level despite variations in input signal strength.
Noise Figure (NF)
A measure of how much noise a component adds to the signal. Low noise figure is especially critical in downconverters, LNBs, and receiver front ends.
Linearity
The ability of the converter to process signals without distortion. High linearity reduces intermodulation products and spurious emissions.
Dynamic Range
The range between the smallest and largest signal levels that can be processed without excessive noise or distortion.
Bandwidth and Channel Characteristics
Bandwidth
The frequency range over which the converter can operate without performance degradation.
Instantaneous Bandwidth
The frequency range over which the converter can operate at a given tuning setting without retuning, supporting wideband and multi-carrier signals.
Tuning Step Size
The minimum frequency increment by which the LO or output frequency can be adjusted.
Multichannel Operation
A configuration where multiple independent frequency conversion paths operate in parallel within a single unit.
Hardware and System Architectures
Block Upconverter (BUC)
A transmit module that upconverts IF or L-band signals to microwave or millimeter-wave frequencies for satellite uplinks and point-to-point links, often integrating RF power amplification.
Low-Noise Block Downconverter (LNB)
A receive module that amplifies and downconverts high-frequency RF signals to IF or L-band with minimal added noise.
Heterodyne Architecture
A frequency conversion approach using one or more mixing stages and intermediate frequencies to improve selectivity and image rejection.
Direct Conversion
A receiver architecture that converts RF directly to baseband without an intermediate frequency stage.
Measurement and Performance Parameters
S-Parameters
Scattering parameters used to characterize RF performance. For converters, S21 represents conversion gain or loss, while S11 and S22 represent input and output matching.
Return Loss (S11 / S22)
A measure of impedance matching at the input or output ports. Higher return loss indicates better matching and lower reflections.
VSWR (Voltage Standing Wave Ratio)
A ratio derived from return loss that indicates impedance matching quality. Lower VSWR values correspond to improved power transfer.
Group Delay
The frequency-dependent time delay introduced by conversion and filtering stages. Excessive variation can distort wideband or digitally modulated signals.
Application and System-Level Terms
Receiver Front-End Protection
The use of frequency converters and filtering to prevent strong out-of-band signals from overloading LNAs and mixers.
Spectral Purity
The cleanliness of the output spectrum, including low phase noise, low spurious content, and strong image suppression.
Interference Mitigation
Reducing the impact of adjacent-channel signals, harmonics, and unwanted emissions through proper frequency conversion and filtering.
Synchronization
The alignment of frequency and phase across multiple converters or channels, often achieved using a shared reference source.
Regulatory Compliance
Ensuring frequency-converted signals meet spectral mask, emission, and interference requirements imposed by regulatory authorities.
RF Upconverters and Downconverters
RF Upconverters and RF Downconverters
RF upconverters and RF downconverters are fundamental components in modern radio frequency (RF), microwave, and millimeter-wave systems. Their primary role is to perform frequency translation, shifting signals from one frequency range to another so they can be efficiently transmitted, received, processed, or analyzed by the rest of the RF signal chain.
These frequency conversion devices are widely used in satellite communications, radar systems, point-to-point radio links, telemetry, 5G and mmWave wireless, radio astronomy, meteorology, electronic warfare, and RF test and measurement applications.
RF Upconverters
An RF upconverter takes a lower-frequency signal, commonly referred to as an intermediate frequency (IF) or L-band signal, and shifts it to a higher RF, microwave, or millimeter-wave frequency suitable for transmission. Common IF inputs include 70 MHz, 140 MHz, and 950–2150 MHz, while output frequencies typically span from X-band through Ku-, Ka-, Q-, and V-band.
In many transmit architectures, the RF upconverter is followed by an RF power amplifier (PA) to raise the signal power level before it is delivered to an antenna. When an RF upconverter and power amplifier are integrated into a single enclosure, the assembly is referred to as a Block Upconverter (BUC).
BUCs and RF upconverters are commonly used in:
-
Satellite communication uplinks and ground stations
-
VSAT and gateway terminals
-
Microwave and millimeter-wave point-to-point radio links
-
Radar transmit chains
-
Telemetry and aerospace communication systems
-
RF and mmWave test signal generation
Key performance requirements for RF upconverters and BUCs include low phase noise, excellent frequency stability, fine tuning resolution, low spurious emissions, high image rejection, and precise gain control to ensure clean spectral performance and regulatory compliance.
RF Downconverters
An RF downconverter performs the opposite function of an upconverter. It receives a high-frequency RF, microwave, or millimeter-wave signal and converts it down to a lower intermediate frequency that can be more easily filtered, amplified, digitized, or demodulated by downstream electronics.
In sensitive receiver systems, the RF downconverter is typically paired with a low noise amplifier (LNA) at the front end to amplify very weak signals while introducing minimal additional noise. When the LNA and downconverter are integrated into a single unit, the device is known as a Low Noise Block downconverter (LNB).
RF downconverters and LNBs are widely used in:
-
Satellite communication downlinks and receivers
-
Telemetry and tracking systems
-
Radar receivers and sensing platforms
-
Radio astronomy and scientific instrumentation
-
Meteorological radar and atmospheric monitoring
-
RF, microwave, and millimeter-wave test and measurement systems
Critical performance parameters for RF downconverters include low noise figure, high image rejection, low LO leakage, stable frequency conversion, and strong out-of-band suppression to preserve signal integrity and receiver sensitivity.
RF Signal Conversion Systems
Together, RF upconverters, RF downconverters, BUCs, and LNBs form the essential building blocks of modern RF signal conversion systems. By carefully managing frequency translation, gain control, noise performance, and spectral purity, these components enable complex RF, microwave, and millimeter-wave systems to operate efficiently across a wide range of frequencies and demanding applications.
These RF frequency conversion solutions support both commercial and defense-grade platforms, including fixed, mobile, airborne, and outdoor installations, and are critical to the performance and reliability of today’s high-frequency communication and sensing systems.
Build Your RF Upconverter or Downconverter Needs and more!
Our team brings over 35 years of experience in the microwave and millimeter-wave RF industry, spanning design, prototyping, manufacturing, and system integration. We work closely with customers to help turn concepts into production-ready solutions, supporting a wide range of RF technologies. Contact us today to discuss RF upconverters, RF downconverters, transceivers, LNBs, low noise block upconverters, and custom RF sub-assembly systems.
Mi-Wave has designed, built, and supported numerous custom RF and millimeter-wave projects that require upconverters, downconverters, and integrated RF components within complex systems. From initial design and prototyping through full-scale manufacturing, our team supports every step of the development process. Contact us to discuss your project requirements and let Mi-Wave help engineer, manufacture, and deliver your RF assemblies with confidence.
