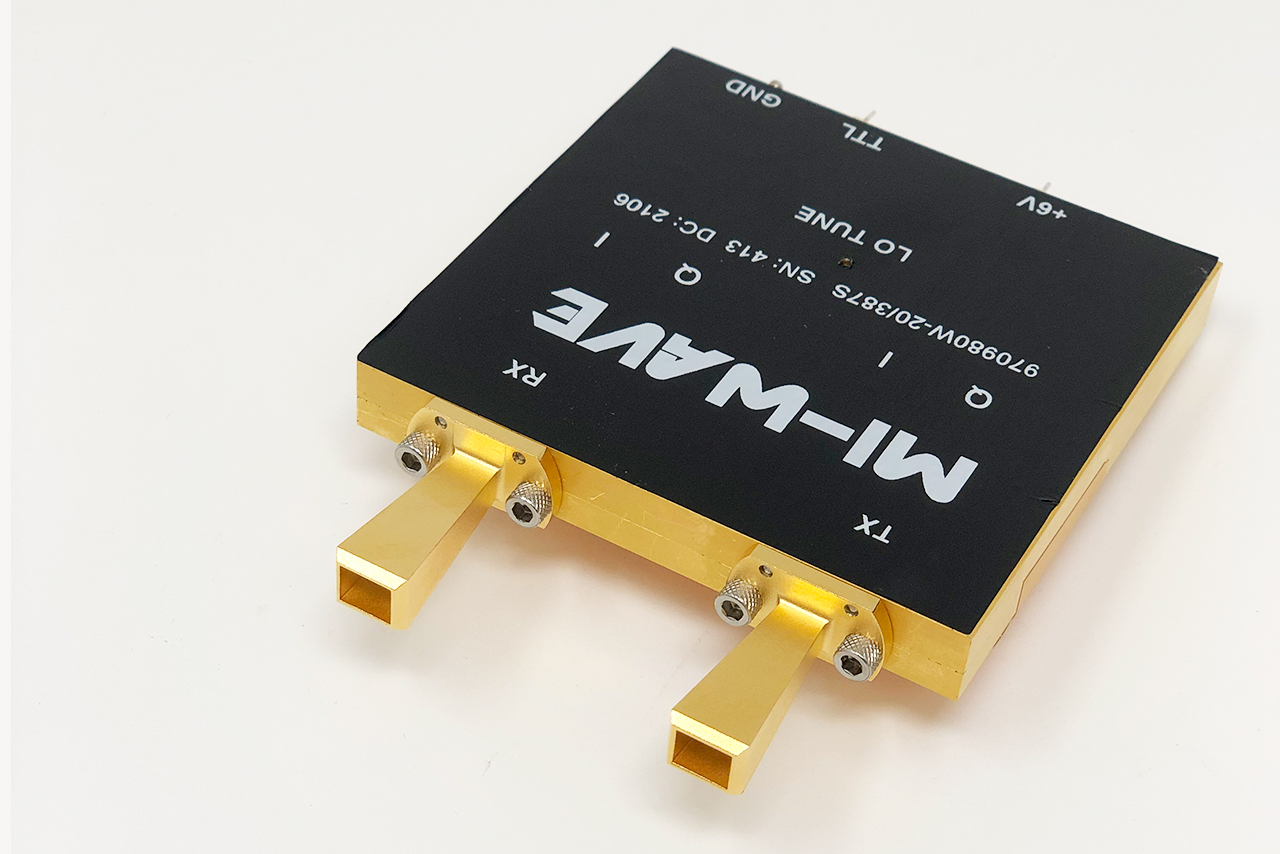

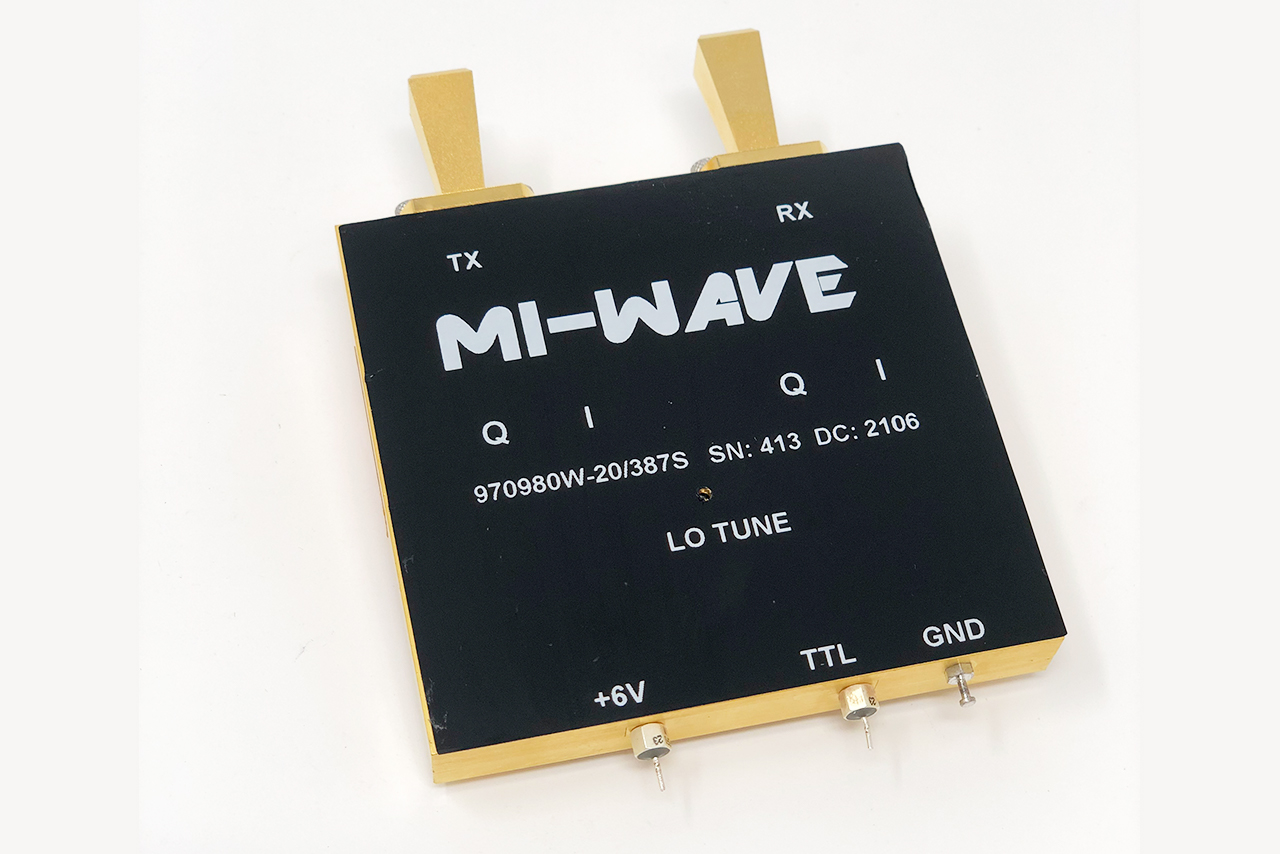

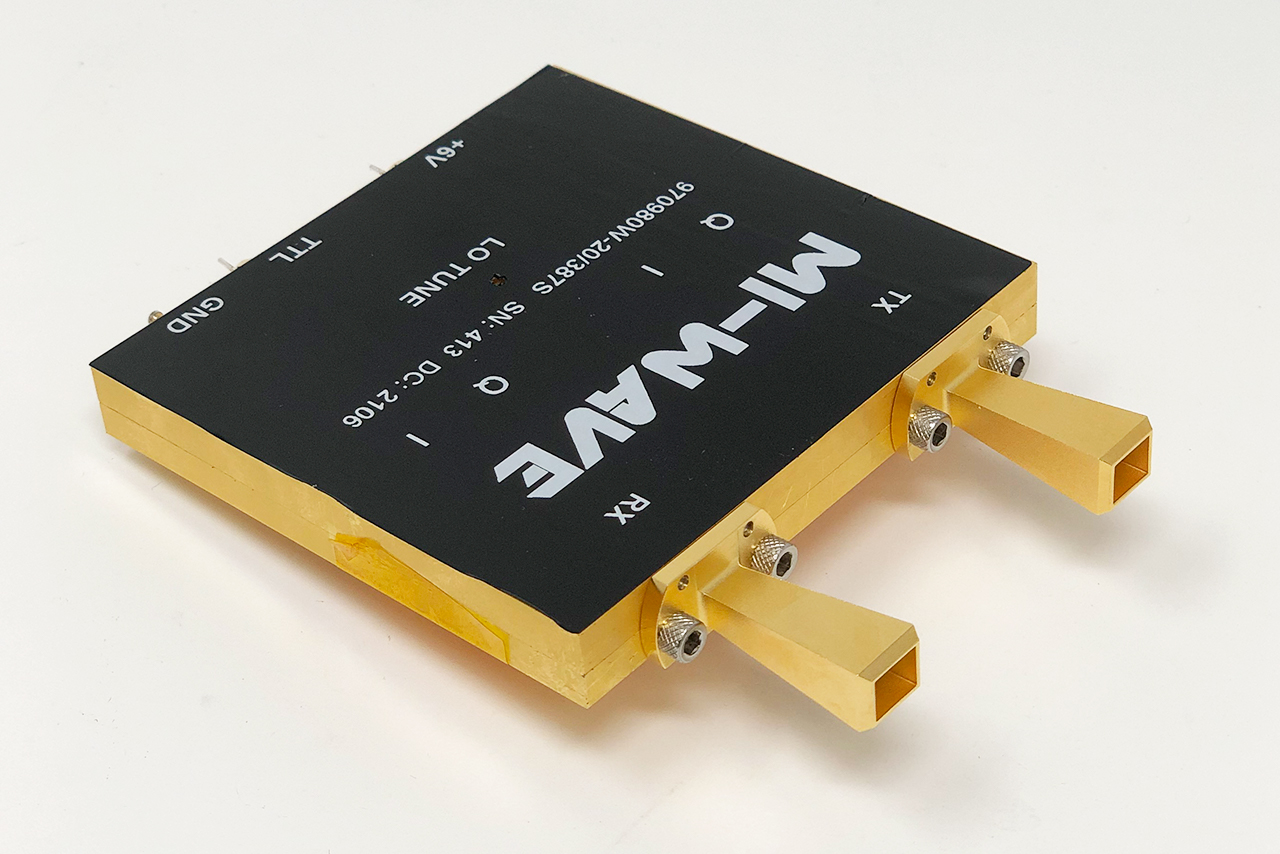

RF Receivers, Transmitters & Transceivers Solutions

Key Features & Performance Benefits

Low Phase Noise
Ultra-low phase noise local oscillators help preserve signal integrity throughout transmission and reception. This is critical for high-order modulation, narrowband carriers, radar systems, and applications where EVM, BER, and spectral purity are tightly controlled.

Excellent Frequency Stability
High-stability reference options provide long-term frequency accuracy and repeatable performance across temperature and environmental changes. These capabilities are ideal for satellite ground equipment, precision measurement systems, radar, and synchronized communication networks.

Low-Noise Receiver Performance
Optimized receiver architectures minimize noise figure and improve sensitivity, allowing reliable detection of weak incoming signals. This helps maintain communication range and signal quality in demanding RF and millimeter-wave environments.

High Transmit Output Power
Efficient transmitter designs deliver dependable RF output power for long-range links, radar, telemetry, and satellite communication systems. Integrated amplification options can be tailored to meet application-specific power and linearity requirements.

Fine Frequency Tuning
Fine frequency resolution enables precise channel placement and accurate alignment within crowded frequency bands. This is especially valuable for laboratory testing, interference mitigation, frequency-agile systems, and dynamic spectrum planning.

Multichannel Options Available
Multichannel receiver, transmitter, and transceiver configurations support parallel signal paths while reducing system size and complexity. These solutions are well suited for MIMO systems, phased arrays, multibeam antennas, and multi-carrier SatCom terminals.

Gain Control Options Available
Integrated transmit and receive gain control allows signal levels to be optimized for changing input powers and link conditions. This helps prevent compression, improves dynamic range, and simplifies system calibration.

High Signal Isolation
Careful isolation between transmit, receive, RF, IF, and LO signal paths minimizes leakage, unwanted coupling, and spurious emissions. This improves spectral performance and reduces interference in dense RF environments.

Compact, Integrated Packages
Space-efficient designs combine receiver and transmitter functions into compact RF modules and subsystems. These packages support installation in laboratory racks, shelters, airborne platforms, ground terminals, and outdoor enclosures without sacrificing performance.

Applications for RF Receivers, RF Transmitters & RF Transceiver Systems

RF receivers, RF transmitters, and RF transceivers are designed for integration into a wide range of RF, microwave, and millimeter-wave systems where reliable signal transmission, sensitive reception, spectral purity, and long-term frequency stability are critical. These products support commercial, industrial, scientific, aerospace, and defense platforms, including fixed, mobile, airborne, maritime, and outdoor installations.

Satellite Communications

RF transmitters, receivers, and transceivers are essential components in satellite uplink and downlink architectures. They enable signals to be generated, amplified, transmitted, received, filtered, and converted between intermediate and microwave or millimeter-wave frequencies.

Typical satellite communication applications include:

• Satellite ground terminals and gateway stations
• Teleports and network operations centers
• VSAT and transportable SatCom terminals
• Ku-, Ka-, Q-, and V-band uplink and downlink systems
• Fixed, mobile, and airborne satellite terminals
• Integration with antennas, BUCs, LNBs, LNAs, modems, and waveguide components
• Satellite payload testing and ground-support equipment

These systems help maintain stable links, clean output spectra, low-noise reception, and dependable operation within crowded satellite frequency allocations.

Point-to-Point Radio Communications

RF receivers, transmitters, and transceivers are commonly used in high-capacity point-to-point communication links for telecommunications, private networks, public safety, and critical infrastructure.

Common applications include:

• Microwave and millimeter-wave backhaul links
• Fixed wireless access systems
• Private and secure radio networks
• High-throughput data transmission between sites
• Urban and rural point-to-point connectivity
• Redundant communication and infrastructure links
• Spectrum-efficient narrow-channel radio systems

Stable frequency performance, dependable transmit power, and sensitive receiver operation help maximize communication range, data throughput, and link reliability.

Radar and Sensing Systems

In radar and sensing platforms, RF transmitters generate and amplify outgoing signals, while receivers detect and process weak reflected signals. Integrated transceivers combine both functions into a coordinated RF front end.

Typical radar applications include:

• Surveillance and tracking radar
• Weather and meteorological radar
• FMCW and pulse-Doppler radar
• Ground-based, airborne, maritime, and spaceborne radar
• Collision avoidance and proximity-sensing systems
• Radar transmit and receive front ends
• Test equipment for radar system development
• Target detection, ranging, and velocity measurement

Low phase noise, high signal isolation, reliable output power, and low-noise reception can improve range resolution, Doppler accuracy, receiver sensitivity, and target discrimination.

Meteorology and Atmospheric Sensing

RF transmitter and receiver systems are used in meteorological and environmental monitoring platforms that rely on radar, radiometry, telemetry, and remote-sensing technologies.

Applications include:

• Weather radar for precipitation and storm tracking
• Atmospheric profiling and cloud monitoring
• Doppler wind and precipitation measurement
• Climate research and environmental observation
• Radiometer and remote-sensing systems
• Long-duration outdoor monitoring installations
• Data links for remote weather stations

Stable frequency performance and dependable operation support accurate data collection across changing temperatures and environmental conditions.

Telemetry and Remote Data Links

Telemetry systems depend on reliable RF transmission and reception to exchange real-time data with remote, mobile, or difficult-to-access platforms.

Common telemetry applications include:

• Aerospace and flight-test telemetry
• Defense and range instrumentation
• Spacecraft, launch vehicle, and satellite telemetry
• Automotive and motorsports testing
• Industrial monitoring and remote sensing
• UAV and unmanned-system data links
• Command, control, and status communications

Compact packaging, precise tuning, reliable output power, and sensitive receiver performance support accurate data recovery in dynamic operating environments.

5G and Millimeter-Wave Wireless

RF receivers, transmitters, and transceivers support the development, testing, and deployment of 5G, private wireless networks, and emerging millimeter-wave communication technologies.

Typical applications include:

• 5G FR2 base stations and small cells
• Beamforming and MIMO system development
• Phased-array transmit and receive systems
• Millimeter-wave signal generation and reception
• Wireless backhaul and fixed wireless access
• Prototype and pre-deployment verification
• Channel sounding and propagation research
• High-frequency communication test platforms

Fine frequency control, multichannel configurations, and wideband operation enable flexible architectures for next-generation wireless systems.

Electronic Warfare and Defense Systems

RF receivers, transmitters, and transceivers can be integrated into electronic warfare, signal-monitoring, communications, and defense-grade RF systems.

Common applications include:

• Electronic support and signal-monitoring systems
• Spectrum surveillance and signal detection
• Secure microwave and millimeter-wave communications
• Threat simulation and RF test systems
• Radar warning and situational-awareness platforms
• Airborne, maritime, ground-based, and mobile systems
• Defense research and system evaluation

Wide frequency coverage, high dynamic range, low-noise reception, and ruggedized packaging support reliable operation in demanding RF environments.

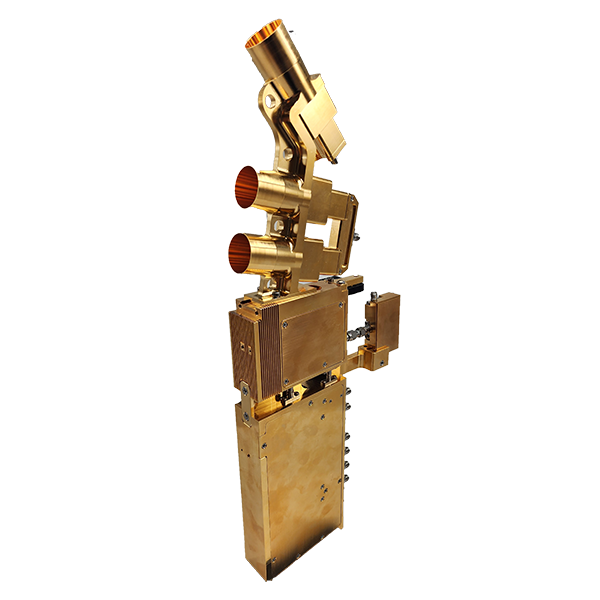

Radio Astronomy and Scientific Research

In radio astronomy and scientific instrumentation, high-sensitivity RF receivers help detect and process extremely weak microwave and millimeter-wave signals. Transmitters and transceivers can also support active experiments, calibration, ranging, and communication with remote instruments.

Applications include:

• Radio astronomy observatories and receiver chains
• Space science and deep-space signal monitoring
• Atmospheric and planetary research
• University and government laboratories
• Spectral analysis and long-duration observations
• High-frequency scientific instrumentation
• Low-noise receiver and radiometer systems
• Calibration and reference-signal generation

Excellent frequency stability, low phase noise, and low-noise receiver performance are essential for repeatable, high-sensitivity scientific measurements.

RF Test, Measurement, and System Integration

RF receivers, transmitters, and transceivers are widely used in laboratory, manufacturing, production-test, and system-integration environments.

Typical uses include:

• RF and millimeter-wave test benches
• Transmitter and receiver test systems
• Signal-generation and signal-analysis platforms
• Automated test equipment
• Device characterization and validation
• Antenna and component testing
• Radar and communication-system simulation
• System-level integration and troubleshooting
• Production testing and quality assurance

Configurable frequencies, gain levels, output power, interfaces, and packaging provide repeatable performance for research, product development, manufacturing, and field testing.

Aerospace and Airborne Systems

Compact RF receivers, transmitters, and transceivers can be configured for integration into aircraft, spacecraft, high-altitude platforms, and unmanned systems.

Typical aerospace applications include:

• Airborne radar and communication systems
• Aircraft telemetry and flight-test equipment
• Satellite and spacecraft communication links
• UAV command, control, and data links
• Navigation and tracking systems
• Remote sensing and scientific payloads
• Compact RF front ends for size-constrained platforms

Custom mechanical configurations and ruggedized assemblies can support demanding size, weight, power, environmental, and interface requirements.

System Performance and Signal-Integrity Benefits

Across these applications, Mi-Wave RF receivers, transmitters, and transceivers can help:

• Maintain signal integrity and spectral purity
• Improve receiver sensitivity and dynamic range
• Deliver reliable RF output power
• Reduce unwanted noise, leakage, and interference
• Support stable and repeatable frequency operation
• Provide accurate transmit and receive gain control
• Enable bidirectional RF communication
• Reduce system size, cabling, and integration complexity
• Support modular, multichannel, and scalable RF architectures
• Integrate with antennas, amplifiers, filters, mixers, and control systems

Mi-Wave RF receivers, RF transmitters, and RF transceivers provide essential transmit and receive capabilities for modern microwave and millimeter-wave systems where performance, flexibility, and reliable operation are critical.

RF Receiver, Transmitter and Transceiver FAQ

These quick answers cover RF receivers, RF transmitters, and RF transceivers used in satellite communications (SatCom), point-to-point microwave links, radar, telemetry, electronic warfare, test and measurement, and 5G/mmWave systems.

What does an RF transmitter do?

An RF transmitter generates, converts, conditions, and amplifies a signal for transmission at a specified radio, microwave, or millimeter-wave frequency. Depending on the system, the transmitter may accept a baseband, intermediate-frequency (IF), or lower-frequency RF input and produce an amplified RF output for an antenna or connected RF assembly.

What does an RF receiver do?

An RF receiver detects an incoming RF signal and prepares it for processing. A typical receiver may include low-noise amplification, filtering, gain control, frequency conversion, and an IF or baseband output. Receiver performance is commonly evaluated using noise figure, sensitivity, gain, bandwidth, dynamic range, image rejection, and frequency stability.

What is an RF transceiver?

An RF transceiver combines transmitter and receiver functions in a single integrated system. It supports two-way communication by generating and transmitting RF signals while also receiving and processing incoming signals. A transceiver may include separate transmit and receive paths, shared frequency-generation components, switching, duplexing, gain control, monitoring, and communication interfaces.

What is the difference between a transmitter and a transceiver?

A transmitter only generates and sends an RF signal. A transceiver includes both a transmitter and a receiver, allowing the system to send and receive signals. Transceivers are commonly used in bidirectional communication, radar, telemetry, satellite, and wireless systems.

What is the difference between an RF receiver and a downconverter?

A downconverter primarily translates a high-frequency RF signal to a lower intermediate frequency. A complete RF receiver may include the downconverter along with low-noise amplification, filtering, gain control, frequency generation, monitoring, and output interfaces. The exact configuration depends on the application.

What is the difference between an RF transmitter and an upconverter?

An upconverter translates a lower-frequency input to a higher RF frequency. A complete RF transmitter may include the upconverter along with filtering, driver amplification, power amplification, output-level control, monitoring, and system interfaces.

What frequencies can Mi-Wave receivers, transmitters, and transceivers support?

Mi-Wave provides microwave and millimeter-wave systems across X-Band, Ku-Band, Ka-Band, Q-Band, U-Band, V-Band, E-Band, W-Band, and frequencies beyond 110 GHz. Exact frequency coverage, bandwidth, interfaces, and performance specifications can be customized for the application.

What is receiver sensitivity?

Receiver sensitivity describes the minimum signal level a receiver can detect and process while meeting a specified performance requirement. Sensitivity is influenced by noise figure, bandwidth, gain, modulation type, required signal-to-noise ratio, and the performance of the complete receive chain.

Why is a low receiver noise figure important?

Noise figure indicates how much noise a receiver adds to the incoming signal. A lower noise figure helps preserve weak signals, improve sensitivity, extend usable communication range, and increase the signal-to-noise ratio available to downstream processing equipment.

What determines an RF transmitter’s output power?

Transmitter output power depends on the driver and power-amplifier stages, operating frequency, bandwidth, linearity requirements, modulation type, thermal design, and available DC power. The required power level is normally determined through a link-budget analysis.

What are P1dB and saturated output power?

The 1 dB compression point (P1dB) is the output level at which an amplifier’s gain has decreased by 1 dB from its expected linear response. Saturated output power (Psat) is the approximate maximum output power the transmitter can produce. P1dB is especially important for applications requiring linear amplification.

Why is transmit and receive isolation important?

Transmit and receive isolation reduces leakage from the high-power transmit path into the sensitive receiver path. Adequate isolation helps prevent receiver compression, desensitization, interference, and possible damage to receive components.

How does an RF transceiver switch between transmitting and receiving?

A transceiver may use an RF or waveguide switch, circulator, diplexer, duplexer, or separate transmit and receive signal paths. The correct method depends on whether the system uses time-division duplexing, frequency-division duplexing, simultaneous operation, or separate antennas.

Can a transceiver transmit and receive simultaneously?

Yes, when it is designed for full-duplex or frequency-division operation and provides sufficient isolation between the transmit and receive paths. Other transceivers use time-division operation and alternate between transmitting and receiving.

Why is phase noise important in transmitters and receivers?

Phase noise represents short-term frequency instability in an oscillator or synthesizer. Low phase noise helps maintain spectral purity, improve EVM and BER, support narrowband signals, and improve radar measurements such as Doppler accuracy, range resolution, and clutter rejection.

Why is frequency stability important?

Frequency stability helps the transmitter remain on its assigned channel and allows the receiver to accurately acquire and track incoming signals. Stable operation is particularly important in narrowband communications, satellite links, radar, synchronized systems, and changing temperature conditions.

What is instantaneous bandwidth?

Instantaneous bandwidth is the frequency span a receiver, transmitter, or transceiver can process at one time without retuning. Wider instantaneous bandwidth can support higher data rates, multicarrier signals, wideband waveforms, frequency-agile operation, and advanced radar modes.

What is dynamic range in an RF receiver?

Dynamic range is the span between the weakest usable input signal and the strongest signal the receiver can process without excessive distortion or compression. High dynamic range helps a receiver operate effectively when weak and strong signals are present simultaneously.

What do gain control and digital attenuation provide?

Gain control and digital attenuation allow signal levels to be adjusted for changing input powers, link conditions, and downstream equipment. These controls help avoid compression, improve dynamic range, protect connected components, and simplify system calibration.

What does automatic gain control do?

Automatic Gain Control (AGC) adjusts receiver gain or attenuation to maintain a more consistent output level as the incoming RF signal changes. AGC can improve system stability and help protect downstream IF stages, analog-to-digital converters, and processing equipment.

What interfaces are available?

Depending on the design, systems may include coaxial RF connectors, waveguide interfaces, IF connectors, reference inputs, analog controls, digital controls, Ethernet, USB, or application-specific communication interfaces. Mechanical and electrical interfaces can be customized for system integration.

Can Mi-Wave provide multichannel systems?

Yes. Multichannel receiver, transmitter, and transceiver configurations can support parallel signal paths for phased arrays, MIMO systems, multibeam terminals, multicarrier communications, radar, and test platforms.

Are custom receiver, transmitter, and transceiver configurations available?

Yes. Systems can be customized according to operating frequency, bandwidth, IF range, gain, noise figure, output power, phase noise, dynamic range, channel count, interfaces, packaging, power requirements, and environmental conditions.

Where are RF receivers, transmitters, and transceivers used?

These systems are used in satellite ground terminals, microwave and millimeter-wave communication links, telemetry systems, radar, meteorology, electronic warfare, radio astronomy, remote sensing, 5G/mmWave research, aerospace platforms, and RF test and measurement systems.

Glossary of RF Frequency Conversion Terms

Core Frequency Conversion Definitions

Upconversion
The process of translating a lower-frequency signal, typically intermediate frequency (IF) or L-band, to a higher RF, microwave, or millimeter-wave frequency using a mixer and local oscillator (LO).
Upconversion is used in transmit chains for satellite communication, radar systems, telemetry links, point-to-point radio, and wireless infrastructure, and is commonly followed by RF power amplification.

Downconversion
The process of translating a high-frequency RF signal down to a lower intermediate frequency for easier amplification, filtering, digitization, and demodulation.
Downconversion is fundamental in receiver architectures, particularly where low noise figure and high dynamic range are required.

Frequency Converter
A general RF component that performs upconversion, downconversion, or both, enabling frequency translation between IF, RF, and millimeter-wave bands. Frequency converters form the core of modern RF signal chains in communications, sensing, and test systems.

Intermediate Frequency (IF)
A fixed or standardized frequency used between RF and baseband stages to simplify filtering, amplification, and signal processing.
Common IFs include 70 MHz, 140 MHz, and L-band (950–2150 MHz).

IF Bandwidth
The usable frequency range around the intermediate frequency that can be processed without distortion or degradation. IF bandwidth determines supported modulation schemes, channel density, and overall system flexibility.

Frequency Inversion
A condition where the spectral order of a signal is reversed during the frequency conversion process. Frequency inversion must be accounted for in system design to ensure proper demodulation and signal interpretation.

RF Frequency
The operating radio frequency after conversion, typically ranging from X-band through millimeter-wave bands such as Ku-, Ka-, Q-, and V-band.

Channel Spacing
The frequency separation between adjacent carriers or channels. Proper channel spacing is critical in multi-carrier and multi-channel systems to prevent adjacent-channel interference.

Converter Types, Channels, and Packaging

Converter Type
Defines the frequency conversion approach and physical implementation.

Synthesized Converter
Uses a digitally controlled synthesizer to generate the local oscillator. Synthesized converters provide fine tuning resolution, high frequency accuracy, repeatability, and agile frequency selection, making them well suited for multi-carrier and frequency-agile systems.

Block Converter
A self-contained unit that integrates frequency conversion, filtering, amplification, and LO generation. Commonly implemented as Block Upconverters (BUCs) and Low-Noise Block Downconverters (LNBs) for satellite and microwave systems.

Number of Channels
The number of independent frequency conversion paths within a single unit.

Single-Channel
One conversion path for dedicated or fixed links.

Multi-Channel (1, 2, 3, or 4 Channels)
Multiple parallel conversion paths used in multi-carrier systems, phased arrays, MIMO architectures, beamforming platforms, and spectrum monitoring systems.

Multichannel Operation
A configuration where multiple independent frequency conversion paths operate in parallel within a single unit, often sharing reference and LO resources for synchronization.

Packaging
The mechanical form factor and intended operating environment.

Commercial Rack
Rack-mount enclosures designed for indoor laboratories, test benches, data centers, and satellite ground stations.

Environmental or Ruggedized
Sealed enclosures designed for outdoor, rooftop, mobile, airborne, or harsh environments, with extended temperature operation.

Local Oscillator and Mixing Terms

Local Oscillator (LO)
A stable signal source used in a mixer to translate frequencies. LO quality directly impacts phase noise, spurious performance, image rejection, and overall system stability.

Internal Reference Oscillator
A built-in frequency reference used to stabilize the LO when an external reference is not provided. Internal references offer convenience but typically lower long-term accuracy than external references.

Reference Input
An external frequency reference, commonly 10 MHz, used to lock the LO for improved stability, phase coherence, and synchronization across multiple systems.

Phase Coherence
The ability of multiple signals or channels to maintain a fixed phase relationship. Phase coherence is critical in multi-channel converters, phased arrays, beamforming systems, and coherent radar architectures.

Channel-to-Channel Phase Matching
A measure of phase alignment consistency between channels in a multi-channel converter. Tight phase matching is essential for polarization integrity, beam steering, and array performance.

Mixer
A nonlinear RF component that combines the input signal and LO to produce sum and difference frequencies, enabling frequency conversion.

LO Leakage
Unwanted LO energy that appears at the RF or IF ports. Low LO leakage is critical for minimizing spurious emissions and system interference.

Image Frequency
An unwanted frequency that also converts to the same IF during mixing and must be suppressed through filtering or image-reject architectures.

Image Rejection
The ability of a frequency converter to suppress unwanted image frequencies. High image rejection improves receiver sensitivity, spectral purity, and dynamic range.

Stability and Signal Quality Metrics

Phase Noise
Short-term frequency fluctuations of the LO or output signal, expressed in dBc/Hz. Low phase noise is essential for high-order modulation, low EVM, radar resolution, and clean spectra.

Frequency Stability
The ability of a converter or LO to maintain accurate frequency over time, temperature, and environmental changes, often specified in ppm or ppb.

Spurious Responses (Spurs)
Unwanted discrete frequency components generated by mixing products, harmonics, and nonlinearities, which must be minimized in dense RF environments.

Gain, Linearity, and Dynamic Range

Conversion Gain
The gain or loss introduced by the frequency conversion process, specified in dB.

Gain Control
An adjustable feature that allows optimization of signal levels to prevent compression and improve system dynamic range.

Digital Attenuation
Digitally controlled attenuation that enables precise, repeatable gain adjustment and remote system control.

Automatic Gain Control (AGC)
A control function that automatically adjusts gain or attenuation to maintain a consistent output level despite variations in input signal strength.

Input Power Range
The acceptable signal level range at the converter input over which performance specifications are maintained. Exceeding this range can result in compression or distortion.

Output Power (P1dB)
The output power level at which gain compression reaches 1 dB, defining the linear operating range of the converter.

Third-Order Intercept Point (IP3 / OIP3)
A measure of linearity indicating resistance to intermodulation distortion. Higher IP3 values improve performance in multi-carrier and high-dynamic-range systems.

Noise Figure (NF)
A measure of how much noise a component adds to the signal. Low noise figure is especially critical in downconverters, LNBs, and receiver front ends.

Linearity
The ability of the converter to process signals without distortion. High linearity reduces intermodulation products and spurious emissions.

Dynamic Range
The range between the smallest and largest signal levels that can be processed without excessive noise or distortion.

Bandwidth and Channel Characteristics

Bandwidth
The frequency range over which the converter can operate without performance degradation.

Instantaneous Bandwidth
The frequency range over which the converter can operate at a given tuning setting without retuning, supporting wideband and multi-carrier signals.

Tuning Step Size
The minimum frequency increment by which the LO or output frequency can be adjusted.

Hardware and System Architectures

Block Upconverter (BUC)
A transmit module that upconverts IF or L-band signals to microwave or millimeter-wave frequencies for satellite uplinks and point-to-point links, often integrating RF power amplification.

Low-Noise Block Downconverter (LNB)
A receive module that amplifies and downconverts high-frequency RF signals to IF or L-band with minimal added noise.

Heterodyne Architecture
A frequency conversion approach using one or more mixing stages and intermediate frequencies to improve selectivity and image rejection.

Direct Conversion
A receiver architecture that converts RF directly to baseband without an intermediate frequency stage.

Frequency Plan
The defined relationship between RF, IF, and LO frequencies across a system. Proper frequency planning minimizes spurs, images, and interference.

Multi-Carrier Operation
The ability to process multiple carriers simultaneously within the same frequency band.

Beamforming Support
Architectural capability that enables phase- and amplitude-controlled signal paths used in electronically steered antenna arrays.

Measurement and Performance Parameters

S-Parameters
Scattering parameters used to characterize RF performance. For converters, S21 represents conversion gain or loss, while S11 and S22 represent input and output matching.

Return Loss (S11 / S22)
A measure of impedance matching at the input or output ports. Higher return loss indicates better matching and lower reflections.

VSWR (Voltage Standing Wave Ratio)
A ratio derived from return loss that indicates impedance matching quality. Lower VSWR values correspond to improved power transfer.

Group Delay
The frequency-dependent time delay introduced by conversion and filtering stages. Excessive variation can distort wideband or digitally modulated signals.

Mechanical, Interface, and Environmental Terms

Waveguide Interface
A high-frequency RF interface used at millimeter-wave bands to minimize loss and maintain signal integrity. Common examples include WR-28, WR-22, WR-15, and WR-10.

Flange Standard
Defines the mechanical mating interface of a waveguide connection, such as UG-383, UG-599, or UG-387, ensuring compatibility between RF components.

Control Interface
The electrical interface used for configuration and monitoring, such as Ethernet, RS-232, RS-485, USB, or discrete logic control.

Operating Temperature Range
The temperature range over which RF performance specifications are guaranteed.

Storage Temperature Range
The allowable temperature range when the unit is not powered.

MTBF (Mean Time Between Failures)
A statistical measure of reliability indicating expected operational lifetime under normal conditions.

Application and System-Level Terms

Receiver Front-End Protection
The use of frequency converters and filtering to prevent strong out-of-band signals from overloading LNAs and mixers.

Spectral Purity
The cleanliness of the output spectrum, including low phase noise, low spurious content, and strong image suppression.

Interference Mitigation
Reducing the impact of adjacent-channel signals, harmonics, and unwanted emissions through proper frequency conversion and filtering.

Synchronization
The alignment of frequency and phase across multiple converters or channels, often achieved using a shared reference source.

Regulatory Compliance
Ensuring frequency-converted signals meet spectral mask, emission, and interference requirements imposed by regulatory authorities.
