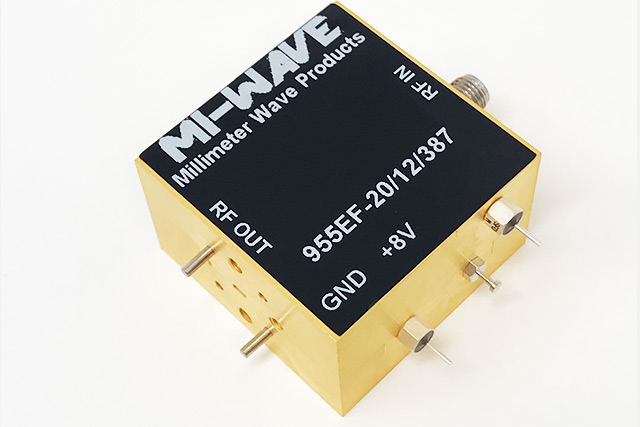

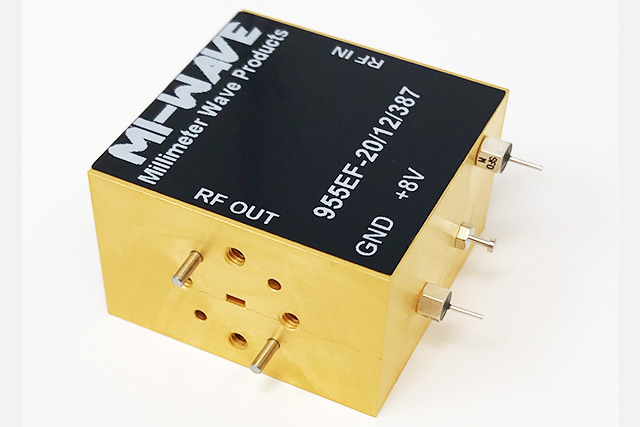

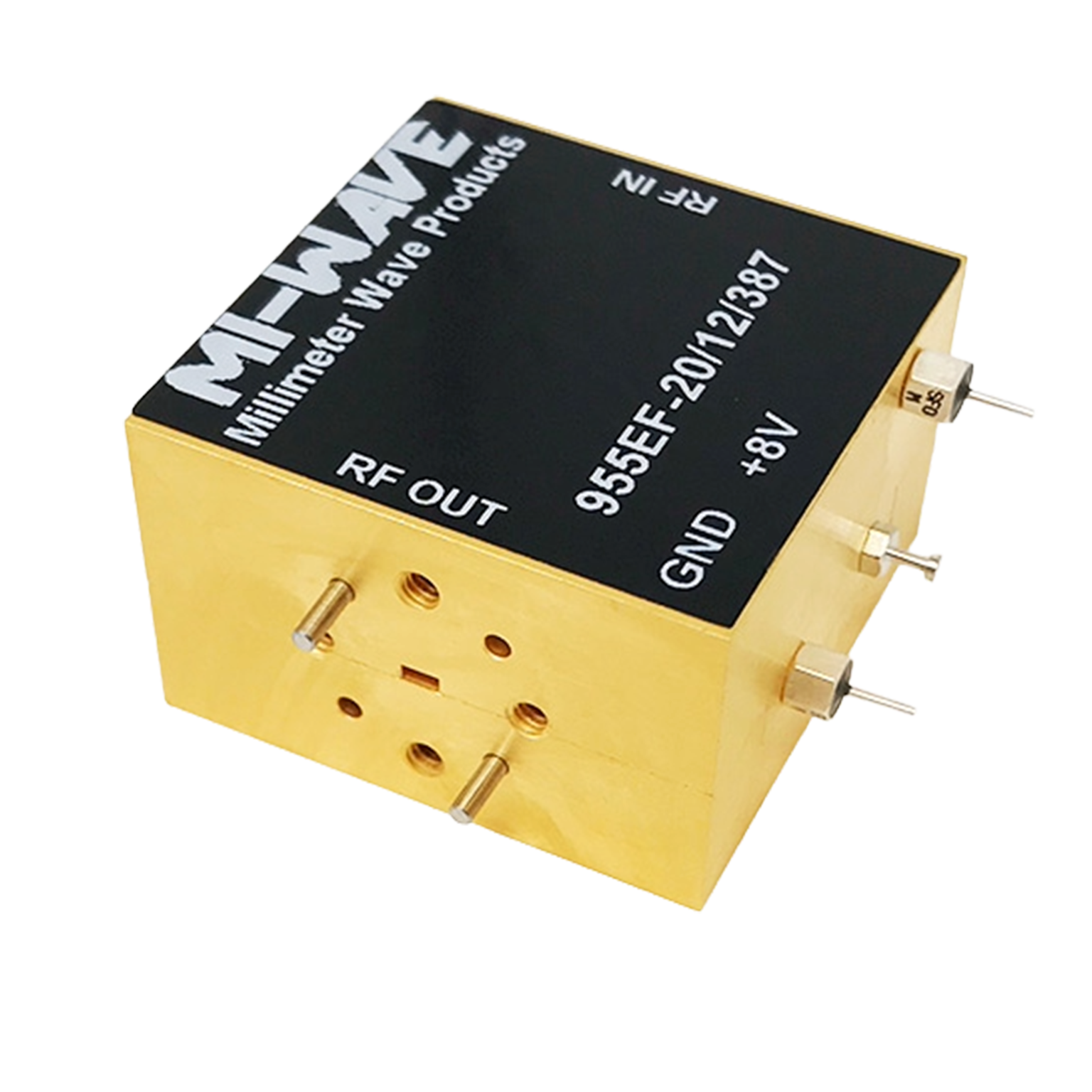

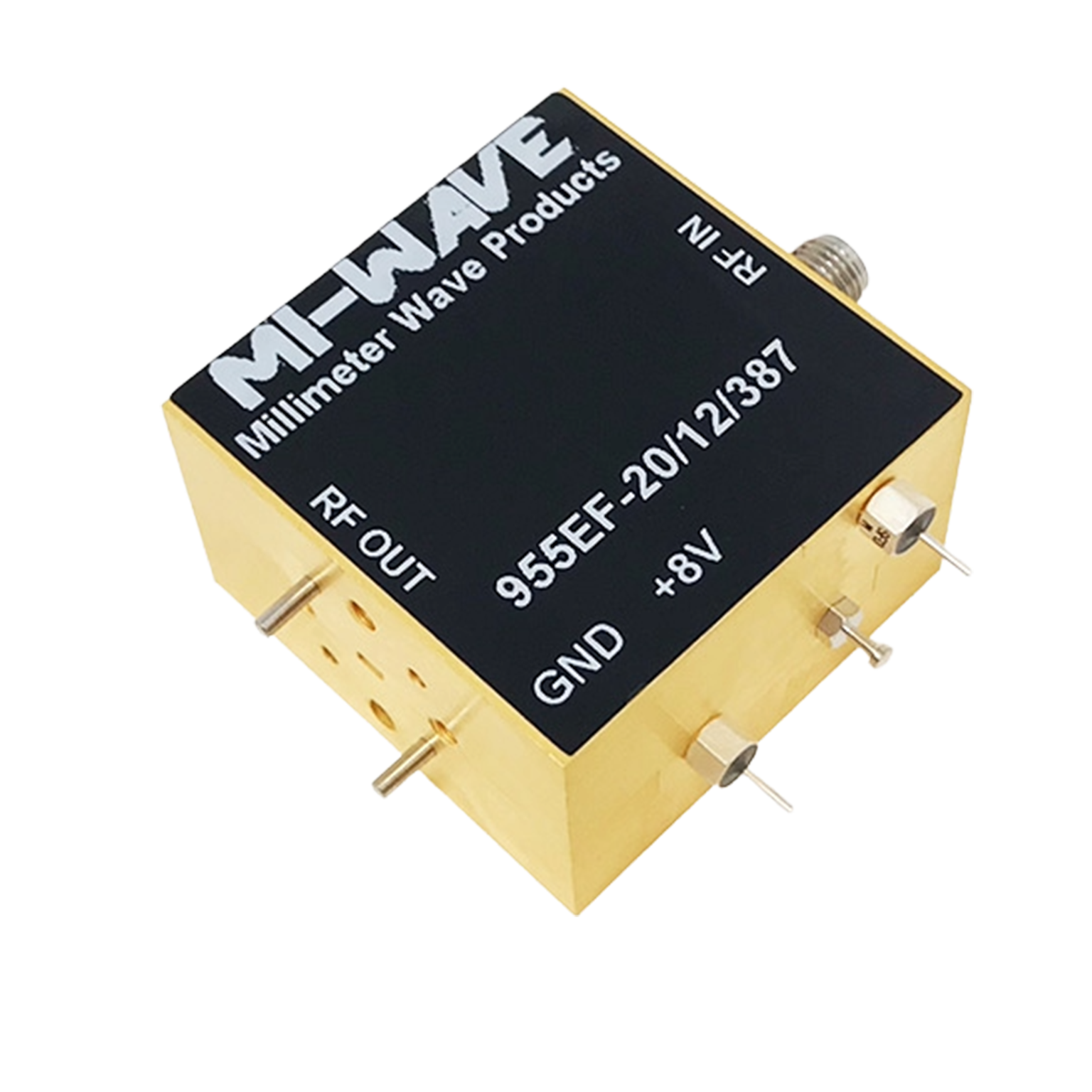

60GHz – 90GHz Low Noise Amplifier

How Low Noise Amplifiers Work & How to Select the Right LNA

Low Noise Amplifiers (LNAs) are designed to amplify extremely weak RF, microwave, and millimeter-wave signals while adding as little additional noise as possible to the signal path. LNAs are commonly used at the front end of receiver systems where preserving signal integrity and maximizing receiver sensitivity are critical to overall system performance.

Because signals received by antennas are often extremely small, especially in long-range communication, radar, satellite, or sensing systems, the first amplifier stage plays a major role in determining how effectively the system can process weak incoming signals. A properly designed LNA improves signal strength before additional losses occur through filters, mixers, switches, cables, or waveguide components.

How Low Noise Amplifiers Work

An LNA works by taking a weak incoming RF signal and increasing its amplitude using active semiconductor devices powered by a DC bias supply. Unlike high power amplifiers that prioritize output power, LNAs are specifically optimized to minimize internally generated electrical noise while maintaining stable gain and low reflection characteristics.

The amplifier uses carefully designed matching networks, low-noise active devices, bias circuits, and filtering structures to maintain signal quality across the operating frequency range. Since any noise added at the beginning of the receiver chain becomes amplified by later stages, minimizing front-end noise is one of the most important aspects of receiver system design.

LNAs are typically installed as close to the antenna or receiver input as possible. This placement helps amplify the signal before losses from waveguides, cables, filters, or switching networks degrade the signal-to-noise ratio.

At microwave and millimeter-wave frequencies, even small insertion losses ahead of the LNA can significantly increase the overall system noise figure. For this reason, engineers often use low-loss waveguide components, short transmission paths, and carefully matched interfaces when integrating LNAs into high-frequency systems.

Key LNA Performance Parameters

Several important specifications determine how effectively an LNA will perform within a receiver architecture.

Noise Figure (NF): Noise figure measures how much additional noise the amplifier contributes to the signal path. Lower noise figure improves receiver sensitivity and weak signal detection capability.

Gain: Gain determines how much the signal is amplified between the input and output. Proper gain helps overcome downstream losses while maintaining system stability.

Frequency Range: Defines the operating bandwidth where the amplifier maintains specified gain, noise figure, and VSWR performance.

Gain Flatness: Describes how consistently gain is maintained across the frequency band.

Linearity: Determines how accurately the amplifier reproduces incoming signals without distortion, especially in environments with strong nearby signals.

VSWR & Impedance Matching: Proper matching minimizes reflections and helps maintain stable low-noise performance.

Stability: LNA stability is critical to prevent oscillations and unwanted behavior across the operating frequency range.

How to Select the Right Low Noise Amplifier

Selecting the correct LNA requires balancing noise figure, gain, bandwidth, linearity, RF interfaces, and environmental requirements to match the overall receiver architecture and application goals.

Prioritize Noise Figure

Noise figure is often the most important specification when selecting an LNA. Because the first amplifier stage dominates the overall receiver noise performance, reducing added noise helps maximize sensitivity and improve the ability to detect weak signals.

Even small losses ahead of the LNA can significantly degrade system noise figure, which is why minimizing front-end insertion loss is critical in many receiver systems.

Determine Required Gain

The amplifier should provide enough gain to overcome losses from downstream components such as mixers, filters, switches, cables, waveguide sections, and diplexers.

Too little gain may reduce receiver sensitivity, while excessive gain can create instability, compression, or unnecessary system noise amplification.

Verify Frequency Coverage

The LNA must maintain stable performance across the intended operating frequency range. Engineers should verify noise figure, gain flatness, and impedance matching throughout the full operating band.

Broadband systems may require wider operating bandwidths, while narrowband systems may prioritize optimized low-noise performance over a smaller frequency range.

Evaluate Linearity Requirements

Some RF environments contain strong nearby signals that can overload or compress the amplifier. In these situations, improved linearity and higher compression performance may be required to prevent distortion, intermodulation products, or receiver desensitization.

Review RF Interface Requirements

LNAs are available with a variety of RF interfaces depending on operating frequency and application requirements, including coaxial connectors and waveguide interfaces.

Proper impedance matching and low-loss integration are especially important in low-noise receiver systems.

Consider Environmental Conditions

Environmental factors such as vibration, airborne operation, outdoor deployment, temperature extremes, and continuous operation may influence amplifier selection and packaging requirements.

System-Level Receiver Considerations

LNA selection should always be evaluated as part of the complete receiver architecture rather than as an isolated component decision. Noise figure, gain distribution, filtering, switching, thermal performance, and RF interfaces all interact to determine total receiver performance.

By carefully evaluating these parameters, engineers can select an LNA that improves receiver sensitivity, preserves signal integrity, and maintains reliable operation across demanding RF, microwave, and millimeter-wave applications.

Typical Applications for Microwave & Millimeter-Wave Low Noise Amplifiers

Mi-Wave 955 Series microwave and millimeter-wave low noise amplifiers (LNAs) are used in a wide range of receiver, signal conditioning, and system-integration applications where preserving signal-to-noise ratio (SNR), minimizing system noise floor, and maintaining stable gain are critical.

Satellite Communication (SatCom)

Low noise amplifiers play a critical role in satellite downlink and receive chains, where weak signals must be amplified with minimal added noise.

Common SatCom applications include:

• Satellite downlink receiver chains

• VSAT and gateway terminal receivers

• Ground station and teleport infrastructure

• Integration with low-loss front-end filters and frequency converters

• High-throughput satellite (HTS) receive systems

Low noise figure and stable gain improve receiver sensitivity and link margin in space-to-ground communications.

Radar and Sensing Systems

In radar platforms, LNAs are typically used at the front end of the receiver to amplify low-level return signals prior to detection and processing.

Typical radar applications include:

• Surveillance and tracking radar receivers

• FMCW and pulse-Doppler radar systems

• Ground-based, airborne, and maritime radar platforms

• Radar receiver calibration and signal conditioning

Consistent gain, low noise figure, and good matching improve detection sensitivity and target discrimination.

Point-to-Point Microwave and Millimeter-Wave Links

LNAs support high-frequency wireless links by improving receiver performance in long-distance and high-capacity systems.

Applications include:

• Microwave and mmWave backhaul receivers

• Fixed wireless access (FWA) systems

• Private and critical infrastructure networks

• High-throughput point-to-point radio links

Low noise amplification helps maintain link margin and reliable data throughput under varying conditions.

5G and Millimeter-Wave Wireless Development

Microwave and mmWave LNAs are widely used in the development, testing, and validation of next-generation wireless systems, particularly at FR2 frequencies.

Applications include:

• 5G FR2 base station and small-cell receiver testing

• mmWave receiver and front-end development

• Beamforming and MIMO system validation

• Wireless access and backhaul research platforms

Low noise and stable gain are essential for accurate EVM measurements and receiver characterization.

RF Test, Measurement, and Research

In laboratory, production, and research environments, LNAs are used to amplify low-level signals with predictable performance.

Typical uses include:

• RF and mmWave test benches

• Receiver sensitivity measurements

• Device and subsystem characterization

• Automated test equipment (ATE) and validation systems

Repeatable noise and gain performance support accurate measurement and verification workflows.

Glossary of Low Noise Amplifier (LNA) Terms

Core LNA Definitions

Low Noise Amplifier (LNA)
An RF amplifier designed to amplify very weak input signals while introducing the minimum possible additional noise. LNAs are typically the first active component in a receiver chain and play a critical role in determining overall system sensitivity.

Receiver Front End
The portion of an RF receiver that processes incoming signals directly after the antenna. This stage often includes an input filter followed by an LNA to preserve signal integrity before frequency conversion.

System Noise Figure
A measure of the total noise added by a receiver system. Because the LNA is first in the signal chain, its noise figure dominates the overall system noise performance.

Noise and Sensitivity Terms

Noise Figure (NF)
A measure of how much noise an amplifier adds to a signal, expressed in decibels (dB). Lower noise figure values indicate better performance. LNAs for sensitive applications often achieve noise figures below 3 dB.

Equivalent Noise Temperature
An alternative way to express noise performance, representing the noise contribution of the LNA as an equivalent temperature. Commonly used in satellite communications and radio astronomy.

Receiver Sensitivity
The minimum input signal level a receiver can reliably detect. Lower noise figure LNAs improve sensitivity, allowing detection of weaker signals.

Gain and Linearity Terms

Small Signal Gain
The amplification provided by an LNA when operating below compression. Typical LNA gain ranges from 15 to 40 dB depending on frequency band and application.

Gain Flatness
The variation in gain across the operating frequency band. Good gain flatness ensures consistent amplification over the entire bandwidth.

1 dB Compression Point (P1dB)
The input or output power level at which the amplifier gain compresses by 1 dB from its linear value. LNAs are generally operated well below this point to preserve linearity and noise performance.

Linearity
The ability of an LNA to amplify signals without distortion. High linearity reduces intermodulation products and improves performance in multi-signal or high-interference environments.

Matching and RF Interface Terms

Input Return Loss (S11)
A measure of how well the LNA input is impedance-matched to the source. Better return loss improves power transfer and noise performance.

Output Return Loss (S22)
A measure of impedance matching at the LNA output, affecting signal transfer to downstream components.

VSWR (Voltage Standing Wave Ratio)
A ratio that describes impedance matching quality. Lower VSWR values indicate better matching and reduced reflections.

RF Input Interface
The physical connection between the antenna or waveguide and the LNA. Common interfaces include SMA connectors and waveguide flanges such as WR-28, WR-15, and WR-10.

Stability and Protection Terms

Unconditional Stability
An LNA design condition where the amplifier remains stable for all source and load impedances across the operating frequency range.

Oscillation
Unwanted self-generated signals caused by instability. LNAs are carefully designed to prevent oscillations, especially at high gain levels.

Input Power Handling
The maximum RF input power the LNA can tolerate without damage or performance degradation. Critical in systems exposed to strong interferers.

Frequency and Bandwidth Terms

Operating Frequency Range
The RF frequency band over which the LNA meets specified performance requirements. LNAs are available from L-band through millimeter-wave bands including Ka-, Q-, V-, and W-band.

Instantaneous Bandwidth
The frequency span over which the LNA can amplify signals without retuning or performance degradation.

Wideband LNA
An LNA designed to operate over a broad frequency range, supporting multi-channel or frequency-agile systems.

Power and Biasing Terms

DC Bias Voltage
The supply voltage required to operate the LNA. Common values include 5 V, 12 V, and 28 V depending on design and application.

Bias Stability
The ability of the LNA bias circuitry to maintain consistent operating conditions over temperature and time, ensuring repeatable performance.

Current Consumption
The amount of DC current drawn by the LNA. Important for airborne, space, and battery-powered systems.

Application-Specific Terms

Low-Noise Block Downconverter (LNB)
A module that integrates an LNA with a downconverter to amplify and convert high-frequency RF signals to a lower IF or L-band output.

Satellite Communication (SatCom)
Communication systems that rely on LNAs to amplify weak downlink signals from satellites before frequency conversion and demodulation.

Radar Receiver
A system that uses LNAs to amplify reflected radar signals, improving detection range and target resolution.

Radio Astronomy
Scientific applications that depend on ultra-low-noise LNAs to detect extremely weak cosmic signals.

5G and mmWave Wireless
High-frequency wireless systems that use LNAs to improve receiver sensitivity in millimeter-wave bands.

System-Level Performance Terms

Dynamic Range
The range between the smallest and largest signals the LNA can process without excessive noise or distortion.

Intermodulation Products
Unwanted signals generated when multiple RF tones are amplified simultaneously. Good LNA linearity minimizes these effects.

Signal-to-Noise Ratio (SNR)
The ratio of desired signal power to noise power at the LNA output. LNAs are designed to maximize SNR at the receiver input.
