Ku-Band Waveguide Horn Lens Antenna

258Ku-9/.XXX/419 12.4 GHz – 18 GHz Circular Waveguide with UG-419/U Flange

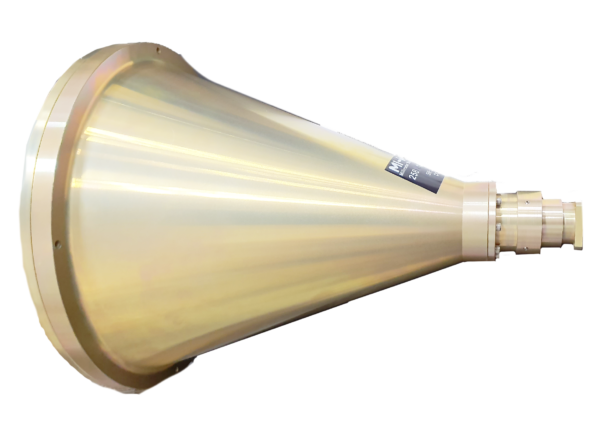

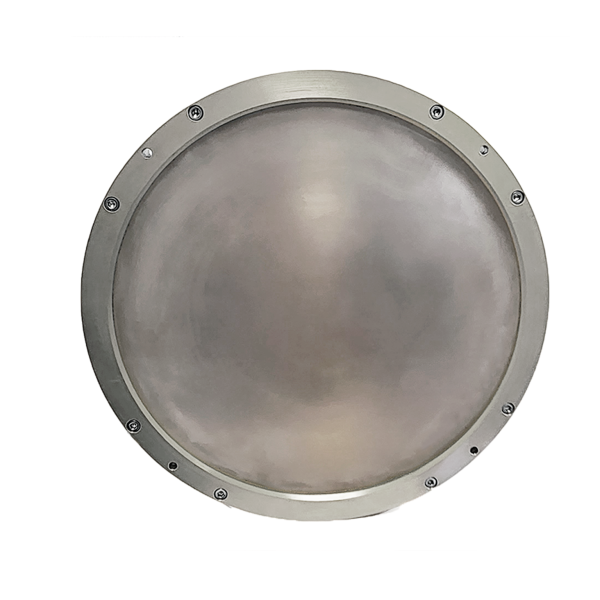

Mi-Wave’s 258 Series horn lens antenna consists of a circular scalar feed horn illuminating a piano-convex lens. Housed in either aluminum or plastic, these horn lens antennas provide a high-efficiency beam with equal E and H plane amplitude patterns.

Circular Waveguide Internal Diameter and Frequency Range

XXX=.660 = 12.4-14.6 GHz
XXX=.550 = 14.6-18 GHz


• Low Cost

• High Directivity and Gain

• Simple Mechanical Performance

• Wide Range of Available Beamwidths and Reflector Size


• Radar & Telemetry Systems

• Radio Astronomy

• Surveillance Equipment

• Communication Systems
