E-Band Waveguide Horn Lens Antenna

258E-6/.XXX/387  60 GHz -90 GHz Circular Waveguide with UG-387/U Flange

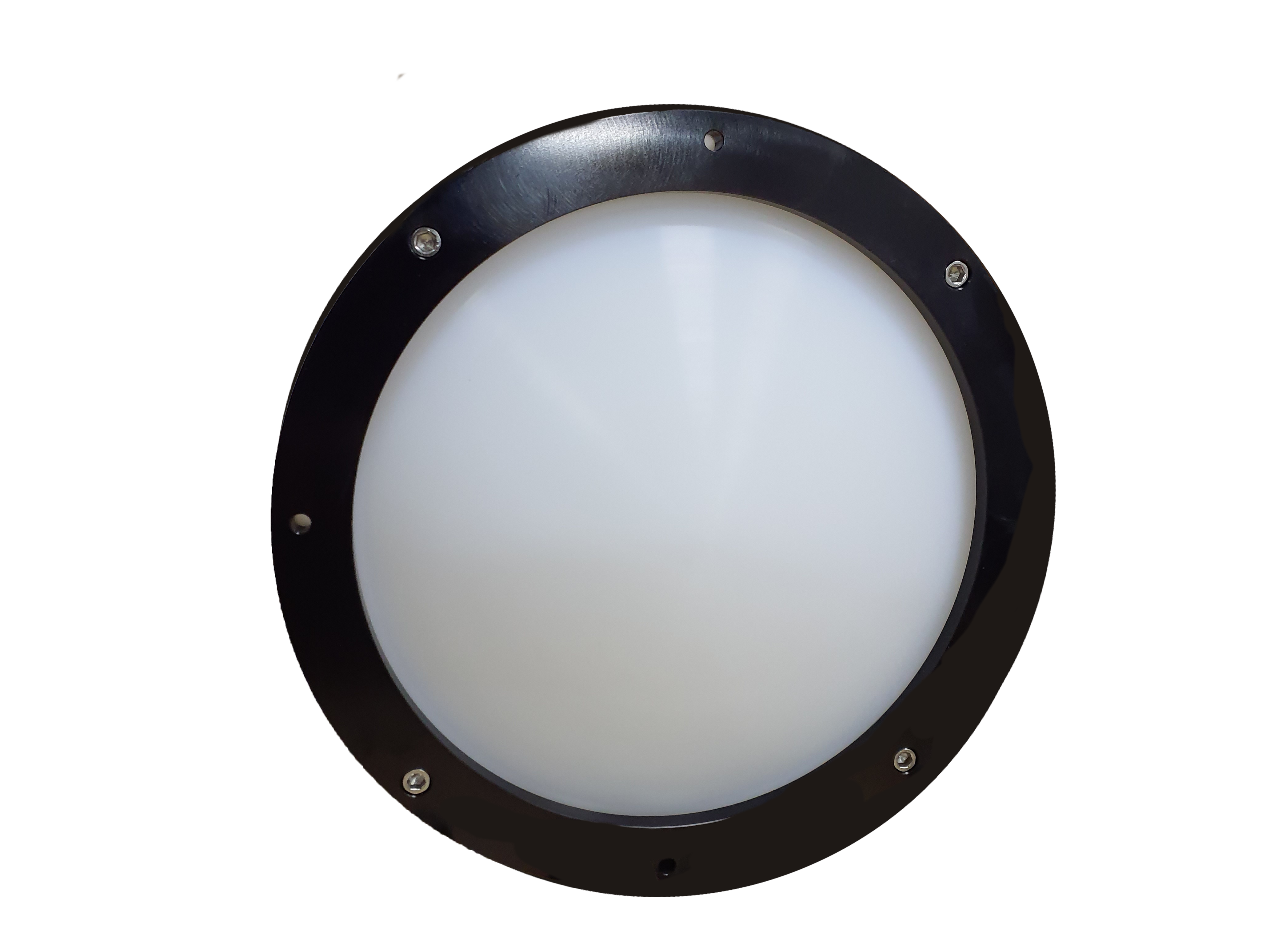

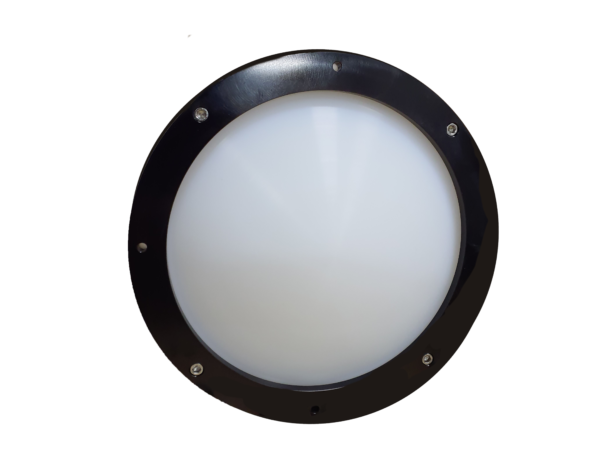

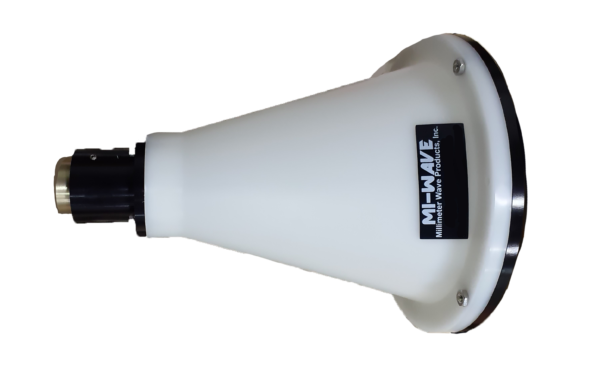

Mi-Wave’s 258 Series horn lens antenna consists of a circular scalar feed horn illuminating a piano-convex lens. Housed in either aluminum or plastic, these horn lens antennas provide a high-efficiency beam with equal E and H plane amplitude patterns.

Circular Waveguide Internal Diameter and Frequency Range

XXX=.141 = 60.0-68.0 GHz
XXX=.125 = 68.0-77.0 GHz
XXX=.110 = 77.0-87.0 GHz
XXX=.094 = 87.0-90.0 GHz


• Low Cost

• High Directivity and Gain

• Simple Mechanical Performance

• Wide Range of Available Beamwidths and Reflector Size


• Radar & Telemetry Systems

• Radio Astronomy

• Surveillance Equipment

• Communication Systems

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
