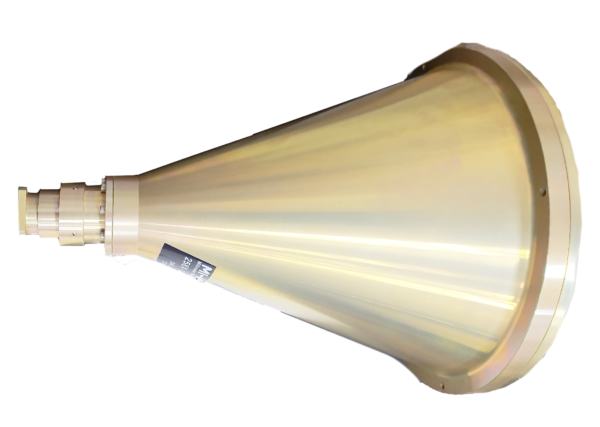

X-Band Waveguide Horn Lens Antenna

258X-12/.XXX/39, 8.2GHz – 12.4GHz WR-90, UG-39

Description:

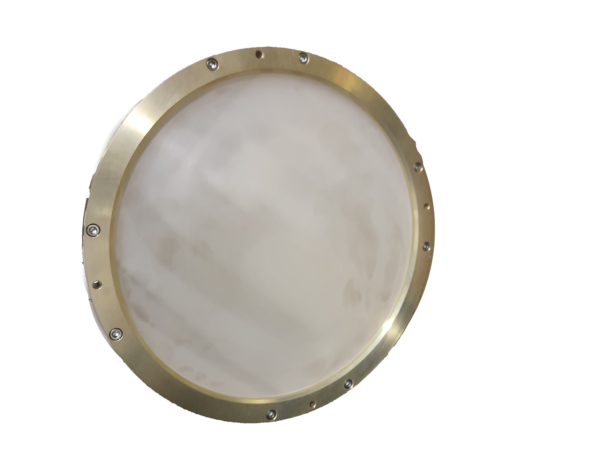

Mi-Wave’s 258 Series horn lens antenna consists of a circular scalar feed horn illuminating a piano-convex lens. Housed in either aluminum or plastic, these horn lens antennas provide a high-efficiency beam with equal E and H plane amplitude patterns.

Circular Waveguide Internal Diameter and Frequency Range

.XXX=1.094 = 8.2-9.97 GHz
.XXX=.938 = 8.5-11.6 GHz
.XXX= .797 = 9.97-12.4 GHz

Features

• Low Cost

• High Directivity and Gain

• Simple Mechanical Performance

• Wide Range of Available Beamwidths and Reflector Size

Applications

• Radar & Telemetry Systems

• Radio Astronomy

• Surveillance Equipment

• Communication Systems

Outline Drawing

Plot Data- ID 1.094

Plot Data- ID 0.920

*All data presented is collected from a sample lot.

* Actual data may vary unit to unit, slightly.

*All testing was performed under +25 °C case temperature.

*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.

*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
