Mi-Wave’s Ku-Band Horn Antennas | WR-62 | 12.4 – 18 GHz are created with the end consumer in mind. We know you need and demand the absolute best when it comes to ku-band horn antennas and look to provide you with the best solutions possible. Some of the highlights of our ku-band horn antennas are:
• Nominal Gain of 25 dB
• Made with precise dimensional tolerance control
• Gain calibration is accurate to 0.5 dB over full waveguide bandwidth
• Other gain values available upon request (ex: 10, 15, 20, etc.)
• Many other WR Sizes available
We can customize horn antennas for all your needs.
Ku-Band Horn Antennas | WR-62 | 12.4 – 18 GHz
If you are looking for ku-band standard gain horn antennas, then you’ve come to the right place. At Millimeter wave products Inc. (Mi-Wave) we specialize in manufacturing the highest quality standard gain horn antennas for many needs.
What makes our standard gain horns the preferred choice?

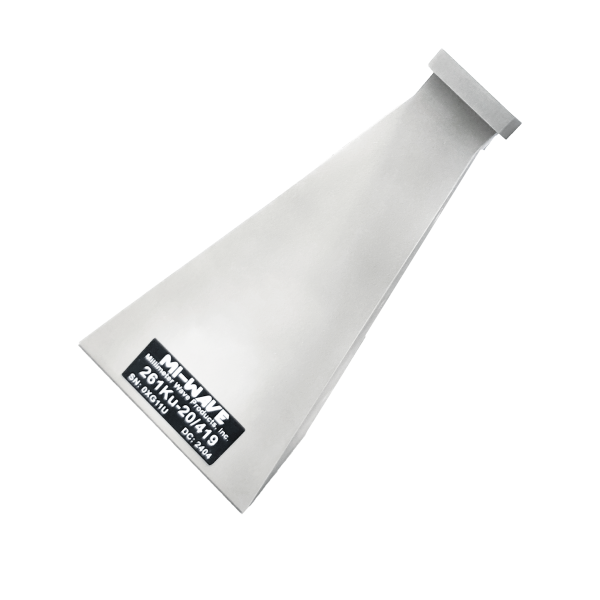

Mi-Wave’s 261 ku-band Series standard gain horn antennas are fabricated with very close tolerances to ensure the precision of every horn manufactured by Mi-Wave. Each unit is joined to a short section of rectangular wave-guide and terminated in a standard flange. This is critical when you need the best quality millimeter wave products all doing their part in your application.
View other Frequency Bands
Find the frequency band you’re interested in for more specific horn antenna information.
FAQ’s for our Ku-Band Horn Antennas
(click to view)
The gain increases with frequency, which is typical for aperture antennas. However, the curve shows saturation at higher frequencies.
This is due to the decrease of the aperture efficiency, which is a result of an increased phase difference in the field distribution at the aperture.
Hence with formula when we see 0.5 degree change but practically it is not at higher frequency. Aperture efficiency of pyramidal horn is 0.511.
First set (PHI = 90): H-plane cut
Second set (PHI =0 ): E-plane cut
The data for the standard gain horns is provided in far field.
