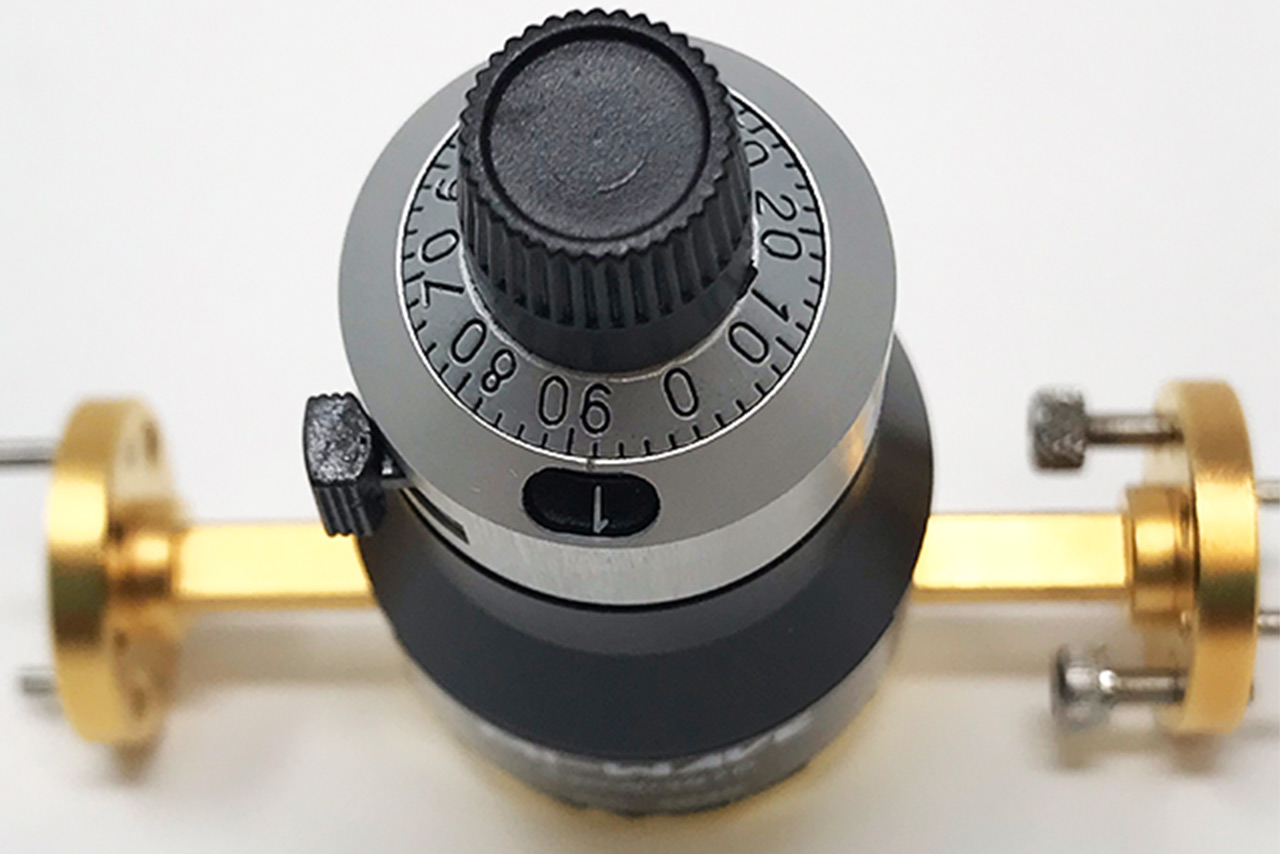

75 – 110 GHz, Dial-Type Variable Waveguide Attenuator

520W/387 Uncalibrated, WR-10, Power Handling 0.1 Watts

Description:

Mi-Wave’s 520 Series Uncalibrated Variable Attenuators and 522 Calibrated Attenuators are available in standard waveguide sizes from 8 to 220 GHz. The attenuating element in each unit provides a variable attenuation, from 0 dB to 25 dB minimum. Precision-designed internal controls are accurately contoured to provide a low bilateral VSWR and minimum variation of attenuation with frequency. Higher power handling versions (see datasheet) if available.

Features

• Dial Driven

• Low Cost

• Compact, Mechanically Stable Design

• Wide Range of Attenuation Values

• Smooth, Spring-loaded Setting Control

Applications

• Instrumentation

• Manual Test Setups

Outline Drawing
Test Datasheet
High Power Test Data
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

Calibrated & Uncalibrated Waveguide Attenuators

The 520/522 Series Variable Attenuators are useful in applications that require a reliable level setting or isolating pad. They provide maximum accuracy in establishing initial power levels in substitution-method attenuation measurements. Designed to maintain reliable performance for accurate test measurements, the stable setting control of these devices maintains constant attenuation under all normal conditions of vibration and orientation.
