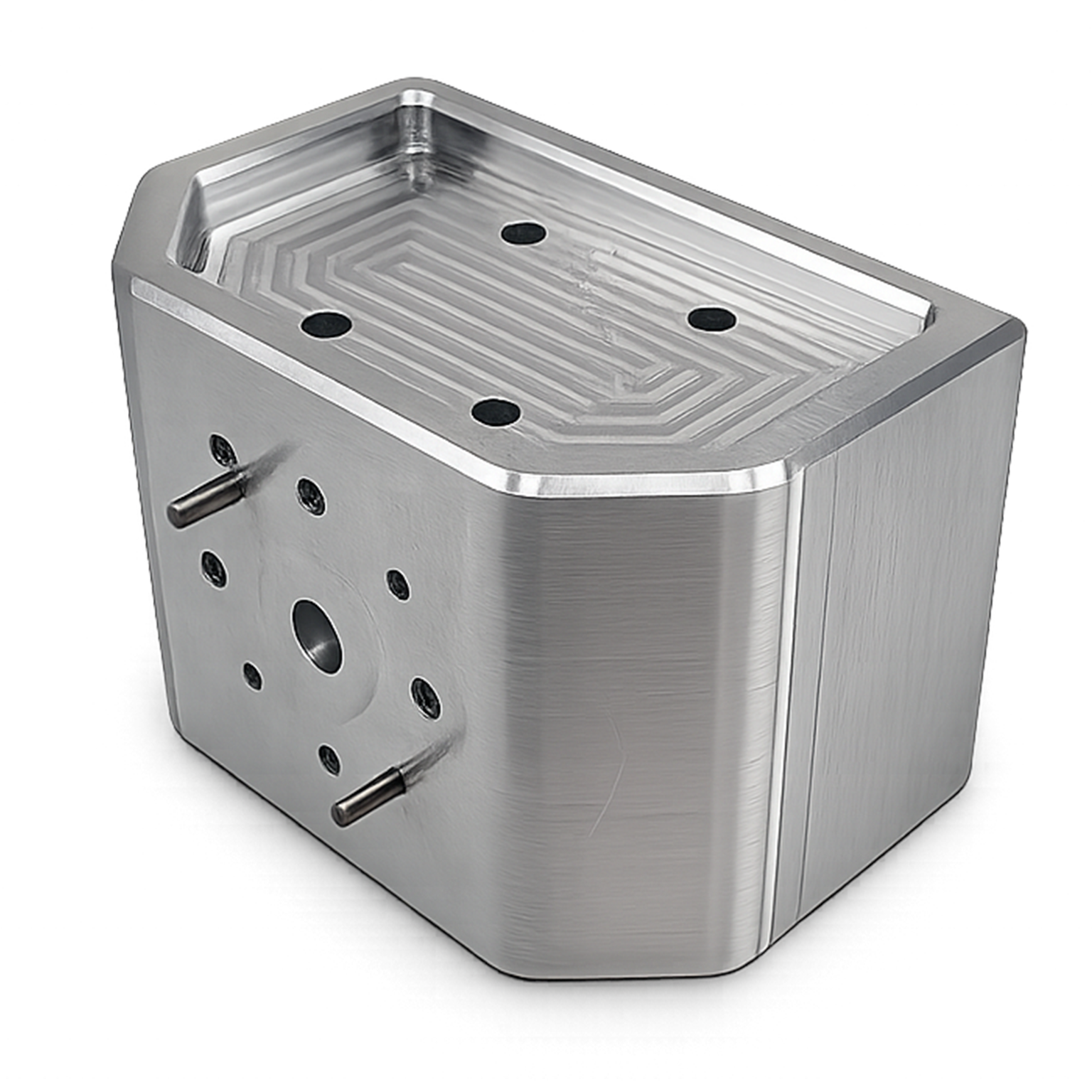

WR-22 Wideband Orthomode Transducer

Glossary of Orthomode Transducer Terms

OMT Fundamentals

Orthomode Transducer (OMT)
A waveguide device that separates or combines two orthogonal linearly polarized RF signals.

Dual Polarization
The use of two orthogonal polarization channels to transmit or receive separate signals simultaneously.

Linear Polarization
A signal polarization in which the electric field remains in a single plane.

Orthogonal Polarizations
Two polarization states positioned 90 degrees apart, commonly used to carry independent RF signals.

Polarization Isolation
The degree of separation between two polarization channels, typically measured in dB.

Polarization Discrimination
The ability of an OMT or RF system to distinguish between desired and undesired polarization states.

Polarization Purity
A measure of how cleanly a device maintains the intended polarization with minimal leakage into the orthogonal channel.

Cross-Polarization
Unwanted RF coupling from one polarization channel into the orthogonal channel.

Co-Polarization
The desired polarization state aligned with the intended signal path.

RF Performance

Insertion Loss
The amount of signal power lost as it passes through a component.

VSWR (Voltage Standing Wave Ratio)
A measure of impedance matching between RF components and transmission paths.

Isolation
The degree to which one signal path is isolated from another, reducing unwanted coupling.

Return Loss
A measure of reflected signal power caused by impedance mismatch.

Broadband Operation
The ability of a component to operate effectively over a wide frequency range.

Bandwidth
The span of frequencies over which a component maintains acceptable performance.

Operating Frequency Range
The specified minimum-to-maximum frequency span in which a device is designed to function properly.

Amplitude Balance
The difference in output magnitude between two signal paths or polarization channels.

Phase Balance
The difference in phase between two signal paths or channels, important in balanced RF systems.

Signal Integrity
The preservation of signal quality, amplitude, phase, and polarization through a system.

Impedance Matching
The practice of matching component impedances to minimize reflections and maximize power transfer.

Port-to-Port Isolation
The amount of RF separation between one port and another within a multi-port device.

RF Hardware

Waveguide
A metallic transmission structure used to guide microwave and millimeter-wave signals with low loss.

Rectangular Waveguide
The most common waveguide type in microwave systems, defined by standard WR sizes.

Common Port
The waveguide port through which the combined dual-polarized signal enters or exits the OMT.

Orthogonal Ports
The two separate ports used to access the independent polarization channels of an OMT.

Waveguide Interface
The mechanical and electrical connection surface used to join waveguide components.

Waveguide Flange
The mounting and alignment structure used to connect one waveguide section to another.

Full Bandwidth
Operation across the full standard frequency range associated with a given waveguide size.

Diplexer
A device that separates or combines signals so that multiple channels can share a common path.

Antenna Feed System
The RF structure that transfers energy between an antenna and connected transmission components.

Feed Horn
A horn antenna used to illuminate a reflector or receive incoming energy in an antenna system.

Feed Network
The group of RF components that distributes signals between an antenna and the rest of the system.

RF and Frequency Concepts

Radio Frequency (RF)
Electromagnetic energy used for wireless communication, radar, sensing, and measurement.

Microwave Frequencies
Frequencies generally spanning 1 GHz to 30 GHz.

Millimeter-Wave (mmWave)
Frequencies from 30 GHz to 300 GHz used in advanced communications, radar, and sensing systems.

Frequency Band
A defined portion of the RF spectrum such as X-Band, Ku-Band, Ka-Band, or W-Band.

Center Frequency
The midpoint of an operating frequency range.

Cutoff Frequency
The lowest frequency at which a waveguide mode can propagate.

Propagation Mode
A specific electromagnetic field pattern that exists within a waveguide structure.

TE Mode (Transverse Electric)
A propagation mode in which the electric field is entirely transverse to the direction of travel.

Dominant Mode
The primary and lowest-order propagation mode in a waveguide, typically the most efficient operating mode.

Applications and Systems

Radiometer
An instrument that measures electromagnetic energy, often used in remote sensing and scientific observation.

Satellite Data Transmission
The transfer of digital communication signals between satellites and ground-based systems.

Satellite Television Broadcasting
Distribution of television signals through satellite communication systems.

Military Radar System
A radar platform used for detection, tracking, surveillance, or targeting in defense environments.

Telecommunications Antenna
An antenna used in communication systems for transmitting and receiving RF signals.

Instrumentation
RF and microwave equipment used to measure, test, and evaluate signal behavior and system performance.

Satcom (Satellite Communications)
Communication systems that use satellites to relay data, video, voice, or telemetry signals.

Ground Terminal
A terrestrial station used to communicate with a satellite system.

Payload
The communications or sensing subsystem carried onboard a satellite.

Transceiver Chain
The sequence of components used to transmit and receive RF signals.

Point-to-Point Link
A direct communication path between two RF terminals or stations.

Polarization Multiplexing
A technique that uses two orthogonal polarizations to carry separate signals and increase channel capacity.

Measurement and Testing

Network Analyzer
An instrument used to measure RF parameters such as insertion loss, return loss, and isolation.

S-Parameters (Scattering Parameters)
A set of RF measurements used to describe how energy enters, exits, and reflects within a network.

S11
The input reflection coefficient, commonly used to evaluate return loss and impedance match.

S21
The forward transmission coefficient, commonly used to evaluate insertion loss.

S31 / S41
Transmission parameters often used in multi-port devices to evaluate coupling and isolation between other ports.

Calibration
The process of verifying measurement accuracy using known standards.

Test Fixture
A mechanical or electrical setup used to connect a component during RF measurement.

Measurement Uncertainty
The estimated range within which the true measured value is expected to lie.

Advanced System Behavior

Cross-Coupling
Unintended signal transfer between channels or ports.

Mode Conversion
The unwanted transformation of one waveguide mode into another, which can degrade performance.

Higher Order Modes
Propagation modes above the dominant mode that can introduce distortion or unpredictable RF behavior.

Phase Stability
The ability of a device to maintain consistent phase performance over time and conditions.

Thermal Stability
The ability of a device to maintain consistent RF performance as temperature changes.

Mechanical Tolerance
The allowable dimensional variation in a component while still maintaining proper fit and performance.

Precision Machining
Manufacturing with tight tolerances to support consistent RF performance.

Compact Integration
The ability to fit a component into space-constrained RF or antenna systems without sacrificing performance.
