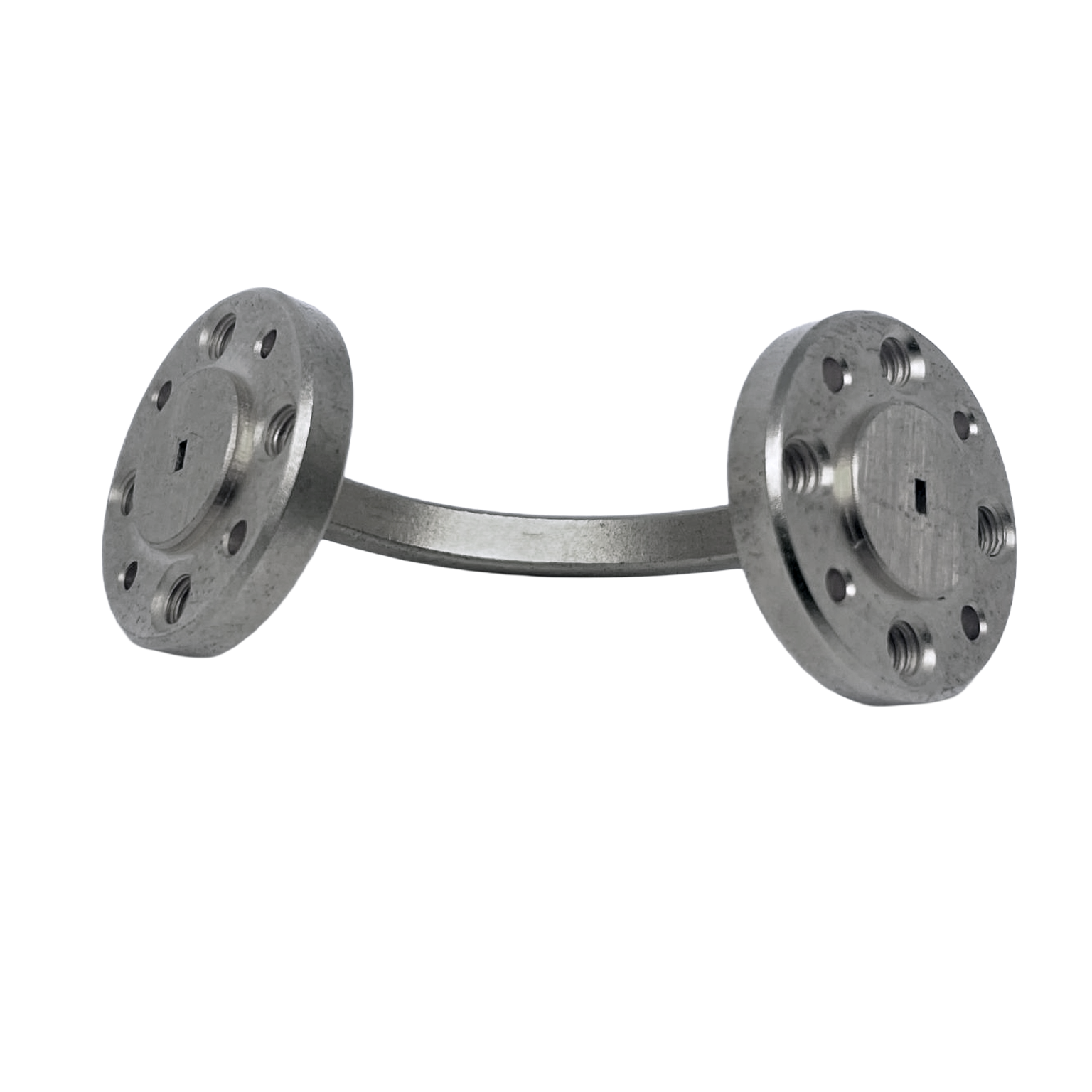

D-Band Waveguide Bend | E-Plane

660D/387, 110GHz – 170GHz WR-6, UG-387/U-M

Note: Customer can purchase a custom configuration or dimension. Please consult with the factory.


Mi-Wave’s 660, 661, 662 Series E-plane Bends are sections of high precision waveguide accuratetaped to either 30º (661), 45º (665), 60º
(662), or 90º (660) bends. Special angles, radii, and configurations for a particular application can be developed in a special order. All E-plane Series Bends are available from 12.4 to 320 GHz.

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
