50 – 75 GHz, Wide-band Balanced Mixer

970V-980V, WR-15, RF to IF Conversion Loss 8 dB

Description:

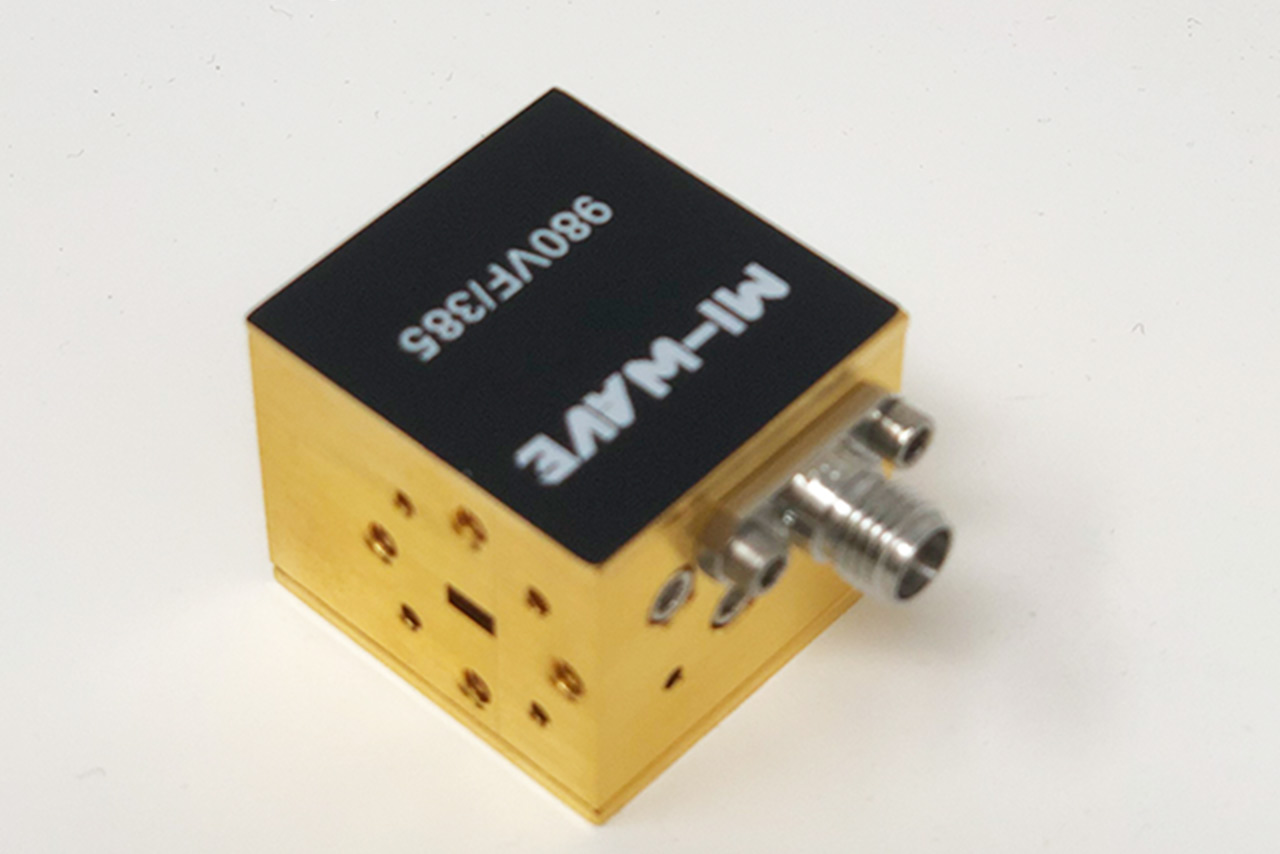

Mi-Wave’s 970 Series balanced mixer down-converters have been designed to cover extremely wide RF bandwidths for EW/ELINT applications. Biased mixers with lower LO drive available.

Mi-Wave’s 980 Series balanced mixer up-converters have been designed to cover extremely wide RF bandwidths for EW/ELINT applications. Biased mixers with lower LO drive available.

Features

• Low Conversion Loss

• Wide IF Freq. to 30GHz

• Compact Size

Applications

• Test & Measurement

• Mobile & Satellite Communications

• Radar Systems

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

Wide-Band Balanced Mixers

Balanced Mixers down-converters millimeter-wave signals to broad IF bandwidths with a local oscillator. These mixers are available for frequencies between 18 – 110 GHz in seven waveguide bands. Mi-Wave Balanced Mixers operate over very broad RF, LO, and IF bandwidths.

For fixed LO frequency applications, Mi-Wave can provide a very wide IF range.
